Roadvision 7" LED Driving Light STEALTH PRO SERIES 10-30V
Roadvision 7" LED Driving Light STEALTH PRO SERIES 10-30V
SKU:RDL6701SD
Couldn't load pickup availability
Share
PRODUCT DETAILS

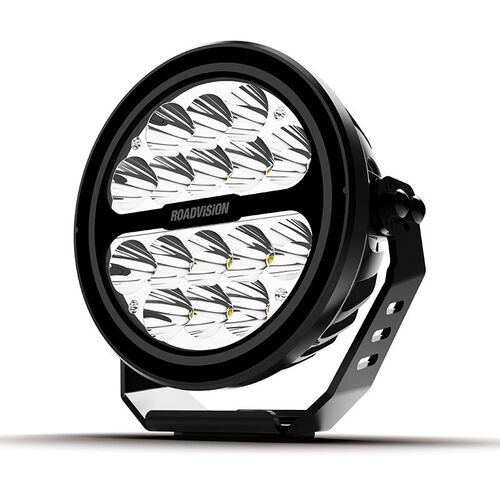

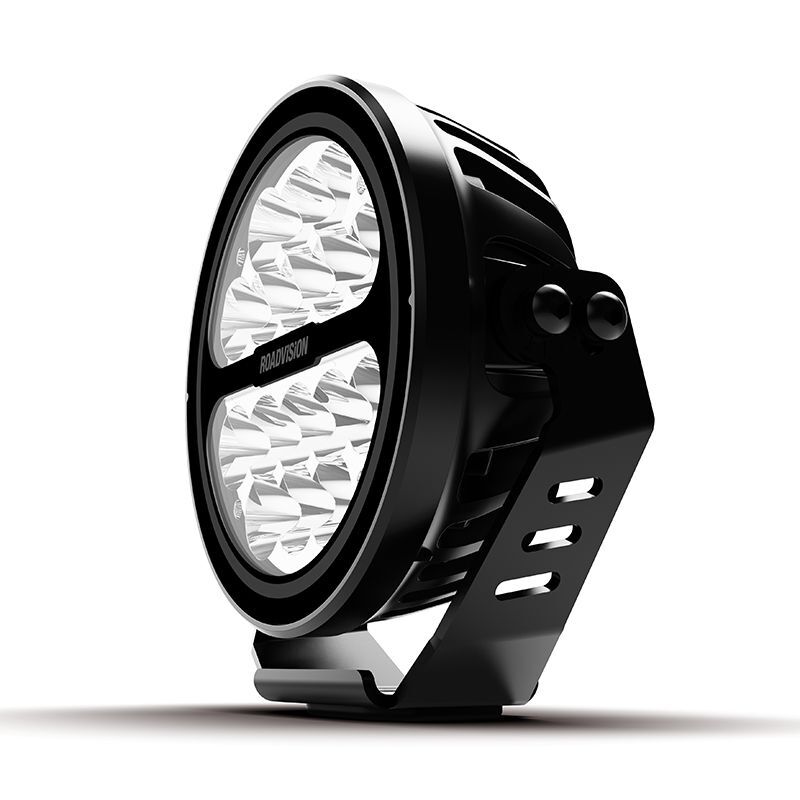

Roadvision 7" LED Driving Light STEALTH PRO SERIES 10-30V
The Roadvision Stealth PRO Series Driving Lights combine sleek, modern design with powerful performance. Featuring a bezel-less look and dynamic Daytime Running Lights (DRL), these lights have a stylish black cover with a dedicated DRL window. When turned off, the DRL darkens for a clean, streamlined appearance. Each light delivers up to 10,485 lumens and a beam reach of 912 metres at 1 lux. Built with a lightweight yet tough aluminium housing and a durable polycarbonate lens, the Stealth PRO Series is designed to withstand the harshest conditions. Powered by Roadvision’s Thermal Management Technology, these lights ensure superior performance and long-lasting durability in any environment.
![]()
THERMAL MANAGEMENT TECHNOLOGY
![]()
HALO DRL RING
![]()
MULTI-VOLT
10-30 VDC
![]()
POLYCARB LENS
![]()
COLOUR TEMP
![]()
IP PROTECTION
![]()
OVER/UNDER VOLTAGE PROTECTION
![]()
DEUTSCH CONNECTOR
![]()
REVERSE POLARITY PROTECTION

OSRAM LEDS
![]()
RADIO INTERFERENCE APPROVED
![]()
7 YEAR WARRANTY
RANGE FEATURES
- Stealth PRO Series 7″ and 9” Driving Light
- Dynamic start-up DRL

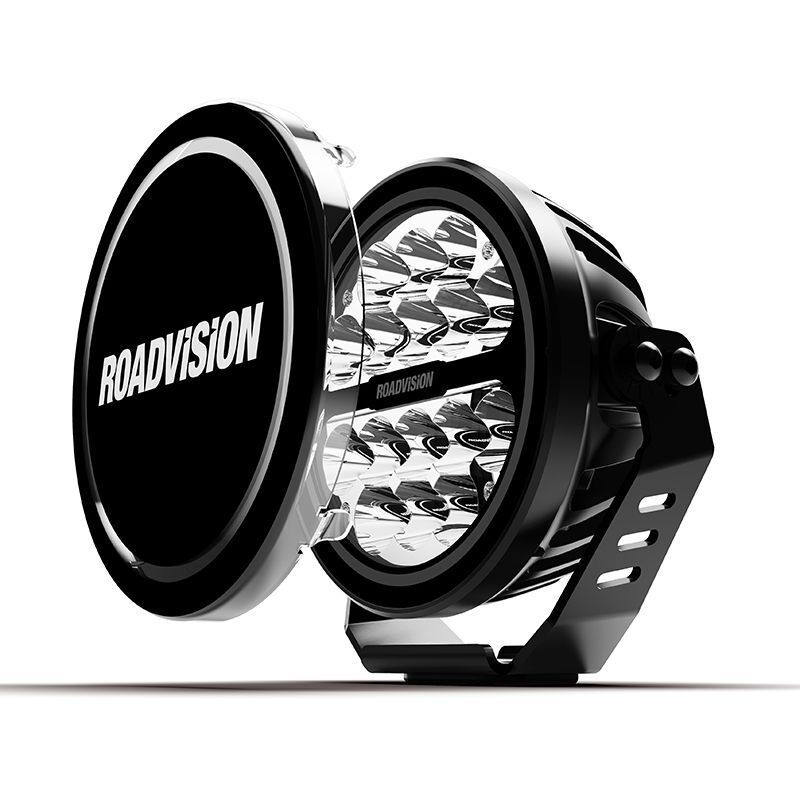

- Includes Black cover with DRL windows
- Blackout mounting hardware
- 3W Osram LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal Management Technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- IP68 & IP69K protection
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection
- EMI/EMC radio interference approved
| Part Number | RDL6701SD |
|---|---|
| Description | 7” LED Driving Light 10-30V Round 68W Spot Beam |
| Beam Pattern | Spot |
| Maximum Lumens per Light (pair) | 5,130lm (10,260lm) |
| Maximum Lux @ 10m per Light (pair) | 3,978lx (7,956lx) |
| Maximum Beam Distance @ 1lx per Light (pair) | 631m (892m) |
| Input Voltage | 10-30VDC |
| Maximum Watts | 68W |
| Number of LEDS | 16 x 3W Osram |
| Current Draw @ 13.8V | 4.95 Amps |
| Lens Construction | Polycarbonate |
| Housing Construction | Die-Cast Aluminium |
| Wiring | 2 Pin Deutsch Plug |
| Dimensions AxBxC | 192 x 78 x 195mm |
