Projecta

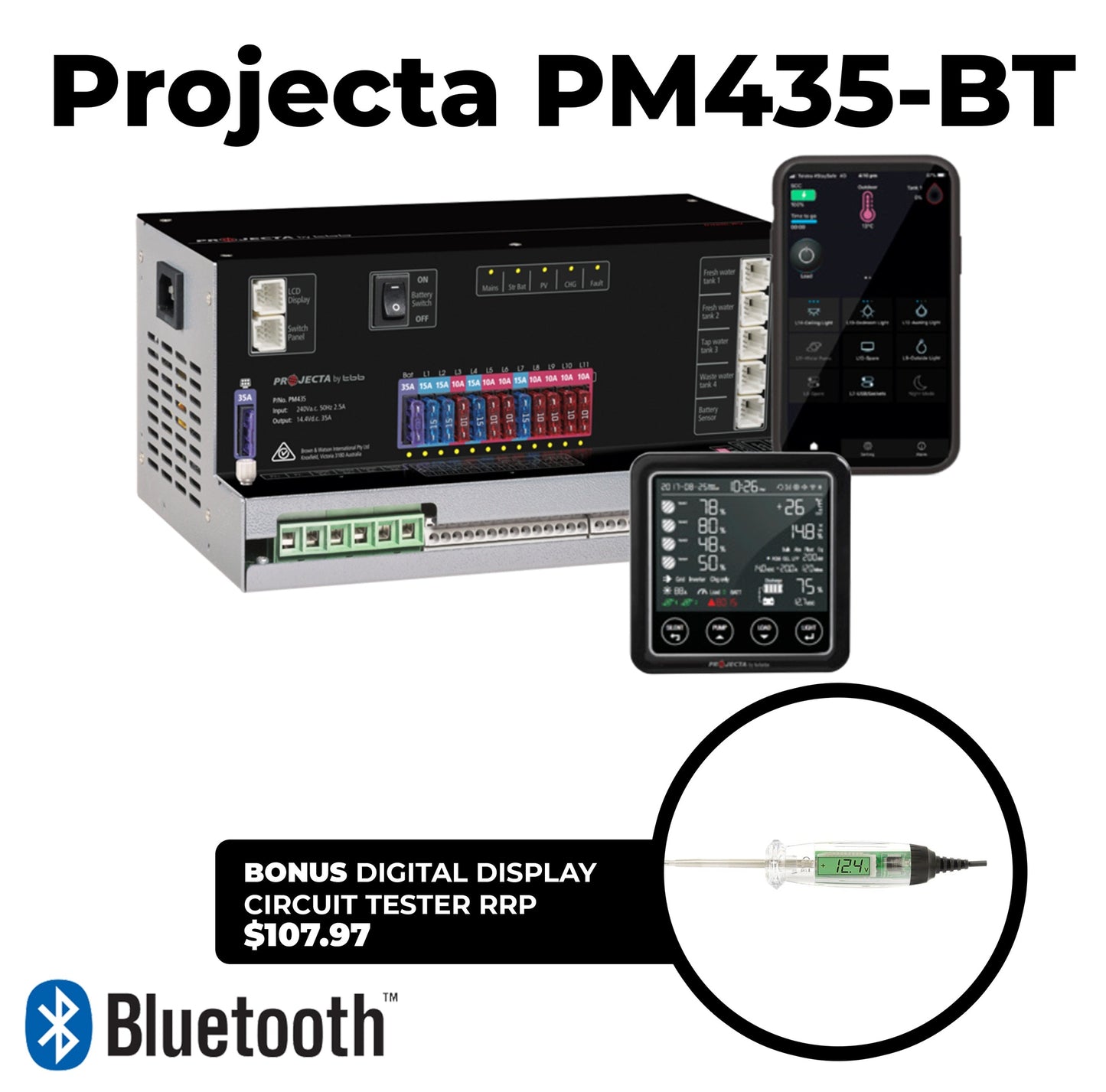

PROJECTA PM435-BT
PROJECTA PM435-BT
SKU:PM435-BT
Couldn't load pickup availability
Share
PROJECTA PM435-BT + BONUS DIGITAL DISPLAY CIRCUIT TESTER
OUT OF STOCK - ITEM HAS BEEN REPLACED BY A NEW MODEL COMING 2025 - PLEASE CONTACT US FOR MORE DETAILS
Projecta is pleased to announce the addition of PM435-BT to its award winning INTELLI-RV range of power management systems. In response to popular demand from manufacturers, the new model offers the functionality of Projecta’s flagship PM400 system, without the central and bedroom light switch panels included, allowing manufacturers to utilise their own switch hardware instead. This presents a cost saving over the PM400 for installers who do not need these switches included in their kit.
COMPONENT LIST - What's in the box?
PM435 - 12V 30A Charger & 35 Amp Power Supply, 30A MPPT Solar Controller, Dimmable Lights
PMLCD-BT - LCD Display with Bluetooth to Suit PM435 & PM335
PMLCDC - 5m Cable to Suit LCD Screen
PM4Y - CY Connection to Suit PM4SW10C & PM4TS
PM4SW10C - 4.5m Cable to Suit 10 Position Switch Panel (PM4SW10)
PM4TS - Temperature Sensor w/ 5m Cable to Suit PM400
PMBS - Battery Sensor with 3m of Cable
PMAC - AC Power Cord, 1.5m
PM435 WIRING UNIT DIMENSIONS
266mm (L) x 165mm (W) x 129mm (H)
SPECIFICATIONS
12V 30A Charger
35A Power Supply
30A MPPT Solar
100A DC VSR
11 Fused Outputs
LCD/Bluetooth® Control
Remote Switch Panels
