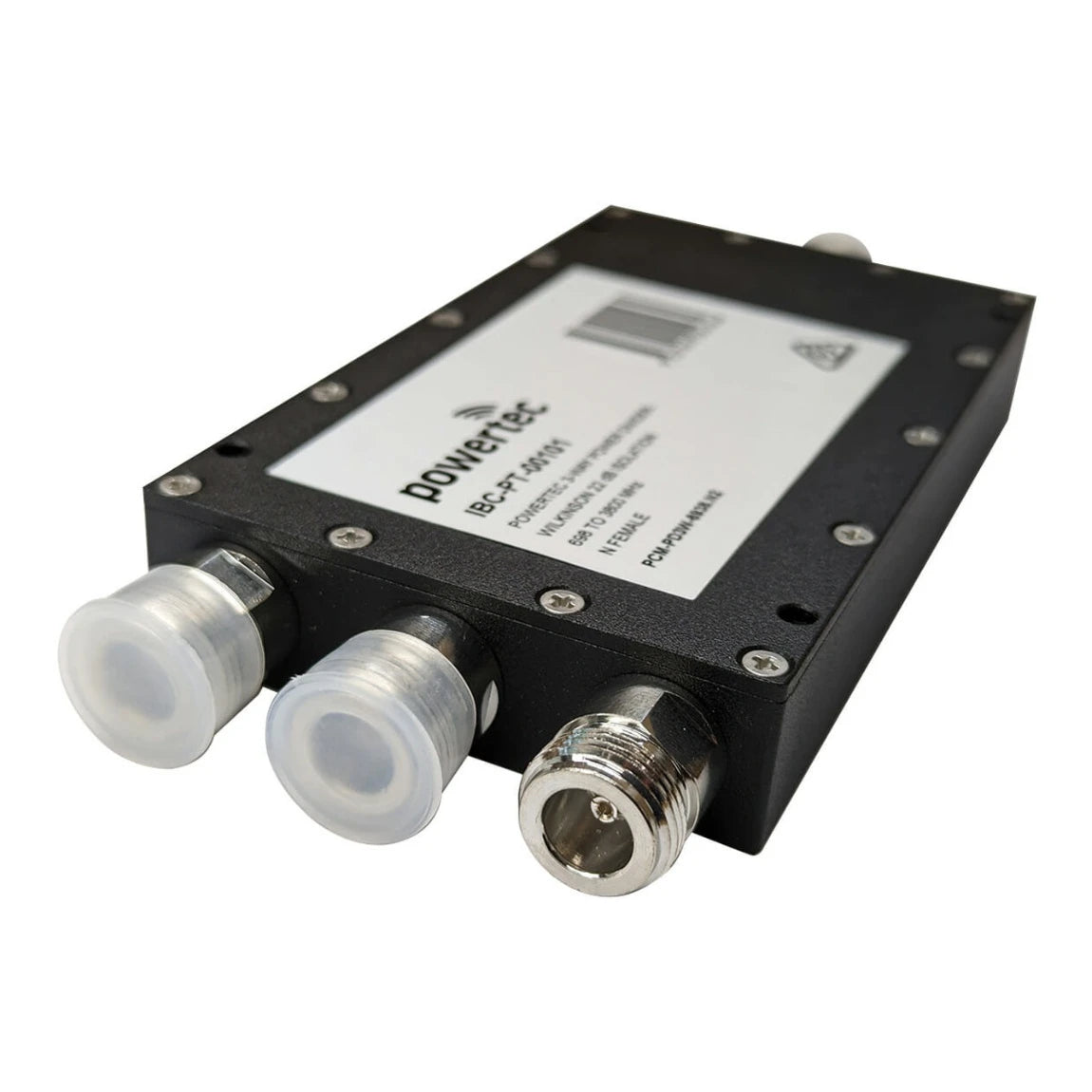

Powertec RF Power Divider 3-Way, 698 to 3800 MHz, N Female, Wilkinson, 18dB isolation

Powertec RF Power Divider 3-Way, 698 to 3800 MHz, N Female, Wilkinson, 18dB isolation

Product overview:

The Powertec RF Power Divider 3-Way is engineered to split one RF input signal into three balanced outputs across the 698 to 3800 MHz range. Built for telecommunications environments, it features N Female connectors and a Wilkinson design to ensure low-loss, high-isolation signal delivery with consistent impedance matching across ports.

Features:

• Wide Frequency Range: Operates from 698 to 3800 MHz, supporting multiband RF systems.
• Three-Way Power Division: Splits input signal into three outputs with balanced performance.
• High Isolation: Provides 18 dB isolation to prevent signal interference between output ports.
• Low Insertion Loss: Wilkinson design reduces reflection and preserves signal strength.
• N Female Connectors: Enables stable, low-PIM connections across commercial setups.
• Optimised Signal Matching: Maintains excellent impedance balance for maximum efficiency.
• Robust Build Quality: Suitable for commercial and industrial RF applications.
• IP60 Enclosure Rating: Offers dust ingress protection for safe indoor installation.

Designed for use in distributed antenna systems and in-building coverage solutions, this power divider delivers stable, high-quality RF performance in demanding deployments.
