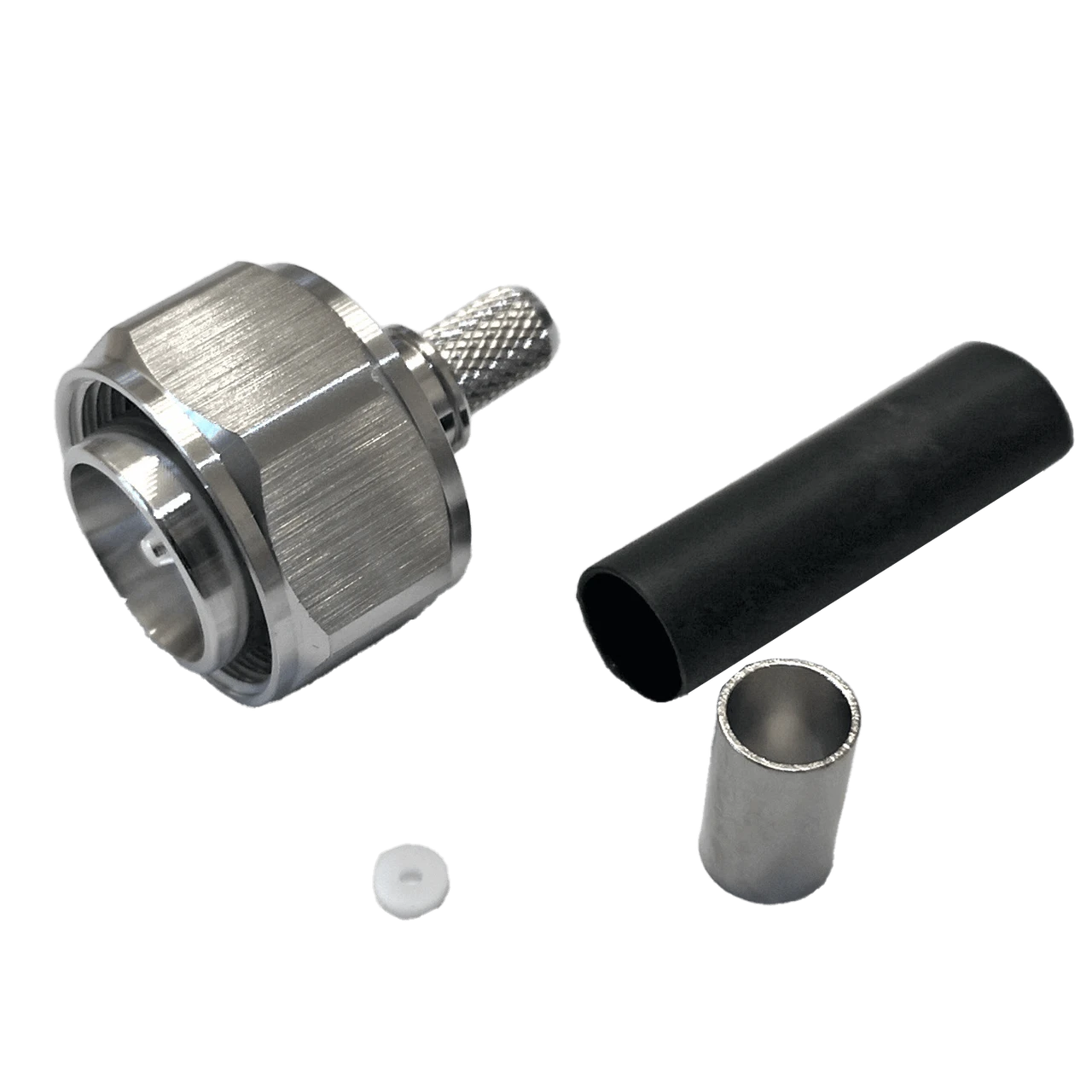

Powertec 4.3-10 Male Connector for L-240 Coaxial Cable

Powertec 4.3-10 Male Connector for L-240 Coaxial Cable

IBC-PT-00020

$23.00 AUD
$23.00 AUD
-Liquid error (snippets/price line 117): divided by 0% OFF Sold out
Taxes included. Shipping calculated at checkout.

Powertec 4.3-10 Male Connector for L-240 Coaxial Cable

Product overview:

The 4.3-10 Male Connector for L-240 Coaxial Cable is for use with LMR-240 low-loss coaxial cable. 4.3-10 RF connectors are designed to meet the extreme demands of 4G and 5G antenna equipment, supporting SINR-sensitive applications, very high order modulation schemes, wide aggregated bandwidths, and extended operating bands up to 6 GHz. This captivated-style 4.3-10 Male connector terminates L-240 series coaxial cables, such as LMR-240. The connector is weatherproof when mated with an IP65 female connector.

4.3-10 connectors are used in conjunction with LMR-240 cables in order to connect cellular 4G modems to modern 4G / 5G external antennas.  A range of telemetry antennas use 4.3-10 connectors due to their rugged durability and ingress protection rating.

The connector's inner conductor mates with the coaxial using a captivated contact - no soldering / hot work is required. A standard 0.255" hex tool is used to crimp the outer conductor to the L-240 cable using the supplied crimp ferrule.
