Nextivity CEL-FI GO G41 Building Wideband LPDA inc. Wall Mount

The Nextivity CEL-FI GO G41 Building Wideband LPDA inc. Wall Mount is a cutting-edge in-building cellular coverage solution designed to tackle even the toughest signal challenges. This powerful unit offers unparalleled performance with its advanced features, making it an ideal choice for enhancing cellular coverage in large indoor spaces. Equipped with the latest 4th generation IntelliBoost chip, the G41 provides up to 100 dB of gain, ensuring superior voice and data connectivity across networks.

Key Features:

• 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
• 3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but is currently not enabled or approved)
• Carrier Switching using WAVE App between Telstra, Optus or Vodafone - one carrier at a time
• Up to 3000 m2 coverage area
• Two bands simultaneous relay
• Total System Relay Bandwidth - Up to 40 MHz
• Remote Monitoring, Control and Alert Capabilities via WAVE Portal (for approved installers)
• Ethernet Port for connection to internet source for live monitoring

Cutting-Edge Technology and Versatility

The GO G41 supports a wide range of frequency bands and network protocols, including GSM, WCDMA, LTE, DSS, and NR, making it versatile enough to handle multiple network environments. It features dual relay bands with up to 40 MHz of total relay bandwidth, and is network safe, preventing interference with mobile network operators (MNOs). This ensures seamless integration and improved performance across various network types.

Optimised Coverage and Performance

Designed for both current and future needs, the G41 is capable of providing extensive coverage in large areas, up to 3000 m². It operates on multiple frequency bands (1, 3, 5, 7, 8, 20, 28L, 28U, and 40), and supports both FDD and TDD duplex modes. The device's automatic gain control (AGC) feature adjusts signal strength to maintain optimal performance while avoiding interference.

Easy Installation and Management

Setting up the CEL-FI GO G41 is straightforward and user-friendly. The unit can be quickly installed using the included wall mount and comes with all necessary accessories, including antennas and power supply. For ongoing management and monitoring, users can utilise the Nextivity WAVE App and WAVE Portal, which offer real-time performance insights and remote control capabilities.

Comprehensive Compliance and Environmental Specifications

The G41 meets rigorous compliance standards, including CE, RED 2014/53/EU, and RoHS3, ensuring it adheres to global safety and environmental regulations. It operates within a temperature range of 0 to 40 °C and features passive convection heat dissipation, making it suitable for various indoor environments. The device also has a non-condensing humidity rating of 0 to 95%.

Enhanced Connectivity Options

For added convenience, the G41 includes an Ethernet port for internet connectivity, enabling live monitoring and remote management. This feature enhances the flexibility of the device and allows for more precise control and diagnostics.

Product Packaging and Details

The CEL-FI GO G41 kit includes the main unit, donor and server antennas, coaxial cables, an Ethernet cable, and a power supply. The unit is compact and lightweight, with dimensions of 266.7 × 106.7 × 55.9 mm and a weight of 1.0 kg, ensuring it fits easily into various installation environments.

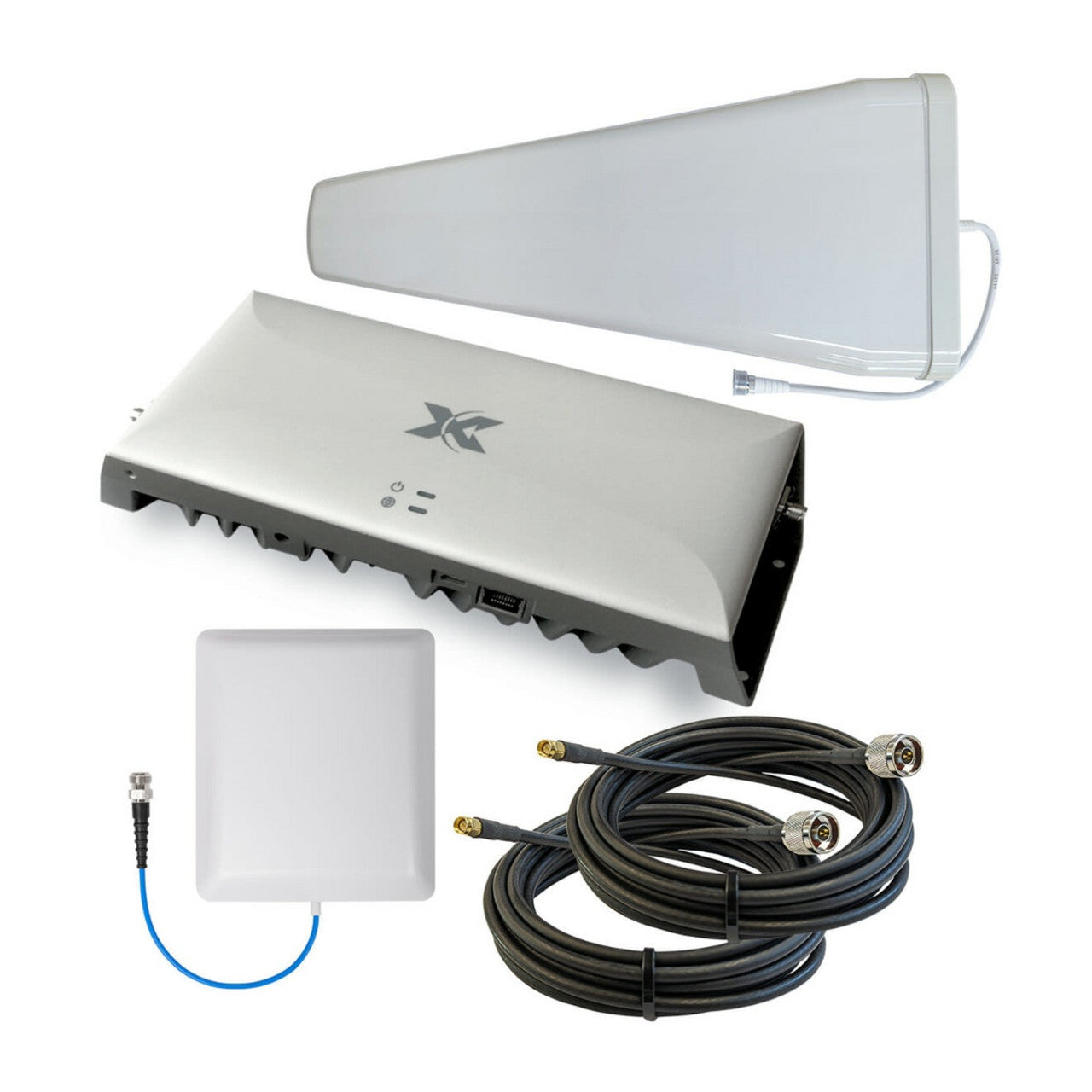

Pack Includes:

• Nextivity CEL-FI GO G41-JE - Switchable between Telstra, Optus and Vodafone-TPG (one carrier at a time)
• Wall Mount 698-4000MHz Panel Antenna -150dBc PIM
• Wideband LPDA 698-4000MHz
• PTL-240 10m + 6m Coaxial Cable N male to SMA Male
• 1m Ethernet cable
• 240v Power Supply
