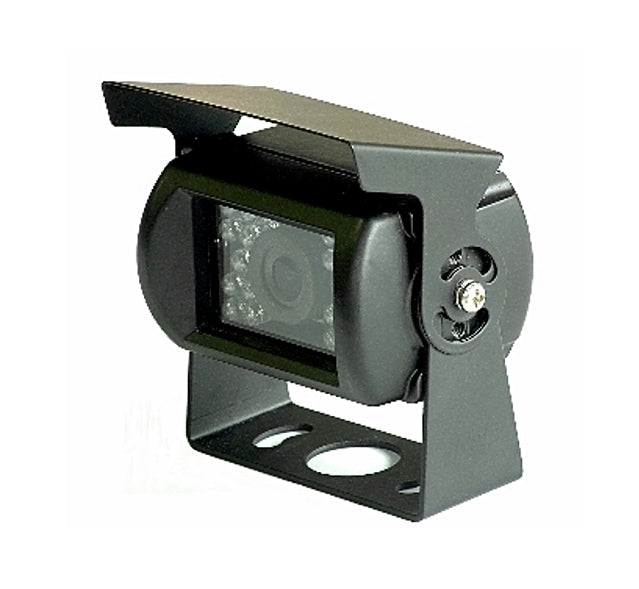

Mongoose MC6PA/MC6NA Heavy-Duty Reversing Camera with Audio

Mongoose MC6PA/MC6NA Heavy-Duty Reversing Camera with Audio

Product Overview:

Improve rear visibility while capturing ambient sound with the Mongoose MC6PA/MC6NA Heavy-Duty Reversing Camera. Its durable metal housing, built-in microphone and infrared night vision make it suitable for demanding automotive, commercial and industrial applications.

Available in PAL and NTSC versions, the camera connects to compatible monitors and vehicle recording systems through a heavy-duty four-pin aviation connector.

Model Options

• MC6PA: PAL video system
• MC6NA: NTSC video system

Key Features

• Heavy-duty metal camera housing
• Built-in microphone for audio monitoring
• Sony CCD image sensor
• 420TVL video resolution
• Infrared night vision with 18 IR LEDs
• Adjustable surface-mount U-bracket
• Sunshield for protection from glare and rain
• IP69K-rated water and dust protection
• 4G vibration resistance
• Heavy-duty four-pin aviation connector
• Designed for 12V vehicle systems

Specifications

• Resolution: 420TVL
• Image sensor: Sony CCD
• Viewing angle: 90° horizontal, 70° vertical and 100° diagonal
• Minimum illumination: 0.1 lux
• IR LEDs: 18
• Working voltage: 12V DC
• Video system: PAL or NTSC
• Audio: Built-in microphone
• Protection rating: IP69K
• Vibration rating: 4G
• Connection: Four-pin aviation connector
• Cable length: 600mm
• Dimensions: 86.5mm x 77mm x 75mm
• Operating temperature: -20°C to 70°C
• Housing colour: Black

The Mongoose MC6PA/MC6NA reversing camera with audio provides reliable video and sound monitoring for trucks, buses, trailers, agricultural machinery and commercial vehicles.

Select the video format compatible with your monitor before ordering. A suitable extension cable may be required and is sold separately.

This camera is a driver-assistance device only. Always check your surroundings when driving or reversing.
