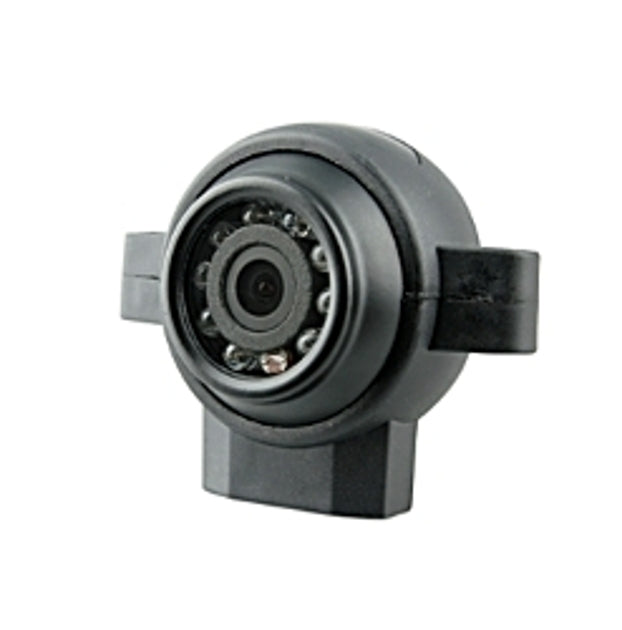

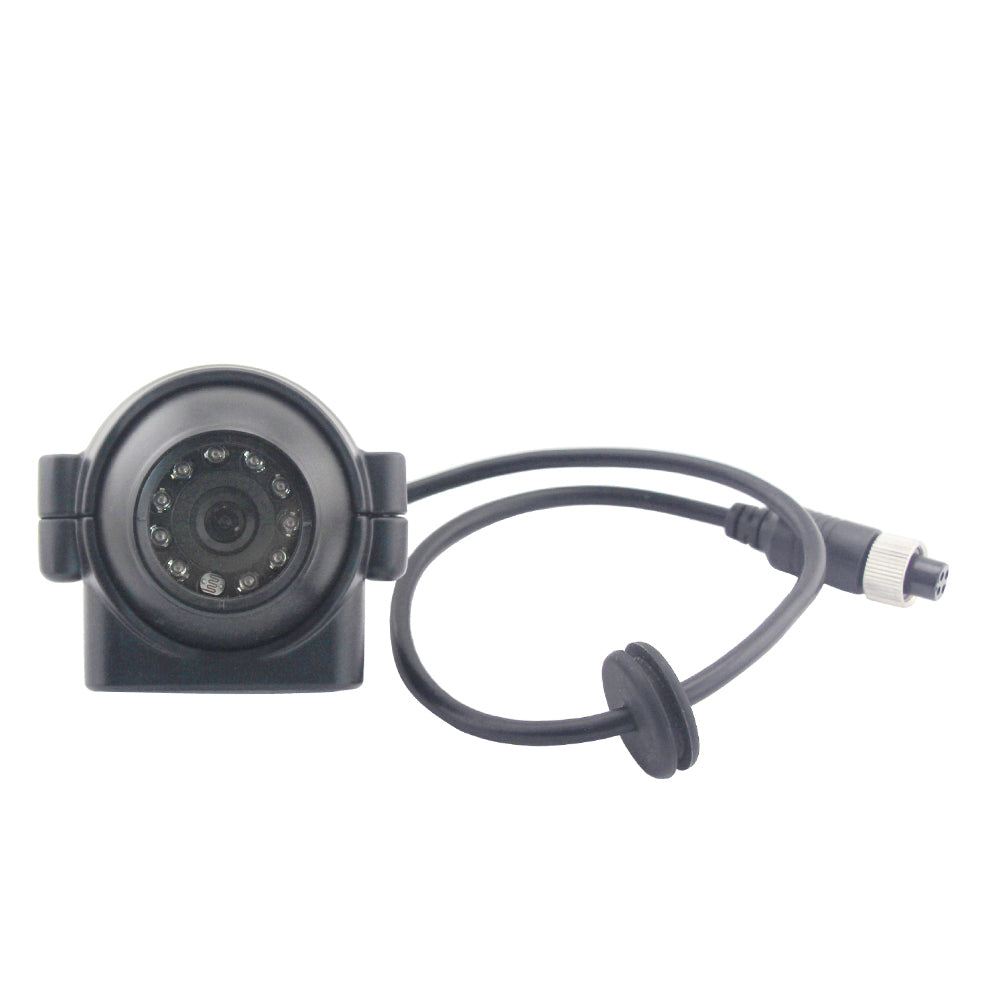

Mongoose MC10SB 1080P AHD Multi-Angle Vehicle Camera – PAL

Mongoose MC10SB 1080P AHD Multi-Angle Vehicle Camera – PAL

Product Overview:

Improve visibility around your vehicle with the Mongoose MC10SB 1080P AHD Multi-Angle Camera. Its adjustable housing supports top, side or bottom installation, making it suitable for side-view, blind-spot and rear-view applications.

Designed for use with compatible AHD monitors and MDVR systems, the MC10SB features infrared night vision, a durable housing and a heavy-duty four-pin connection. Its flexible mounting options make it ideal for trucks, buses, trailers, agricultural machinery and commercial vehicles.

Key Features

• 1080P AHD video
• Flexible top, side or bottom installation
• Adjustable camera housing and mounting bracket
• 125° diagonal viewing angle
• Infrared night vision with 18 IR LEDs
• IP69K-rated protection
• 4G vibration resistance
• PAL video system
• Heavy-duty four-pin aviation connector
• Compatible with AHD monitors and MDVR systems
• Suitable for personal, work and commercial vehicles

Specifications

• Resolution: 1280 x 1080
• Image sensor: Sony AHD sensor
• Viewing angle: 95° horizontal, 75° vertical and 125° diagonal
• Minimum illumination: 0.1 lux
• IR LEDs: 18
• Working voltage: 12V DC
• Video system: PAL
• Built-in microphone: No
• Protection rating: IP69K
• Vibration rating: 4G
• Connection: Four-pin aviation connector
• Cable length: 600mm
• Dimensions: 65mm x 75mm x 57mm
• Operating temperature: -20°C to 70°C
• Housing colour: Black

The Mongoose MC10SB multi-angle AHD camera provides flexible installation and dependable visibility for vehicle safety and monitoring systems.

This camera is a driver-assistance device only. Always check your surroundings when driving or reversing.
