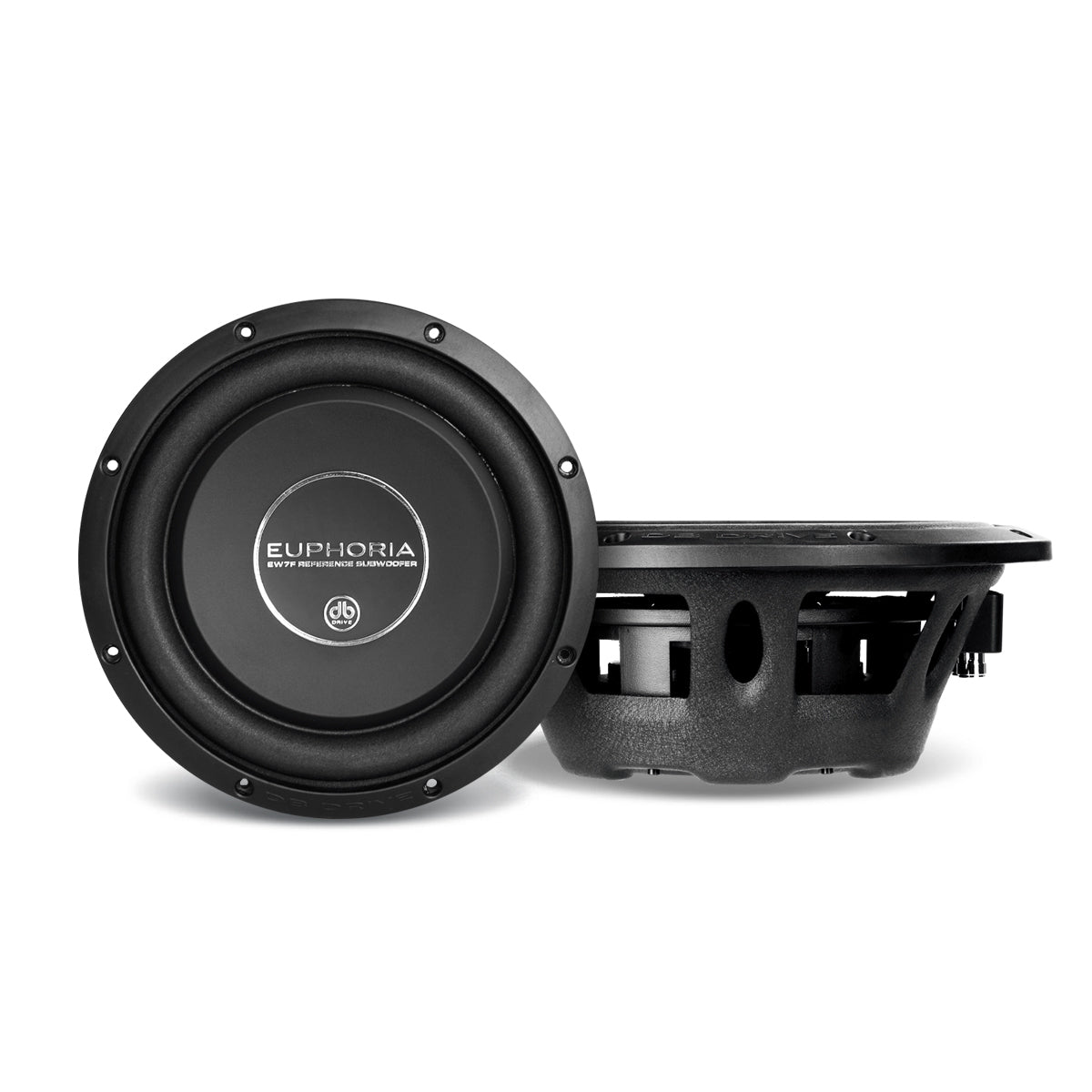

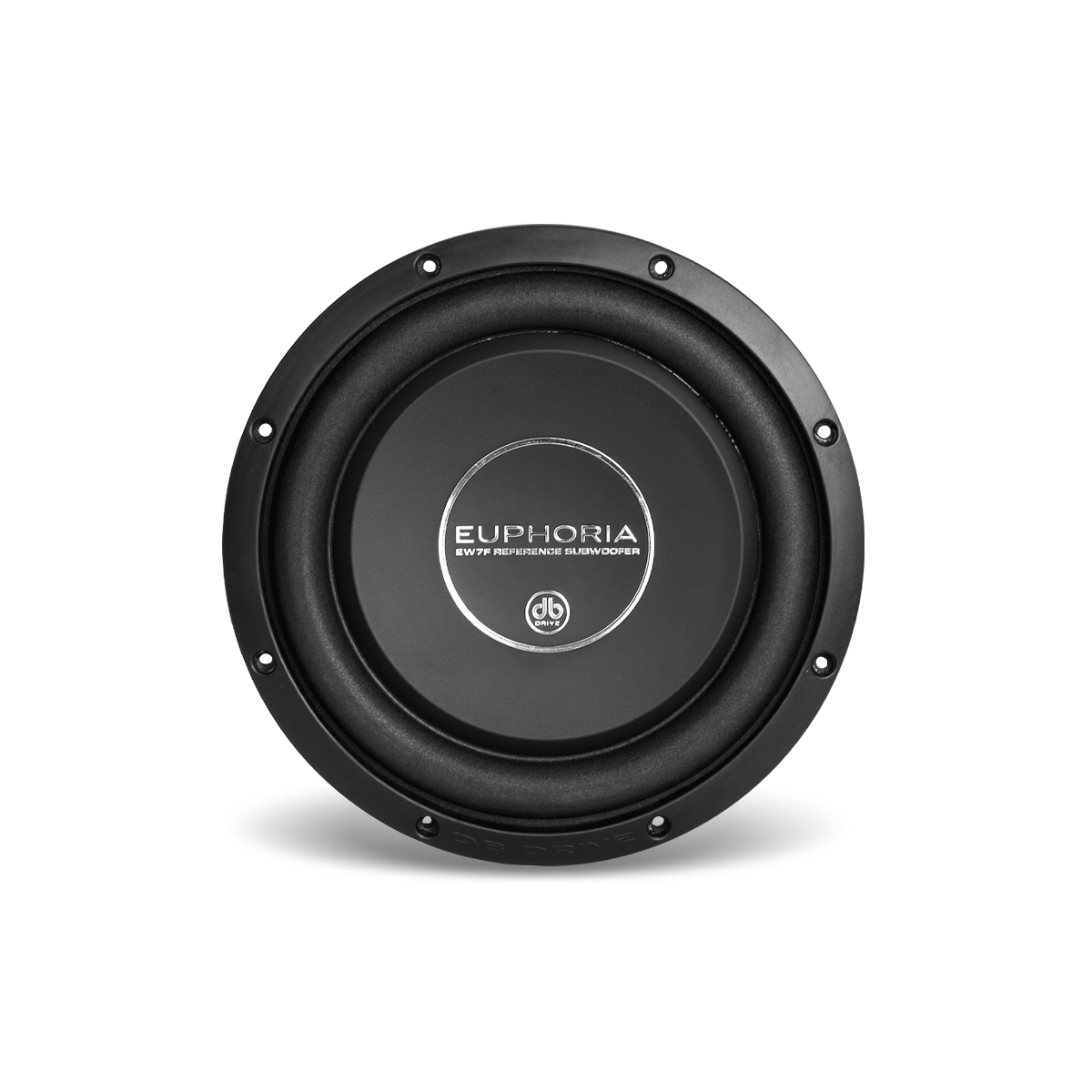

Mongoose DB Drive Euphoria EW7 10F 10-Inch Shallow-Mount Subwoofer

Mongoose DB Drive Euphoria EW7 10F 10-Inch Shallow-Mount Subwoofer

Enjoy powerful bass in a space-saving installation with the DB Drive Euphoria EW7 10F 10-Inch Shallow-Mount Subwoofer. Designed for compact vehicles and underseat enclosures, it delivers up to 1000W maximum power and 300W nominal power without requiring the mounting depth of a conventional subwoofer.

Its dual 4-ohm voice coils provide flexible wiring options, while the rigid IMPP cone, foam surround and radial voice-coil venting deliver controlled bass and dependable performance.

Key Features

• 10-inch shallow-mount car subwoofer
• 1000W maximum power handling
• 300W nominal power handling
• Dual 4-ohm voice coils
• Compact 89mm mounting depth
• Designed for shallow enclosures with minimal airspace
• 2.5-inch four-layer voice coil with aluminium former
• IMPP cone with foam surround
• 40oz ferrite magnet
• Ultra-thin stamped-steel frame
• Radial voice-coil venting
• Heavy-gauge spring terminals

Specifications

• Subwoofer size: 10 inches
• Maximum power: 1000W
• Nominal power: 300W
• Impedance: Dual 4 ohm
• Voice coil: 2.5-inch, four-layer
• Mounting depth: 89mm
• Overall diameter: 284mm
• Cut-out diameter: 230mm
• Recommended sealed enclosure: 0.45 cubic feet
• Free-air resonance: 27.409Hz
• Sensitivity: 82.9dB

The Mongoose Euphoria EW7 10F slimline subwoofer is ideal for utes, compact cars and custom audio systems where installation space is limited.

Please note: this is a passive subwoofer and requires a compatible amplifier and enclosure.
