MIDLAND COMPACT UHF + ANT MACHINERY PACK

MIDLAND COMPACT UHF + ANT MACHINERY PACK

Product Overview:

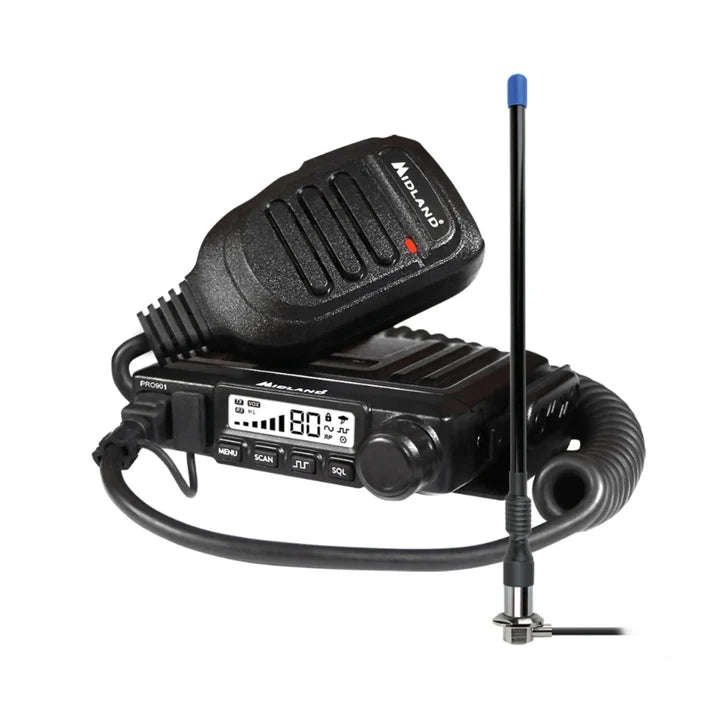

The Midland MACHINERY PACK delivers durable resilient communication specifically designed for versatile machinery installations. This compact robust unit combines space-saving 5-watt UHF CB radio with 3dB flexi antenna providing complete communication solution for farm equipment forklifts construction machinery and tight-space vehicle installations.

Built for unwavering reliability over extended periods, the PRO901 radio features ultra-compact 120x25x110mm dimensions enabling mounting in confined spaces where traditional radios won't fit. Operating across 80 UHF CB channels plus 19 dealer-programmable LMR channels delivers commercial-grade versatility. The MK901 microphone with RJ45 connector provides full controls while the slide-in mounting cradle simplifies installation and removal for equipment sharing across multiple vehicles.

Advanced features include 104 DCS codes 50 CTCSS tones duplex capability channel memory scanning USB charging port and backlit LCD display. The included 335mm 3dB flexi antenna with SO239 cable kit and FME(F) connector ensures reliable 18km line-of-sight range. Operating from 9.5-16.5V accommodates both 12V and 24V systems perfect for agricultural machinery construction equipment and commercial vehicles requiring robust communications.

Key Features

• Ultra-Compact Design – 120x25x110mm dimensions fit tight spaces in machinery and vehicles
• 5-Watt Output Power – Delivers 18km line-of-sight range at 13.8V
• 80 CB + 19 LMR Channels – UHF CB channels plus dealer-programmable commercial frequencies
• Complete Antenna Kit – Includes 3dB 335mm flexi antenna with cable kit
• Slide-In Mounting Cradle – Quick installation and removal for equipment sharing
• MK901 RJ45 Microphone – Full-function controls with secure connector
• USB Charging Port – Charge devices directly from radio
• Duplex Capability – Simultaneous transmit and receive on different frequencies
• 12V/24V Compatible – Operates from 9.5-16.5V for machinery applications
• 104 DCS + 50 CTCSS – Interference elimination for clear communications
• Backlit LCD Display – Segment display with keypad illumination
• External Speaker Jack – Connect optional speaker for louder audio
• Channel Memory Scan – Automatically monitors programmed channels
• 3.7W Base Speaker – Built-in speaker for clear audio output
• Machinery Optimized – Purpose-built for forklifts tractors construction equipment

Technical Specifications

• Output Power: 5 Watts at 13.8V
• CB Channels: RX/TX 80
• LMR Channels: 19 (Dealer Programmable)
• CB Frequency Range: 476.425 ~ 477.4125MHz
• Channel Width: 12.5kHz (narrowband)
• Power Source: 9.5 – 16.5V (12V/24V compatible)
• Microphone: MK901 with RJ45 Connector
• Base Speaker Power: 3.7W Max at 1KHz
• Digital Coded Squelch (DCS): 104
• Interference Eliminator (CTCSS): 50
• USB Charging Port: Yes
• Duplex Capability: Yes
• Channel Memory Scan: Yes
• LCD Display: Segment type
• Backlit LCD & Keypad: Yes
• Flip LCD: No
• Mounting: Slide-In Mounting Cradle
• External Speaker Jack: Yes
• TX/RX Indicator: Yes
• Scanning Functions: Yes
• Key Lock: Yes
• Key Beep On/Off: Yes
• Auto Squelch: Yes
• Typical Range: 18km Line of Sight
• Max Absorption Current in TX: 1.3A
• Radio Dimensions (excl. Bracket): 120W x 25H x 110D mm
• Antenna Type: 3dB flexi antenna
• Antenna Length: 335mm
• Antenna Connector: SO239 Cable Kit with FME (F)
