VES 8-Slot Fuse Box – Midi & Mega | Heavy-Duty
Product Overview:
Introducing the VES Midi and Mega Fuse Distribution Box – a robust powerhouse crafted from high-quality Nylon with Fibre glass reinforcement for unparalleled durability.
Key Features:
- Fuse Variety: Equipped with 7 Midi Fuses and 1 Mega Fuse, ensuring comprehensive protection for your electrical circuits.
- Universal Compatibility: 5mm Midi fuse studs designed to accommodate the majority of midi fuse types, providing versatility for various applications.
- Cable Compatibility: M6 terminals throughout, with the 2 end (Mega) terminals accepting cable/lugs up to 14mm OD (suited to approx. 4–2 AWG / 21–35mm² main feed cable), and the 6 middle (Midi) terminals accepting cable/lugs up to 10mm OD (suited to approx. 14–8 AWG / 4–10mm² cable). The integrated bus bar shares these same terminal limits, as it's the internal connection strip linking all 8 positions.

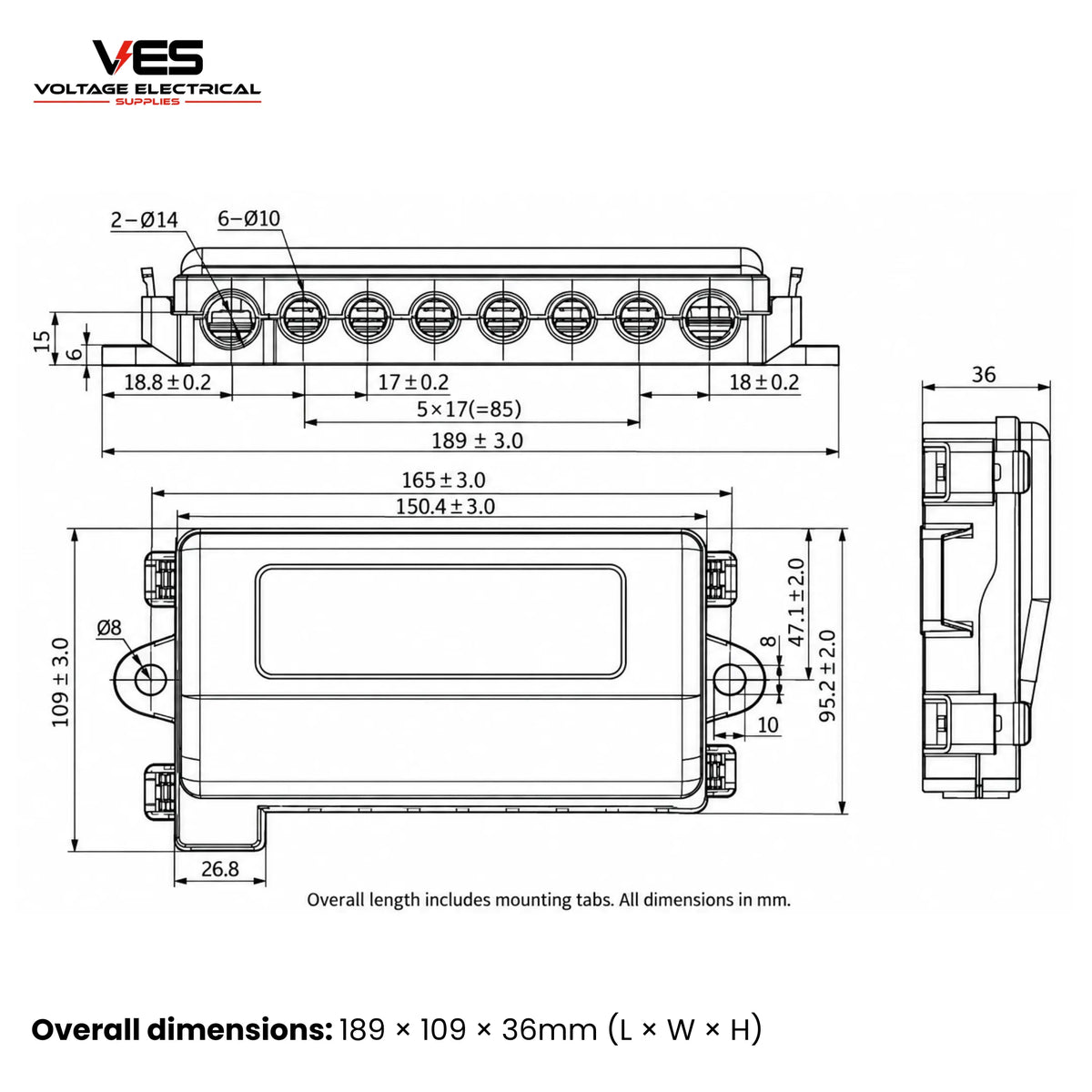

- Compact Design: With dimensions of 165 x 109 x 36(H) mm, this Fuse Box is both space-efficient and visually sleek.
- High Amperage Capacity: Suitable for up to 150A, catering to a broad range of power needs.
- Two year warranty: Buy with confidence off a local company with insurance.
Note to Customers: If you choose to purchase the Midi and Mega Fuse Box with fuses, kindly leave a note at checkout specifying your preference. You can customize your selection with one Mega Fuse and seven Midi Fuses according to your unique requirements.
It's a nice little fuse box guys, smaller than I anticipated so better as it fits just about anywhere, including atop of a battery. I thought I would be able to tap into the opposite side of the mega fuse for a 1000W inverter, then realised that the top entry point is bigger than the other smaller entry points, so power runs through the bus-bar all the way to the top. Would have been better if both high current entry points were in close proximity to each other as heat produces a higher voltage drop, (+ve temp. coefficient of resistance), but there's nothing preventing using a hot knife (soldering iron) and opening up an entry point to the opposite side of the mega fuse. That's the only improvement I can think of for this little fuse box, other than that it's nice and a nice size. Very happy with it so far.
