Product Description

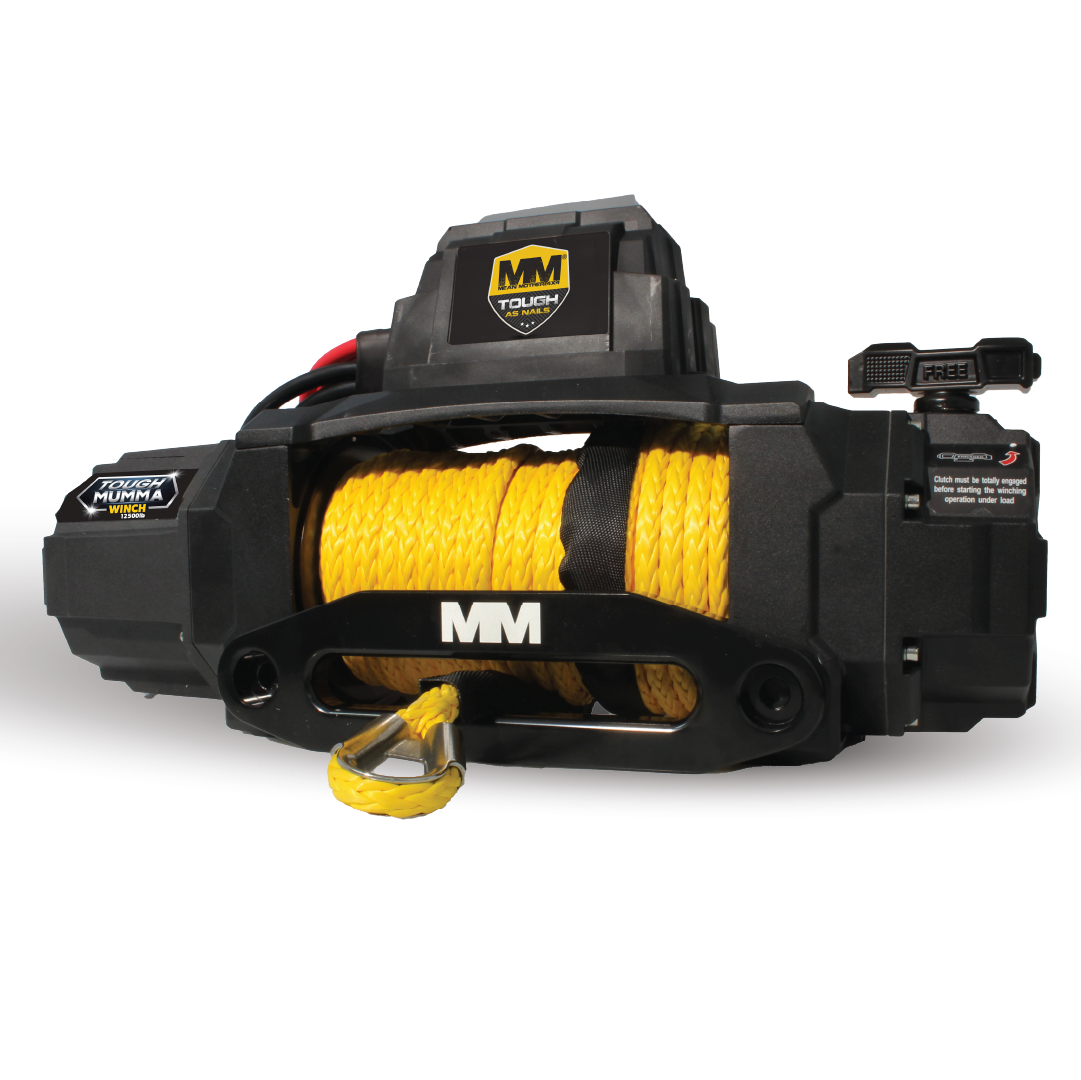

Mean Mother Tough Mumma 4x4 Winch 9,600lb with Synthetic Rope (MMEW96S)
Product Overview:
The Mean Mother Tough Mumma 9,600lb winch is built for Australian conditions. Its IP68 sealed design keeps water and dust out – ideal for river crossings – and the high-strength UHMWPE synthetic rope floats, making water recoveries safer and easier than steel cable.
A 5.5HP series wound motor and 3-stage planetary gearbox deliver strong pulling power, with wider, stronger tie bars to minimise twist under load. It's backed by a 5 year mechanical and electrical warranty.
Features:
- IP68 water and dust sealed
- High-strength UHMWPE synthetic rope that floats
- Wider, stronger tie bars minimise twist under load
- Automatic in-drum braking
- 5 year mechanical and electrical warranty
Specifications:
- Brand: Mean Mother
- Model: MMEW96S (Tough Mumma)
- Rated Line Pull: 9,600lb (4363kg), single line
- Motor: Series wound, 5.5HP (4.1kW), 12V DC
- Gear Train: 3-stage planetary
- Gear Ratio: 216:1
- Clutch: Sliding ring gear
- Braking: Automatic in the drum
- Synthetic Rope: 9.5mm x 26m UHMWPE
- Drum Size: 63mm x 223mm
- Dimensions: 543 x 161.5 x 196mm
- Mounting Bolt Pattern: 254mm x 114.3mm (10" x 4.5")
- Recommended Battery: Minimum 650CCA
- Net Weight: 29.8kg
- Ingress Rating: IP68
- Warranty: 5 years mechanical and electrical (manufacturer)
Motor Current (First Layer):
- No load: 70A
- 4,000lb: 210A
- 6,000lb: 260A
- 8,000lb: 320A
- 9,600lb: 380A
