Product Description

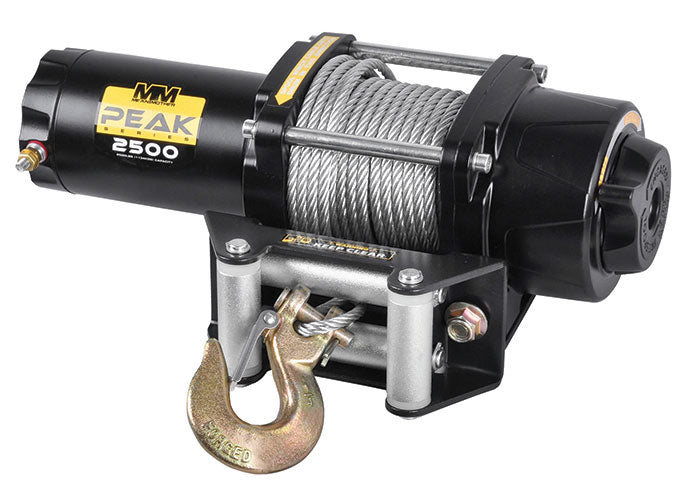

Mean Mother Peak ATV Winch 2500lb with Steel Cable (EW2500)
Product Overview:
The Mean Mother Peak EW2500 is a compact, lightweight 2500lb winch for ATVs and UTVs, supplied with a universal mounting plate for easy installation. It has more than enough power to recover ATV/UTV vehicles from most situations, with a 3HP permanent magnet motor, a two-stage planetary gearbox with sintered steel bushes and hardened steel gears, and a waterproof contactor system.
When choosing a winch, always select one rated at least 1.5 times your vehicle's Gross Vehicle Mass (GVM).
Features:
- Forward and reverse operation with free spool function
- Two-stage planetary gear train with sintered steel bushes and hardened steel gears
- Waterproof contactor (solenoid) system – permanently mounts to the ATV
- Waterproof plug with protective cap
- Handlebar-mountable forward/reverse toggle switch
- Self-locking brake
- Thimble in cable eyelet for reinforcement and maximum strength
- Universal mounting plate for easy installation
Specifications:
- Brand: Mean Mother
- Model: EW2500
- Rated Line Pull: 2500lb (1135kg)
- Voltage: 12V
- Motor: 3HP (2.2kW) permanent magnet
- Gear Ratio: 242:1
- Gear Train: 2-stage planetary
- Clutch: Turn 90° by handle
- Braking: Self-locking brake
- Control: Handlebar-mountable switch, 2.4m lead
- Drum Size: 50mm x 80mm
- Cable: 4.76mm x 12m (3/16" x 39') 7x19 galvanised aircraft cable
- Clevis Hook: 1/4"
- Mounting Bolt Pattern: 124mm x 76mm
- Battery Power Cables: 2 x 8mm² (8 AWG) x 2350mm
- Motor Power Cables: 1 x 8mm² x 600mm and 1 x 8mm² x 450mm
- Recommended Battery: Minimum 650CCA
- Finish: Powder coated
- Overall Dimensions: 333.5 x 116 x 114mm
- Net Weight: 11.4kg
Line Pull & Cable Capacity by Layer:
- Layer 1: 2500lb (1135kg) – 2.8m cable
- Layer 2: 2130lb (967kg) – 6.2m cable
- Layer 3: 1855lb (842kg) – 10.1m cable
- Layer 4: 1643lb (746kg)
What's Included:
- 1 x Winch with 4.76mm x 12m galvanised aircraft cable
- 1 x Winch mounting plate
- 1 x Solenoid (contactor)
- 1 x Handlebar switch with mounting bracket
- 1 x Power cable kit
- 1 x Roller fairlead
- 1 x 1/4" clevis hook
- 1 x Hand saver hook strap
- Winch and fairlead mounting hardware (bolts and nuts)
- Instruction manual and warranty registration card
