Product Description

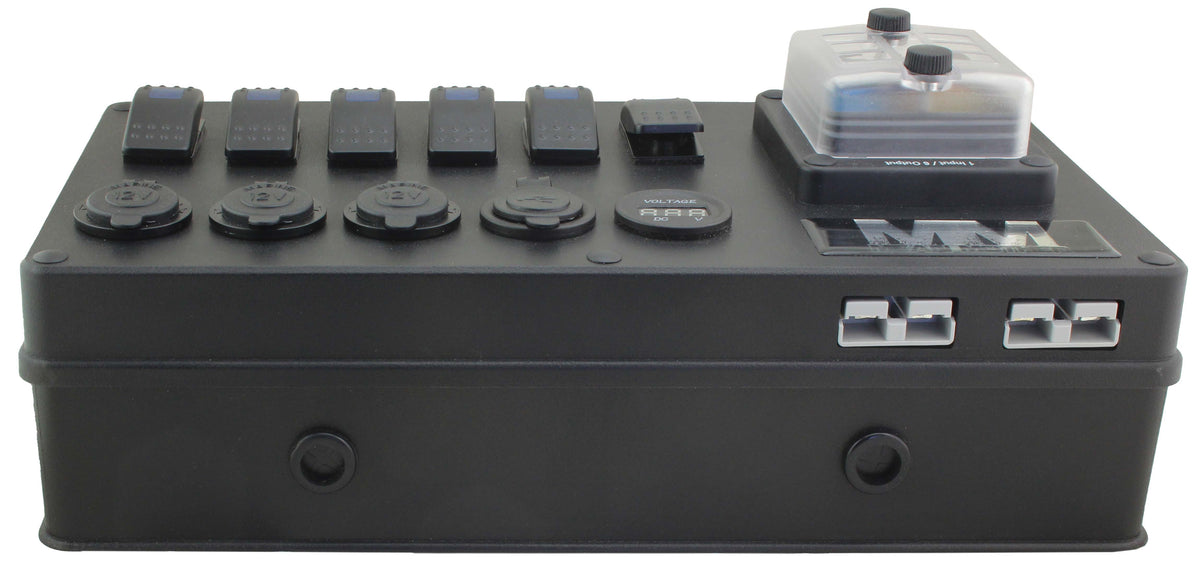

Mean Mother 12V Power Control Box (MMCB01)
Product Overview:
A pre-wired 12V power control box for canopies, boats, caravans and other 12V fit-outs. Control your lighting, charge your phone and run your fridge from one unit – it combines six illuminated switches, three power sockets, dual USB, a voltmeter, fused 50A Anderson style connectors and a 6-way waterproof fuse box in a lightweight nylon housing. Ideal for DIY or professional installers.
An Anderson style plug is required to power the unit. A dual battery system is recommended to avoid draining your starting battery.
Features:
- 6 x blue LED 3-pin on/off switches (12V 20A)
- 3 x power sockets with flat-style covers (12V 20A)
- 1 x blue dual-port USB socket (5V 3.1A DC)
- 1 x blue LED voltmeter (6–30V DC)
- Fused, heat and impact-resistant polycarbonate 50A Anderson style connectors
- 6-way waterproof fuse box (100A 32V DC max)
- 2 x 4-way bus bars (150A 32V DC max, red/black)
- Wiring inlet grommets
Specifications:
- Brand: Mean Mother
- Model: MMCB01
- Housing: Lightweight nylon
- Internal Wiring: 10 AWG and 14 AWG
- Fuses Supplied: 1 x 5A, 3 x 15A, 1 x 20A, 2 x 30A
- Dimensions: 355 x 180 x 138mm (including fuse block height)
- Warranty: 12 months (manufacturer, conditions apply)
