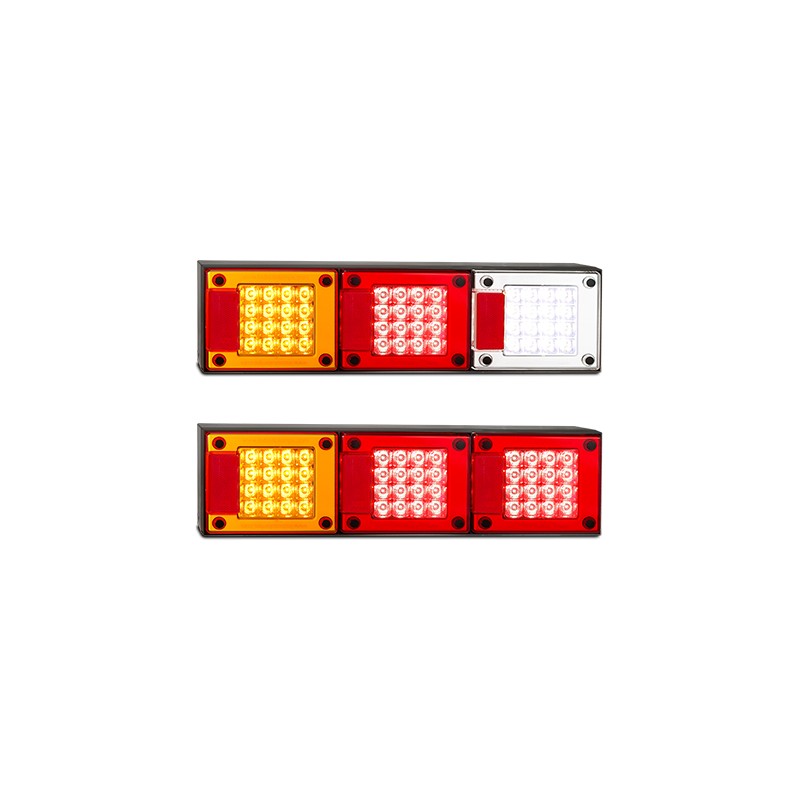

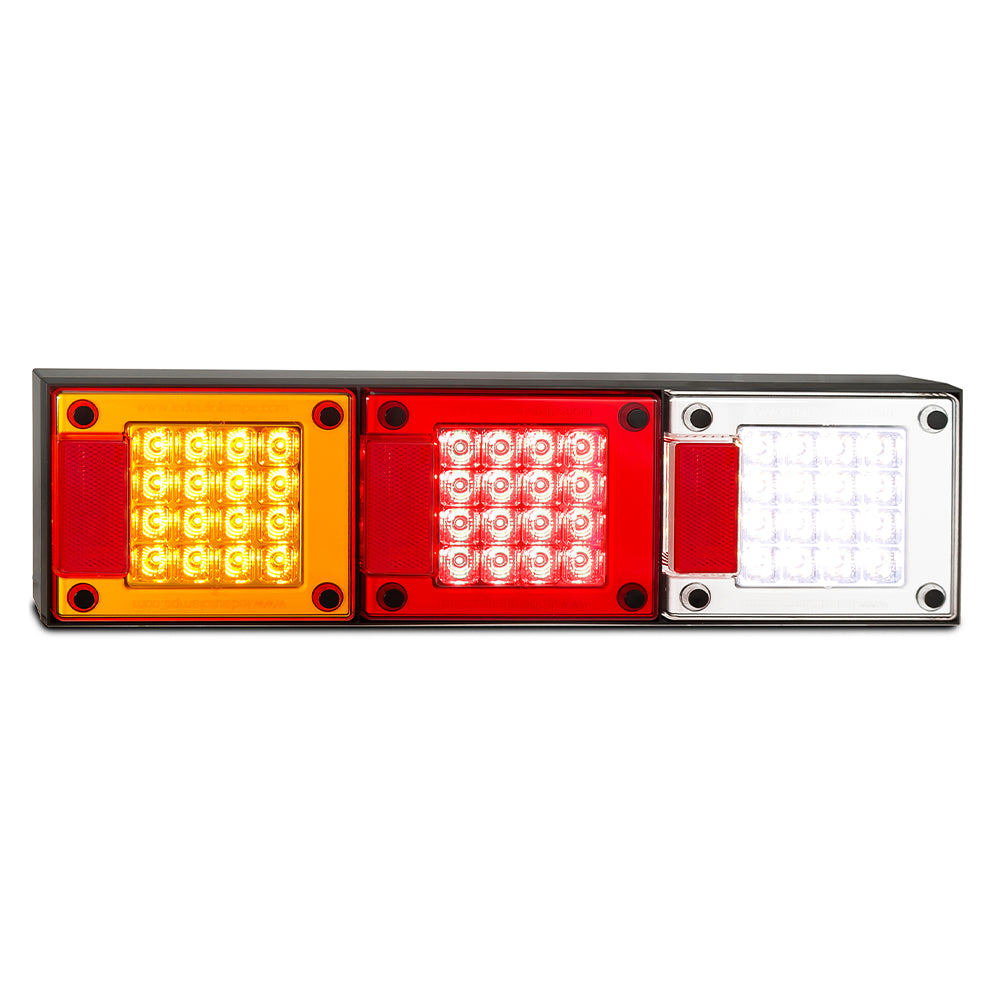

LED MEDIUM JUMBO, STOP/TAIL/ INDICATOR & REVERSE 460 SERIES - 460ARWM

 LED Autolamps 460 ARWM Stop/Tail/Indicator and Reverse Lamp Assembly.

• Very common lamp for trailer, horse float, caravan and semi/float/dog trailer application.

• Overall size: 460mm x 130mm x 33mm

• 5 Year Warranty!

• 12 & 24 Volt.

• ADR Compliant.

• Individual modules can be replaced should they be accidentally damaged.

• This product includes 2 x 460ARWM (1 Set of rear lights)


Features / Specifications

• Medium Jumbo Design
• ECE Australian Road Approved
• IP67 100% Waterproof
• 12-24 Volt
• 5 Year Warranty
• 460mm x 130mm x 33mm


Fitting Instructions

Horizontally mount onto flat surface using bolts in back of lamp, run wire through hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.

Technical Drawings

MORE INFO

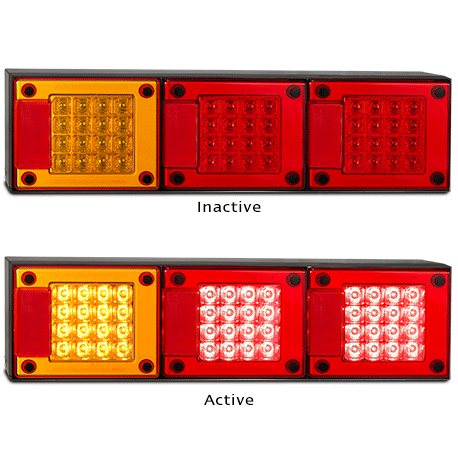

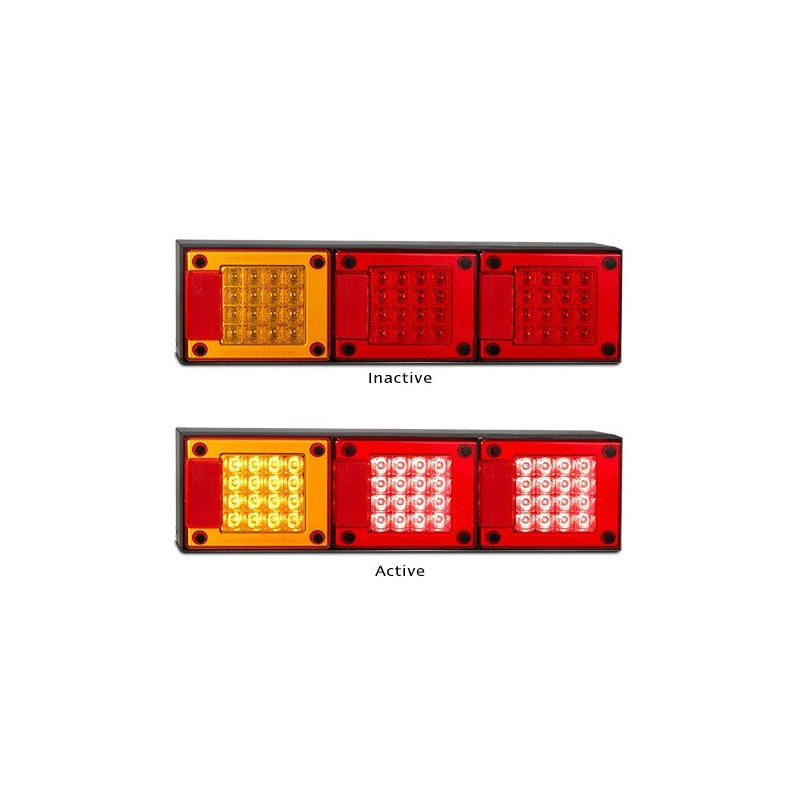

Function	Stop/Tail/Indicator/Reflector
Part No.
460ARRM	12-24 Volt, Blister
460ARRMB	12-24 Volt, Box
.
LED Qty	48
Cable	1.2m
Draw	Stop	Tail	Ind
@13.8V	0.30A	0.02A	0.32A
@28V	0.17A	0.04A	0.18A
Approvals	Function	Approval No.
ECE	Stop/Tail	R1-S1-E9-02.11293
ECE	Indicator	2a-E9-01.6205
ECE	Reflector	IA-E9-02.1472
CTA	Stop/Tail/Ind/Ref	CTA-060089
.

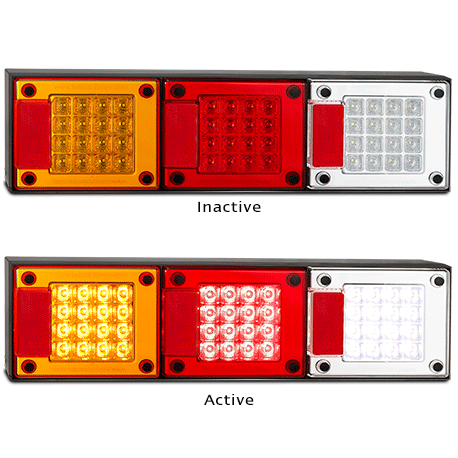

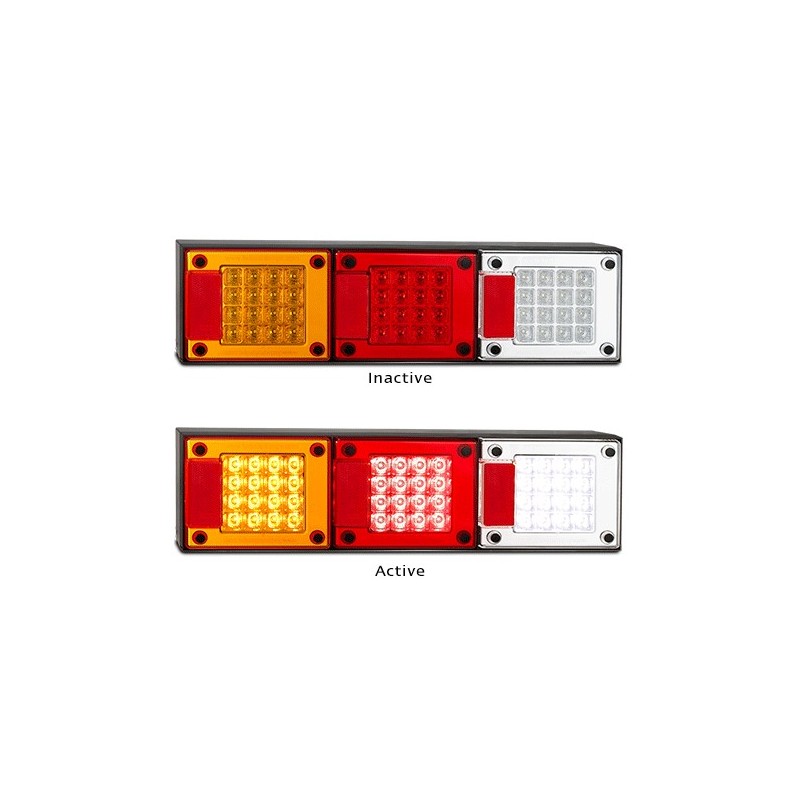

Function	Stop/Tail/Indicator/Reverse/Reflector
Part No.
460ARWM	12-24 Volt, Blister
460ARWMB	12-24 Volt, Box
.
LED Qty	48
Cable	1.2m
Draw	Stop	Tail	Ind	Rev
@13.8V	0.30A	0.02A	0.32A	0.19A
@28V	0.17A	0.04A	0.18A	0.12A
Approvals	Function	Approval No.
ECE	Stop/Tail	R1-S1-E9-02.11293
ECE	Indicator	2a-E9-01.6205
ECE	Reverse	AR-E9-00.1208
ECE	Reflector	IA-E9-02.1472
CTA	Stop/Tail/Ind/Rev/Ref	CTA-060089
