Hard Korr 15A Waterproof Lithium-Compatible PWM Solar Regulator
Hard Korr 15A Waterproof Lithium-Compatible PWM Solar Regulator
SKU:HKPSOLR15A
Share

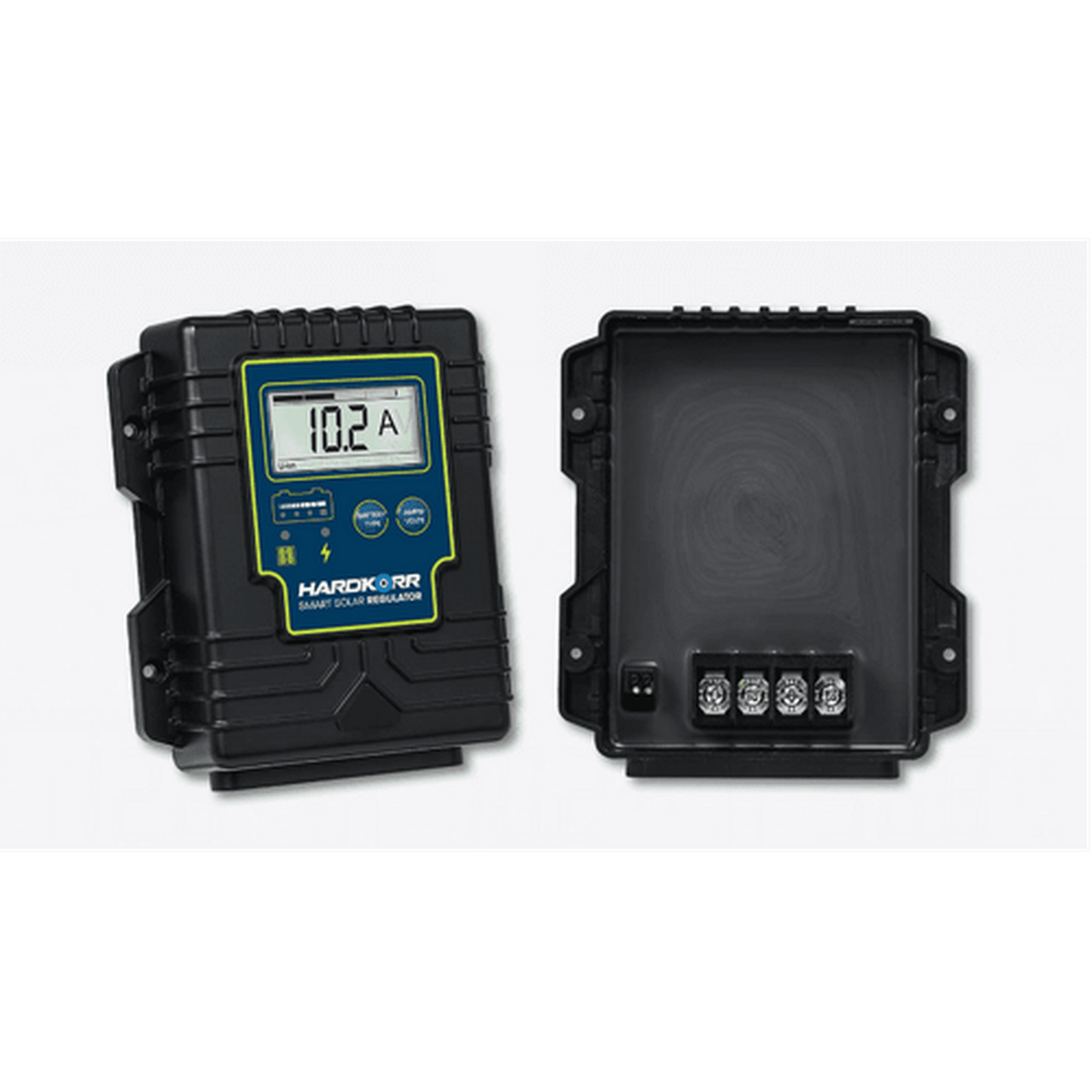

Hard Korr 15A Waterproof Lithium-Compatible PWM Solar Regulator
This high-quality waterproof 15A smart solar regulator will charge a range of batteries including all types of Lithium. It contains a host of smart electronics and a large backlit LCD screen, and is designed to work perfectly with all Hardkorr 12v portable solar panels.
Hardkorr’s 15A 6-stage PWM smart solar regulator is tough as nails and designed to work perfectly with our range of 12v solar panels.
This smart regulator will optimally charge a range of battery types, including AGM, Gel, Calcium, Wet and all lithium variants (LiFePO4, Li-ion, Li4Ti5O12). It contains a host of smart electronics including reverse polarity protection, short circuit protection, reverse current protection, overcharge protection and more.
Its large, backlit LCD screen provides useful information relating to power input and battery charge level, and inbuilt LEDs provide a quick-reference indicator of battery charge status.
It now also contains smart re-activation technology, which gives it the ability to wake up a “dead” lithium battery where the BMS over-discharge protection circuit has been tripped. Simply connect the regulator to the battery and it will deliver special small-current pulses until the battery has recovered enough to be charged normally.
Key features
- Fully compatible with AGM, Gel, Calcium, Wet and all types of lithium batteries (LiFePO4, Li-ion, Li4Ti5O12)
- 6-stage charge program is capable of charging batteries from under 5V
- NEW smart re-activation technology can wake up ‘dead’ lithium batteries where the BMS over-discharge protection circuit has been tripped
- Smart electronics including:
- Reverse polarity protection
- Short circuit protection
- Reverse current protection
- Overcharge protection
- Transient overvoltage protection
- Over temperature protection
- 100% solid state unit (no fuses, fans etc)
- IP65 waterproof rating

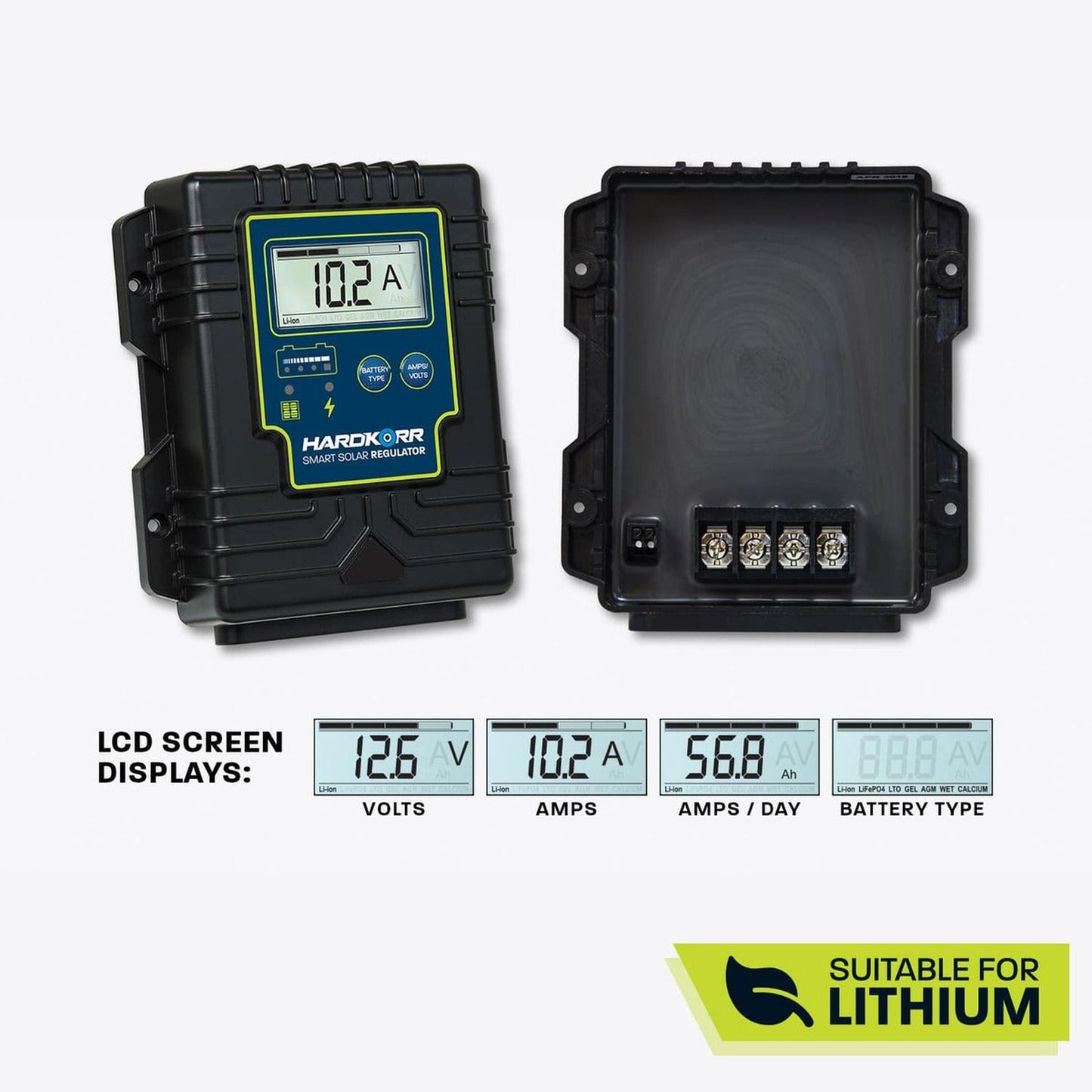

Large backlit LCD screen
VOLTS
See the current voltage level of your battery to assist in understanding its health and charge level
AMP HOURS
See the total number of amps that have been fed into the battery over the course of the day
AMPS
See in real-time the number of amps being fed into your battery from the solar panel
BATTERY TYPE
Choose from 7 different programs for optimum performance, charge level and battery longevity.
The Hardkorr guarantee
All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 2-year Australian warranty and a 30-day money back guarantee.
Specifications
Suitable battery types | LiFePO4, Li-ion, Li4Ti5O12, AGM, Gel, Calcium, Wet |
---|---|
Rated throughput | 15A |
Ingress Protection | IP65 |
LCD screen display modes | Volts, amps, amp hours, battery type |
Weight | 0.4kg |
Self-consumption | <3mA |
Operating temperature | -40°C to 60°C |
Storage temperature | -40°C to 85°C |
Pack Contents
1x | 15A 6-stage smart solar regulator |
---|
