Itechbc20-24 Battery Charger 20 Amp 24v Ac-Dc

ITECHBC20-24 24 VOLT 100AH LITHIUM BATTERY LIFEPO4 250AMP MAX DISCHARGE.

PRODUCT INFORMATION

The iTECHBC20-24 Battery Charger is a 24V smart multi-stage lithium charger. This charger uses the latest switch-mode battery charging technology to ensure fast and efficient charging of your LiFePO4 battery.

The multi-stage charging algorithm delivers a fast, efficient and consistent charge with no voltage drop. The iTECHBC20-24 will prolong the longevity of the battery cells and prevents premature battery failure.

The iTECHBC20-24 battery charger also features an innovative boost-charge feature which helps activate a battery with low-voltage. The boost-charge feature will "wake up" a weak or flat battery to a suitable recharging voltage.

Designed and developed in Australia, the iTECHBC20-24 is built for the harsh Australian climate. The iTECHBC20-24 has a thermally cooling fan that automatically switches on and off based on the internal charger temperature to handle extreme conditions.

FEATURES

• Multistage Charging: Fully automatic multistage battery charger.
• Exclusive Lithium LiFePO4 24V Charging Algorithm.
• The iTECHBC20-24 can be mounted permanently.
• Switch mode charging.
• Boost charge feature: Bring an iTechworld lithium battery out of safe mode
• Constant regulated power supply.
• Soft-start function.

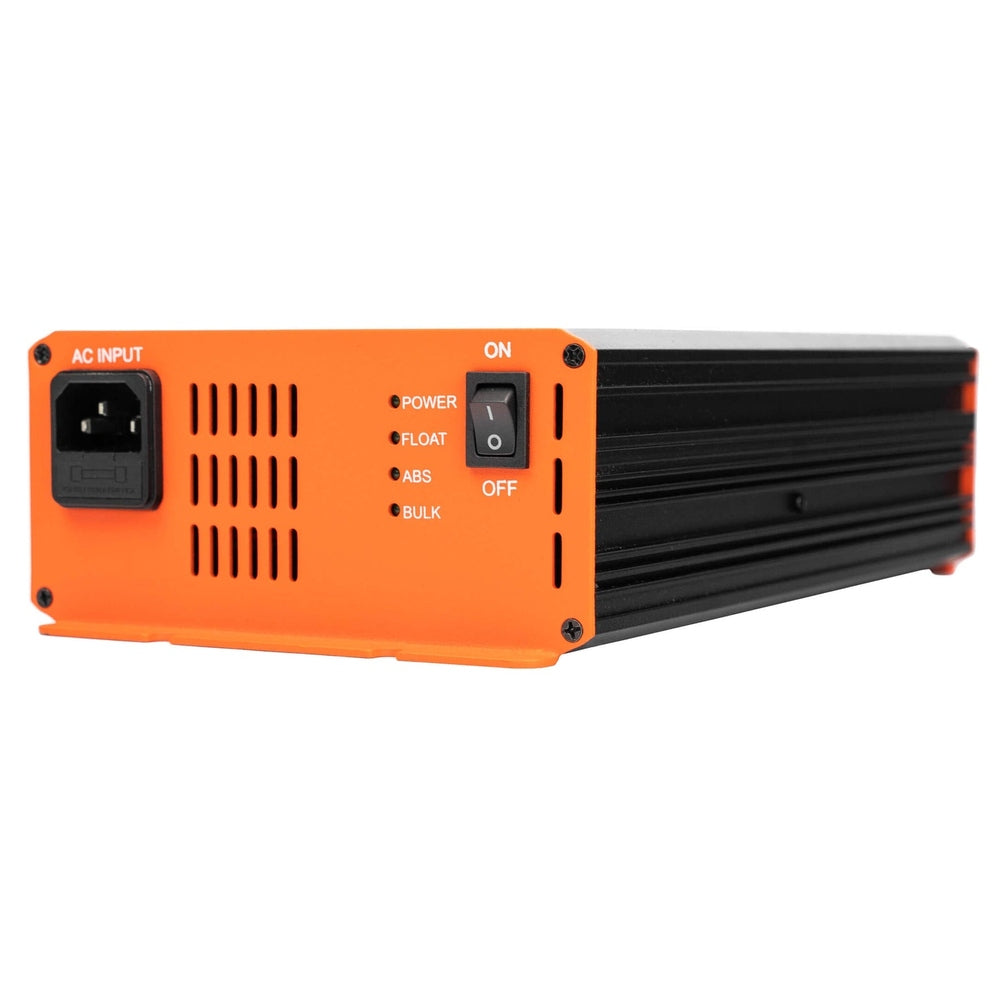

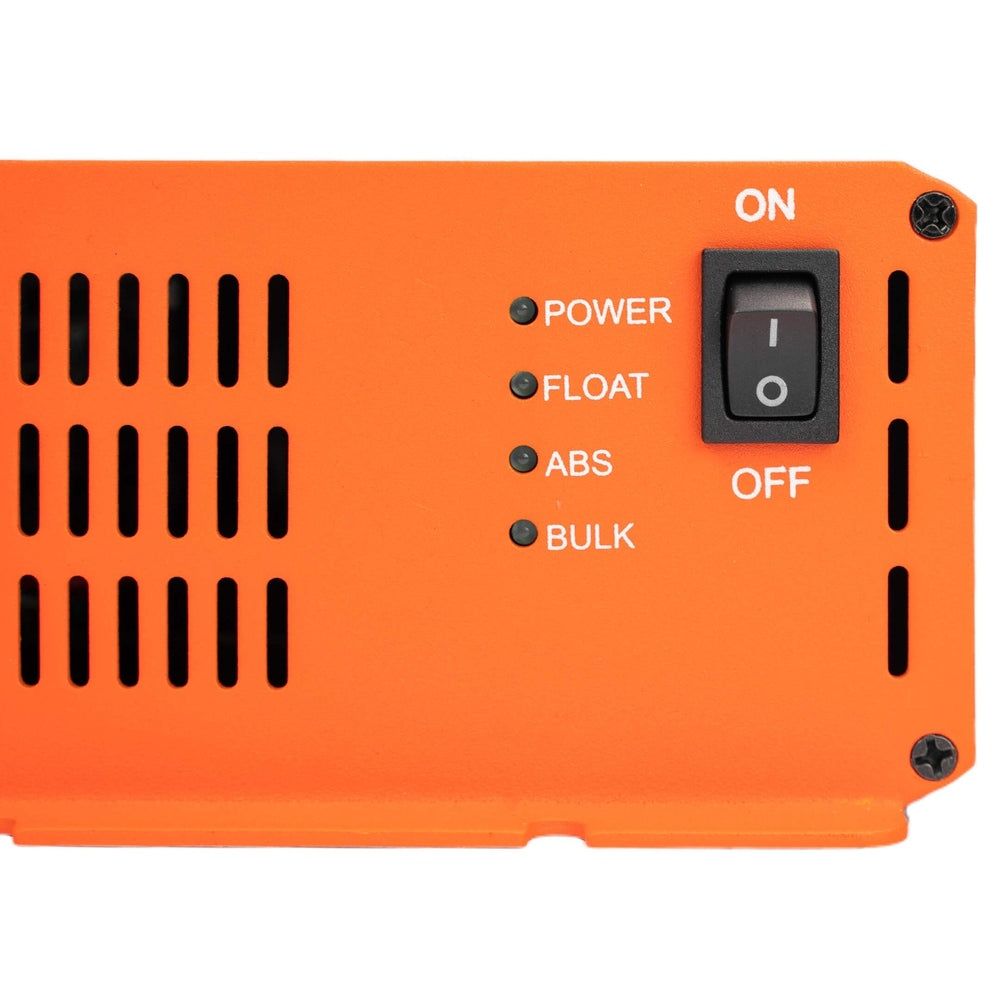

• LED charging indicators.
• High-Efficiency: No voltage drop.
• Robust insulated heat dispersing casing.
• Fan cooled: Equipped with near-silent efficient cooling fans.
• Australian designed and developed.

The iTECHBC20-24 battery charger uses a micro control system to manage the battery charging process.

built-in protection features:

• Over current protection.
• Over voltage protection.
• Overcharge protection.
• Temperature cut out.
• Reverse protection.

SPECIFICATIONS

• Output Voltage (DC): 28.8V DC
• Input Voltage (AC): 200V~260V
• Input Current: Approx. 2.8 Amps
• Output Current (OUT): 0.5A~40A
• Continuous Power (OUT) 120-480W
• Dimensions: 310x150x72mm (LxWxH)
• Weight: 3kg
