Itech240x Pro 240Ah 12V Deep Cycle Lithium Battery
Itech240x Pro 240Ah 12V Deep Cycle Lithium Battery
SKU:Itech240xpro
Share
Product Details
240AH 12 VOLT LITHIUM DEEP CYCLE BATTERY ITECH240X PRO! WATERPROOF IP67, 500AMP MAX DISCHARGE.
The all-new iTECH240X PRO 240Ah Lithium Battery is the result of years of design and development. Featuring a 100% useable capacity, the iTECH240X PRO is the ultimate power solution for all your energy needs.
With its sleek and compact design, the iTECH240X PRO is a true drop-in replacement for your existing system. No changing of systems, chargers, or equipment is required in most cases. Simply pull out your old AGM or lead-acid batteries and drop in the iTECH240X PRO. It's that easy!
The iTECH240X PRO features a fully 100% useable capacity, allowing the full 240Ah to be drawn from the battery. The new iTECH240X PRO includes an all-new patent-pending prismatic cell type, as well as an all-new supercharged Battery Management System (BMS) allowing for less cell degradation and a longer lifespan with high current use.
Built for the tough Australian environment, the iTECH240X PRO is IP67 Waterproof rated, allowing for the battery to be submerged under 1 meter of water for up to 30 minutes - perfect for marine applications or outdoor storage boxes. The iTECH240X PRO utilizes the latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology.
After over 10 years of extensive design, development, and testing, we are proud to present the 2023 iTECH240X PRO as our new flagship battery, backed by an extensive 5-year Australian Warranty. Upgrade to the iTECH240X PRO today and experience the ultimate in power and performance.
SPECIFICATIONS
Nominal Voltage: | 12.8V |
C20 Rating usable amps 10v: | 240Ah |
Short Circuit Protection: | Yes |
Optimum Temperature Range: | +5 to +60°C |
BMS Operational Temperature Range: | -5 to 80°C |
Safety Protection Isolator: | 80°C |
Recommended Charge Current: | 1 - 60A |
Maximum Charge Current: |
200A |
Recommended Charge Voltage: | 14.4V |
BMS Charge Cut Off Voltage: | 15V |
BMS Low Voltage Cut Off: | 8.5 - 9V |
Continuous Discharge: | 250A |
Peak Discharge: | 500A (5 secs) |
Series Connection: | Up to 48V (4 x batteries) |
Parallel Connection: | Unlimited |
Life Cycles 100%: | 4000 |
Life Cycles 50%: | 8000+ |

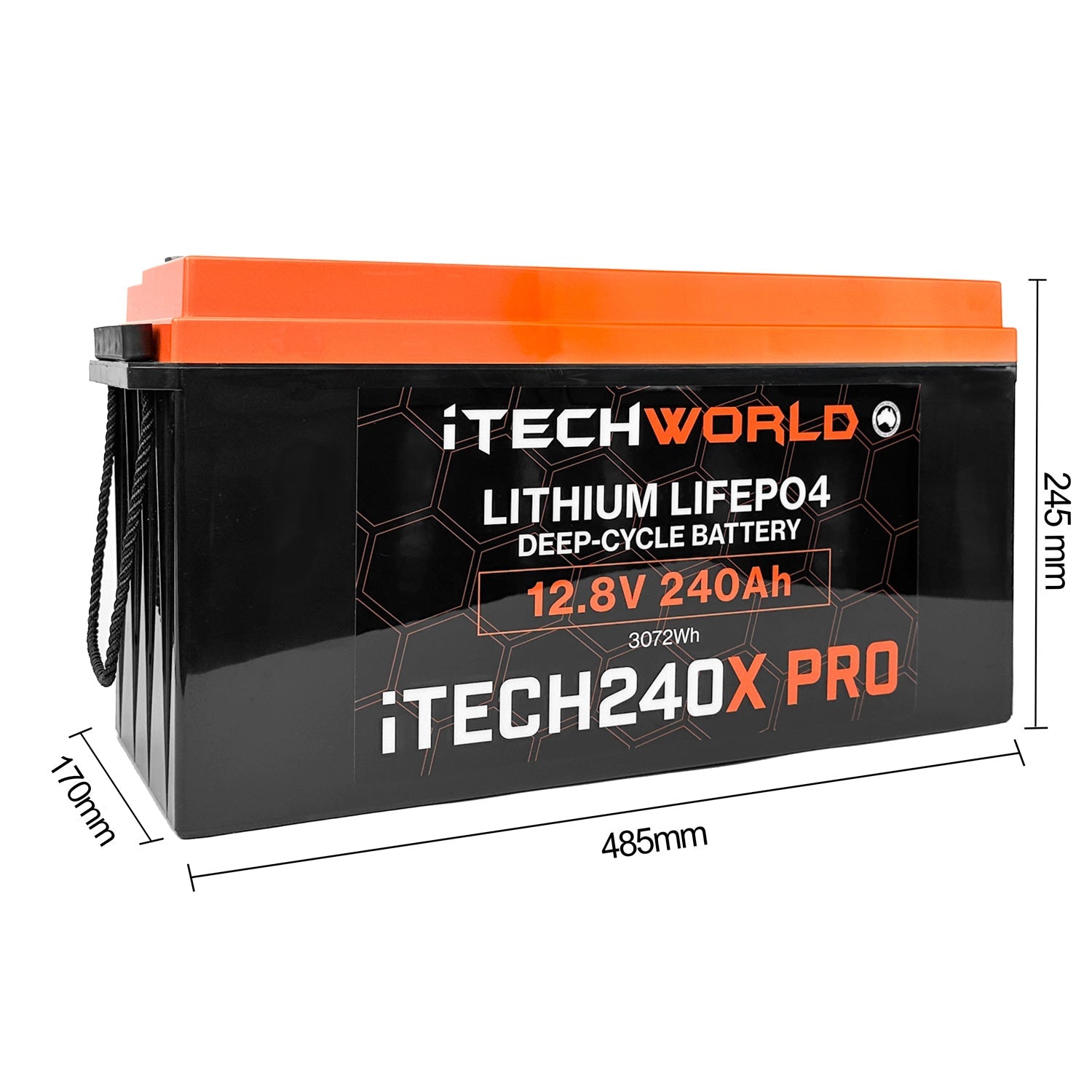

Dimensions (LxWxH): | 485x170x239mm (245mm including terminals) |
Weight: | 23.6Kg |

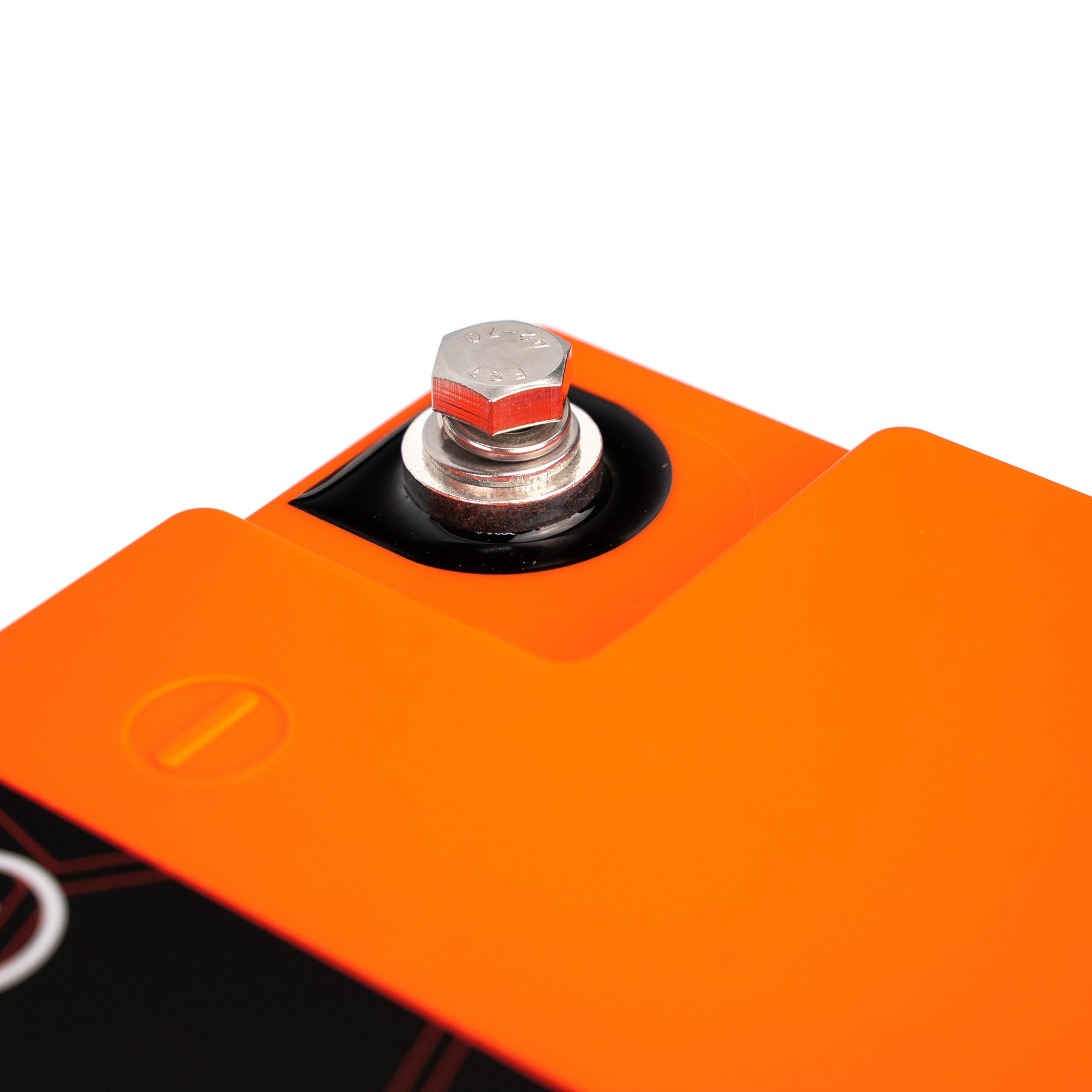

Terminal Type: | M8 |
Case Material: | ABS |
PACKAGE CONTENTS OF THE ITECH240X PRO
- 1x iTECH240X PRO 240Ah 12V Lithium Battery
- 1x Instruction Manual (Digital version HERE)
