iTECH120X and Control Hub with iTECHDCDC40/25 Lithium 4WD Kit 105Ah
iTECH120X and Control Hub with iTECHDCDC40/25 Lithium 4WD Kit 105Ah
SKU:Kit1withitechdcdc40
Regular price
$1,341.79 AUD
Regular price
$1,482.00 AUD
Sale price
$1,341.79 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
PRODUCT DETAILS
iTECH120X and Control Hub with iTECHDCDC40/25 Lithium 4WD Kit 105Ah
Never has it been so easy to install a dual battery system in your vehicle! Please see below the contents of each kit, for a full plug-and-play installation Kit 2 is preferred as it includes the DCDC Charger installation kit:
Kit 1 includes:

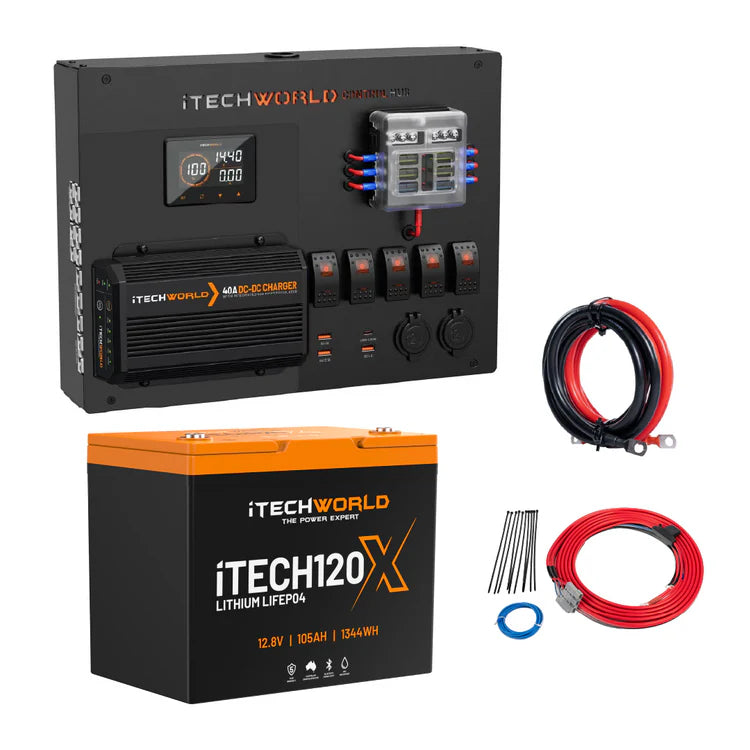

iTECH120X, iTechworld control hub with iTECHDCDC40 + Installation Cable
Kit 2 includes:
iTECH120X, iTechworld control hub with iTECHDCDC40 + Installation cable + DCDC wiring kit
Kit 3 includes:

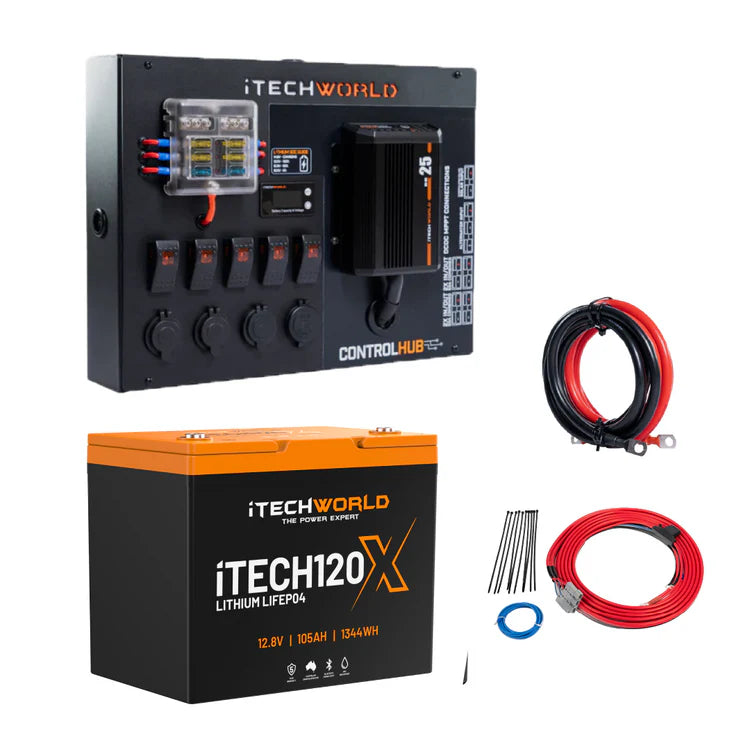

iTECH120X, iTechworld control hub with iTECHDCDC25 + Installation Cable
Kit 4 includes:
iTECH120X, iTechworld control hub with iTECHDCDC25 + Installation cable + DCDC wiring kit
SPECIFICATIONS
| iTECH120X | |
|---|---|
| Nominal voltage: | 12.8V |
| C20 rating usable Amps: | 105Ah |
| Short circuit protection: | Yes |
| Optimum temperature range: | 5°C ~ 60°C |
| BMS operational temperature range: | -40°C ~ 80°C |
| Safety protection isolator: | 80°C |
| Recommended charge current: | 1-50A |
| Maximum charge current: | 100A |
| Recommended charge voltage: | 14.4V |
| BMS charge cutoff voltage: | 15V |
| BMS low voltage cutoff: | 8.5-9V |
| Continuous discharge: | 150A |
| Peak discharge: | 270A (5 seconds) |
| Series connection: | Up to 48V (4 x batteries) |
| Parallel connection: | Unlimited |
| Life cycles @ 100%: | 5000+ |
| Life cycles @ 50%: | 10,000+ |
| Dimensions (LxWxH): | 255 x 170 x 215mm (225 H including terminals) |
| Weight: | 10kg |
| Terminals: | M8 |
| Case material: | ABS |
| DCDC40 Charger | |||||
|---|---|---|---|---|---|
| Battery capacity: | 80-800Ah | ||||
| Vehicle input voltage: | 9-32V | ||||
| Solar input voltage: | 10-32V | ||||
| Maximum input current: | 45A | ||||
| Input fuse rating: | 60A | ||||
| Continuous output current: | Up to 40A | ||||
| Output fuse rating: | 60A | ||||
| Minimum auxiliary battery charge start voltage | 4V | ||||
| Standby current: | <10mA | ||||
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 | ||||
| Operating temperature: | -20°C ~ 80°C | ||||
| IP rating: | IP67 | ||||
| Dimensions (LxWxH): | 188 x 127 x 39mm | ||||
| Weight: | 950g | ||||
| Output | |||||
| Charge type: | 3-Stage | ||||
| Charging profile: | STD | Gel | AGM | Calcium | LiFePO4 |
| Absorption (maximum output voltage): | 14.4V | 14.1V | 14.7 | 15.3V | 14.5V |
| Float voltage: | 13.4V | 13.5V | 13.4V | 13.6V | |
| Input | |||||
| Input: | On | Off | |||
| 12V standard alternator: | >13.2V | <12.8V | |||
| 24V standard alternator: | >26.2V | <25.6V | |||
| 12V smart alternator (ignition cable connected): | >12V | <11.8V | |||
| 24V smart alternator (ignition cable conencted): | >24V | <23.6V | |||
| Solar: | 16V & 25W | 10V | |||
| DCDC25 Charger | |||||
|---|---|---|---|---|---|
| Battery capacity: | 50-500Ah | ||||
| Vehicle input voltage: | 9-32V | ||||
| Solar input voltage: | 10-32V | ||||
| Maximum input current: | 25A | ||||
| Input fuse rating: | 40A | ||||
| Continuous output current: | Up to 25A | ||||
| Output fuse rating: | 40A | ||||
| Minimum auxiliary battery charge start voltage | 4V | ||||
| Standby current: | <10mA | ||||
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 | ||||
| Operating temperature: | -20°C ~ 80°C | ||||
| IP rating: | IP67 | ||||
| Dimensions (LxWxH): | 150 x 127 x 39mm | ||||
| Weight: | 670g | ||||
| Output | |||||
| Charge type: | 3-Stage | ||||
| Charging profile: | STD | Gel | AGM | Calcium | LiFePO4 |
| Absorption (maximum output voltage): | 14.4V | 14.1V | 14.7 | 15.3V | 14.5V |
| Float voltage: | 13.4V | 13.5V | 13.4V | 13.6V | |
| Input | |||||
| Input: | On | Off | |||
| 12V standard alternator: | >13.2V | <12.8V | |||
| 24V standard alternator: | >26.2V | <25.6V | |||
| 12V smart alternator (ignition cable connected): | >12V | <11.8V | |||
| 24V smart alternator (ignition cable conencted): | >24V | <23.6V | |||
| Solar: | 16V & 25W | 10V | |||
