Itech120x 12v Lithium Deep Cycle Battery Lifepo4
Itech120x 12v Lithium Deep Cycle Battery Lifepo4
SKU:Itech120x
Couldn't load pickup availability
Share
Product Details
12 VOLT LITHIUM BATTERY ITECH120X WATERPROOF IP67 270AMP MAX DISCHARGE
MEET THE NEW 2023 ITECH120X MODEL
ITECH120X PRODUCT DETAILS
The iTECH120X lithium battery has over 10 years of design and development in Australia. Our Australian engineers have spent countless hours building and testing what we believe to be the highest-quality lithium battery available on the market today.
No changing of systems, equipment, or extensive re-wiring is required in most cases. You simply pull your old heavy AGM batteries out and put the new lightweight iTECH120X in. The iTECH120X is the only true drop-in upgrade for your existing batteries.
Our technology now allows an unlimited number of new iTECH120X to be connected in parallel. You can make a battery any size you wish by connecting as many iTECH120X lithium batteries together to make a 12v MEGA battery of any size.
The latest operating system allows a series connection of 4 lithium batteries for 48V applications.
The new iTECH120X is entirely water and dust sealed. Boasting an IP67 rating, this battery can be fully submerged in 1m deep water for up to 30 minutes and has the highest level of dust protection available. No other lithium batteries can match that in Australia today.
Utilising our latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology, the iTECH120X is the toughest deep cycle battery iTechworld has ever built.
In order to super-charge the iTECH120X’s performance, we have equipped it with a new Battery Management System (BMS) specially programmed by iTechworld engineers to auto cell-balance and squeeze every ounce of performance from this deep cycle battery.
ITECH120X FEATURES
- Prismatic cells
- Suitable for under-bonnet use
- Heavy-duty ABS case
- Can be connected in parallel unlimited
- Can be connected in series up to four batteries (48-volt system)
- High discharge current max 270A

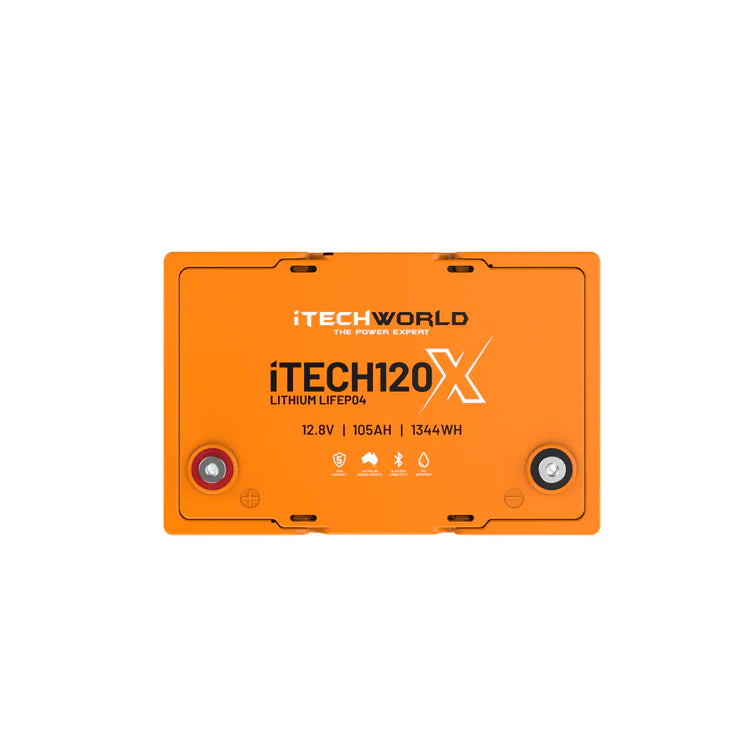

- Heavy-duty removable M8 Bolt Battery terminals
- Maintenance-free
- Auto cell balancing
- Lithium LiFePO4
- Lifting handle fitted to ensure a secure hold when moving
- Inbuilt battery management system
- Built-in over-discharge protection
SPECIFICATIONS
| Nominal Voltage: | 12.8v |
| C20 Rating usable amps 10v: | 105Ah |
| Short Circuit Protection: | Yes |
| Optimum Temperature Range: | +5 to +60°C |
| BMS Operational Temperature Range: | -5 to 80°C |
| Safety Protection Isolator: | 80°C |
| Recommended Charge Current: | 1 - 50A |
| Maximum Charge Current: |
100A |
| Recommended Charge Voltage: | 14.4v |
| BMS Charge Cut-Off Voltage: | 15v |
| BMS Low Voltage Cut Off: | 8.5 - 9v |
| Continuous Discharge: | 150A (175A 5 mins) |
| Peak Discharge: | 270A 5 secs |
| Series Connection: | Up to 48V (4 x batteries) |
| Parallel Connection: | Unlimited |
| Life Cycles 80%: | 4000 |
| Life Cycles 40%: | 8000+ |
| Dimensions 2023 iTECH120X (LxWxH) | 255x170x215mm (225mm including terminals) |
| Approx. Weight: | 10Kg |
| Terminal Type: | M8 |
| Case Material: | ABS |
PACKAGE CONTENTS OF THE NEW ITECH120X 2023 MODEL
- 1x ITECH120X 12V Lithium Battery
- 1x iTECH120X instruction manual
