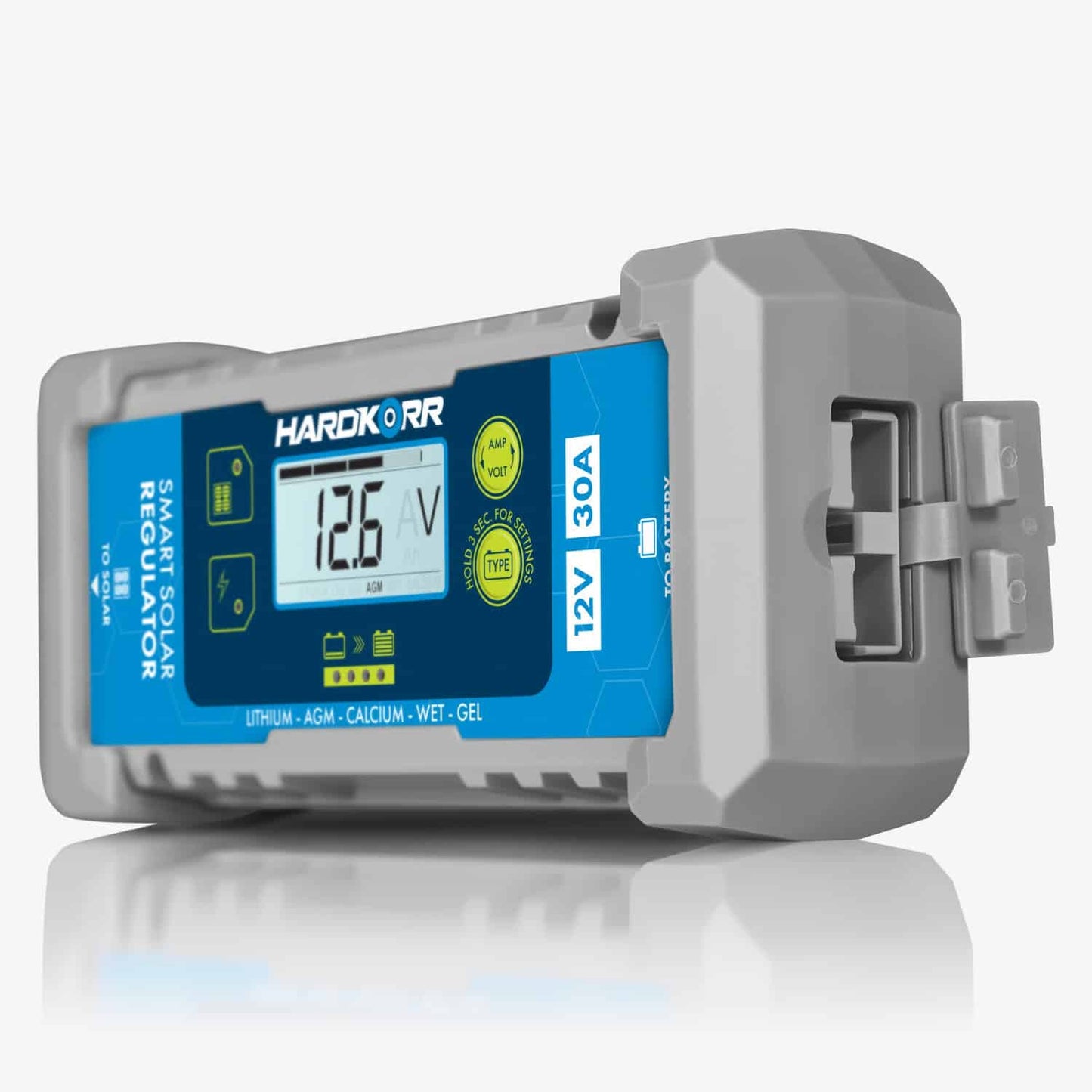

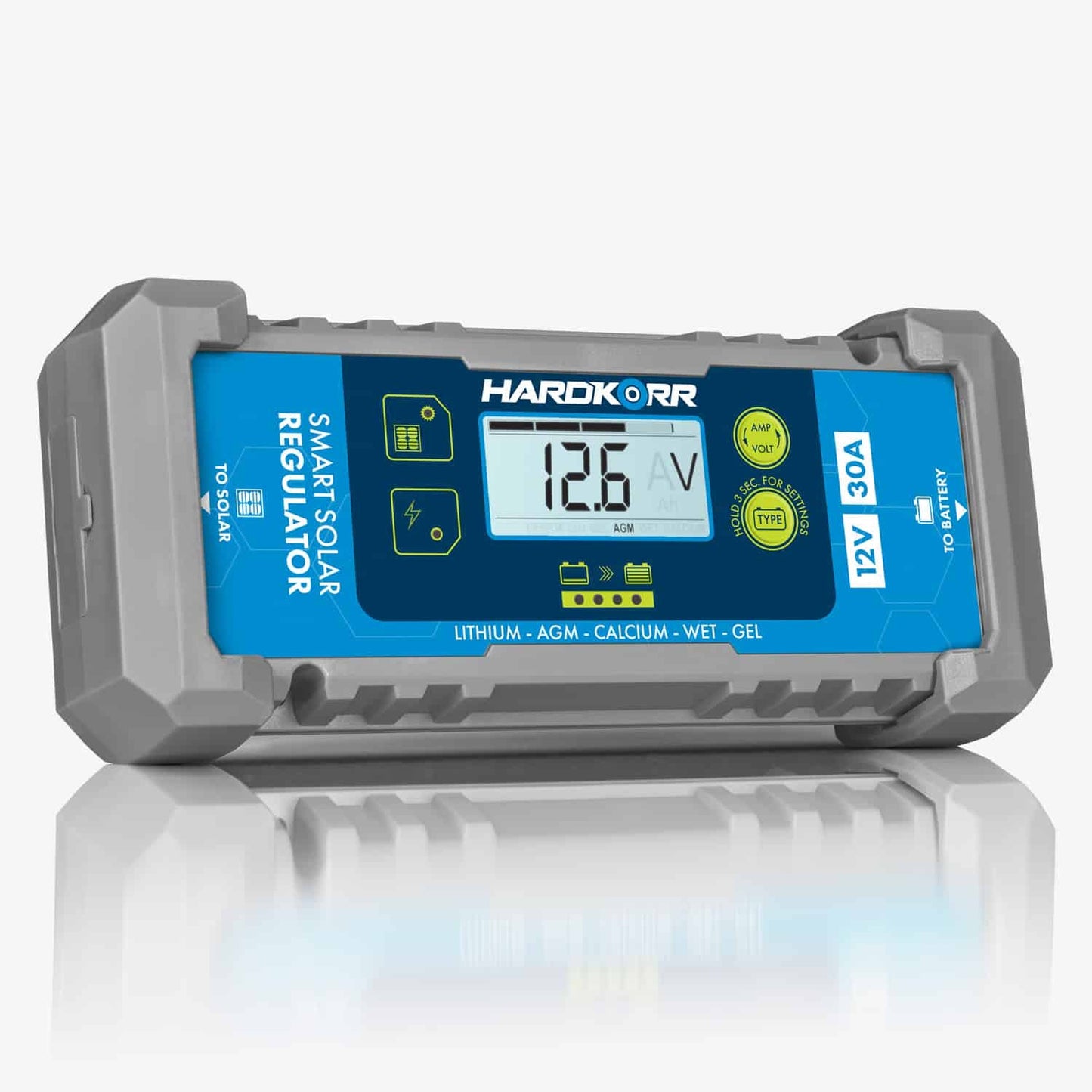

Hard Korr 30A Waterproof Lithium-Compatible PWM Solar Regulator
Hard Korr 30A Waterproof Lithium-Compatible PWM Solar Regulator
SKU:HKPSOLRIN30A
Couldn't load pickup availability
Hard Korr 30A Waterproof Lithium-Compatible PWM Solar Regulator
THIS ITEM IS CURRENTLY ON BACK ORDER - ETA 10/1/24
Hardkorr’s 30A 6-stage PWM smart solar regulator is tough as nails and designed to work perfectly with our range of 12v solar panels.
This smart regulator will optimally charge a range of battery types, including AGM, Gel, Calcium, Wet and all common lithium variants including LiFePO4 and Li-ion. It contains a host of smart electronics including reverse polarity protection, short circuit protection, reverse current protection, overcharge protection and more.
Its large, backlit LCD screen provides useful information relating to power input and battery charge level, and inbuilt LEDs provide a quick-reference indicator of battery charge status.
It also contains smart re-activation technology, which gives it the ability to wake up a “dead” lithium battery where the BMS over-discharge protection circuit has been tripped. Simply connect the regulator to the battery and it will deliver special small-current pulses until the battery has recovered enough to be charged normally.
Key features
- COMPATIBLE WITH ALL COMMON BATTERIES: Works with AGM, Gel, Calcium, Wet and all types of lithium batteries (LiFePO4 and Li-ion).
- ADVANCED ALGORITHM: 6-stage charge program is capable of optimally charging batteries from under 5V.
- SMART REACTIVATION: This regulator can automatically sense where a lithium battery’s BMS over-discharge protection circuit has been tripped and wake it up.
- ELECTRONIC PROTECTIONS: Includes reverse polarity protection, short circuit protection, reverse current protection, overcharge protection, transient overvoltage protection and over temperature protection.
- SHOCK-RESISTANT: 100% solid state unit (no fuses, fans etc)
- WATERPROOF & DUSTPROOF IP65 ingress protection rating

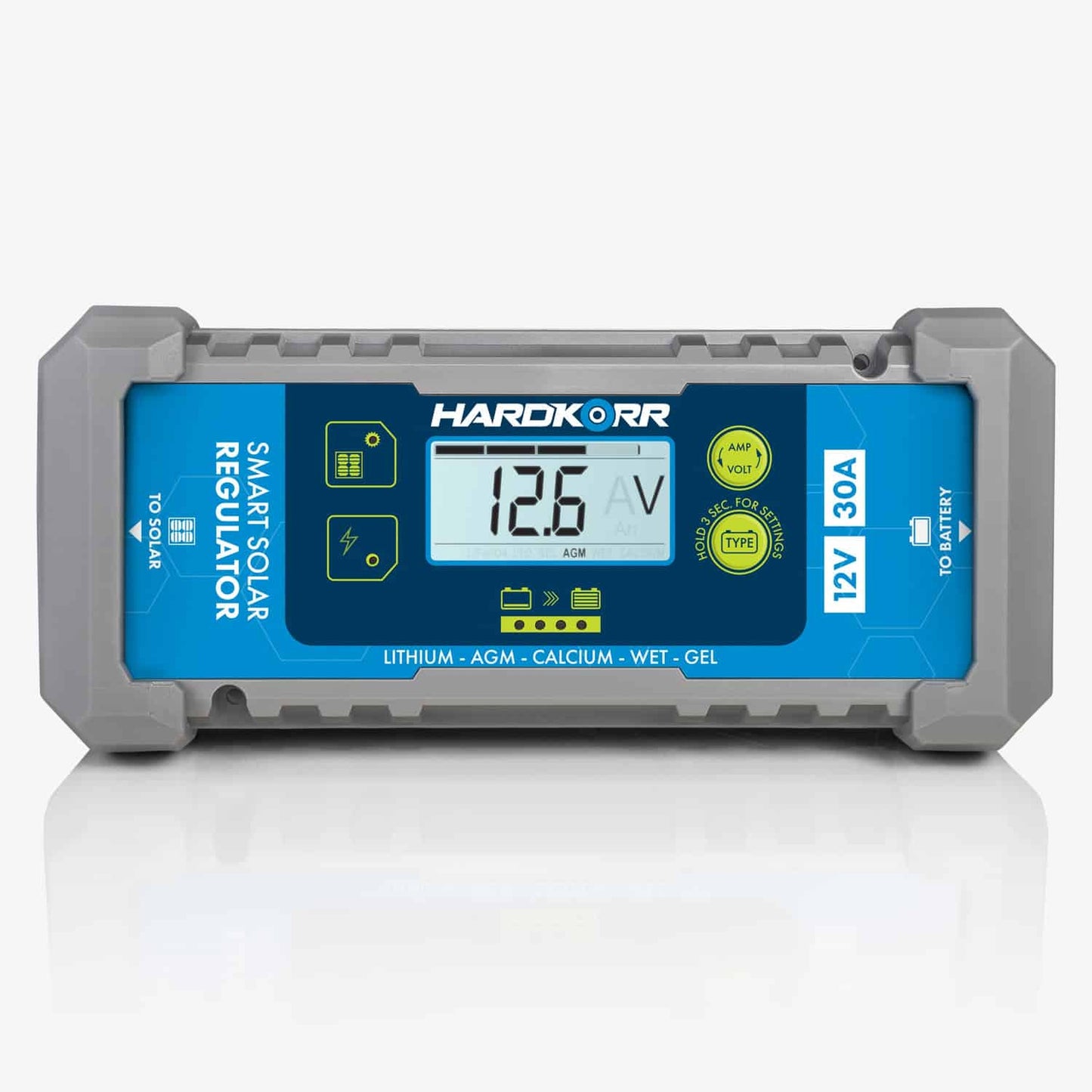

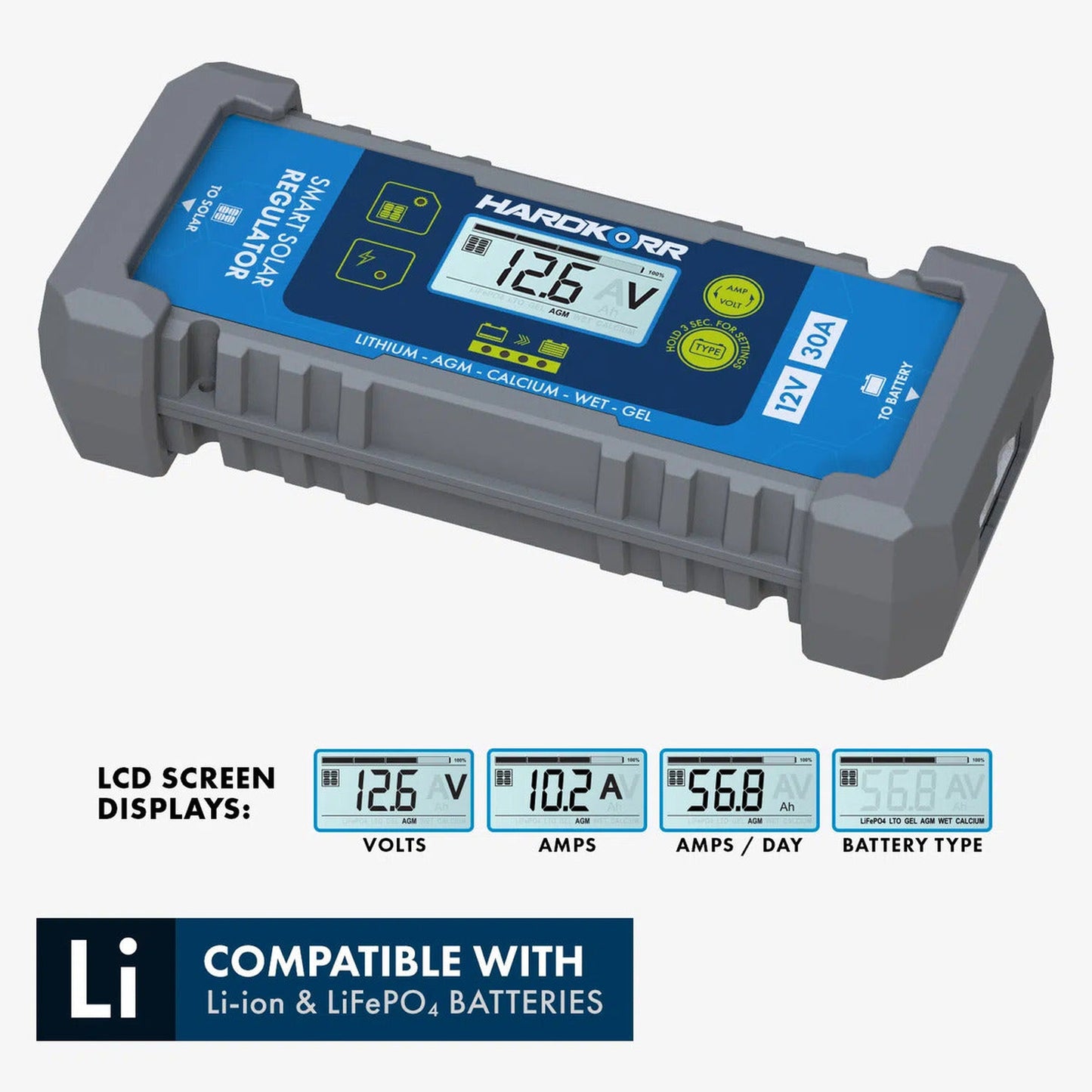

Large backlit LCD screen
VOLTS
See the current voltage level of your battery to assist in understanding its health and charge level.
AMP HOURS
See the total number of amps that have been fed into the battery over the course of the day.
AMPS
See in real-time the number of amps being fed into your battery from the solar panel.
BATTERY TYPE
Choose from 6 different programs for optimum performance, charge level and battery longevity.
The Hardkorr guarantee
All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 2-year Australian warranty and a 30-day money back guarantee.
Specifications
| Suitable battery types | LiFePO4, Li-ion, AGM, Gel, Calcium, Wet |
|---|---|
| Rated throughput | 30A |
| Ingress Protection | IP65 |
| LCD screen display modes | Volts, amps, amp hours, battery type |
| Weight | 0.5kg |
| Self-consumption | <3mA |
| Operating temperature | -40°C to 60°C |
| Storage temperature | -40°C to 85°C |
Pack Contents
| 1x | 30A 6-stage smart solar regulator |
|---|---|

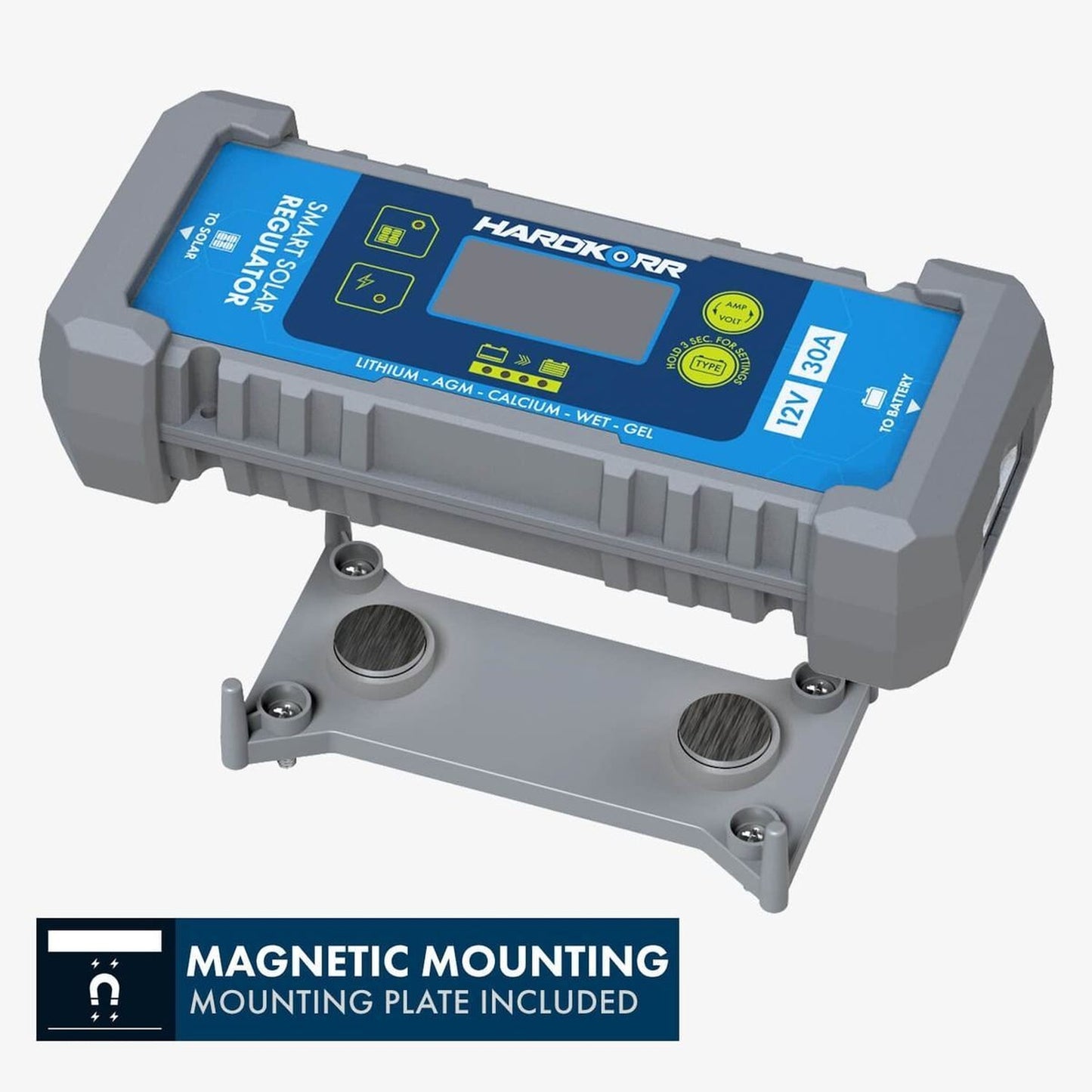

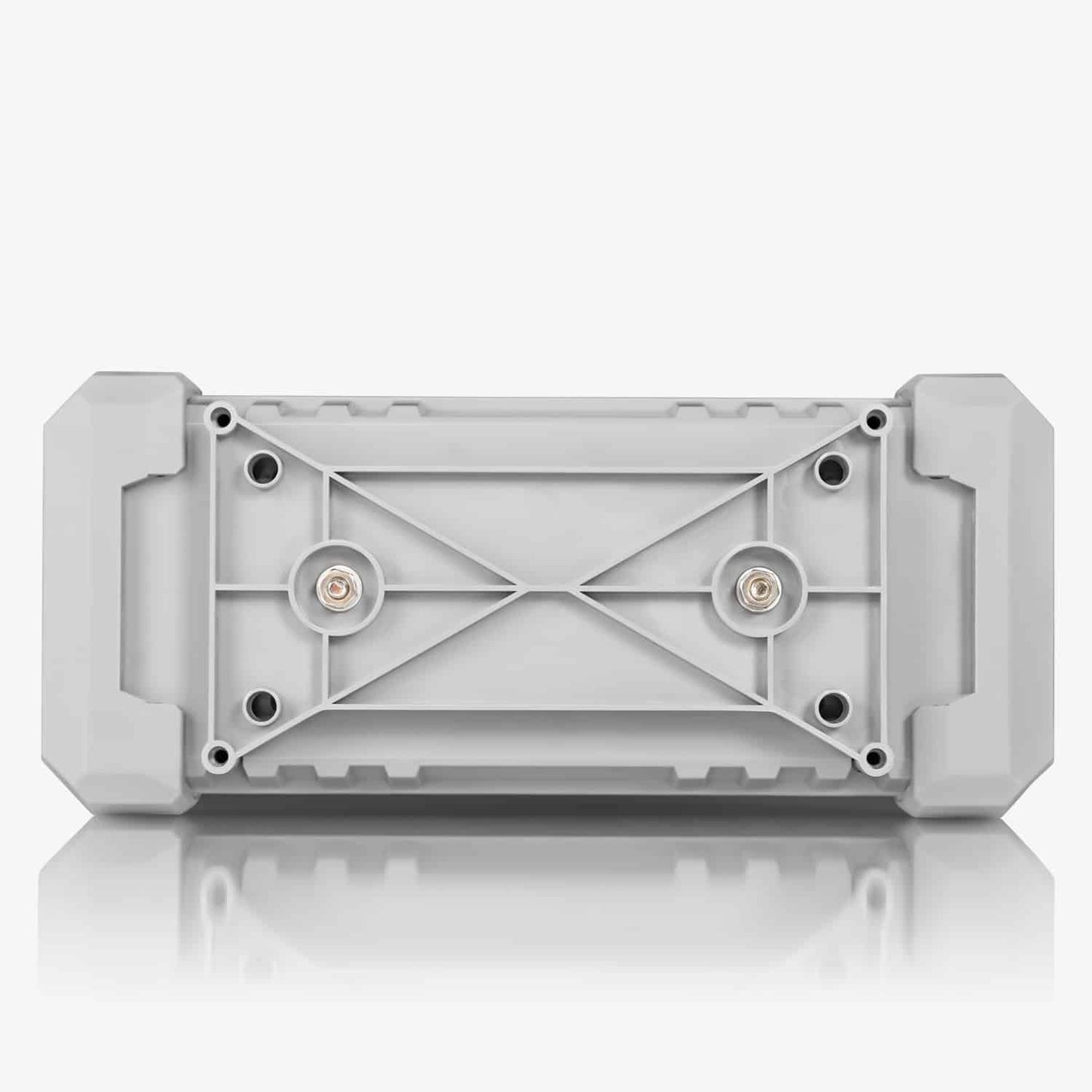

| 1x | Magnetic mounting plate & screws |
