Hard Korr Single Row Light Bar Hyperion 40″
Hard Korr Single Row Light Bar Hyperion 40″
SKU:HKLB-HPR-40S
Share

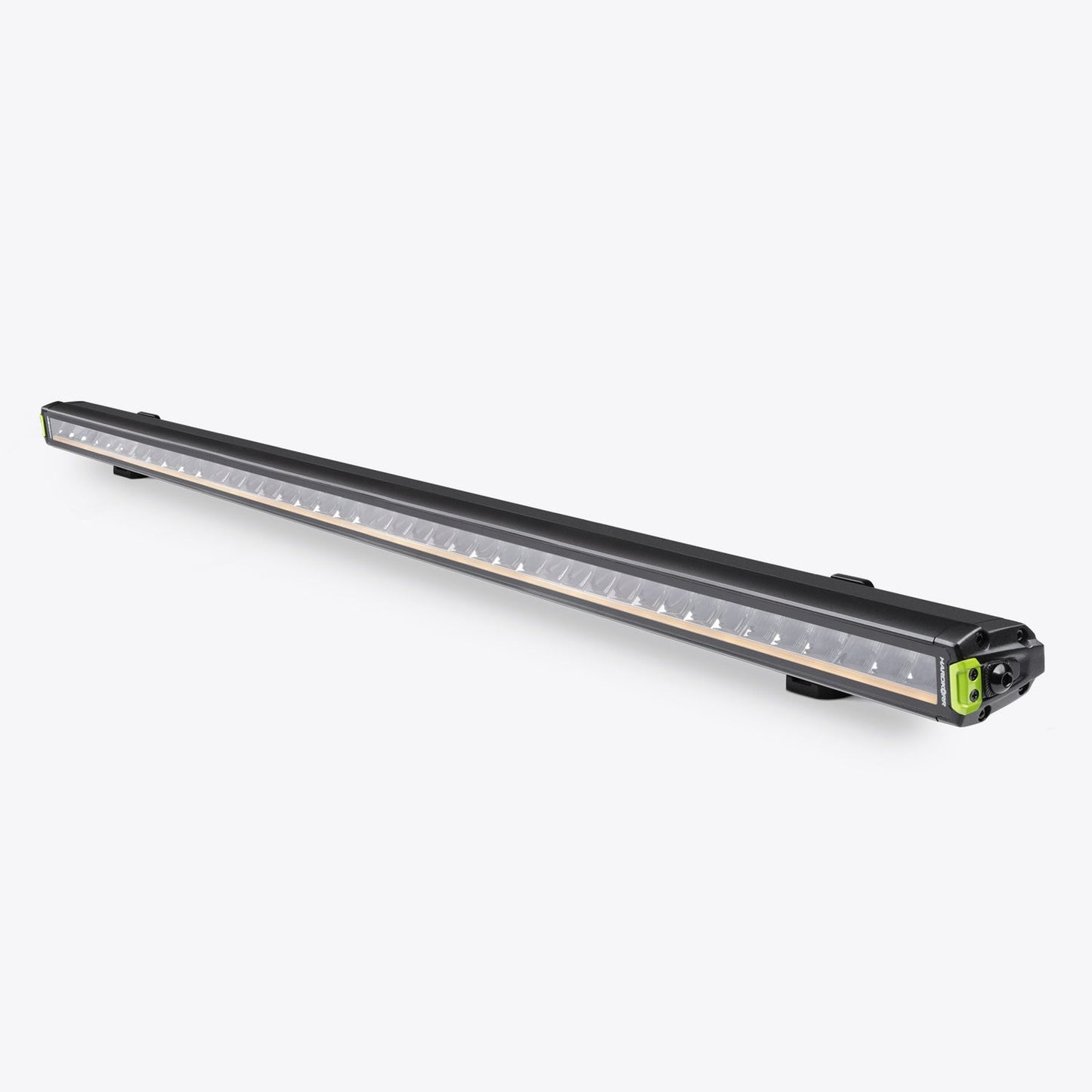

Hard Korr Single Row Light Bar Hyperion 40″
A lightbar that’s distinctly yours.
- 1 LUX @ 787M
- PREMIUM OSRAM LEDs
- IP68/IP69K WATERPROOF & DUSTPROOF
- HYPERFLOOD 180° BEAM
- COLOR TEMPERATURE 5700K
- CISPR25 CERTIFIED EMC PROTECTION
Our Hyperion LED light bars combine outstanding real-world performance and toughness with an aggressive design and extensive customisation options.
Top quality LED chips and reflectors
Starting with the basics, this light bar is constructed with high-performance OSRAM® OSLON SSL 150 LED chips. These premium chips are extremely efficient, supremely robust, resistant to corrosion and have a 150° viewing angle, which is very important in light bar applications where beam width is key. They also have very low thermal resistance, which means they will remain cooler than other LED chips and their performance will not degrade with extended use. The 5700K colour temperature offers balanced, natural lighting for excellent visibility without causing eye strain from glare.
We have matched these chips with expertly engineered, vacuum-metallised polycarbonate reflectors, which allowed us to create a 180 degree overall beam angle. This means not only can you see far into the distance, but are also made aware of close-up hazards such as kangaroos in time to take evasive action.
Robotic manufacturing
The housing and lens are robotically manufactured and assembled, ensuring the light bar is perfectly sealed against dust and water ingress, and we use the highest quality materials to ensure they’ll last for many years even in harsh conditions.
Intelligent design
Because single row light bars are often used in tight spaces such as inside grilles and underneath roof racks, we have engineered our Hyperion light bars to be as thin as possible by minimising wasted space internally. When using the end-mount legs this bar is only 52.1mm high, and when using the under-mount legs it is still only 63.6mm high.
Extensively customisable

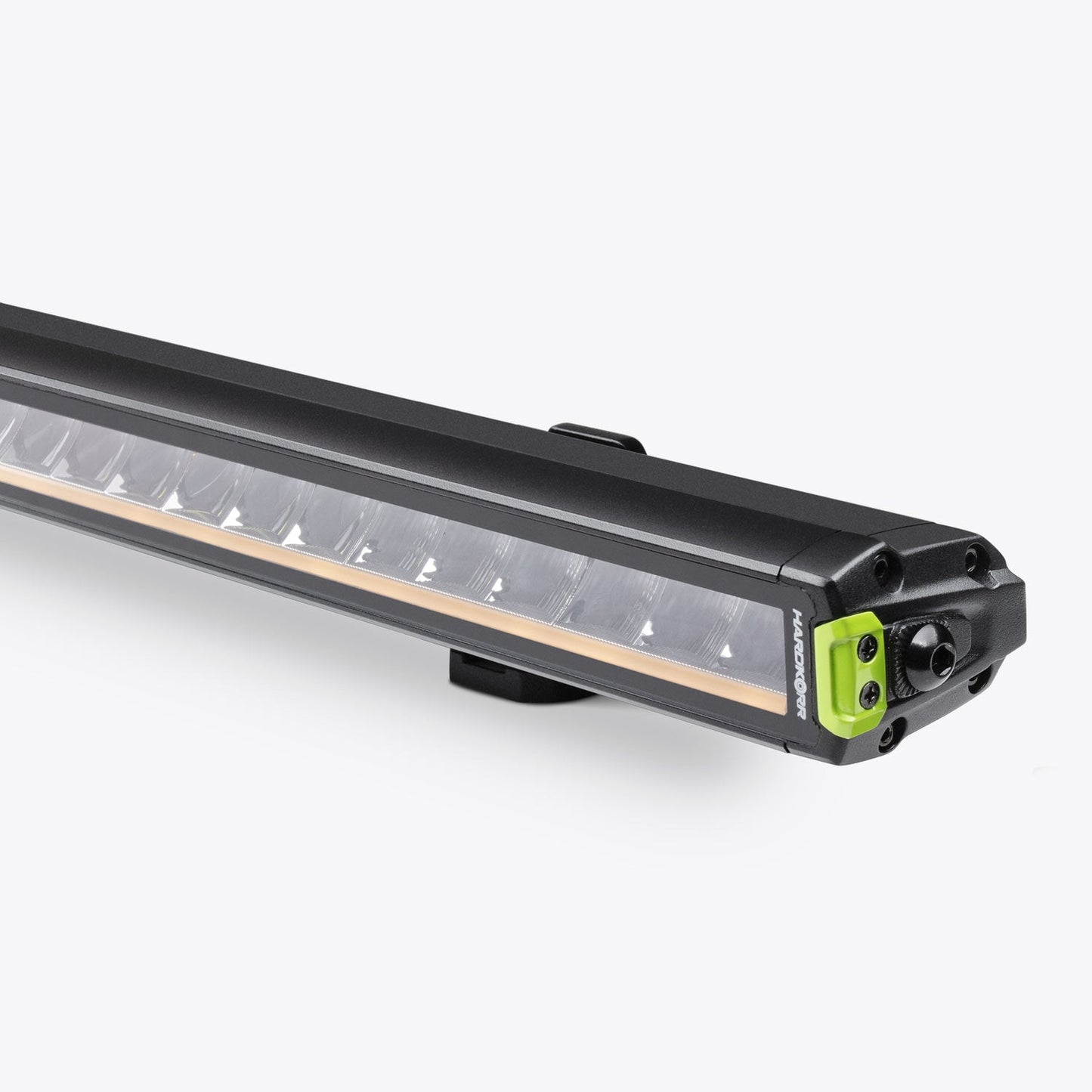

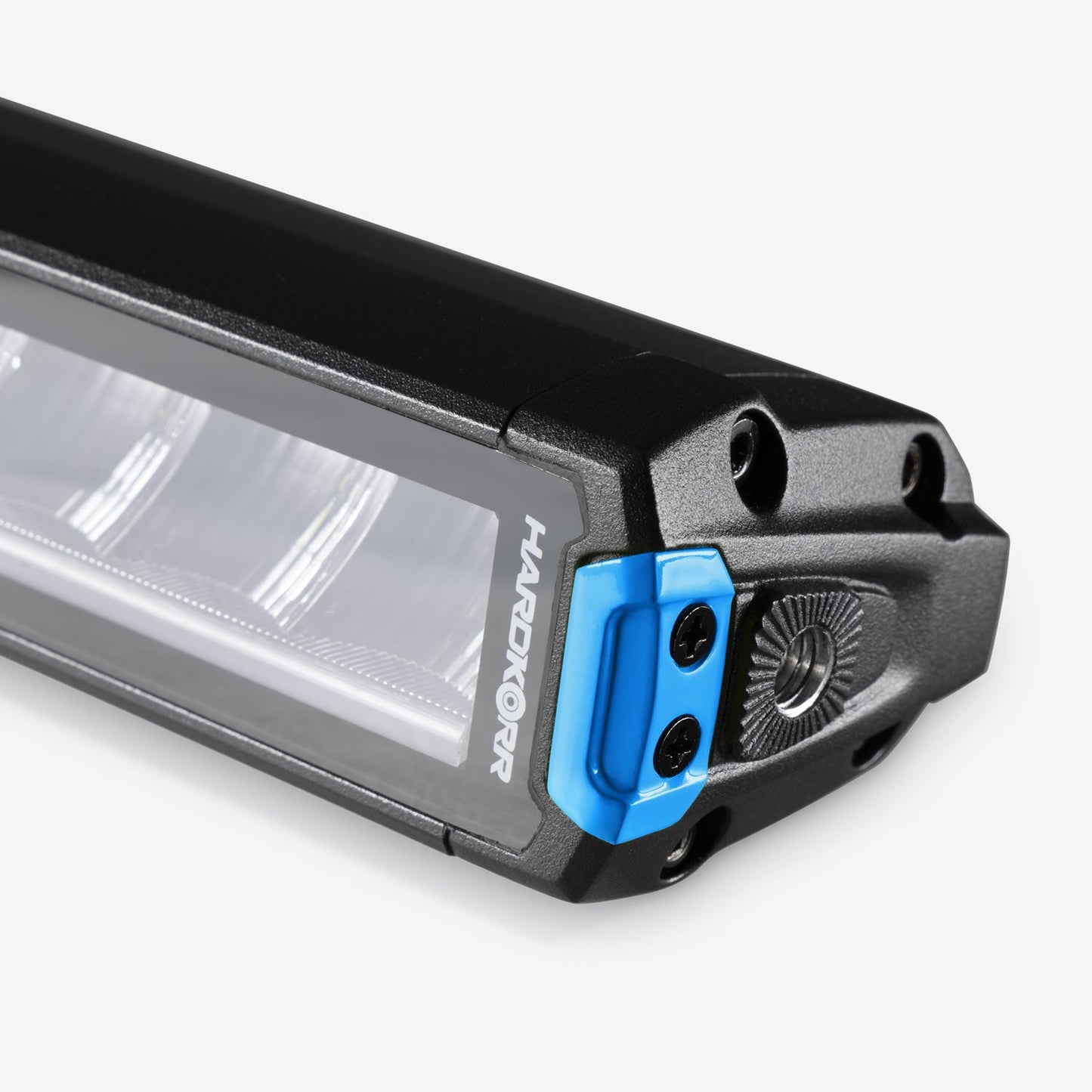

Finally, we’ve made sure there is plenty of customisability so you have the freedom to match this light bar to your vehicle and application. We’ve included three pairs of different coloured side inserts in the pack, and have another seven colour options available for separate purchase. Additionally, each light bar can be switched between high and low modes, and you can also switch between orange and white daytime running lights (DRLs). For further protection and customisation, we also offer black, orange and clear covers for purchase.
Tested Tough
We’ve engineered these lights to be incredibly durable and reliable, and extensively tested them to ensure they will still perform even under extreme duress in real-world Australian conditions. They are certified as compliant with the following standards:
- IP68 & IP69K: Completely resistant to dust ingress (IP6X), can handle submersion in 3m of water for 30 minutes (IPX8) as well as high-pressure, high-temperature water jets (IPX9K)
- UNECE R10 (CISPR25): Will not unduly interfere with radio signals
In addition, our manufacturing facility has been certified in accordance with the following international standards:
- ISO 9001: Ensures quality management systems have been implemented
- ISO 14001: Ensures environmental management systems have been implemented
Two colour DRL lights
Customise the look of your car with orange or white DRL
Powerful, even combination beam. 180º coverage.
Two brightness settings, and a powerful combination beam pattern will give you the spread and reach that you need for any situation.
Drag the slider to see how your forward view changes when you use a Hardkorr Hyperion LED light bar compared to normal high beam headlights.
The Hardkorr guarantee
All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 5 year Australian warranty and a 30-day money back guarantee. For terms and conditions click here.
Specifications
Materials | 6063 aluminium housing UV hardcoated polycarbonate lens Vacuum-metallised aluminium reflectors |
---|---|
LED type | OSRAM OSLON® SSL 150 |
Power | 210W |
Beam distance | 1 lux @ 787m (high) / 1 lux @ 373m (low) |
Output (raw) | 17,640 lumens |
Output (effective) | 10,802 lumens (high) / 2,379 lumens (low) |
Peak intensity | 620,000 candela |
Colour temperature | 5700K |
DRL colour | Settable orange / white |
Operating voltage | 10 – 30V DC |
Current draw (12V) | 15.24A (high) / 2.43A (low) |
Current draw (24V) | 7.34A (high) / 1.33A (low) |
DRL power draw | 1.23A @ 12V / 0.65A @ 24V |
Operating temperature | -30°C to 65°C |
Weight | 2.72kg |
Certifications | CE, CISPR25, ISO 7637-2:2004 |
Pack Contents
1x | 40" Hyperion LED light bar |
---|---|

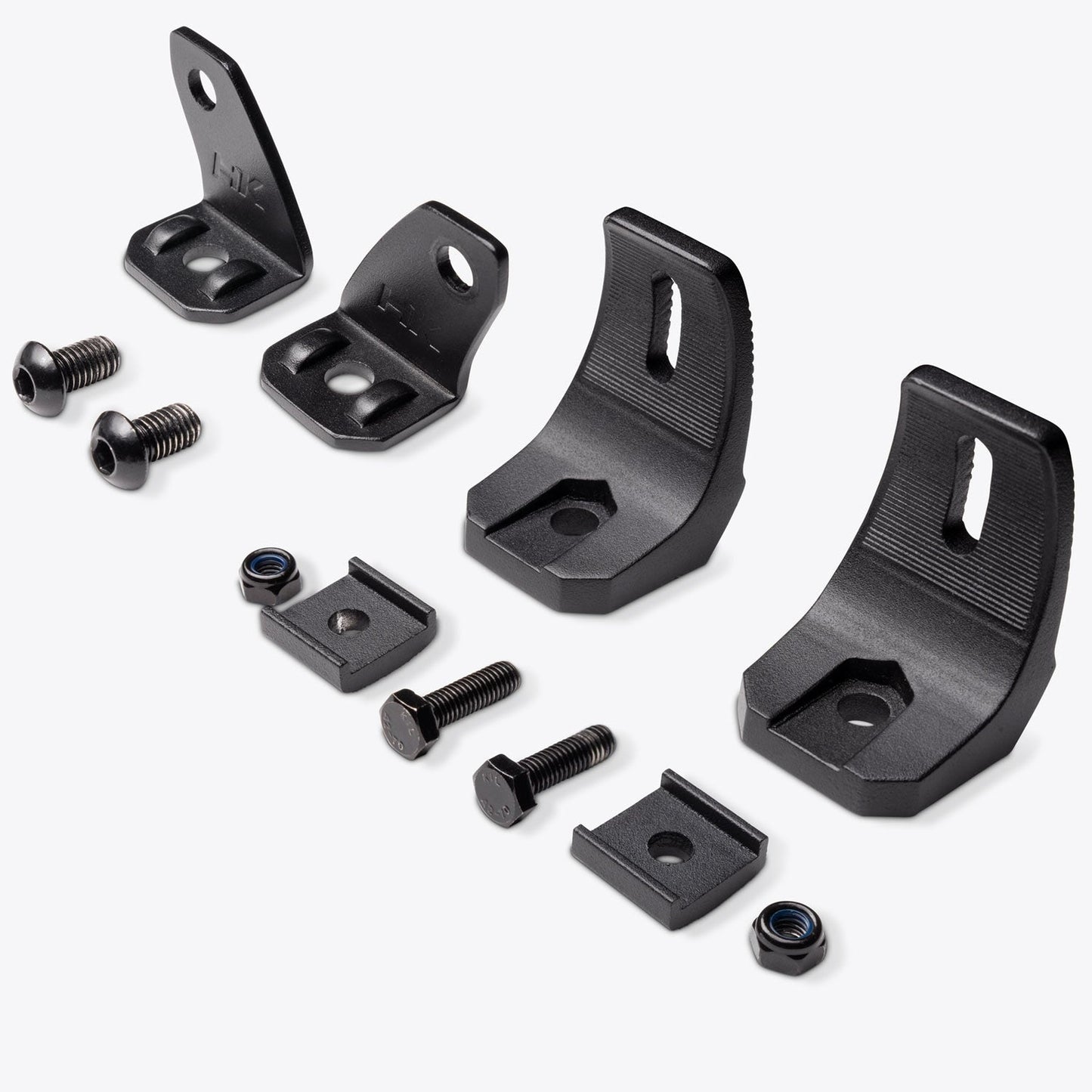

1x | Set end-mount legs |
1x | Set under-mount legs |
1x | Wiring harness |

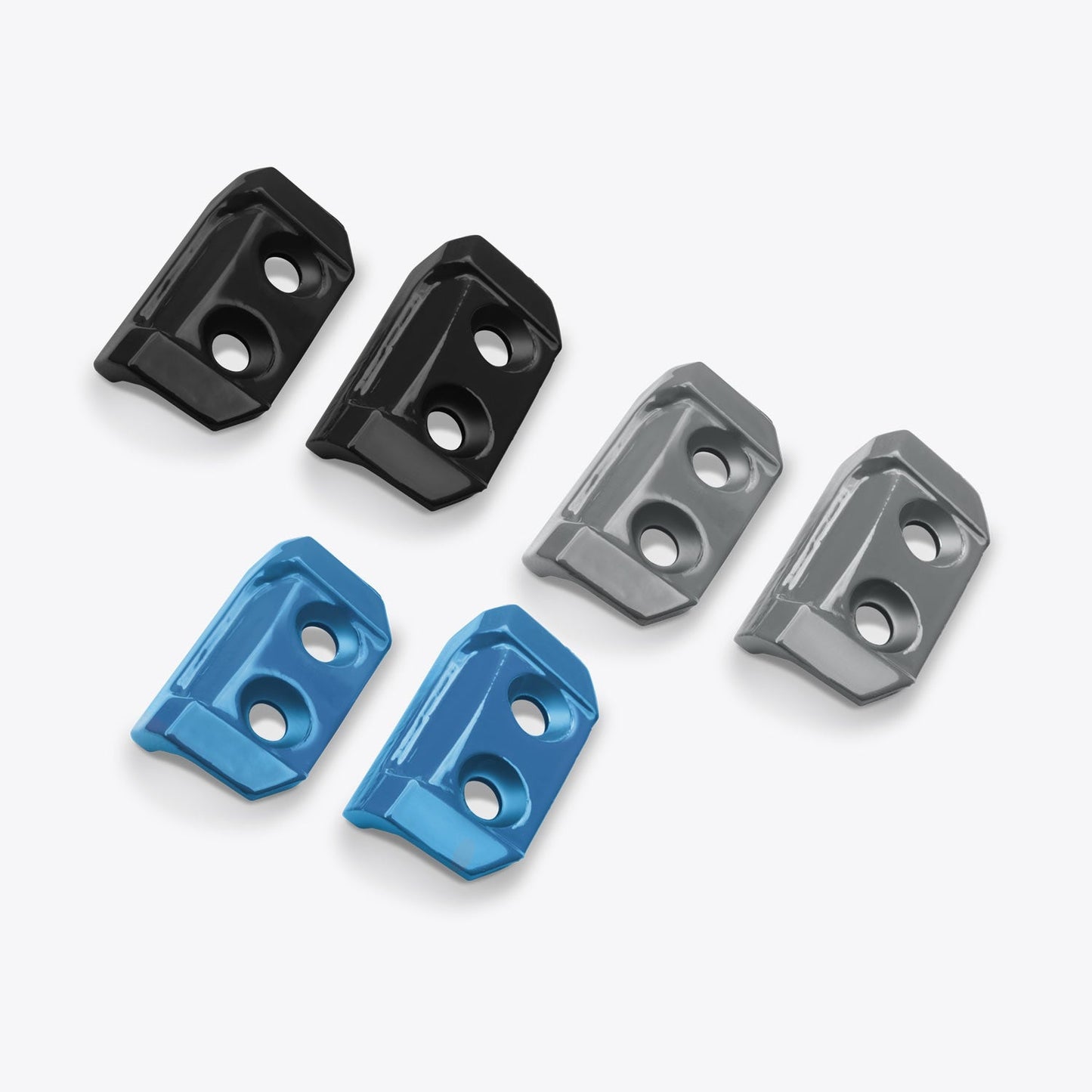

3x pair | Coloured inserts (blue, black, grey) |
