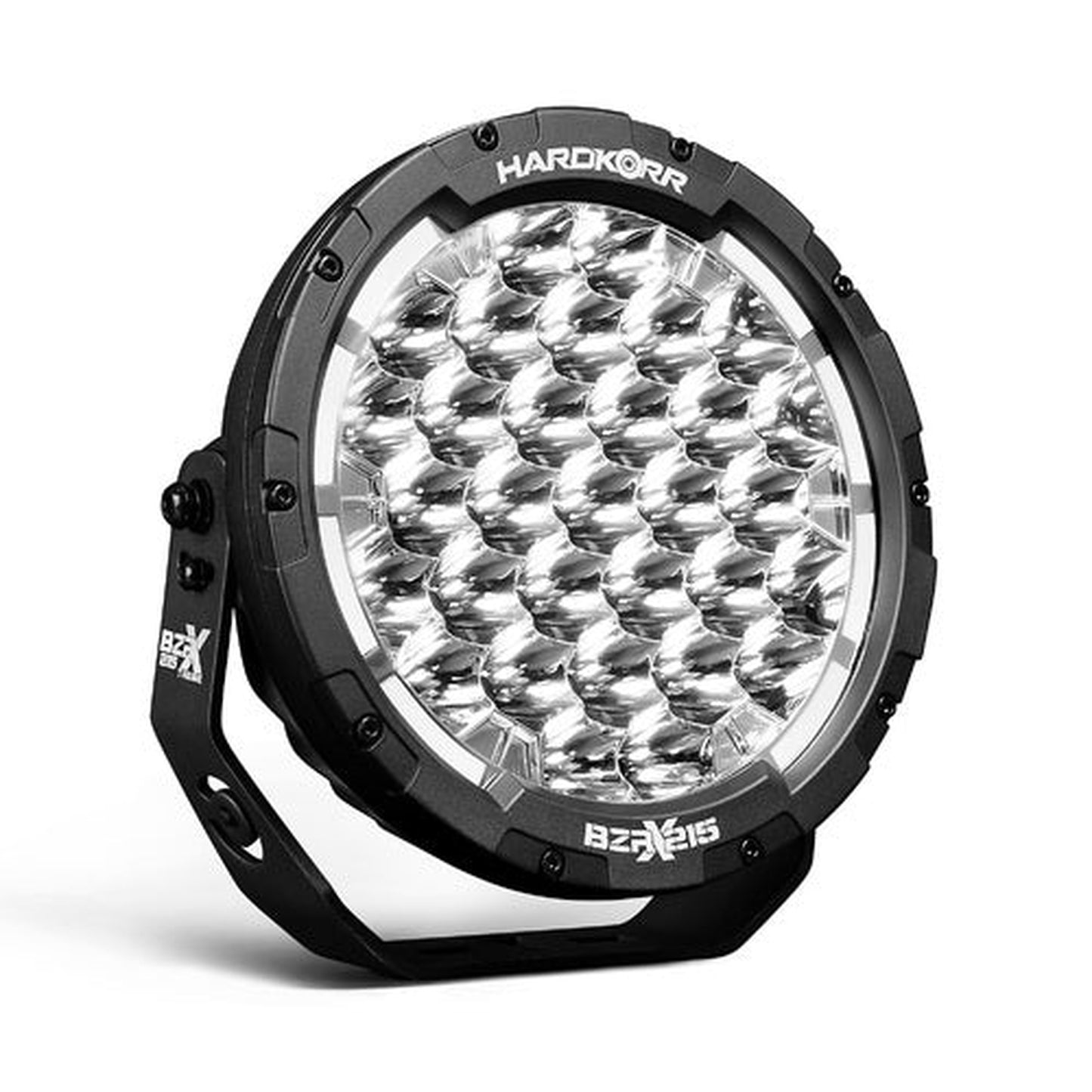

Hard Korr BZRX Series 9'' Round Driving Light - Single

Hard Korr BZRX Series 9'' Round Driving Light - Single

SKU: HKBZRX215-S

Regular price $329.00 AUD
Regular price Sale price $329.00 AUD
Sale Sold out
Tax included.

Hard Korr BZRX Series 9'' Round Driving Light - Single

Our bestselling lights, now available in singles.

  • NEW DYNAMIC LED STARTUP SEQUENCE
  • 5W LUMILEDS LED CHIPS
  • IP68 WATERPROOF & DUSTPROOF
  • COMBINATION BEAM
  • COLOR TEMPERATURE 6000K
  • CISPR15 CERTIFIED EMC PROTECTION

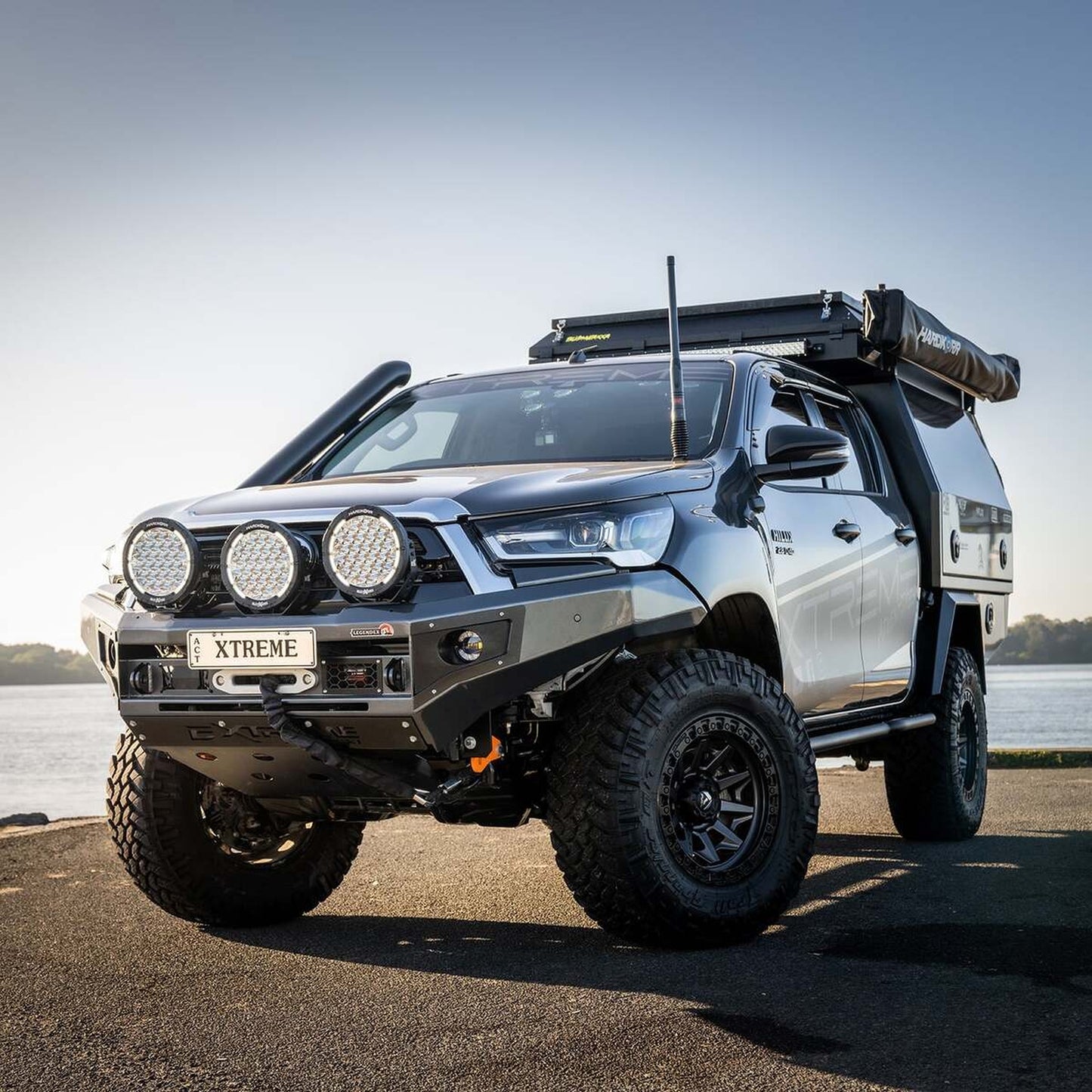

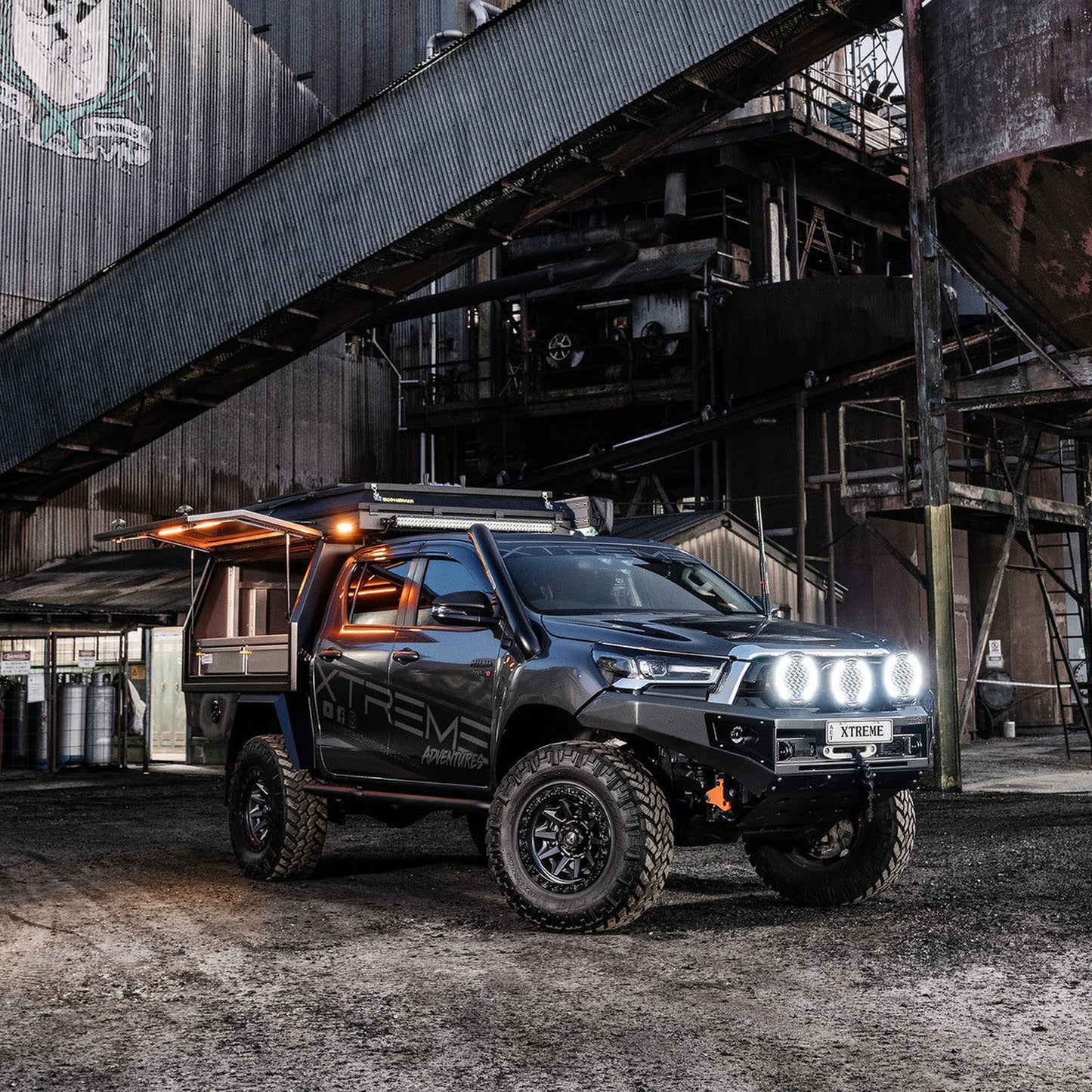

As a result of customer feedback, we now offer our bestselling BZR-X Series LED Driving Lights in singles as well as pairs. Primarily this allows customers to run three-light setups on their bull bars, which is an increasingly popular choice among the 4wding community.

The Hardkorr BZR-X Series driving lights are hands down the best driving lights we’ve ever created. In fact, we think they’re the best driving light anyone has ever created. Big call? Maybe, but we don’t think it’s a wrong one!

We’ve started with the best LED chips currently available on the market, from Lumileds. Forget the old argument between OSRAM and CREE, Lumileds LEDs are starting to appear in more and more high-end driving lights, and for good reason. They are incredibly bright, much more than anything else we’ve ever come across, and very efficient as well.

Why does this matter? Good question. Using LED chips with such high brightness means that our reflector engineers have been able to achieve the “holy grail” of driving lights: a true combination beam, as good as you’ll find in a light bar, without sacrificing forward distance.

They’re also CISPR15 compliant, meaning they have been independently tested to ensure they do not interfere with radio frequencies.

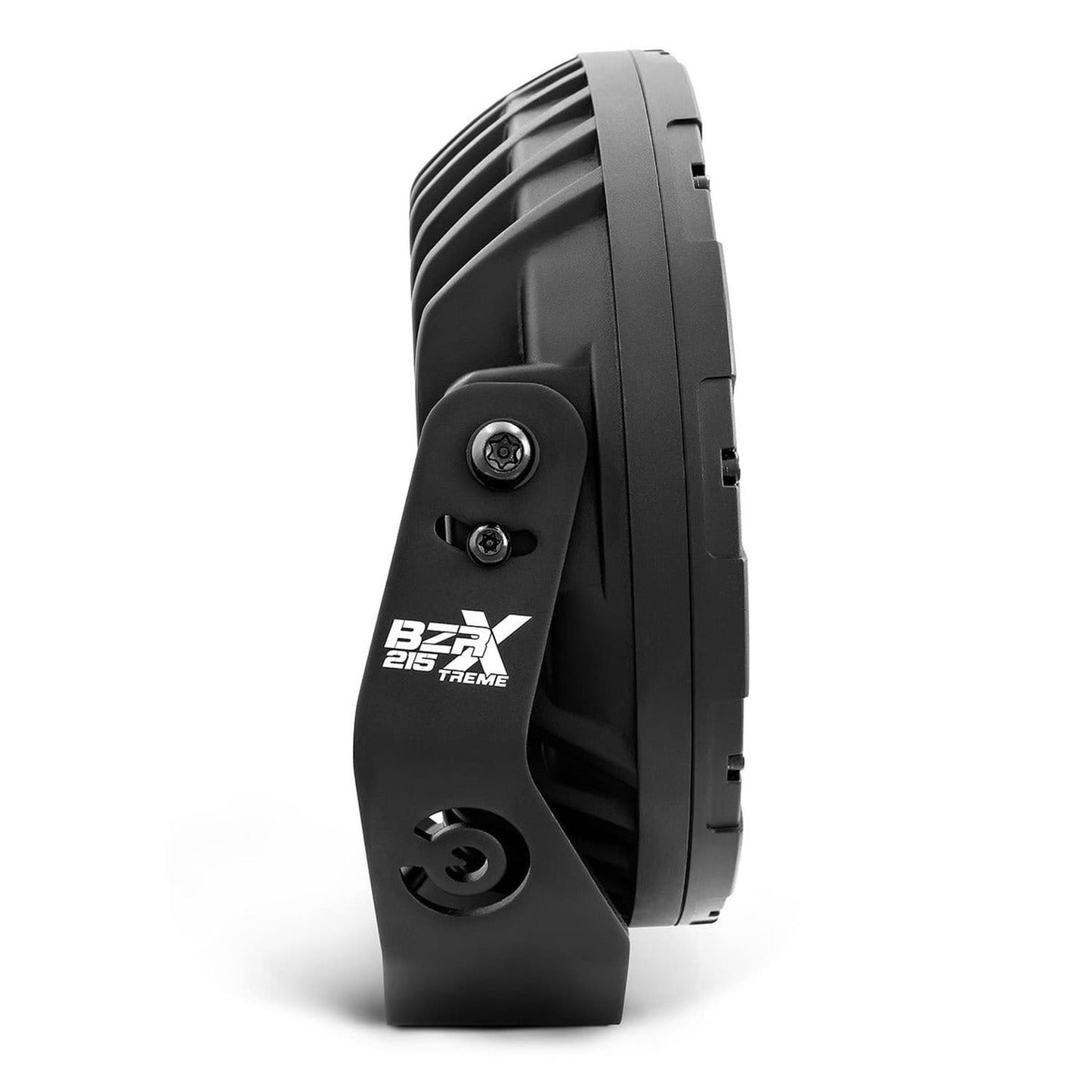

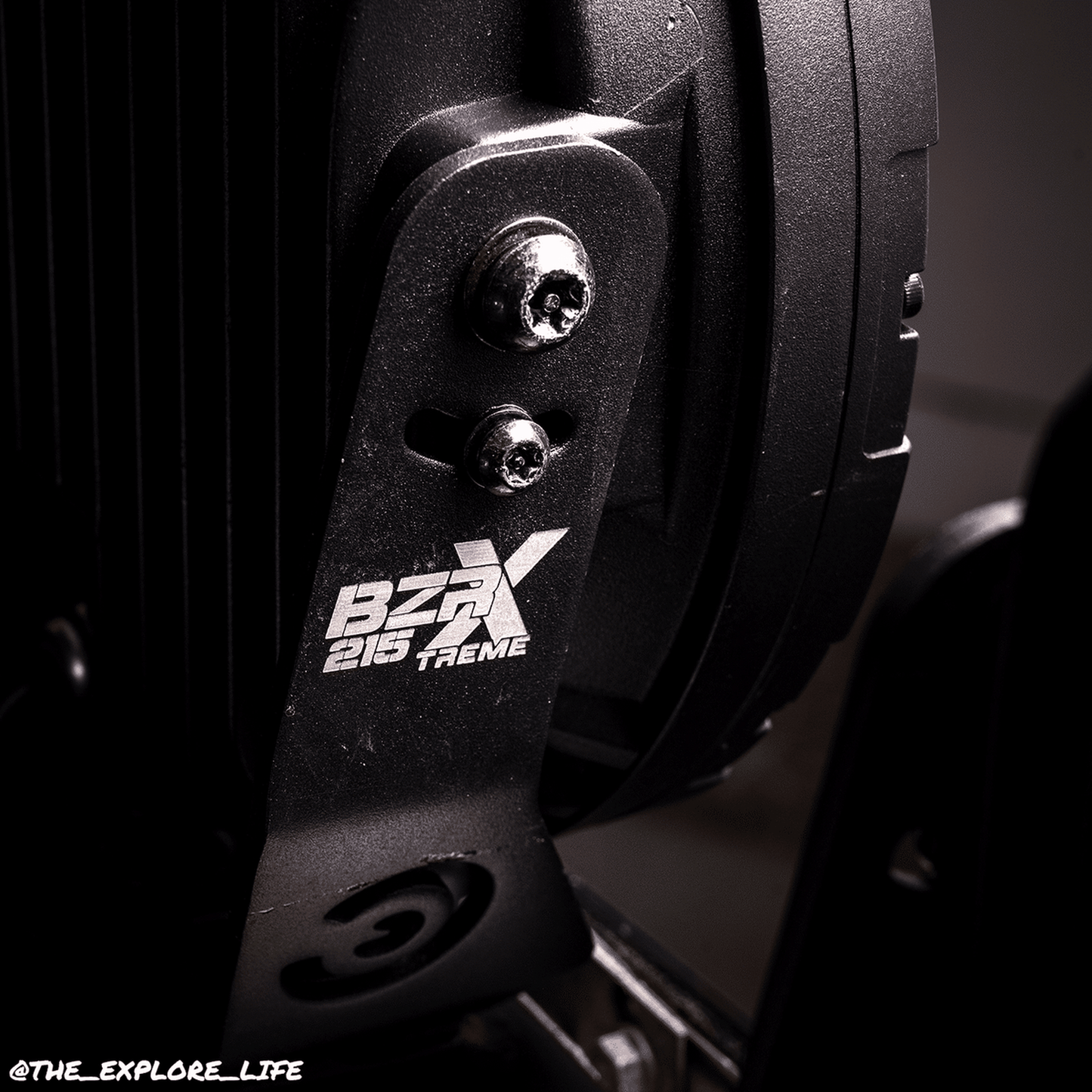

Combined with a tough, understated look, integrated daytime running lights (DRL) and strong 4mm 316 stainless steel brackets, they are the ultimate driving lights for keen adventurers, professional drivers and those who spend a lot of time on country roads.

NEW dynamic LED start-up sequence

Our BZR-X LED driving lights now come with a unique dynamic DRL start-up sequence.

Now when you turn your vehicle’s engine on, your daytime running lights will illuminate progressively rather than all coming on at once.

Whilst it (obviously) doesn’t enhance the performance of your lights at all, we thought it would be a bit of fun to create and produce a nice effect on the front of your rig!

We’ve engineered these lights to be incredibly durable and reliable, and extensively tested them to ensure they will still perform even under extreme duress in real-world Australian conditions. They are certified as compliant with the following standards:

  • IK08: Can survive up to a 5 joule impact from any direction without failing
  • IEC 60068-2-6 AND ISO16750-1: Can survive constant exposure to 15G (R.M.S.) of vibration in the 24-2000Hz range
  • IP68: Completely resistant to dust ingress, can handle submersion in 3m of water for 30 minutes
  • CISPR15 CLASS 3: Will not unduly interfere with radio signals

In addition, our manufacturing facility has been certified in accordance with the following international standards:

  • ISO 9001: Ensures quality management systems have been implemented
  • ISO 14001: Ensures environmental management systems have been implemented

Key features

MARKET-LEADING DISTANCE AND SPREAD.

BZR-X Series LED Driving Lights have market-leading distance and flood capabilities
BZR-X Series LED Driving Lights are built to last in even the toughest conditions

BUILT TO LAST FOR MANY YEARS IN EVEN THE TOUGHEST CONDITIONS.

STYLISH INTEGRATED DAYTIME RUNNING LIGHTS (DRLS).

BZR-X Series LED Driving Lights have inbuilt Daytime Running Lights
BZR-X Series LED Driving Lights come with adaptor cable included

ADAPTOR CABLE INCLUDED FOR EASY CONNECTION TO MAIN WIRING HARNESS.

Powerful, even combination beam.

Our BZR-X Series 9 inch driving lights pump out an incredible 1 lux @ 1,460m down the road, whilst also providing excellent illumination to both sides.


[Click the image for full-size diagram]

Drag the slider to see how your forward view changes when you use a pair of Hardkorr BZR-X Series 9″ LED driving lights compared to normal high beam headlights.

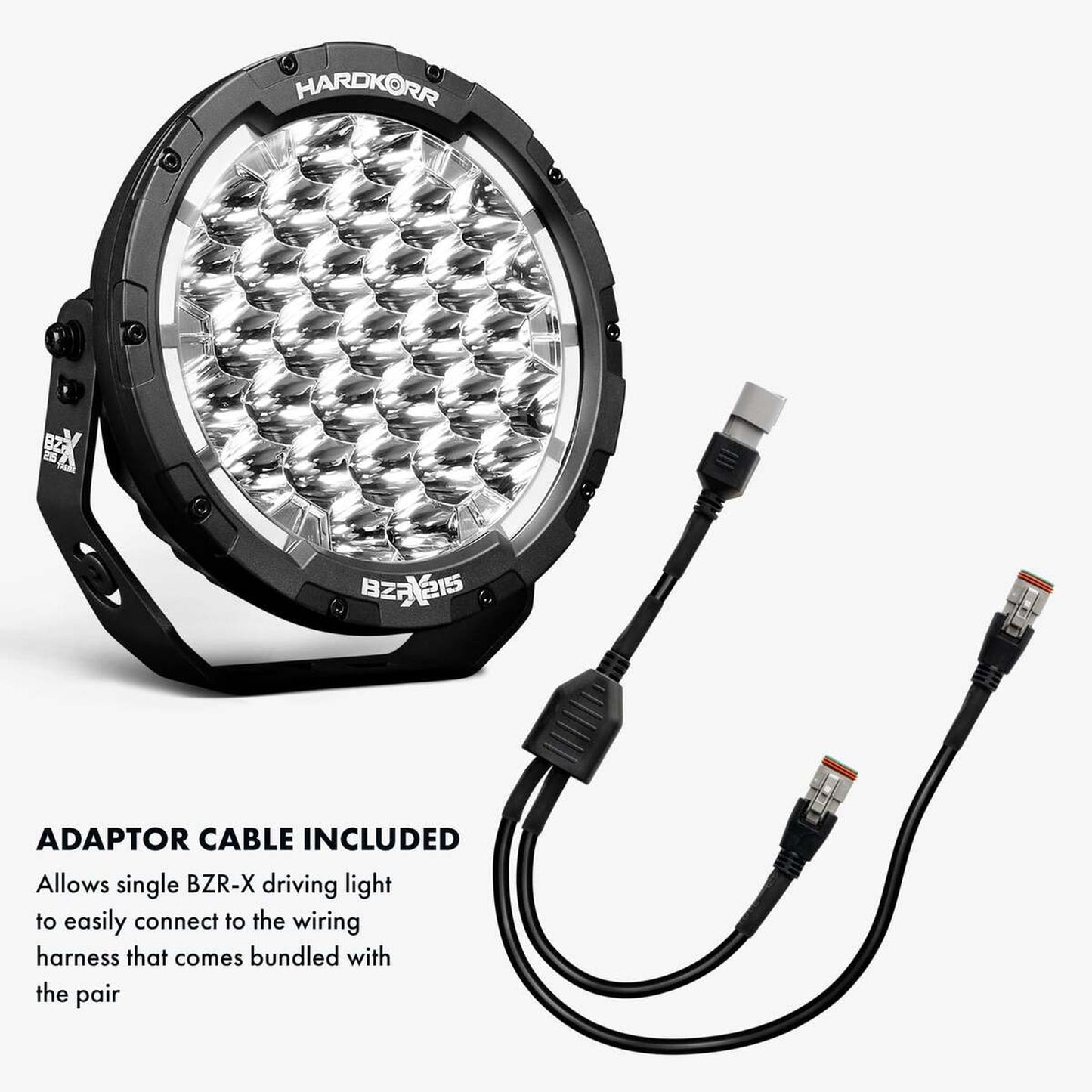

Adaptor cable included.

We introduced the single BZR-X lights primarily to allow people to run three driving lights on the front of their rig. To help make the job of wiring all the lights as easy as possible, we include a 2-into-1 adaptor cable with all single lights. This means you can use the same wiring harness that comes with the pair, and simply connect the adaptor cable to one of the Deutsch plugs on the end of the harness to make all three lights work together.

Product Video

Genuine parts, precision optics.

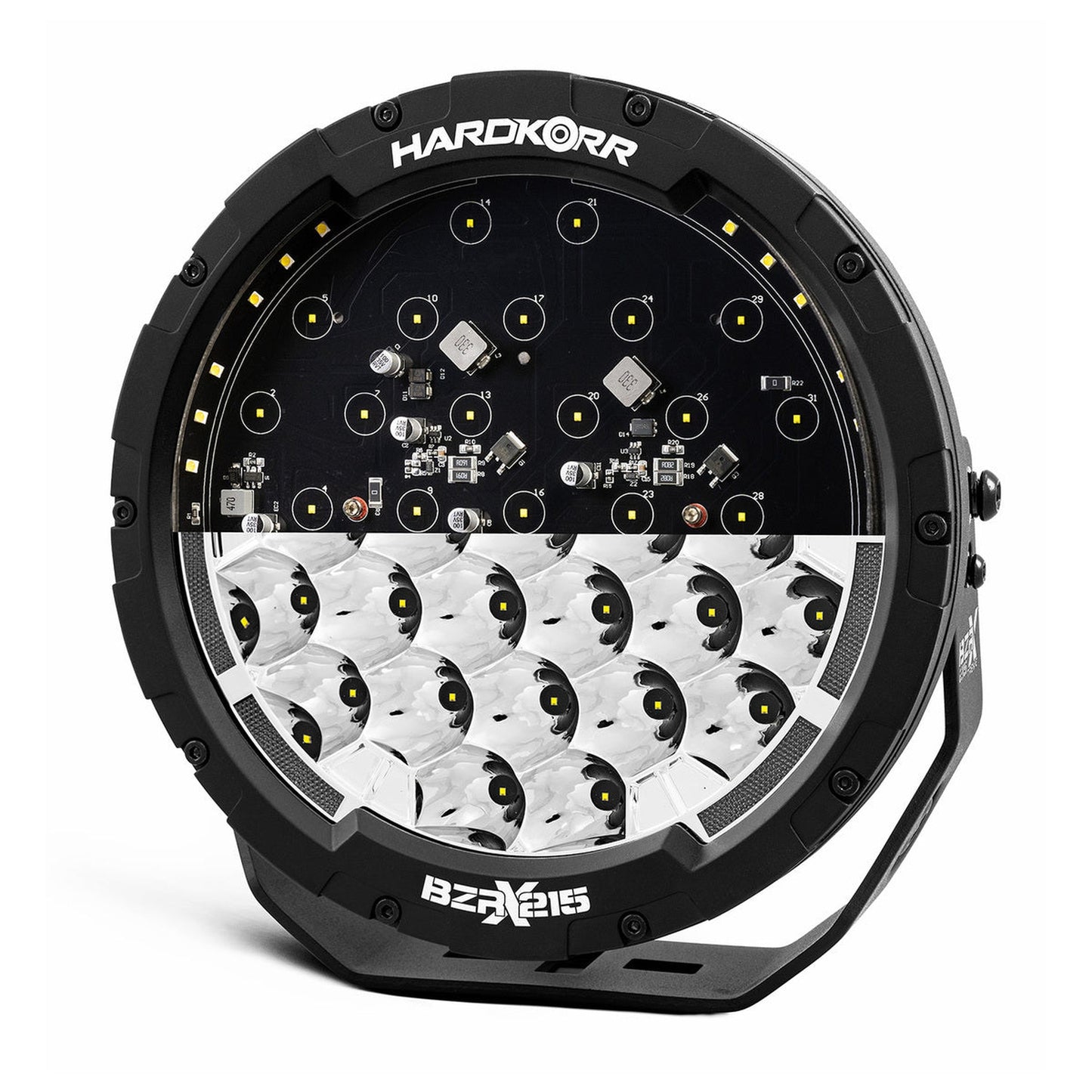

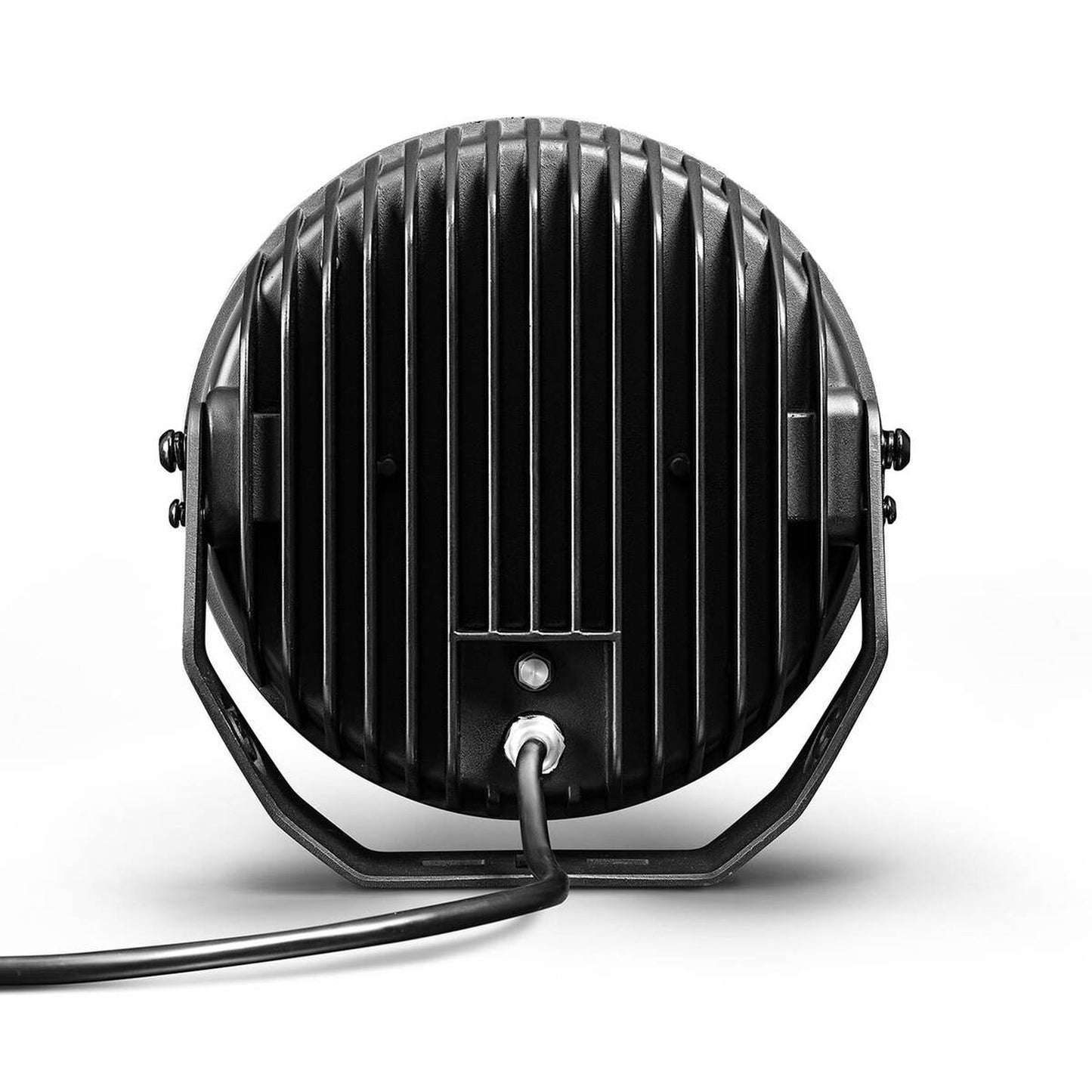

Hardkorr’s BZR-X series driving lights are made using genuine top-grade Lumileds® LED chips sourced from authorised agents, to ensure even light throw, correct colour rendering and long service life. These chips are matched with custom engineered reflectors that are manufactured to nanometre precision, and secured within high-quality aluminium housing which is designed to effectively dissipate heat and protect the sensitive components within.

This attention to detail ensures that every unit we manufacture gives consistent performance, and helps us fulfil our ambition to be the world’s most trusted manufacturer of LED lighting.

The Hardkorr guarantee

All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 3-year Australian warranty and a 30-day money back guarantee.

Specifications

Materials ADC12 aluminium housing with AkzoNobel® powder coating
4mm 316 s/steel bracket with AkzoNobel® powder coating
UV-coated Lexan® polycarbonate lens
Dimensions 215mm (w) x 235mm (h) x 75mm (d) incl. bracket
LED Manufacturer Genuine Lumileds®
LED Number (each) 31 x 5w
Lux (pair) 1 lux @ 1,460m
Output (pair) 34,196 effective lumens
Beam Combination
Ingress Protection IP68
EMC rating CISPR 15 Class 3
Impact rating IK08 (5J)
Vibration rating IEC 60068-2-6 & ISO16750-1
(15G R.M.S. @ 24-2000Hz)
Weight (each) 2.7kg
Operating Voltage 10 – 30v DC
Current (each) 10.6A @ 12V / 5.3A @ 24V
Colour Temp 6000K
LED Lifespan 50,000+ hours
Certifications CE, RoHS, RCM

Pack Contents

1x 155w LED driving light
1x 316 stainless steel mounting bracket
1x set security bolts & anti-vibration rubber base
1x 2-into-1 Deutsch adaptor cable

Dimensions

The Hardkorr HKBZRX215 driving lights measure 215mm wide by 235mm high by 75mm deep
