Take control of your 12V setup with this all-in-one hub — ideal for 4WDs, camper trailers, vans, and canopies. It’s pre-wired with a 40A DC-DC charger, MPPT solar input, multiple output ports, and a battery monitor with a 500A shunt.
Key Features

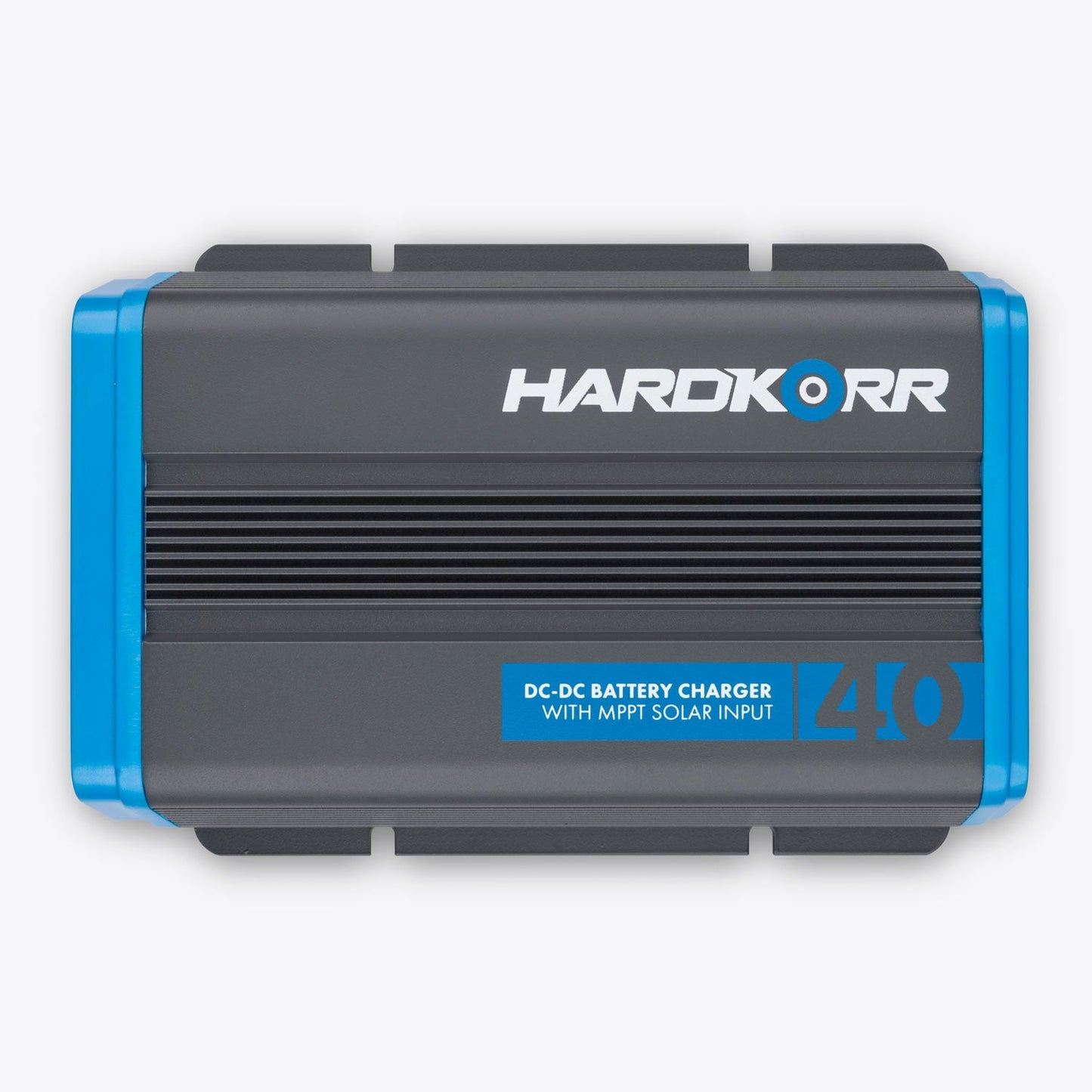

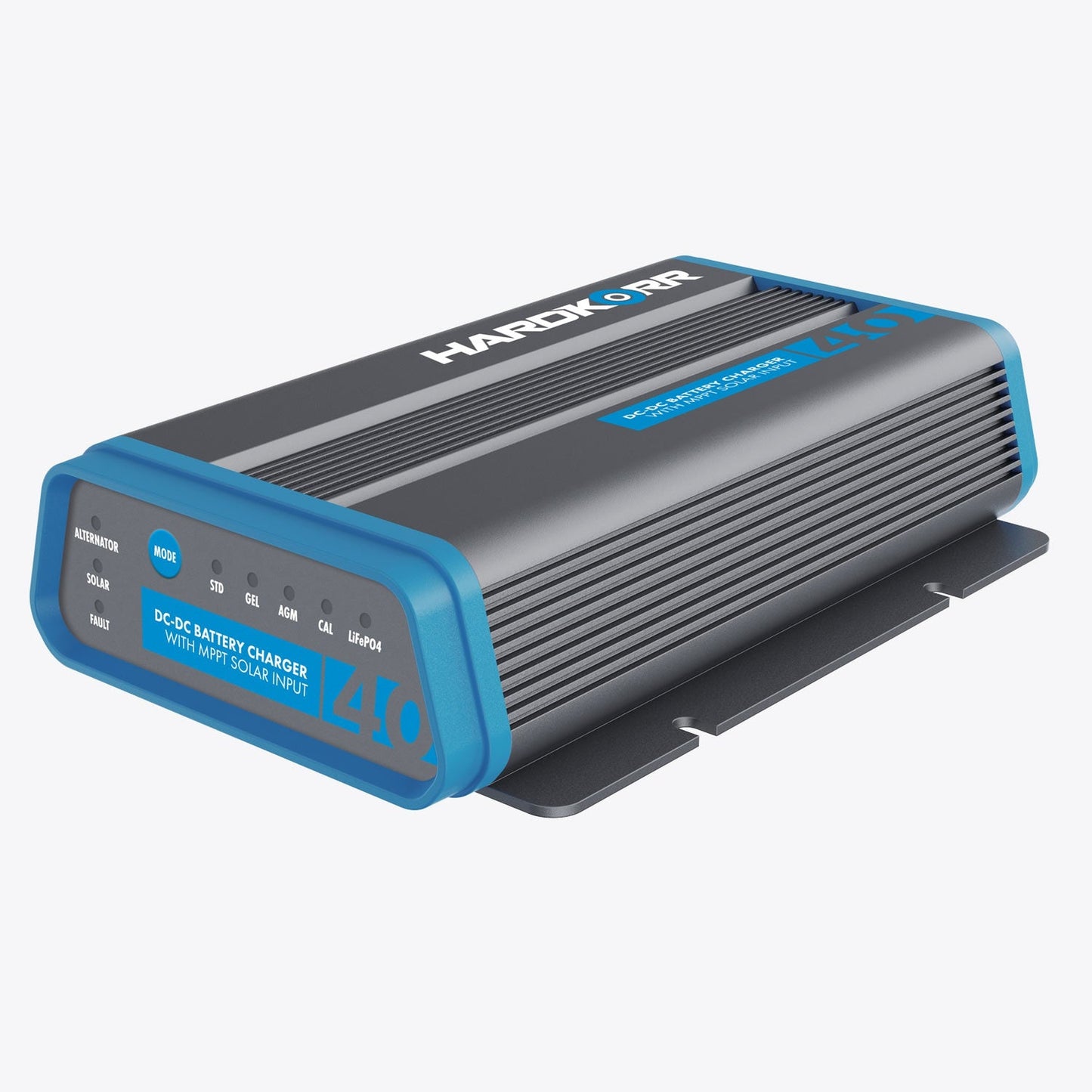

40A DC-DC Charger
Charges from your vehicle alternator or solar
MPPT solar regulator built-in
Works with LiFePO₄, AGM, SLA, Gel, and Calcium batteries
Battery Monitor with 500A Shunt
Tracks voltage, current, charge %, and estimated run time
Includes LCD screen
Multiple Power Outputs
2 x Anderson outputs
3 x 12V cigarette sockets
2 x USB-A, 1 x USB-QC 3.0, 1 x USB-C
6 x on/off rocker switches (backlit)
1 x logo light switch
Fuse Block
6 fuse slots (3x 15A, 3x 20A)
2 spare fuse slots
LED indicators for blown fuses

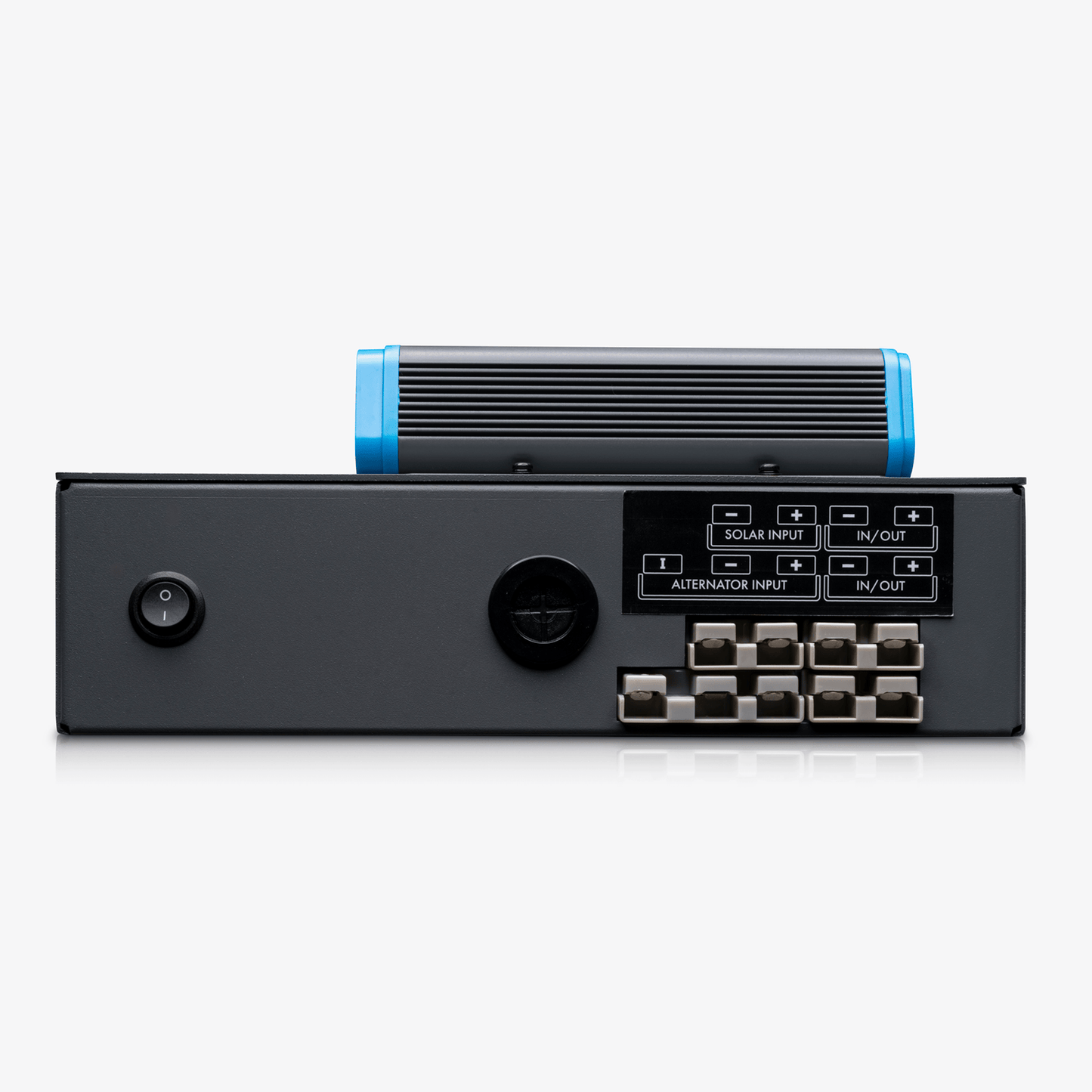

Anderson Ports
1 x solar input
1 x alternator input
2 x accessory outputs
Ready to Mount
Heavy-duty powder-coated aluminium
Pre-drilled holes

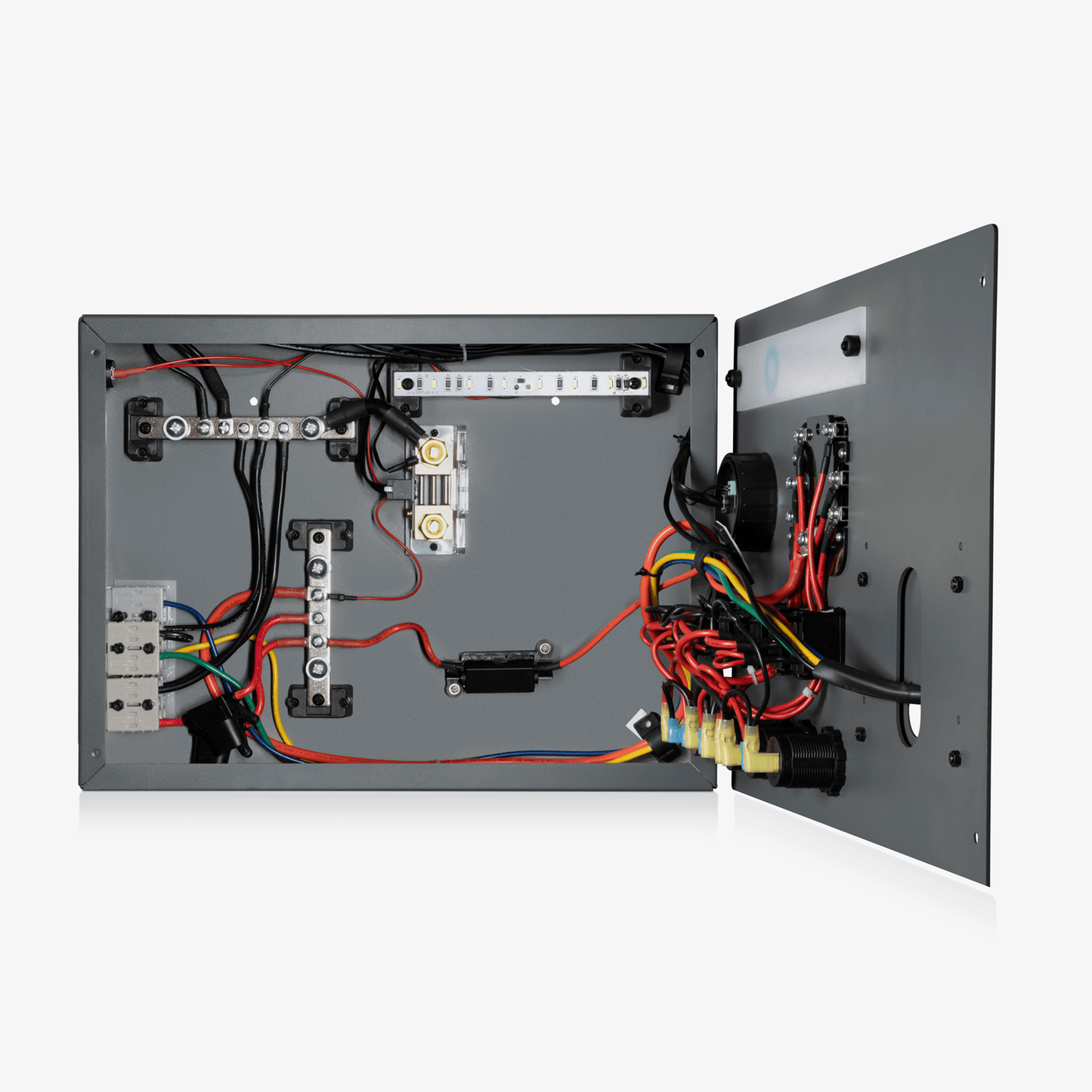

Pre-wired for easy install
Specifications
DC-DC Charger
Output: 40A
Input Voltage: 9–32V
Solar Input Voltage: 10–32V
Battery Support: 12/24V systems
Battery Monitor
Voltage Range: 0–100V
Current Range: 0–500A
Standby Draw: <0.002A
Fuse Block
Fuses Included: 3x 15A + 3x 20A (+2 spare slots)
I/O Ports
Anderson: 1x alternator input, 1x solar input, 2x 30A outputs
USB: 2x USB-A, 1x USB-QC 3.0, 1x USB-C
Cigarette Sockets: 3x 12V
Switches: 6x rocker switches + 1x logo light
Build
Material: Grey powder-coated aluminium

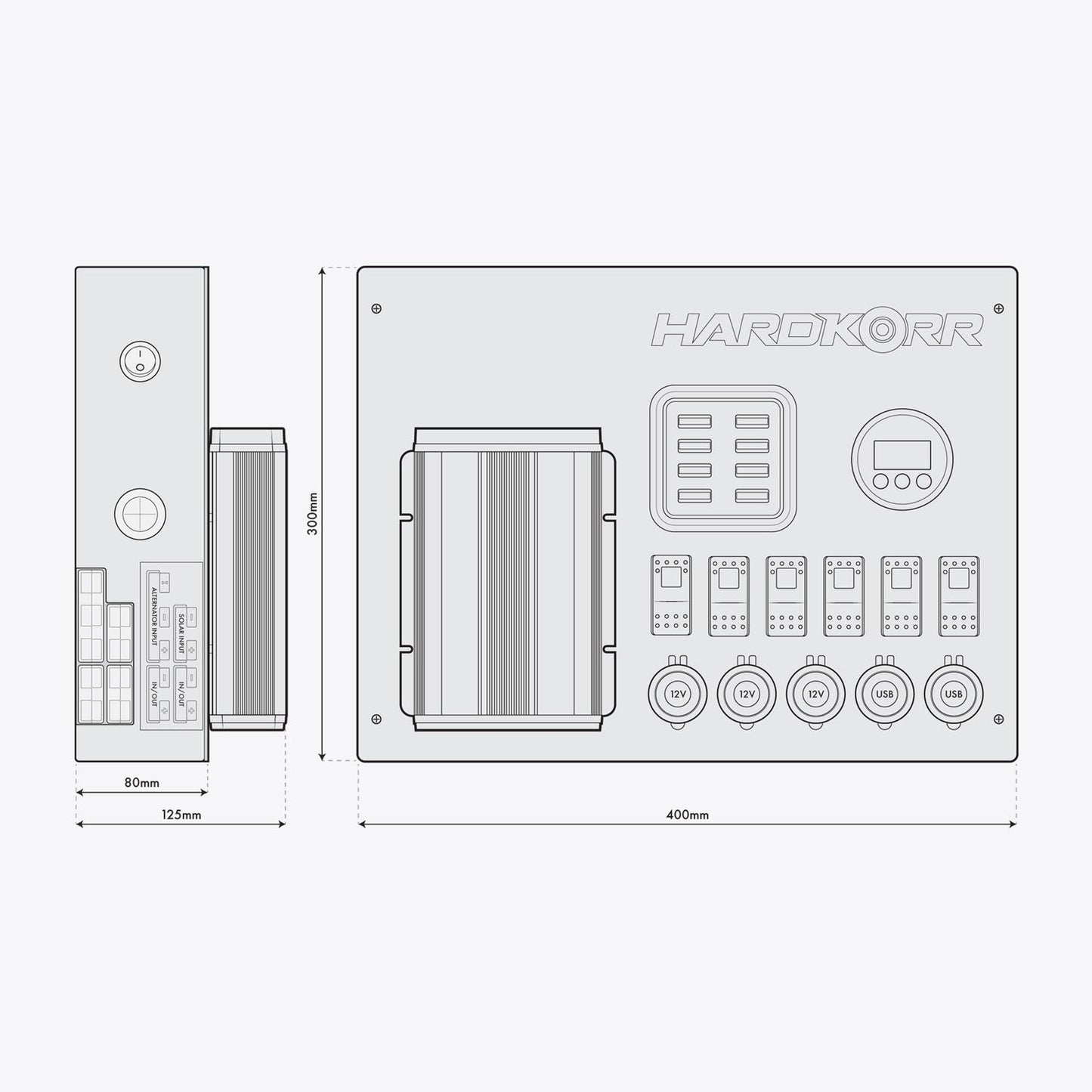

Dimensions: 400mm x 300mm x 125mm (including charger)
