Hard Korr 100AH High-Discharge Lithium (LiFePO4) Deep Cycle Battery
Hard Korr 100AH High-Discharge Lithium (LiFePO4) Deep Cycle Battery
SKU: HKPBATL100P
Couldn't load pickup availability
Hard Korr 100AH High-Discharge Lithium (LiFePO4) Deep Cycle Battery
This is a 100Ah IEC-certified lithium iron phosphate (LiFePO4) deep cycle battery constructed from high-quality aluminium-encased prismatic cells. Ideal for weight-sensitive and/or high-vibration applications.
NOTE: 3 year warranty applies to batteries supplied from November 2021 onwards. Our previous model came with a 2 year warranty.
Next-generation portable power.
Our 100AH deep-cycle lithium batteries consist of four high quality aluminium-encased prismatic cells connected in series, each with a nominal voltage of 3.2v. Prismatic cells are lightweight, provide excellent vibration resistance and have far fewer possible points of failure than other types of battery cells.
These batteries use an advanced battery management system (BMS) to ensure an even energy balance between cells and allow the batteries to be connected in parallel or series (up to 4). The BMS contains an intelligent protection circuit module which protects against overcharge, over-discharge, short-circuit and over-temperature.
Our battery cells are protected by custom-molded EVA rubber cushioning. This cushioning offers protection against knocks and drops, and ensures better stability and longevity when the batteries are used in high-shock and high-vibration environments such as marine and vehicle applications.
Why upgrade to lithium?
- Long cycle life: lasts up to 10x longer than Sealed Lead Acid (SLA) batteries
- More usable capacity: safely use up to 70% of usable capacity and 99% in an emergency (vs 50%/70% for SLA)
- Light weight: About half the weight of an equivalent SLA battery
- Environmentally friendly: Non-toxic, contains no acid, can be installed in any direction
The Hardkorr difference
Don’t be fooled – deep cycle batteries might look similar on the outside, but the key differences between low-quality and high-quality batteries can be found on the inside.
Our batteries are constructed from superior grade components, including the cells, battery management system and even the wiring. Not only does this mean your battery will last longer and provide much greater reliability, but it also provides two other significant advantages.
First, our maximum discharge rate is 100Ah for 40 minutes or 150Ah for 2 minutes. This is significantly higher than most others, and is especially important if you plan to use this battery in conjunction with an inverter.
Second, you can connect up to four of these batteries in parallel or up to four in series. This means you can create up to a 400Ah 12V setup, or a 100Ah 48V setup!
Our lithium batteries have been certified as meeting all required and optional international standards for performance and safety, including:
- UN 38.3: Safety testing of lithium metal / lithium ion batteries in transport
- UL 1642: Performance/quality testing to guard against risk of fire or explosion
- IEC 62133-2:2017: Safety testing of portable lithium batteries under intended use and reasonably foreseeable misuse (including vibration test)
- IEC 62619:2017: Safety testing of lithium batteries for industrial use
- CE: The batteries meet EU safety, health and environmental protection requirements
- ISO 9001: Ensures quality management systems have been implemented
- ISO 14001: Ensures environmental management systems have been implemented
Handy remote reset switch
LCD digital display

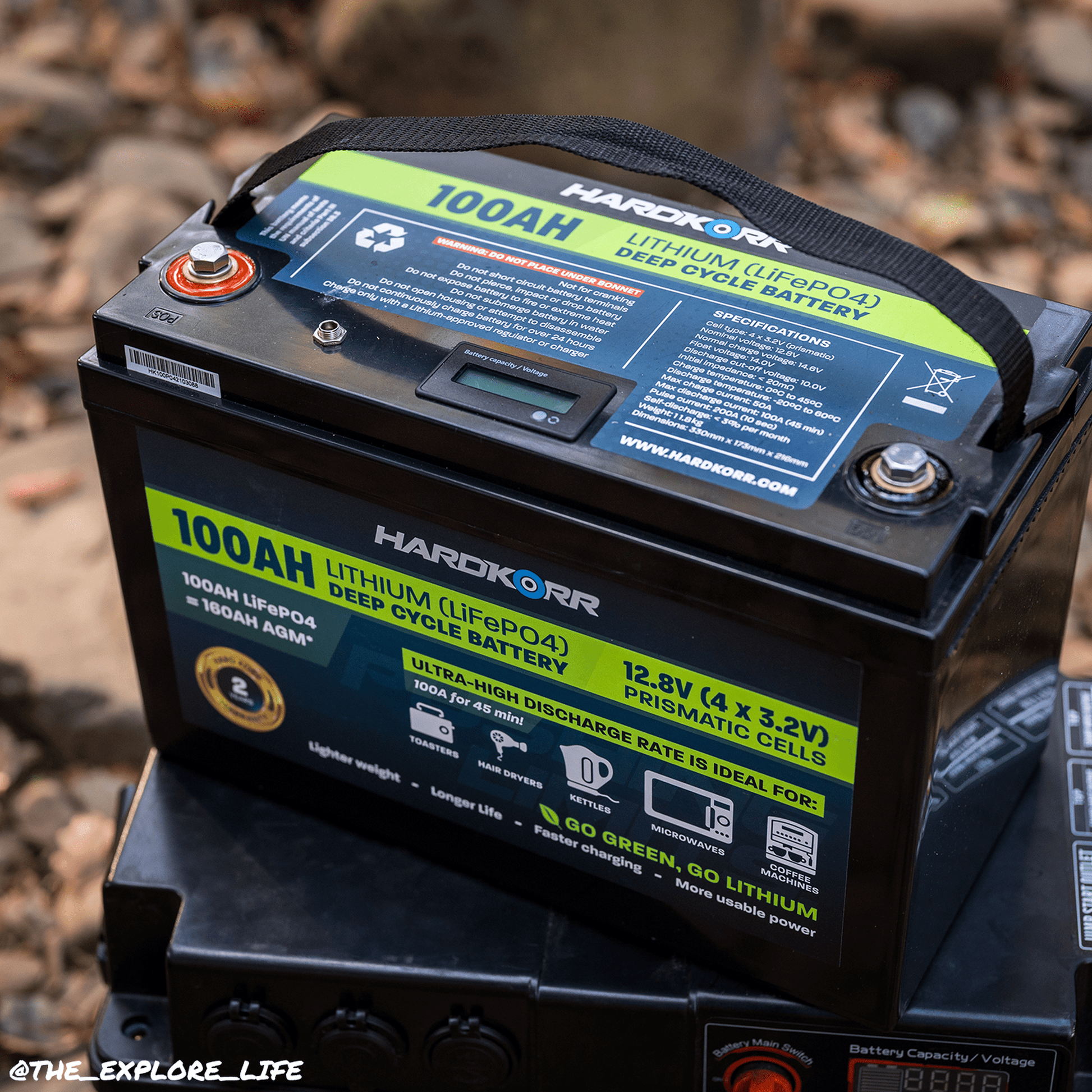

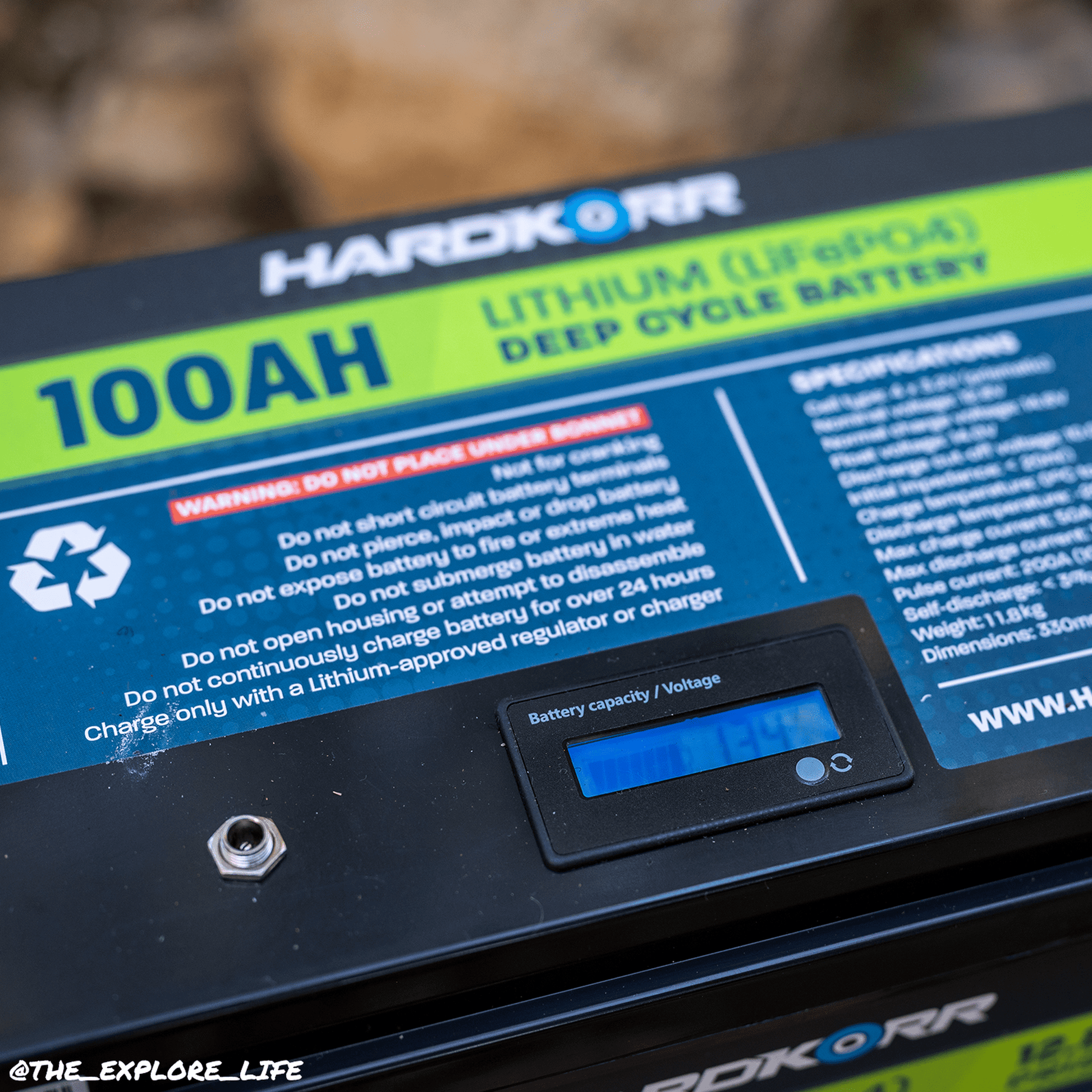

All of our deep cycle lithium batteries now come with a handy LCD digital display on the top of the unit.
This display allows you to easily view your battery’s voltage at any point in time. The screen is backlit, so you can read its output regardless of whether it is day or night.
Performance charts
More usable power, longer life
When comparing batteries it is vitally important to understand the difference between nominal and C20 capacity. To reduce confusion and help to standardise the measurement of battery capacity, most reputable battery manufacturers will quote the capacity of their battery in amp-hours at C20 (also written as C/20), which means the number of amps the battery can deliver if discharged at a constant rate over a period of 20 hours. Using this standard, a fully-charged battery with a capacity of 100Ah could deliver 5A of current per hour for a period of 20 hours before becoming fully discharged (5A x 20h).
Some disreputable manufacturers, however, will advertise the nominal capacity of their batteries and bury the C20 rating in the fine print. Nominal capacity has no practical application and can be up to 20% higher than the C20 rating, so a battery that is advertised as a 120Ah battery might only be able to deliver 105Ah or even less.
We value our good reputation, and will always quote the C20 rating as the battery’s capacity. This means you can be confident that the power we say our batteries can deliver is not inflated to mislead, create confusion or invite unfair comparisons.
Product Video
Want to know more?
We’ve written a comprehensive guide to deep cycle batteries on our blog, which contains everything you need to know about this highly technical subject. Click here to check it out:
The Hardkorr guarantee
All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 3-year Australian warranty and a 30-day money back guarantee.
Specifications
| Nominal voltage | 12.8V |
|---|---|
| Capacity (C20) | 100Ah |
| Max series/parallel config | 4S/4P |
| Normal charge voltage | 14.6V |
| Float voltage | 14.0V |
| Discharge cut-off voltage | 10.0V |
| Charge temp | 0°C-45°C |
| Discharge temp | -20°C-60°C |
| Self-discharge | <3% per month |
| Initial impedance | Less than 20mΩ |
| Weight | 14.0kg |
| Max charge current | 50A |
| Max discharge current (constant) | 50A (0.5C) |
| Max discharge current (40 min) | 100A* |
| Max discharge current (2 min) | 150A* |
| Pulse current (3 sec) | 200A* |
| Dimensions | 324mm (l) x 173mm (w) x 216mm (h) |
| Certifications | UN/DOT 38.3, CE, RoHS |
* Note on discharge current: if you connect multiple batteries in parallel, the maximum discharge current is multiplied by the number of batteries in the array. For example, if you connect two of these batteries in parallel you can discharge at 200A for 40 minutes.
