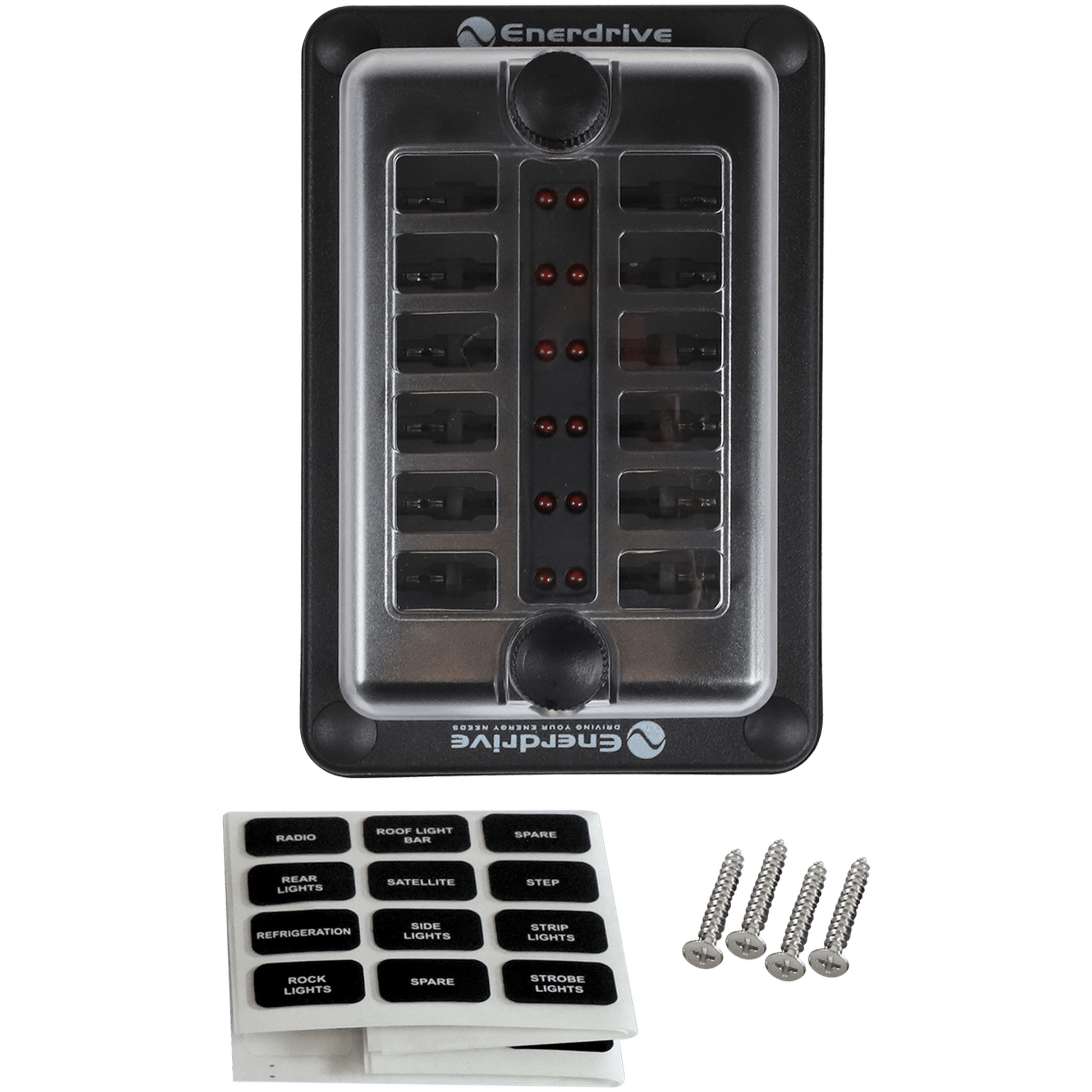

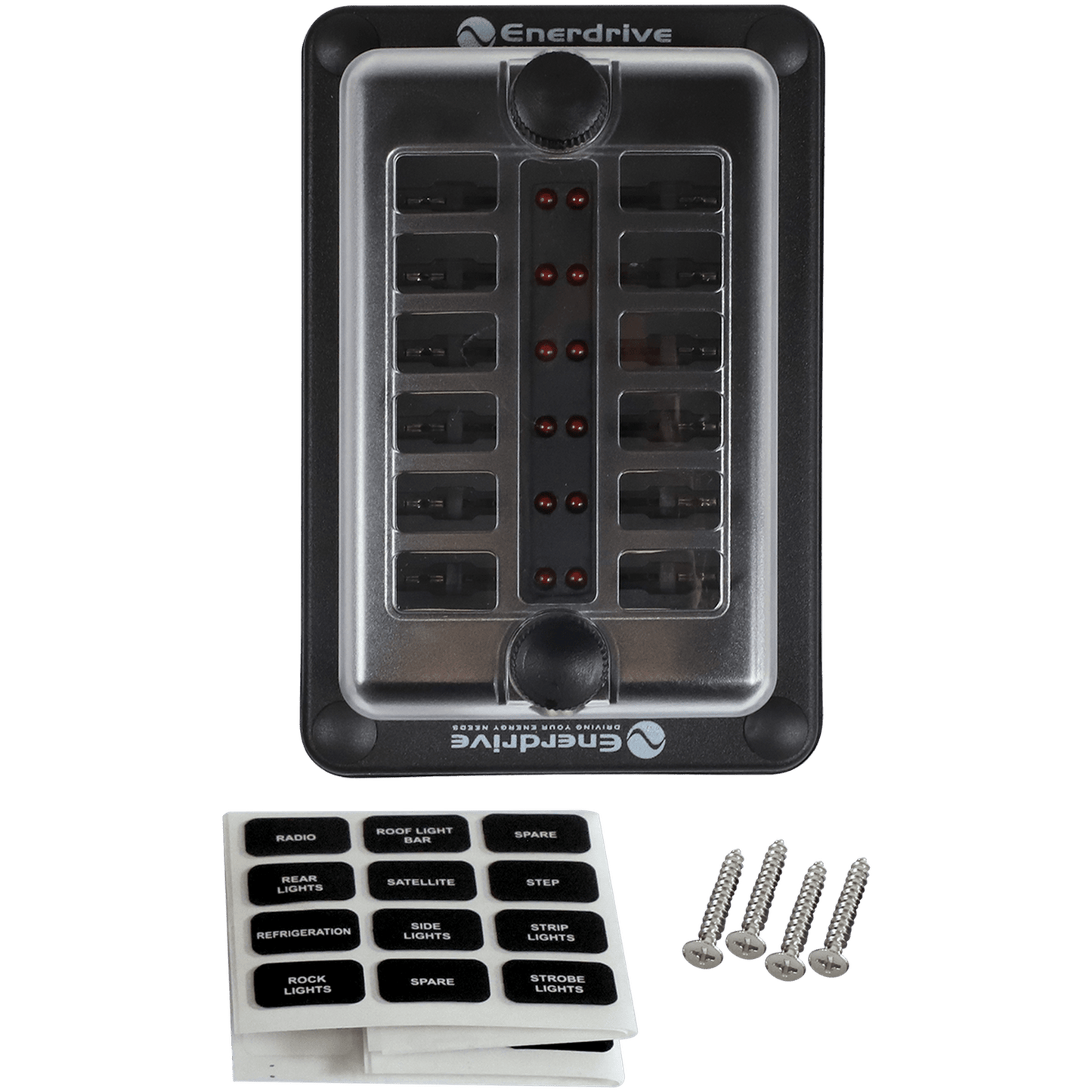

Enerdrive Fuse Block Panel Mount 1 In 12 Out with LEDs

Enerdrive Fuse Block Panel Mount 1 In 12 Out with LEDs, 5 Years Warranty.

Features:

• Panel Mount 1 in - 12 out fuse block with rear connections.
• Suits ATO/ATC Blade Fuses
• 32V 50Amp Max - 20Amp Max per circuit
• Fuse blown LED’s for easy fault finding.

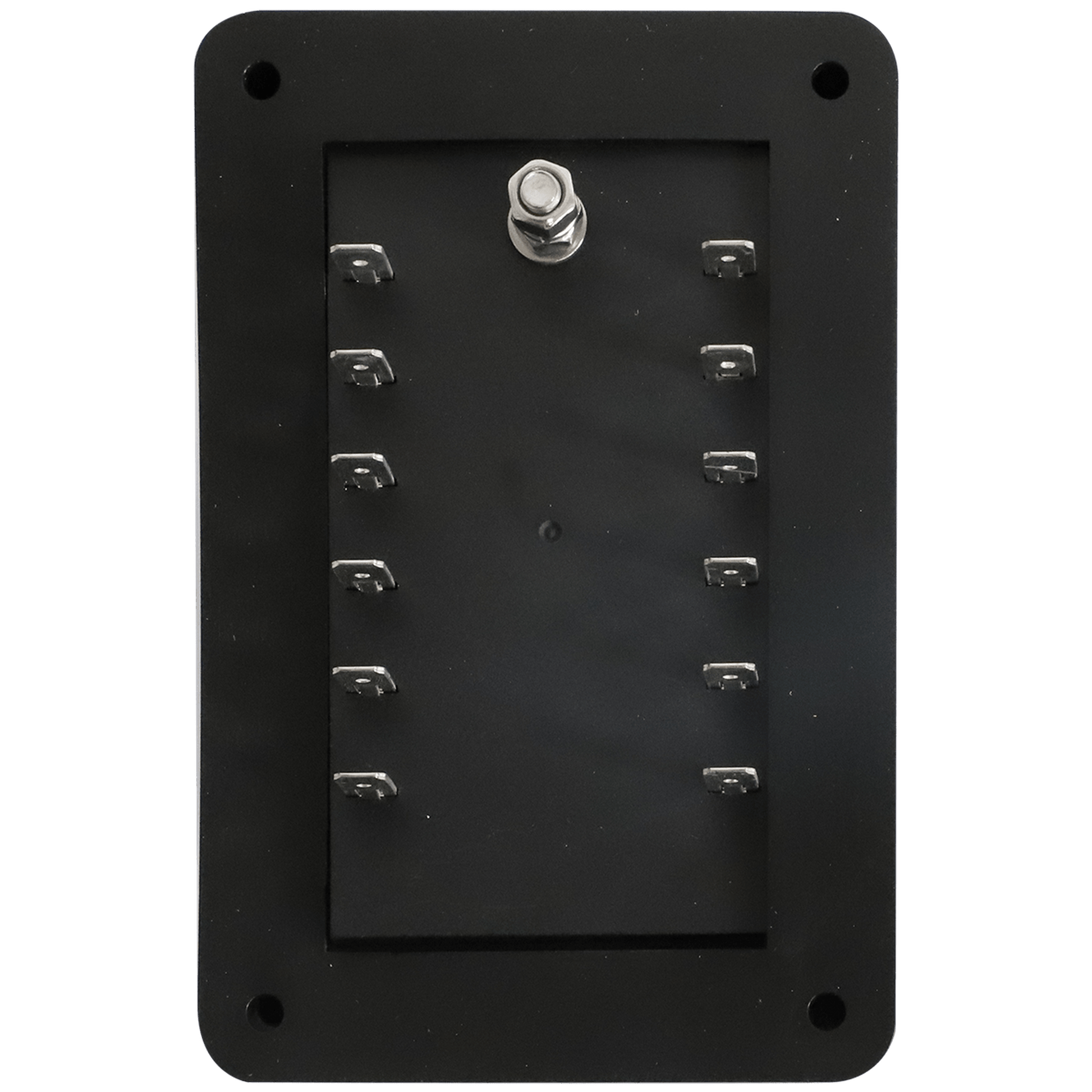

• Panel mount with rear connections and cover make this fuse block ideal for canopy installs.
• Includes two label sets.

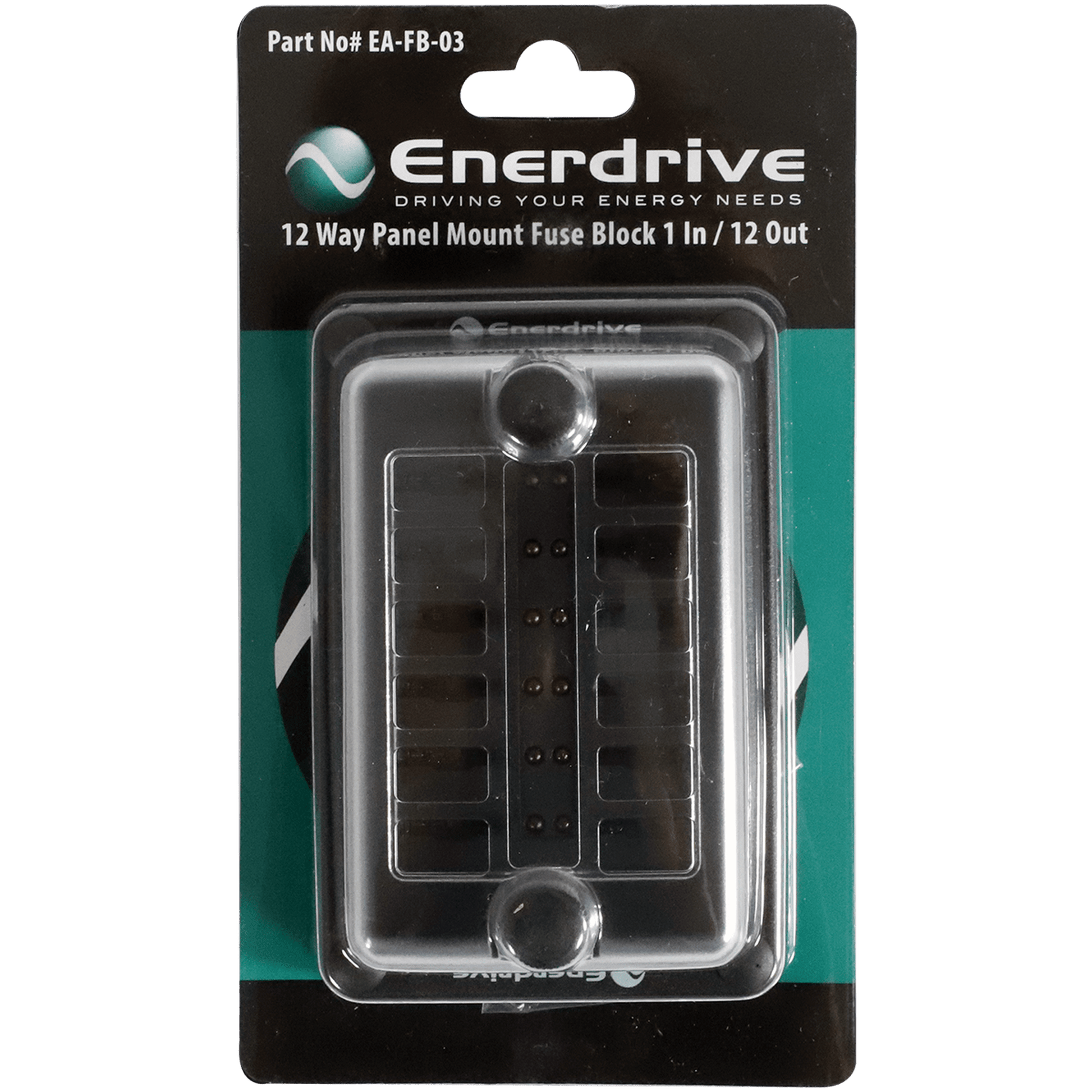

• Retail Packaging

Specifications

SKU - EA-FB-03

Brand - Enerdrive

Product Category - Accessories

Warranty Period - 5 Years

Maximum Amperage per block - 100A

Mounting - #8-32 with Flat/Spring Washers

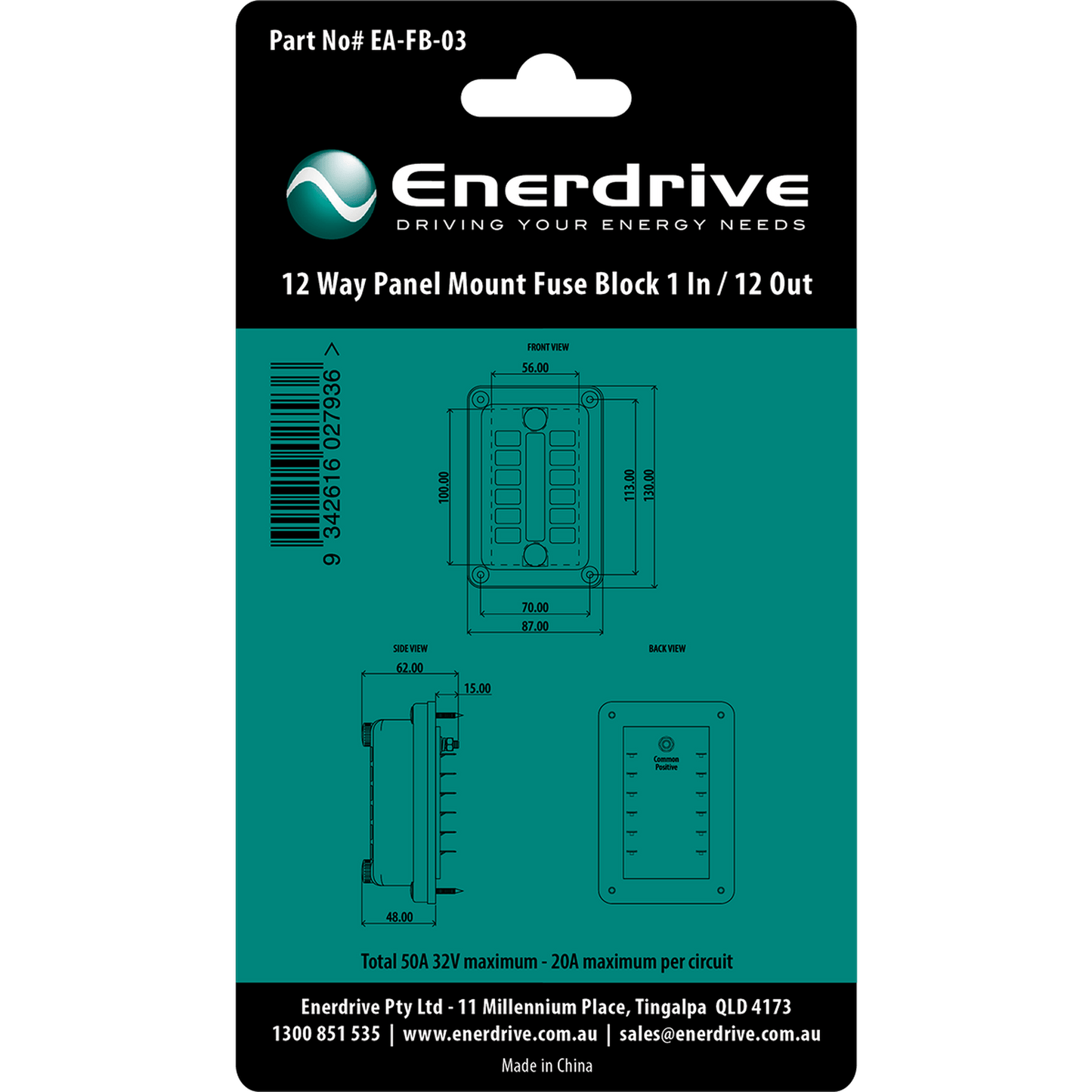

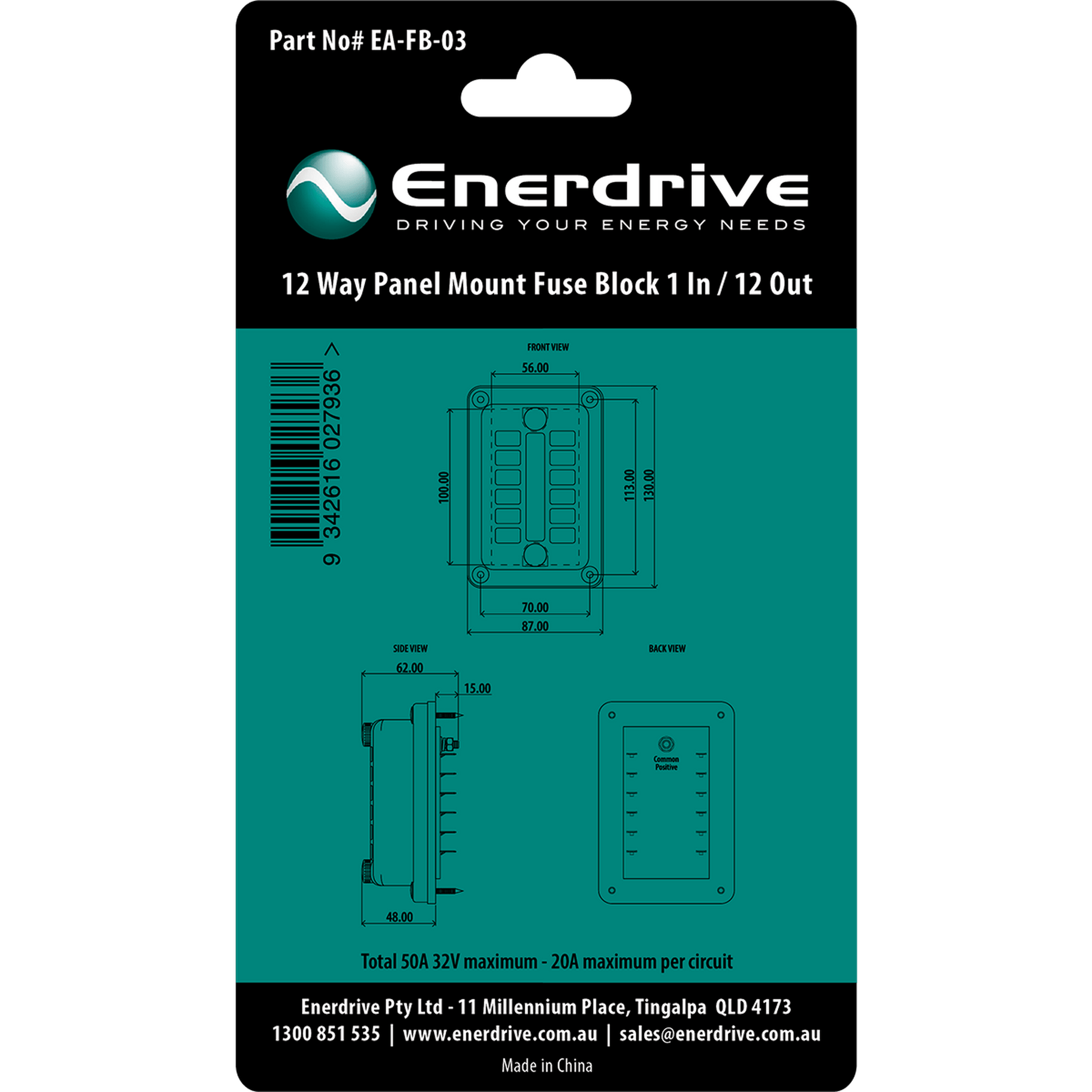

Dimensions - 130mm x 87mm x 62mm

Positive Input - Spade Terminals

Maximum Amperage per circuit - 20A

Recommended Torque - 24 in-lb (2.71 N.m)

Maximum Voltage - 32V DC

Circuits - 12

Weight - 0.23kg
