Enerdrive

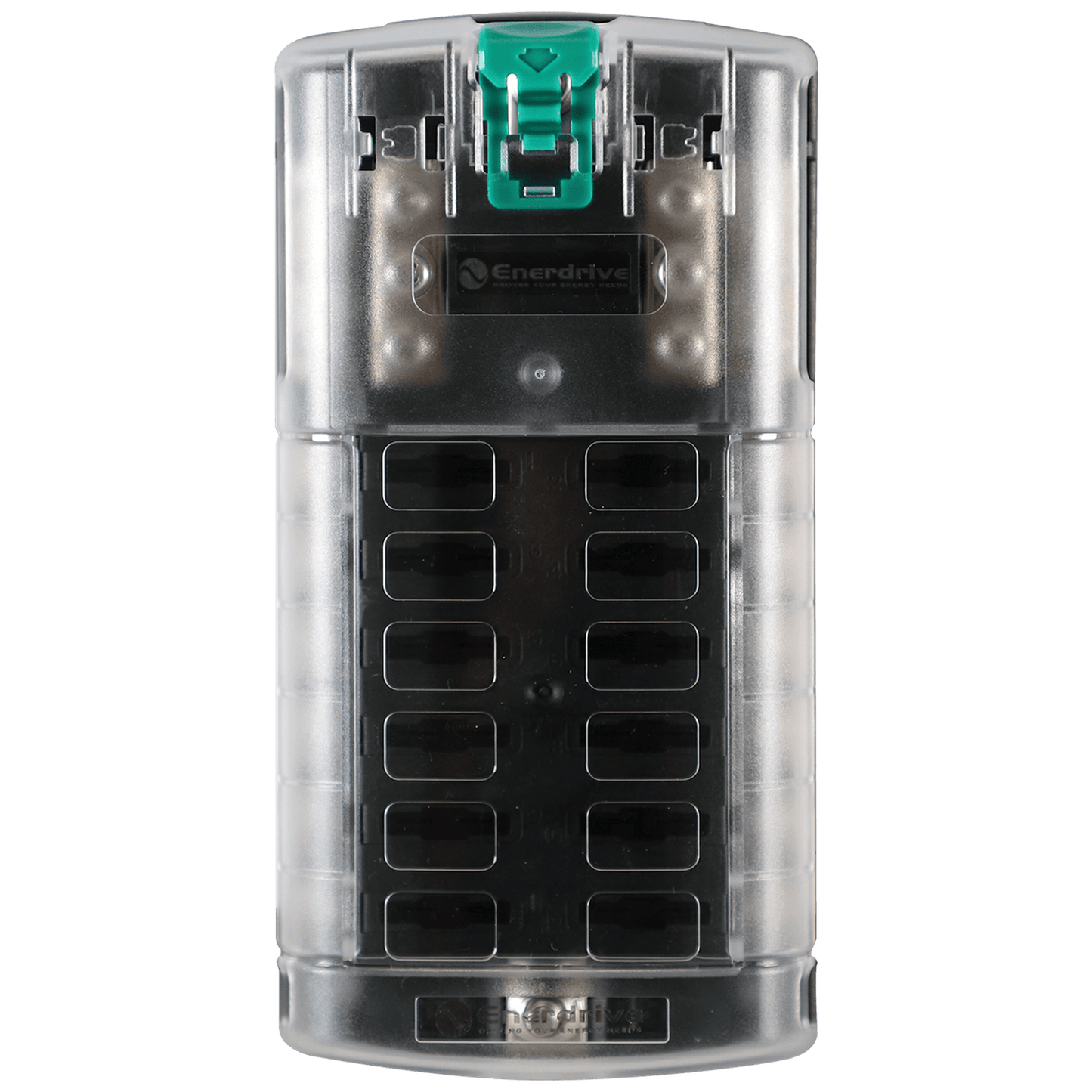

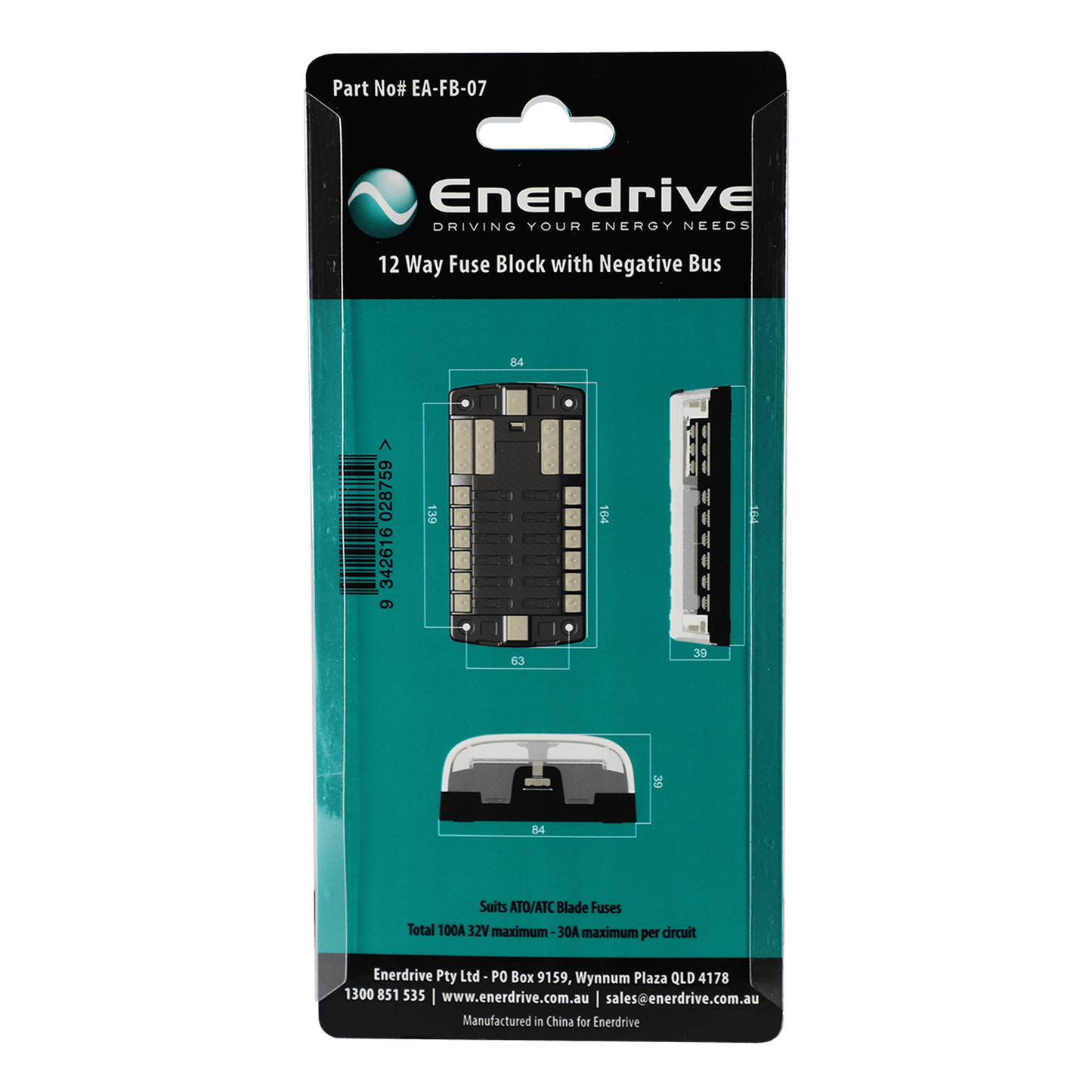

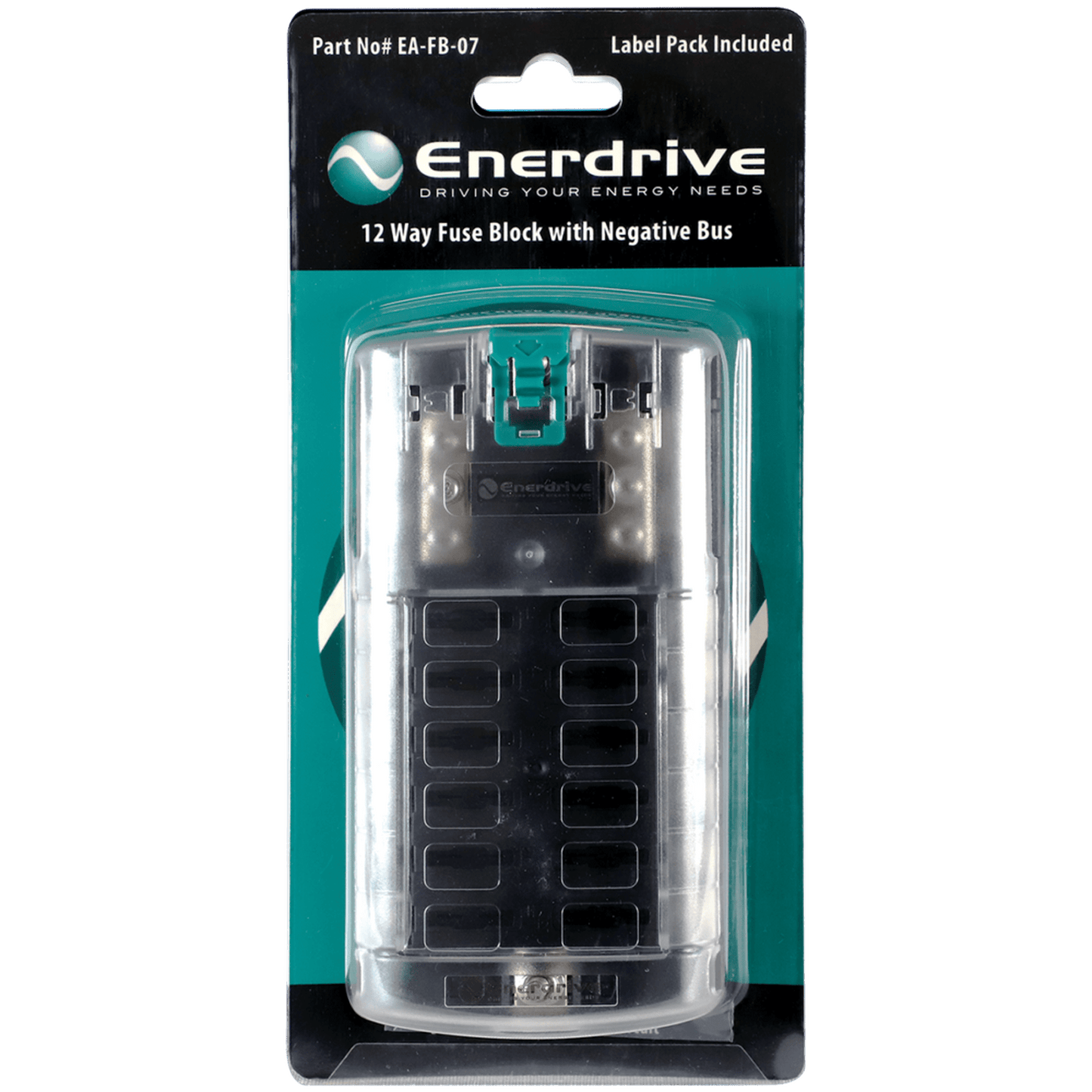

Enerdrive Fuse Block 12 Circuit with Negative Bus and Cover

Enerdrive Fuse Block 12 Circuit with Negative Bus and Cover

SKU:EA-FB-07

Regular price $119.00 AUD
Regular price Sale price $119.00 AUD
Sale Sold out
Tax included.

Enerdrive Fuse Block 12 Circuit with Negative Bus and Cover, 5 Years Warranty.

Features:

  • Positive distribution bus with #10-32 stud
  • 32V 100Amp Max – 30Amp Max per circuit
  • Can be used for 24-hour circuits
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
  • Includes two label sets and screws.
  • Retail Packaging

Specifications

SKU - EA-FB-07

Brand - Enerdrive

Product Category - Accessories

Warranty Period - 5 Years

Positive Bus - #10-32 Stud

Maximum Amperage per block - 100A

Mounting - 8″ Screw [M4]

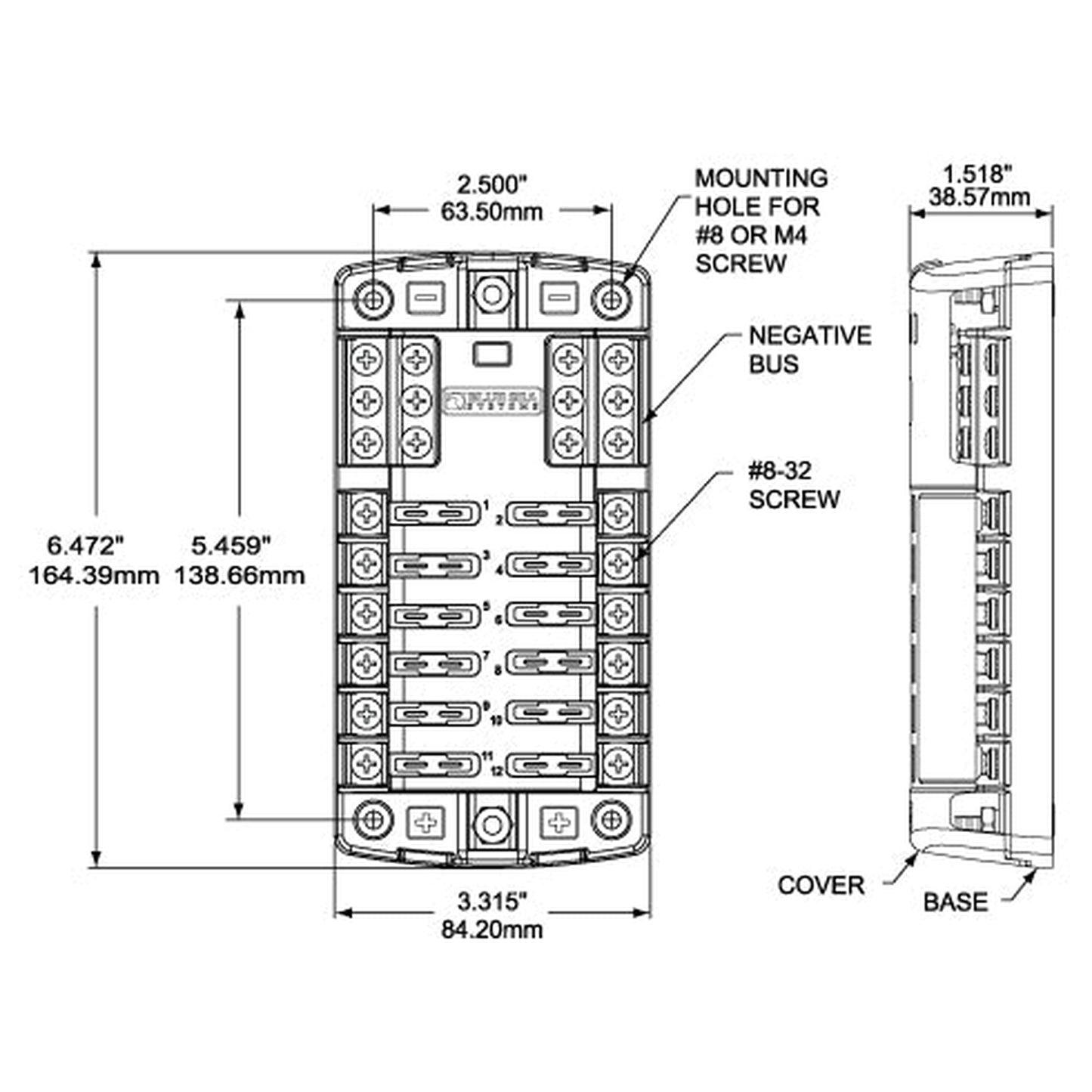

Dimensions - 164mm x 84mm x 39mm

Negative Bus - #10-32 Stud

Maximum Amperage per circuit - 30A

Recommended Torque - 24 in-lb (2.71 N.m)

Screw Terminal Type - #8-32 with Flat/Spring Washers

Maximum Voltage - 32V DC

Circuits - 12

Weight - 0.34kg

View full details
