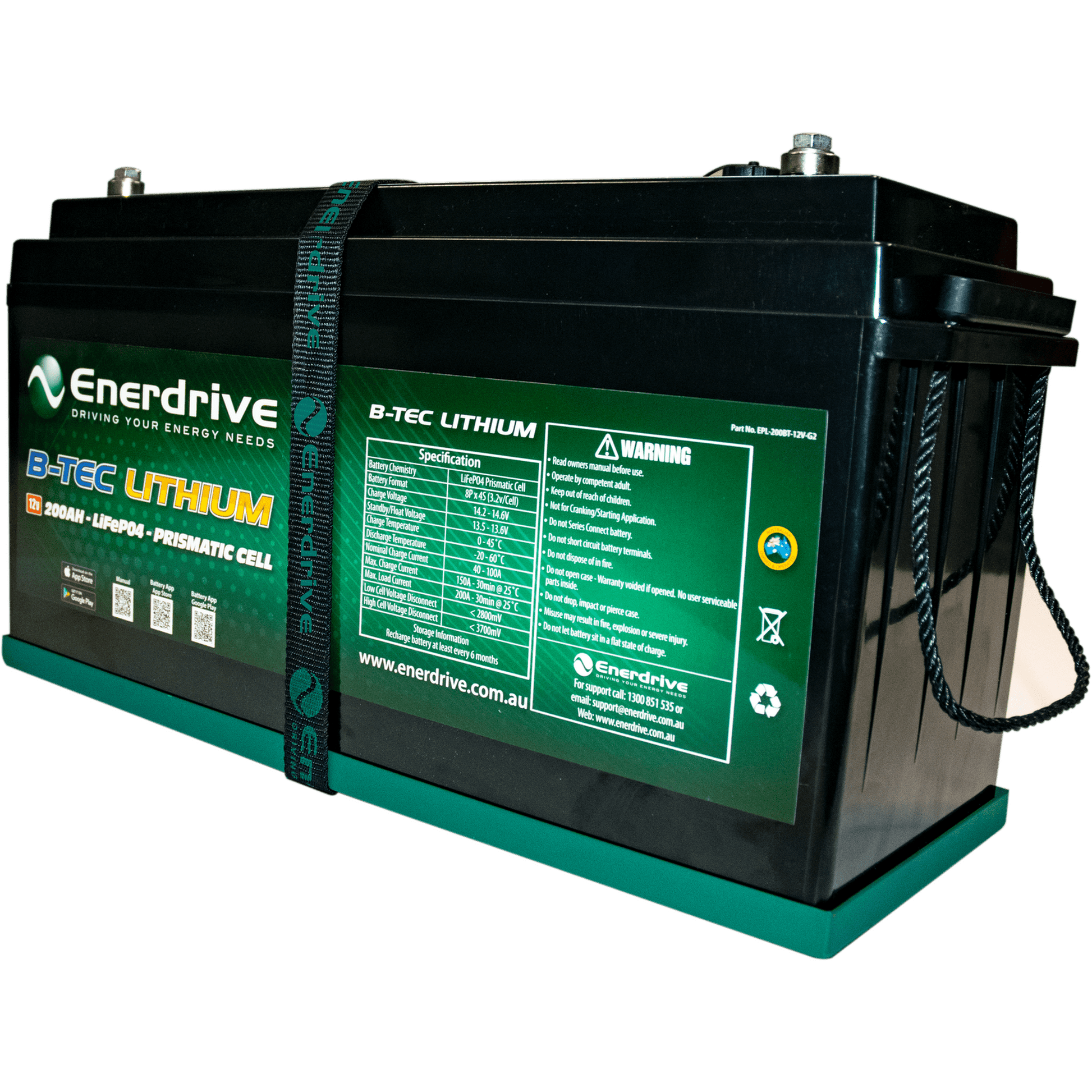

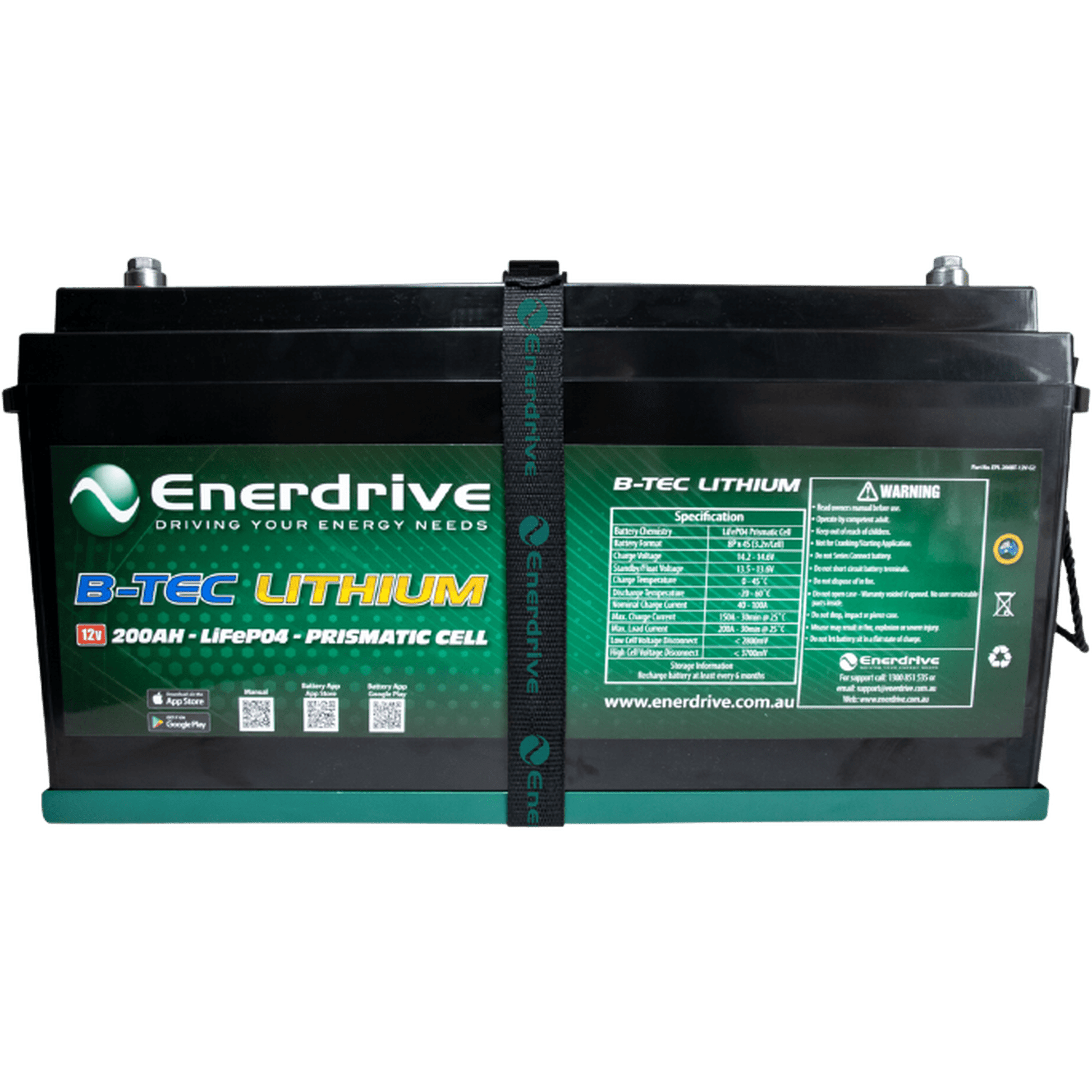

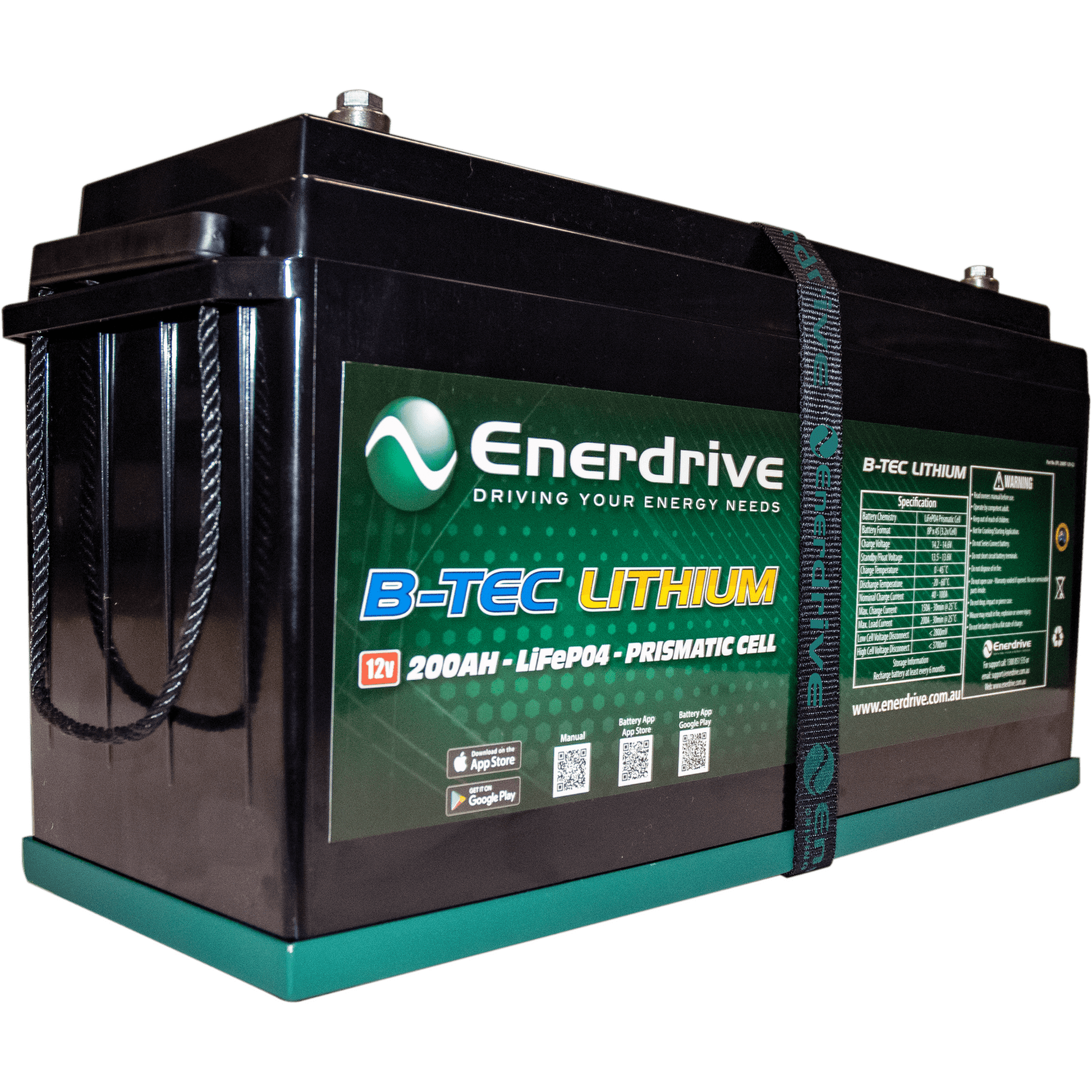

Enerdrive ePOWER B-TEC 200Ah Lithium Battery Only

Enerdrive ePOWER B-TEC 200Ah Lithium Battery, 5 Year Warranty. The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 Year full replacement warranty. Enerdrive have released the new ePOWER B-TEC 200Ah Lithium Battery with new features including:

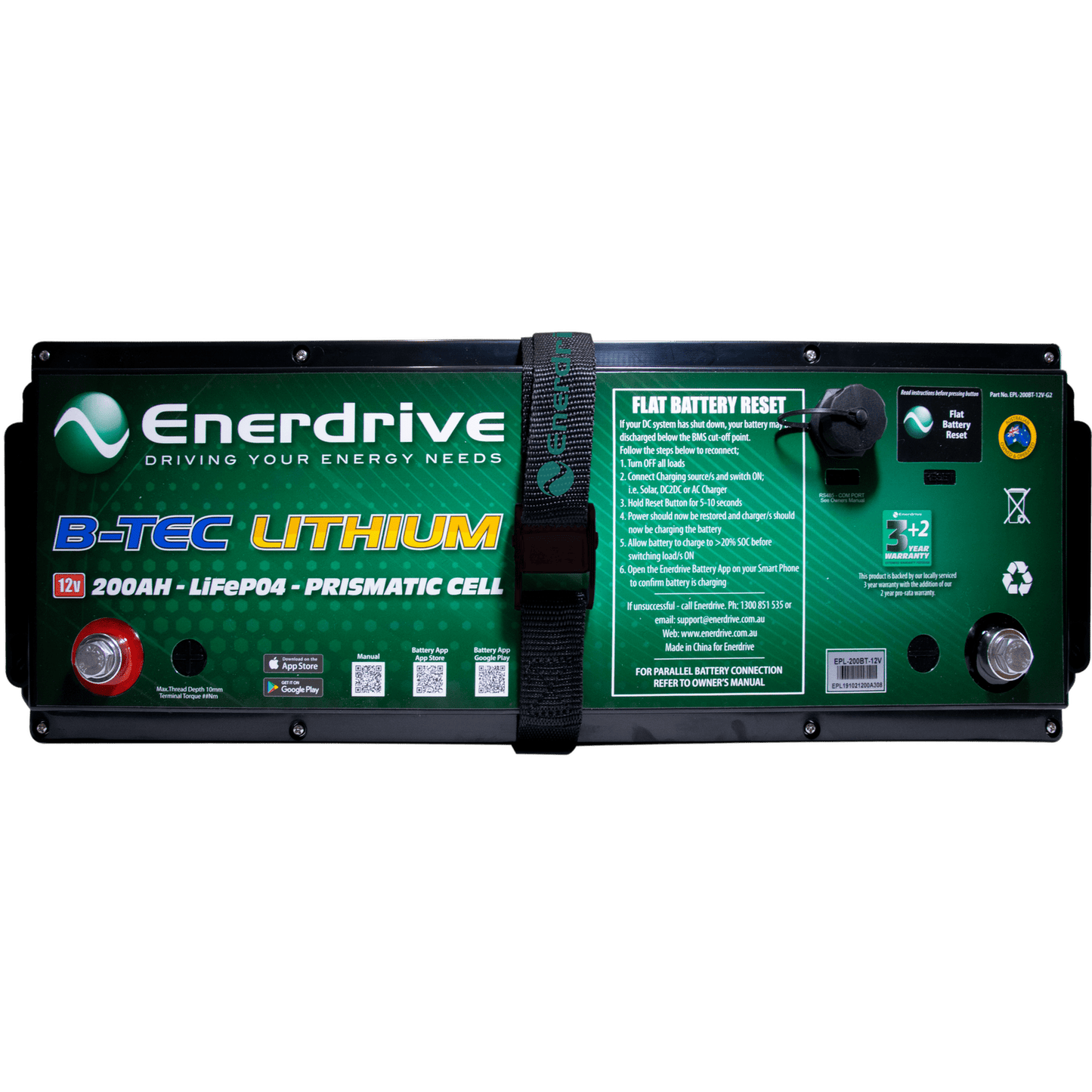

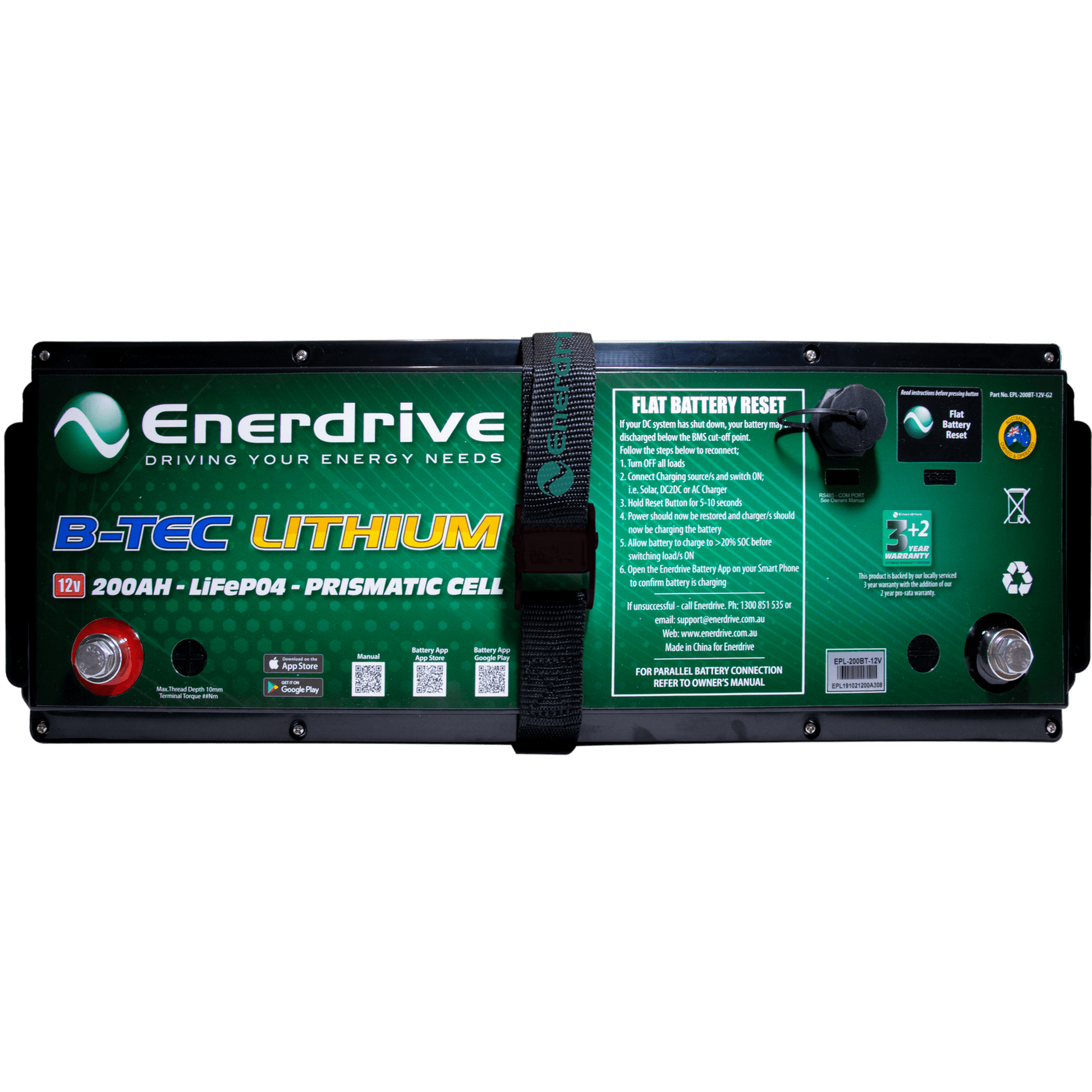

• BMS restart button for easy recovery
• RS485 communications port for advanced system integration
• Raised terminals for 360 degree cable connections
• Re-designed battery case for easy serviceability
• Battery box and straps INCLUDED - nothing more to buy!

Specifications

SKU - EPL-200BT-12V-G2

Brand - Enerdrive

GTIN - 9342616019832

Product Category - Batteries

Warranty Period - 5 Years

Model - EPL-200BT-12V

Battery Voltage - 12V

Amp Hours (ah) - 200

Battery Charge Temperature - 0 ̴ 45°C

Recommended Charge Current for Maximum Life - ≤ 60A

Nominal Capacity - 200Ah

Dimensions - 505 x 172.5 x 265 mm (L x W x H)

Battery Output Voltage Range - 11.00 ̴ 14.60V

Total Charge Current - Max 150A @ 25°C for 30mins

Maximum Discharge Current - 200A @ 25°C ± 5°C for 30mins

Discharge Cut-off Voltage - ≤ 11.20V

Maximum Charge Current - 150A @ 25°C for 30mins

Nominal Voltage - 12.8V

Standby (Float) Voltage - 13.50 ̴ 13.80V

Battery Discharge Temperature - -20 ̴ 60°C

Float - 13.50 - 13.80V

Pulse Discharge Current - 450A for 1.0s

Cycle Life (DOD – 80% under controlled conditions) - ≥ 2000 Cycles

Net Weight (kg) - 25

Normal Charge Voltage CV/CC* - 14.40 ̴ 14.60V
