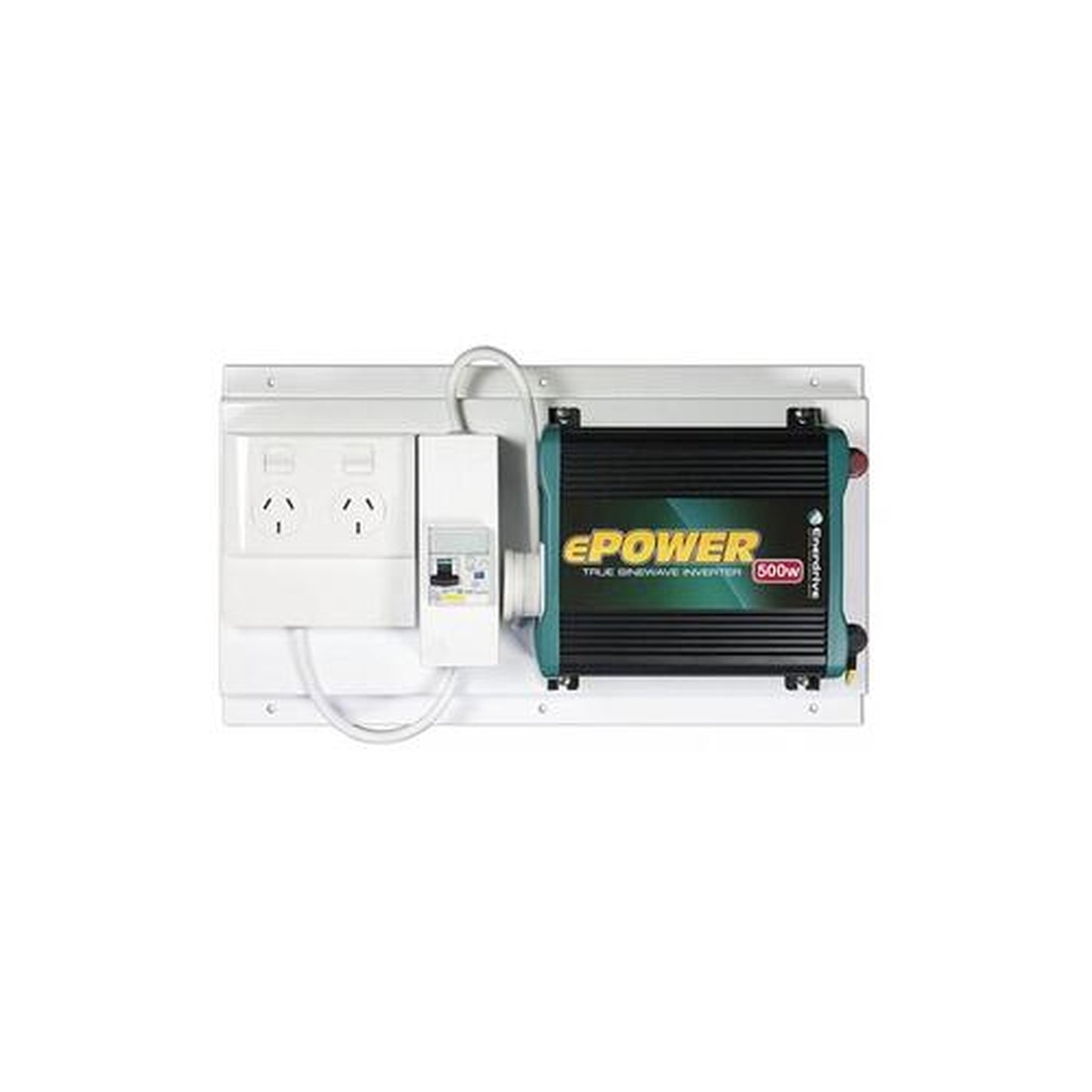

Enerdrive ePOWER 500W Pure Sine Wave Inverter with RCD+GPO

Enerdrive ePOWER 500W Pure Sine Wave Inverter with RCD+GPO, 5 Year Warranty

Think you might like AC power in more than one spot in the Vehicle? Enerdrive have thought of this too. By utilising a clever AC Plug & Play GPO system you can quickly and easily add extra AC power points by just plugging them in. All power points are Double Pole with the system incorporating a Type ‘A’ RCDBO with M.E.N Protection for safety and compliance in all permanently mounted mobile applications. Also available is the stand alone RCD/GPO arrangement for hardwired Inverters andCombi units like the Prosine, Magnasine and TBS. (190mm High x 178mm Wide)

These Inverter Packages are great for Professional Vehicles such as Telecommunications, Energy, Council, Emergency Vehicles and let’s not forget Recreation Vehicles like Caravans, Motorhomes, Camper Trailers and Marine applications.

“You have Safety Protection at home and now you can have it where ever you go.” Work sites have plenty of hazards such as vehicles, machinery and building materials lying amongst your tools and power leads. These items may be affected or damaged without you knowing and you don’t want to be shocked when you find out. Make sure you are electrically protected and go home safe.

Installation is quick and easy, requiring only 6 mounting screws for the plate and connection of the DC power. Your system is now ready to go.

Inverter Features

• True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life
• Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown
• Automatic shutdown protects overload, over temperature and low/high battery conditions
• High surge capacity for products that require more power to start (2 x constant)
• High efficiency conversion of battery available power to AC power
• Heavy duty DC battery stud connectors
• Includes 5V USB port

Specifications

SKU - RCD-GPO-EP500W

Brand - Enerdrive

GTIN - 9342616024508

Product Category - Power Inverters

Warranty Period - 5 Years

Model - ePOWER 500

Wattage - 500

Over Voltage Protection - 31.0 VD

AC Output - Power : 500W , Current : 2.17A

DC Input Voltage - 21.0 – 31.0 VDC

Dimensions - 225 x 410 x 115 mm (Mounted on board)

Under Voltage Shutdown Recovery - 23.6 VDC

Operating Altitude - Up to 3000 meters above sea level

Optional Accessories - Battery Cable Connection Kits

Output Wave - 1 AC outlet

Output Voltage and Frequency - 230 Vac / 50 Hz

Input Voltage - 25 VDC

Humidity - 5-90% noncondensing

Net Weight (kg) - 1.73

Under Voltage Shutdown - 21.0 VDC

Under Voltage Alarm - 11.2 VDC

Storage Range (temp) - -20°C to 60°C

Output wave form - True Sinewave

Peak power - 1000W

Operating Temperature Range - 0°C to 40°C

Over Voltage Shutdown - 31.0 VDC

USB Socket Output - 5V, 1A

No Load Battery Draw - 2.17A
