Enerdrive ePOWER 12V 20A Battery Charger
Enerdrive ePOWER 12V 20A Battery Charger
SKU: EN31220
Couldn't load pickup availability
Share

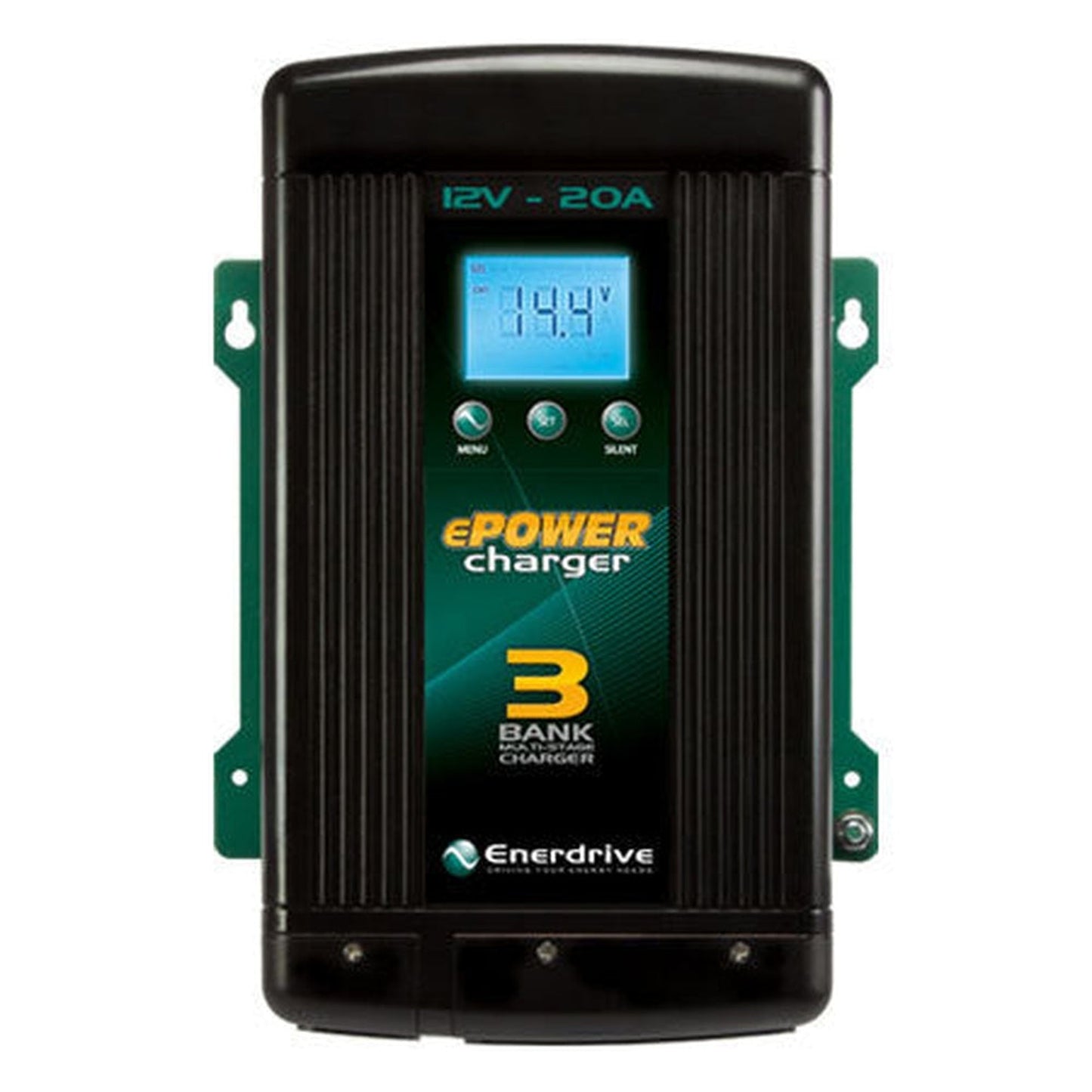

The Enerdrive ePOWER 20A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.
As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.
The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).
20A Battery Charger Features:
- Multistage Charging: Fully automatic multistage 20A battery charger with the ability to charge 3 separate battery banks.
- Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
- Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
- Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
- Smart Charging: The ePOWER 20A battery charger will regulate its output based on the loads connected to your battery banks.
- Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
- LED Display: Easy to use “set and select” menu along with scrolling charger status.
- Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
- Temperature Sensor: Battery temperature sensor included with 3 meter cable.
- 5 Year Warranty from an Australian company renowned for customer support
Specifications
SKU - EN31220
Brand - Enerdrive
GTIN - 9342616000243
Product Category - Battery Chargers
Warranty Period - 5 Years
Model - EN31220
Product Type - 12v 20Amp Battery Charger
Ingress Protection - IP32 (Basic drip proof in vertical orientation)
Float - 13.4 – 13.8 V
AC Input Voltage - 90 to 265 VAC
Output Current Rating (Amps) - 20
DC Output - Three (1 fully independent, 2 common with diode isolation)
DC Output Ground - Single Heavy Duty Common Ground Stud
Battery Temp Sensor Port - RJ12 (standard battery temp. sensor supplied)
Reverse Polarity - Yes, (with user replaceable fuse/s)
Over Temperature Protection - Yes, unit de-rated and shutdown
Equalize - 16.0 V
Storage Range (temp) - -40° to 70° C
Power consumption (DC 12V) - 350W (Full Load)
Charging Control - Four stages (Bulk/Absorption/Float/Maintenance) Two stages (Bulk/Absorption), Constant Power Supply (Program setting), Priority Battery Bank Chargin
Output System Voltage - 12V
Operating Range (temp) - -20° to 60° C
Humidity - 5-95%, relative humidity non-condensing
Net Weight (kg) - 2.4
DC Output Connection - Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread
Output Short Circuit - Yes, (with user replaceable fuse/s)
Power Factor Correction - Yes
Temperature Setting - Hot, Normal, Cold (no sensor connected)
Charger Mode Output Voltage - 14.2 – 15.5 V
Charger Efficiency - > 82%
AC Input Operating Range - 207-265 Vac (2.0 A Max)90-125 Vac (3.8 A Max)
Standby Current - < 2 mA
LCD Display - Charging status, Battery Voltage, Output Current & Fault Codes.
Dimensions - 295 x 206x 86 mm (L x W x H)
Regulatory Compliance - Complies with AS/NZS 60335.2.29 Including Australian deviations.
AC Input Connection - IEC with Supplied 1.2M Power Lead
Over Charge - Yes, unit shutdown
AC Input Frequency Range - 47 – 63 Hz
Selectable Battery Type - Gel, AGM, Flooded, Lithium, Program
Optional Accessories - Remote Digital Display / Enerdrive Part Number EN3REM
Cooling - Forced air ventilation (thermo-controlled fan)
