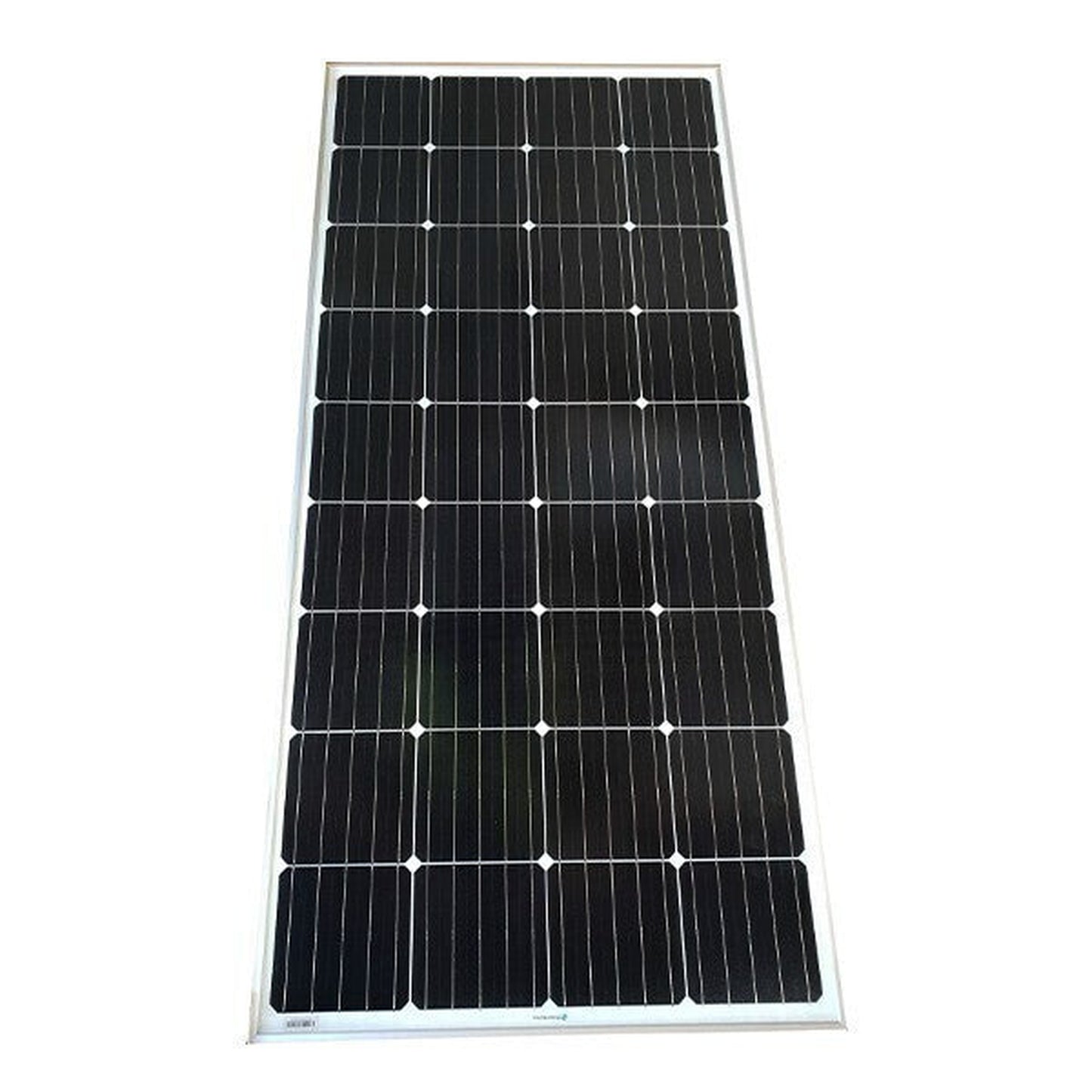

Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver
Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver
SKU:SP-EN190W
Couldn't load pickup availability
Share
Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit.
- Suited to 12v installations (or 24v by series connections of panels)
- A fly lead cable is provided for easy connection of the 10 & 20w panels
- The larger panels have MC4 compatible solar cable connectors included
Specifications
SKU - SP-EN190W
Brand - Enerdrive
GTIN - 9342616026212
Product Category - Portable Solar Panels
Warranty Period - 5 Years
Solar Panel Type - Fixed Solar Panels
Cell Type - Monocrystalline - 72 Cells
Short Circuit Current(Isc) - 10.07A
Optimum Operating Voltage(Vmp) - 20.00V
Power Tolerance - 0~+5W
Popular Product Applications - Caravan solar panels, 12V solar panel, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels
Dimensions - 1500mm x 680mm x 35mm
Operating Module Temperature:- -40 to +85 degree celsius
Open Circuit Voltage(Voc) - 24.80V
Maximum Power(Pmax) - 190W
Test Conditions - Cell Temperature: 25 Deg. | C,Irradiance: 1kW/m2 | Air Mass: 1.5
Weight - 11.50kg
Module Efficiency - 17.86%
Optimum Operating Current(Imp) - 9.50A
Maximum System Voltage - 1000V DC (IEC)
