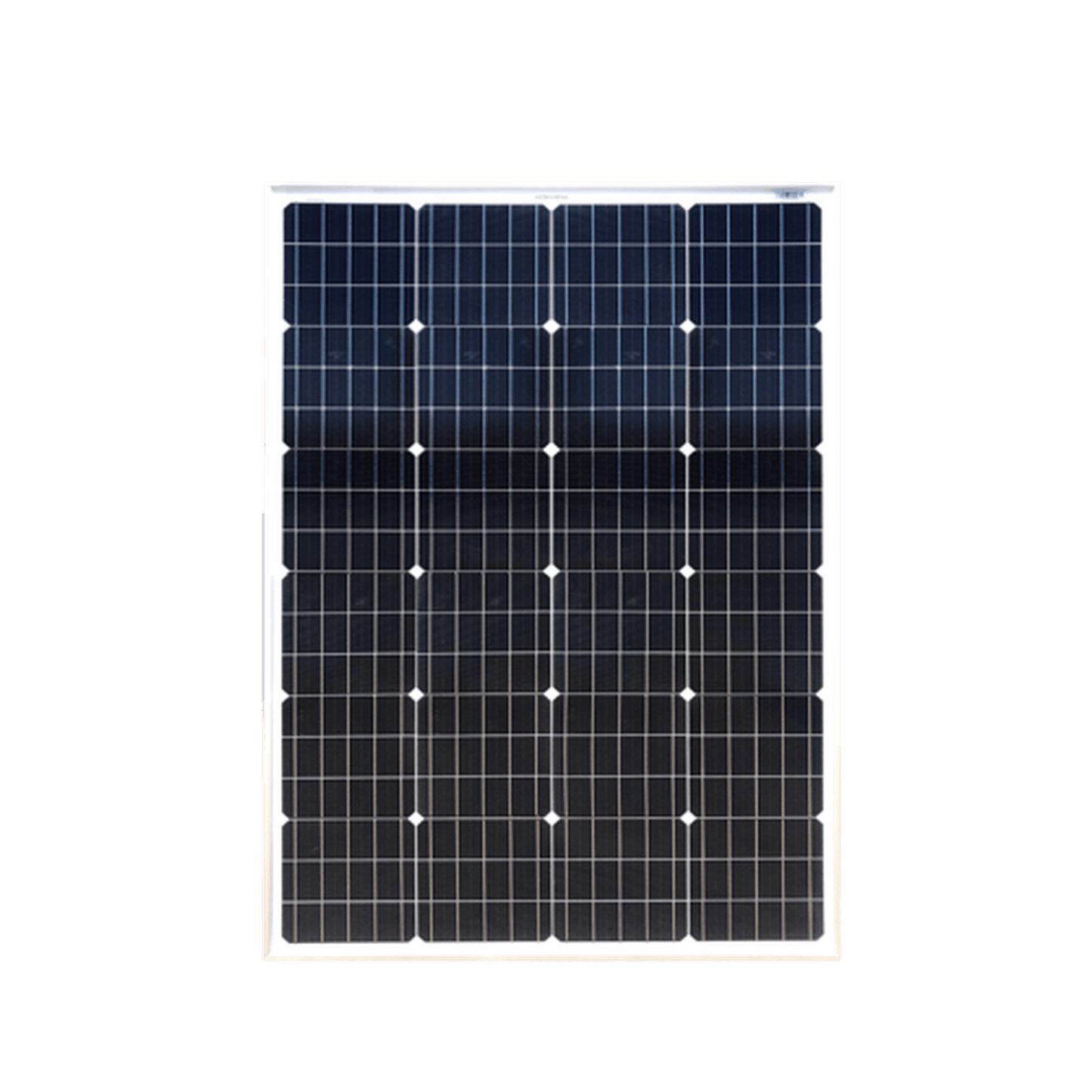

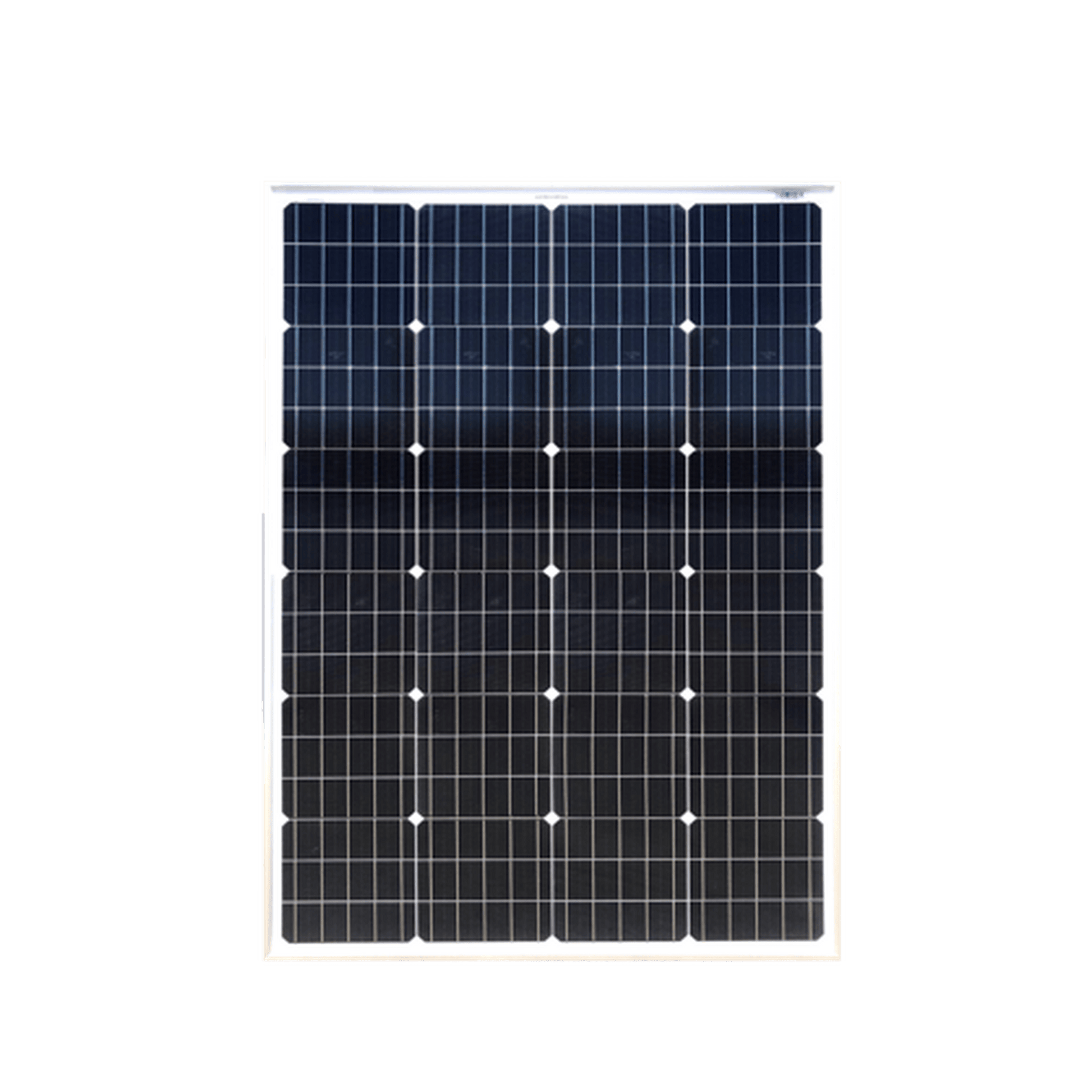

Enerdrive 150W Squat Mono Crystalline Fixed Solar Panel
Enerdrive 150W Squat Mono Crystalline Fixed Solar Panel
SKU: SP-EN150SQ
Couldn't load pickup availability
Share
Enerdrive 150W Squat Mono Crystalline Fixed Solar Panel, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit.
- Suited to 12v installations (or 24v by series connections of panels)
- A fly lead cable is provided for easy connection of the 10 & 20w panels
- The larger panels have MC4 compatible solar cable connectors included
Specifications
SKU - SP-EN150SQ
Brand - Enerdrive
GTIN - 9342616026151
Product Category - Portable Solar Panels
Warranty Period - 5 Years
Solar Panel Type - Fixed Solar Panels
Wattage - 150
Cell Type - Monocrystalline
Max System Voltage (VDC) - 1000
Max Power Voltage Vm(V) - 18.5
Short Circuit Current Isc(A) - 8.8
Dimensions - 1210 mm x 808 mm x 35 mm
Test Conditions - 1000W/m² , AM1.5 , 25°C
Open Circuit Voltage Voc(V) - 22.5
Weight (kg) - 11.5
Max Power Current Im(A) - 8.11
Popular Product Applications - Caravan solar panels, 12V solar panel, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels
