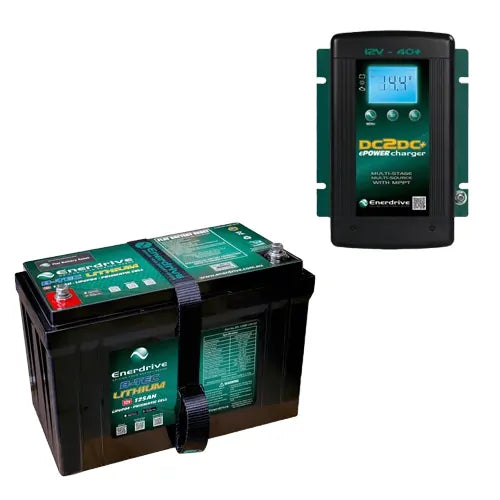

Enerdrive 125Ah B-Tec Bundle Inc Dc40 Charger
Enerdrive 125Ah B-Tec Bundle Inc Dc40 Charger
SKU:K-125-DC40-BUNDLE
Couldn't load pickup availability
Share
PRODUCT DETAILS
Enerdrive 125Ah B-Tec Bundle Inc Dc40 Charger
If you are looking for the best DC to DC charger money can buy, Enderdrives ePOWER EN3DC40 12v/40a DC to DC Battery Charger is our top pick. This Enerdrive ePOWER 40a/12v EN3DC40 DC to DC charger truly stands out from its competitors. Engineered to perfection and manufactured to the highest possible quality, it's easy to see why Enerdrive is quickly overtaking the market. The Enerdrive ePOWER 40a/12v EN3DC40 DC to DC charger is a fully automatic multistage, multi-input battery charger that has the capacity to charge from solar power using the integrated Maximum Power Point Tracking (MPPT) Solar Controller or from an alternator connected to a battery. The main/house battery can be charged from any of the two accessible inputs: the engine when moving, or the solar panels. Both functions are managed internally by the device itself without the use of external relays, making it completely automatic to select between the engine or the solar power.
SPECIFICATIONS
Specifications
| Normal Specification | EPL-125BT-12V G2 |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity | 125Ah |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Standard Charge Specification (Lithium profile charger required) | |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 14.20 ̴ 14.60V |
| Standby (Float) Voltage | 13.50 ̴ 13.80V |
| Maximum Charge Current | 60A @ 25°C for 30mins |
| Recommended Charge Current For Maximum Life, Charge in the lower amperage range |
20~60A |
| Standard Discharge Specification | |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 11.00 ̴ 14.60V |
| Maximum Discharge/Pulse Current | 100A @ 25˚C ±5˚C for 30 mins |
| Pulse Discharge Current | 450A for 1.0s |
