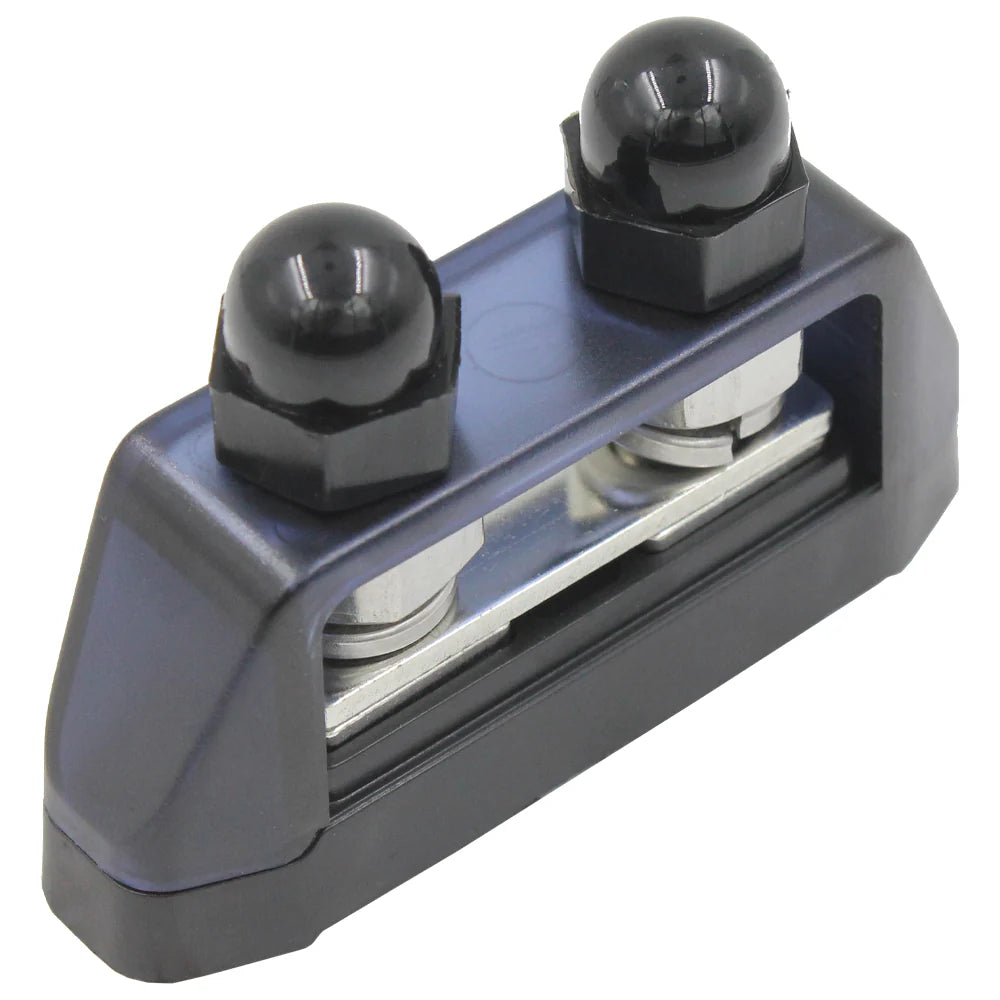

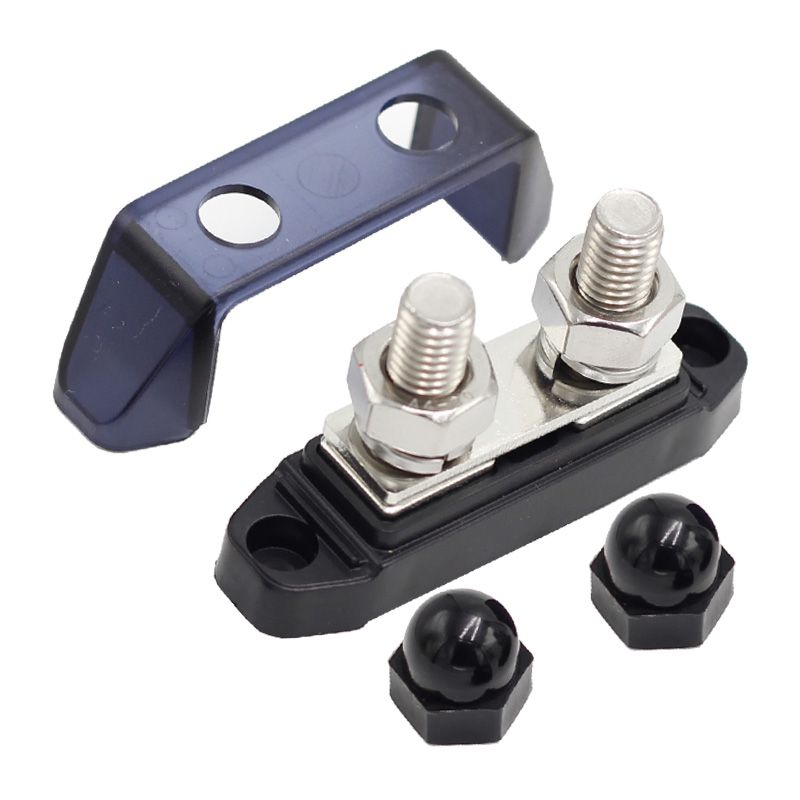

Dual Black Surface Mount Bus Bar M10 Stud - 150amp Rated @ 12V

PRODUCT DETAILS

The Dual Black Surface Mount Bus Bar with M10 Studs is a reliable power distribution solution for a wide range of automotive and marine applications. Rated at 150A @ 12V, this high-performance bus bar simplifies your wiring setup and ensures a well-organized battery system by consolidating multiple connections into a single point.

Key Features:

• Efficient Power Distribution: Helps organize your battery setup with one wire per terminal, reducing clutter and improving troubleshooting.
• Enhanced Safety: The insulated design minimizes the risk of short circuits, allowing safe storage and maintenance around the battery area.
• Simplified Wiring: Makes identifying and tracing faults easier by providing accessible and centralized connection points.

Specifications:

• Maximum Rating: 250A @ 12V
• Max Voltage Supply: 48V DC
• Dimensions: 22.5mm (W) x 80mm (L) x 51.5mm (H, including cover nut)
• Terminals: M10 stud (suits 10mm, 3/8")
• Mounting Holes: 4.7mm (recessed), with 68mm hole centers

This bus bar is an essential tool for creating a clean, efficient, and secure electrical setup in your vehicle or boat.
