Projecta
DCDC CHARGER IDC25L 5 Stage Lithium
DCDC CHARGER IDC25L 5 Stage Lithium
SKU:IDC25L
Couldn't load pickup availability
Share

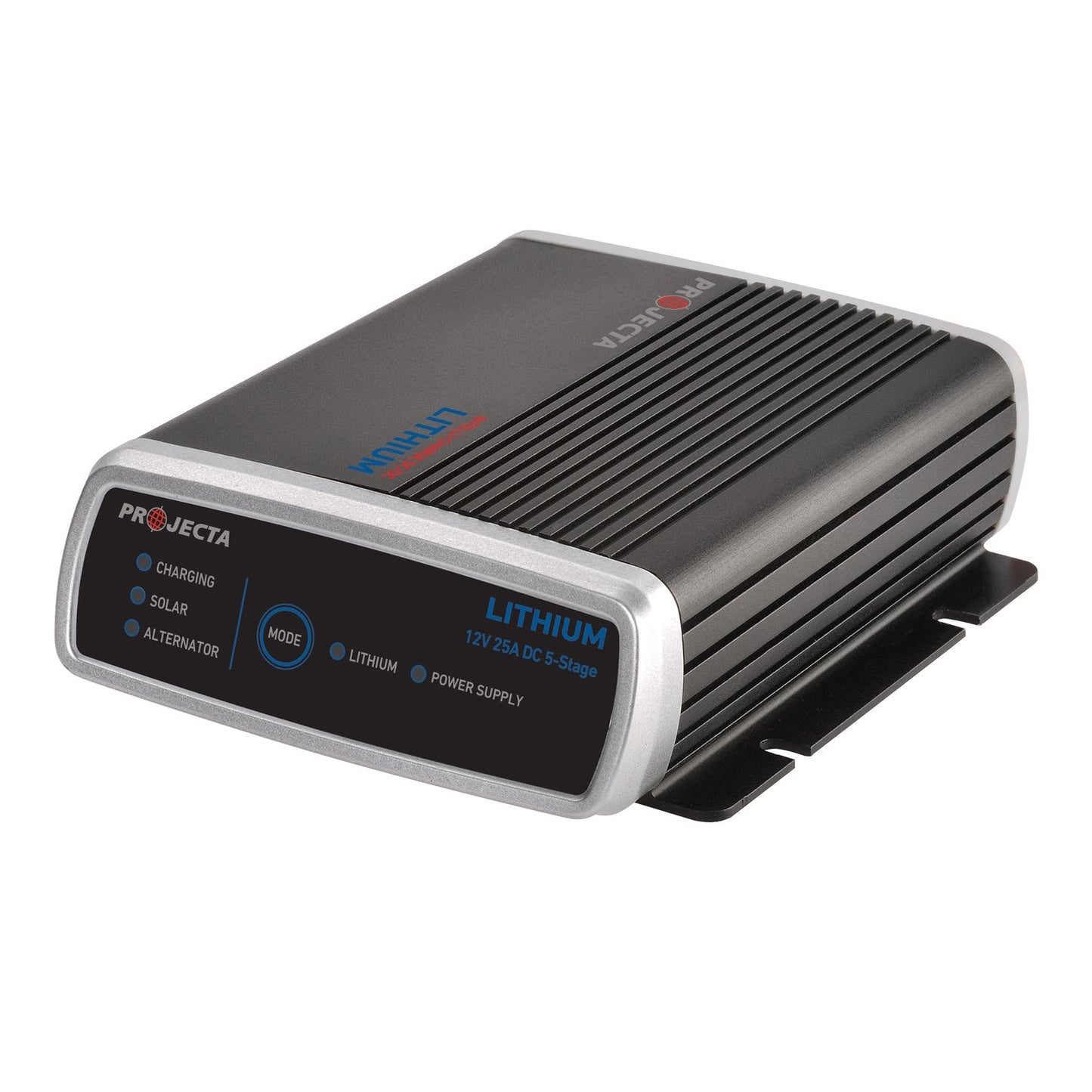

An advanced DC/solar battery charger engineered for today's sophisticated lithium iron phosphate batteries.
Features:
Lithium charging technology
- Engineered for use with today's advanced lithium battery technology.

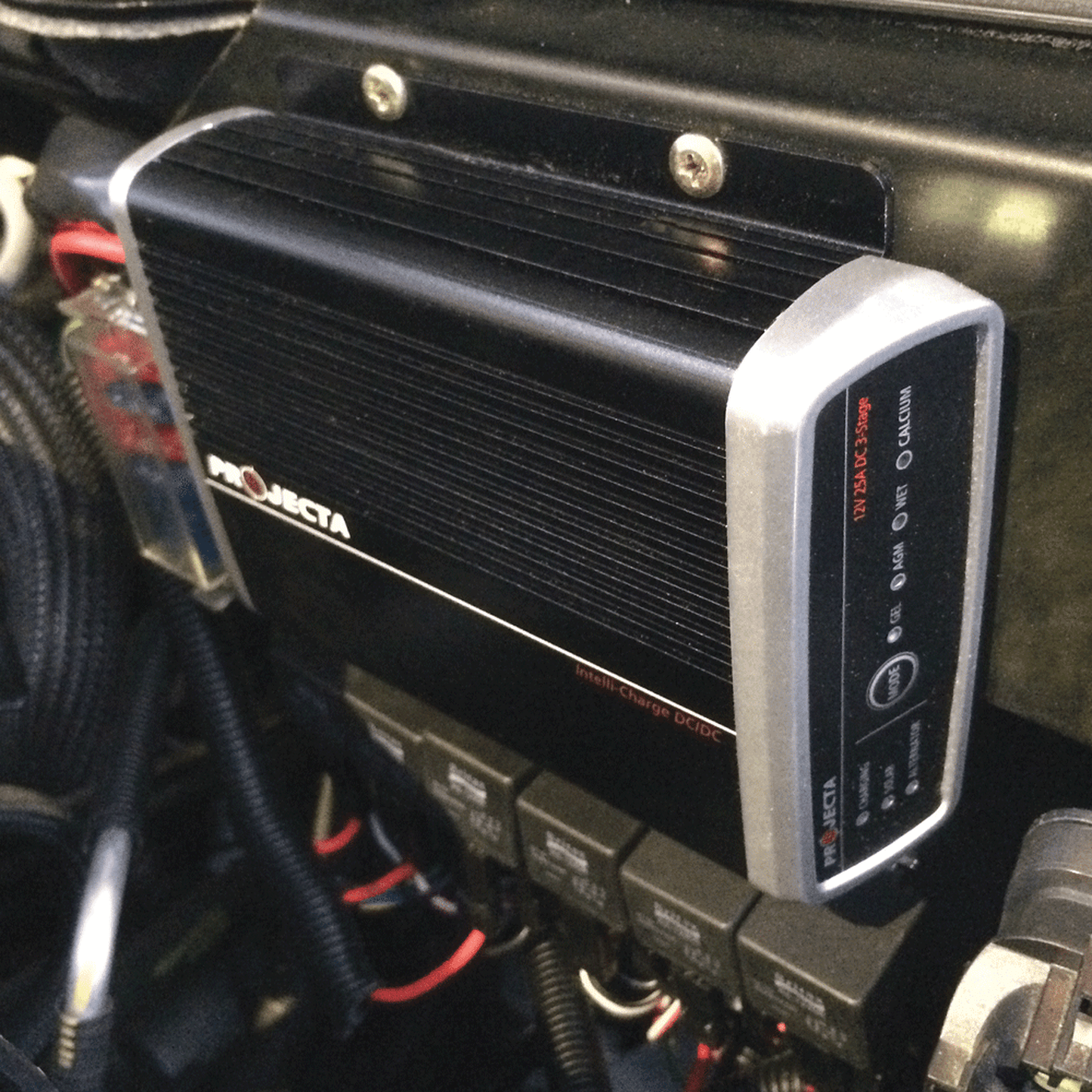

Engine bay installation
- Sealed to IP67, the IDC is dust, splash and shockproof and can safely operate in extreme temperatures up to 80°C.
Dual charging modes
- Engineered to work with both smart and conventional alternators.
Dual input operation
- Simultaneous dual battery charging from both solar and alternator inputs.
Total safeguard protection
- Over temperature, reverse connection, over/under and spark-free protection.
Specifications:
PART NO |
IDC25L |
||||
CHARGE TYPE |
5 Stage |
||||
ALTERNATOR INPUT VOLTAGE |
9-32Vdc |
||||
MAX SOLAR INPUT |
28Vdc, 360W |
||||
OUTPUT CURRENT |
Input 9-11Vdc 20A, |
||||
BACK DRAIN ON AUX BATTERY |
9.5-10.5mA |
||||
CHARGING PROFILE |
1st Soft Start: 1.25A |
||||
BATTERY CAPACITY |
50-250Ah |
||||
BATTERIES SUPPORTED |
Lithium iron phosphate |
||||
SMART ALTERNATOR |
|
||||
CONVENTIONAL ALTERNATOR |
|
||||
OPERATING TEMPERATURE |
-10°C to +80°C |
