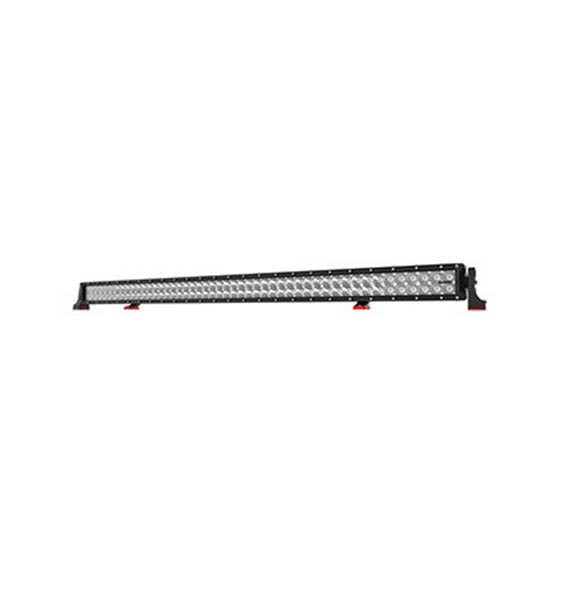

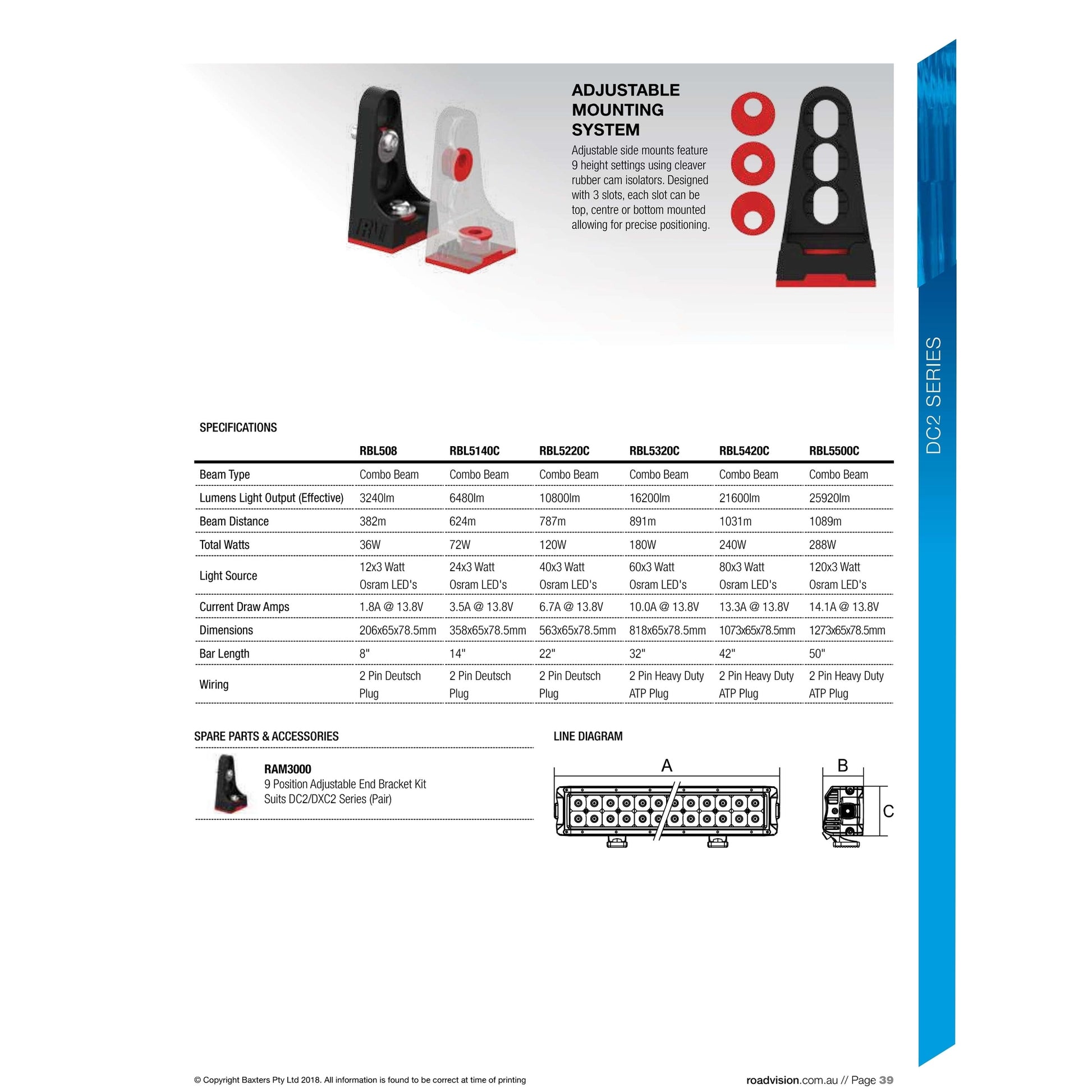

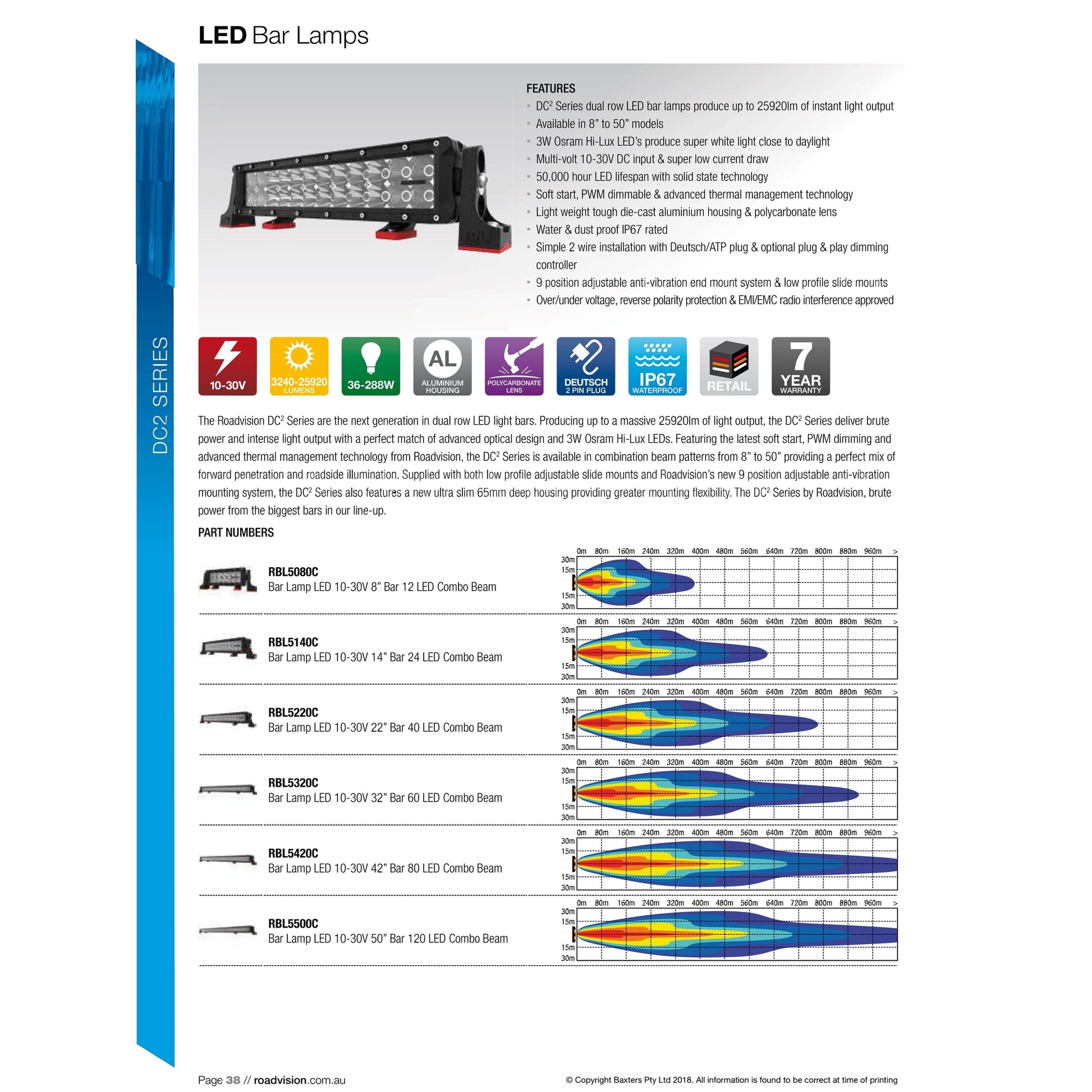

Roadvision DC2 50" Technical Specifications
| Feature | Specification |
| Brand | Roadvision |
| Series | DC2 Series |
| Bar Length | 50" (1273mm) |
| Beam Type | Combo Beam |
| Light Source | 3W Osram Hi-Lux LEDs |
| Total Watts | 288W |
| Lumens Output (Effective) | 25,920lm |
| Max Lux @ 10m | 2,966 Lux |

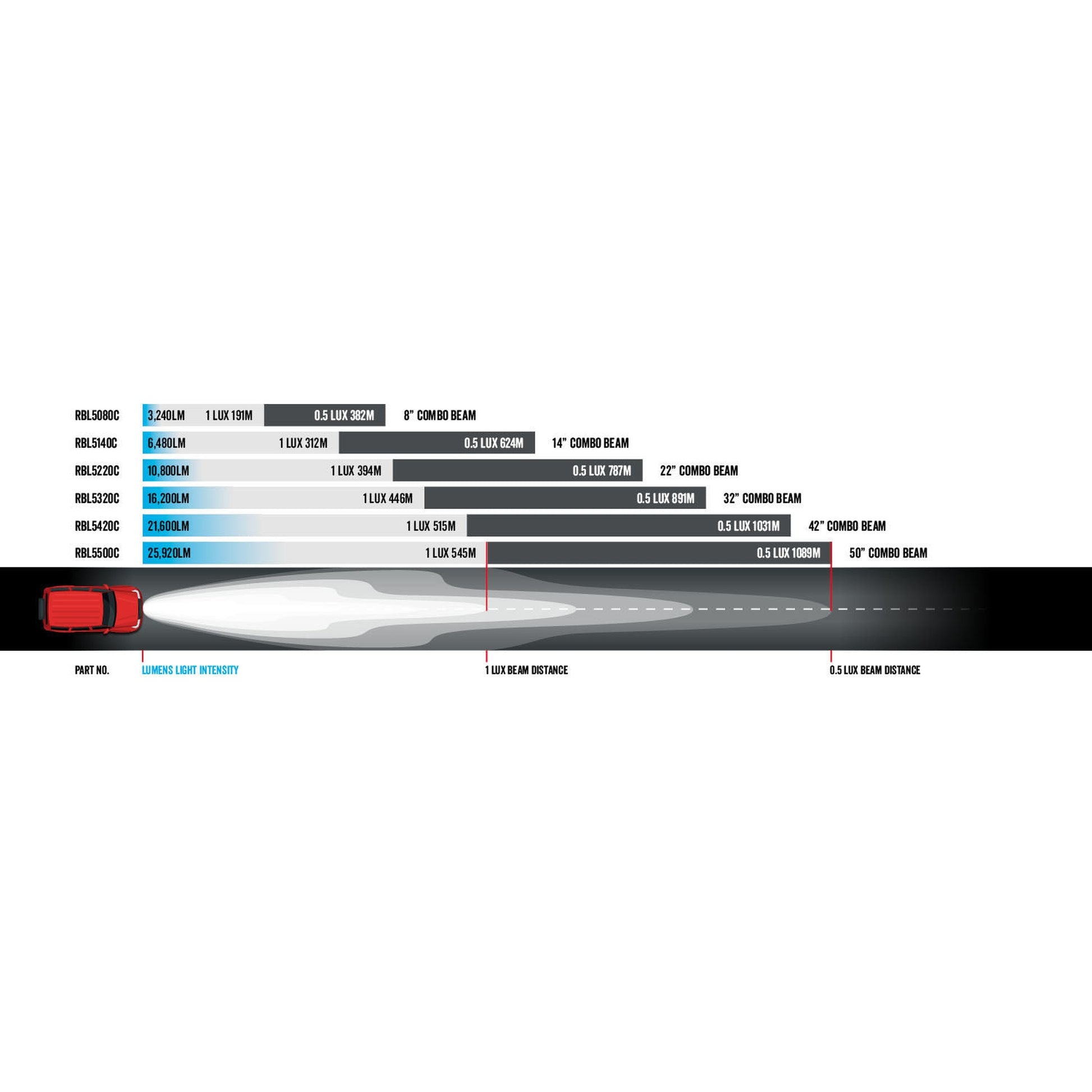

| Beam Distance @ 1 Lux | 545m |
| Beam Distance @ 0.5 Lux | 1,089m |
| Voltage Input | 10-30V DC (Multi-volt) |
| Current Draw | 14.1A @ 13.8V |
| IP Rating | IP67 (Water & Dust Proof) |
| Wiring Connection | 2 Pin ATP Plug |

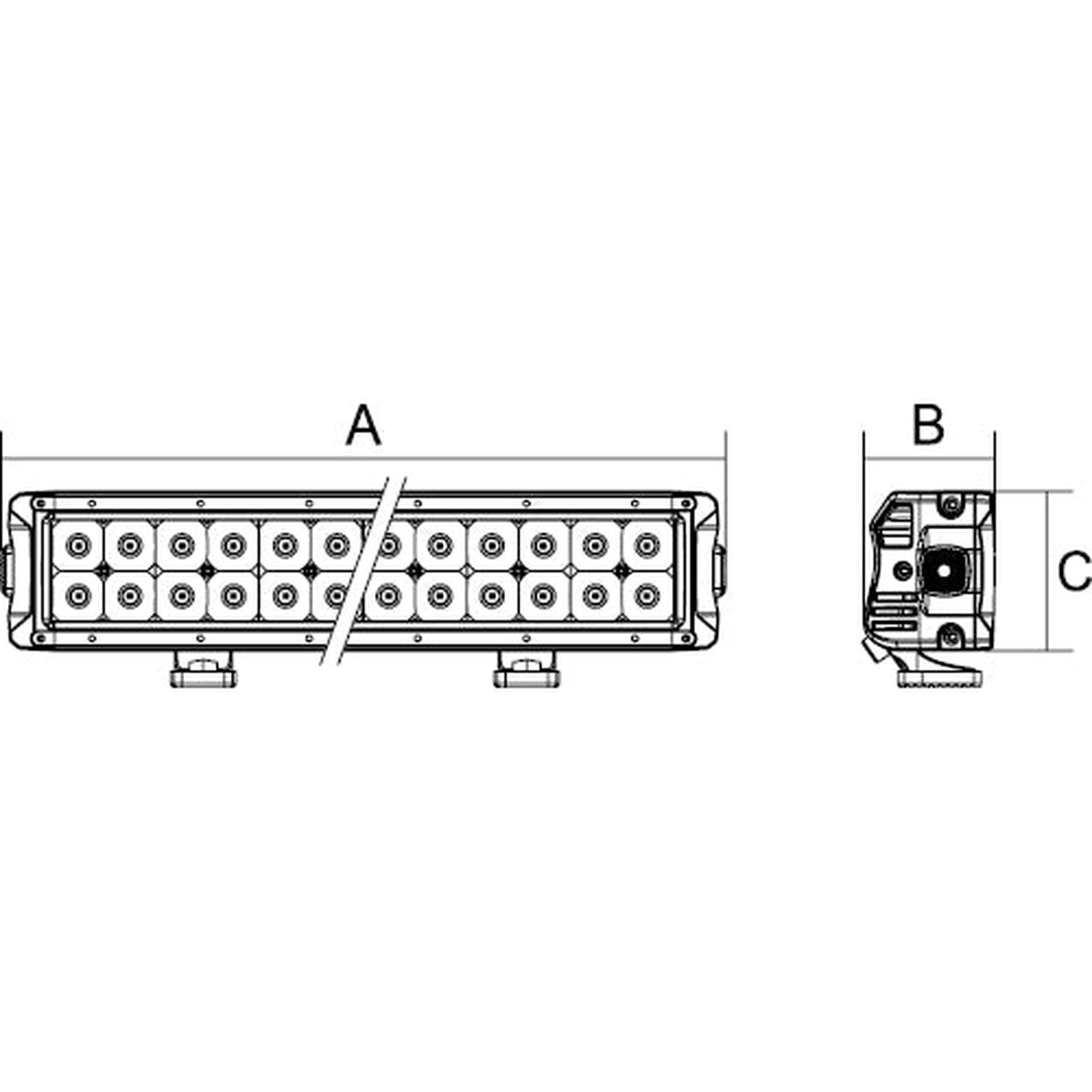

| Dimensions (L x D x H) | 1273mm x 65mm x 78.5mm |
Frequently Asked Questions
1. Can I mount this 50-inch light bar to my roof rack?
Yes, the DC2 Series comes with a highly adaptable 9-position adjustable anti-vibration end mount system as well as low-profile slide mounts, making it perfect for secure installation on roof racks, custom trays, or heavy-duty 4WD canopies.
2. Is this light bar suitable for a 24V truck?
Absolutely. The light bar features a highly efficient 10-30V DC multi-volt input, meaning it operates flawlessly on standard 12V 4WDs and utes, as well as 24V heavy transport trucks.
3. Will this cause static on my UHF radio?
No, the DC2 Series is fully EMC and EMI approved. This guarantees zero electromagnetic interference, so your UHF radio and essential communications stay crystal clear while you are out on the tracks.
4. How tough is the outer lens?
Extremely tough. The lens is constructed from high-impact polycarbonate, which is virtually unbreakable and specifically engineered to resist the stone chips, branches, and flying gravel common on Australian dirt roads.
5. Is the light bar fully waterproof?
Yes. It boasts a strict IP67 rating, meaning it is completely sealed against dust ingress and can withstand heavy rain, deep water crossings, and high-pressure worksite washdowns.
6. What does the "PWM dimmable" feature do?
Pulse Width Modulation (PWM) dimming allows you to seamlessly control the light intensity when paired with an optional plug-and-play dimming controller. This is highly beneficial when driving through reflective environments like heavy fog, dust, or highly reflective road signs.
