DC2 Double Row NEXT-GENERATION L.E.D. High Performance Long Range Driving Bar Lights ROADVISION
DC2 Double Row NEXT-GENERATION L.E.D. High Performance Long Range Driving Bar Lights ROADVISION
SKU:RBL5220C
Regular price
$308.00 AUD
Regular price
Sale price
$308.00 AUD
Unit price
per
Tax included.
Couldn't load pickup availability
The Roadvision DC2 Series are the next generation in dual row LED light bars. Producing up to a massive 25920lm of light output, the DC2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DC2 Series is available in combination beam patterns from 8” to 50” providing a perfect mix of forward penetration and roadside illumination. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system, the DC2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DC2 Series by Roadvision, brute power from the biggest bars in our line-up.
- DC2 Series dual row LED bar lamps produce up to 25920lm of instant light output
- Available in 8” to 50” models
- 3W Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Soft start, PWM dimmable & advanced thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch/ATP plug & optional plug & play dimming controller

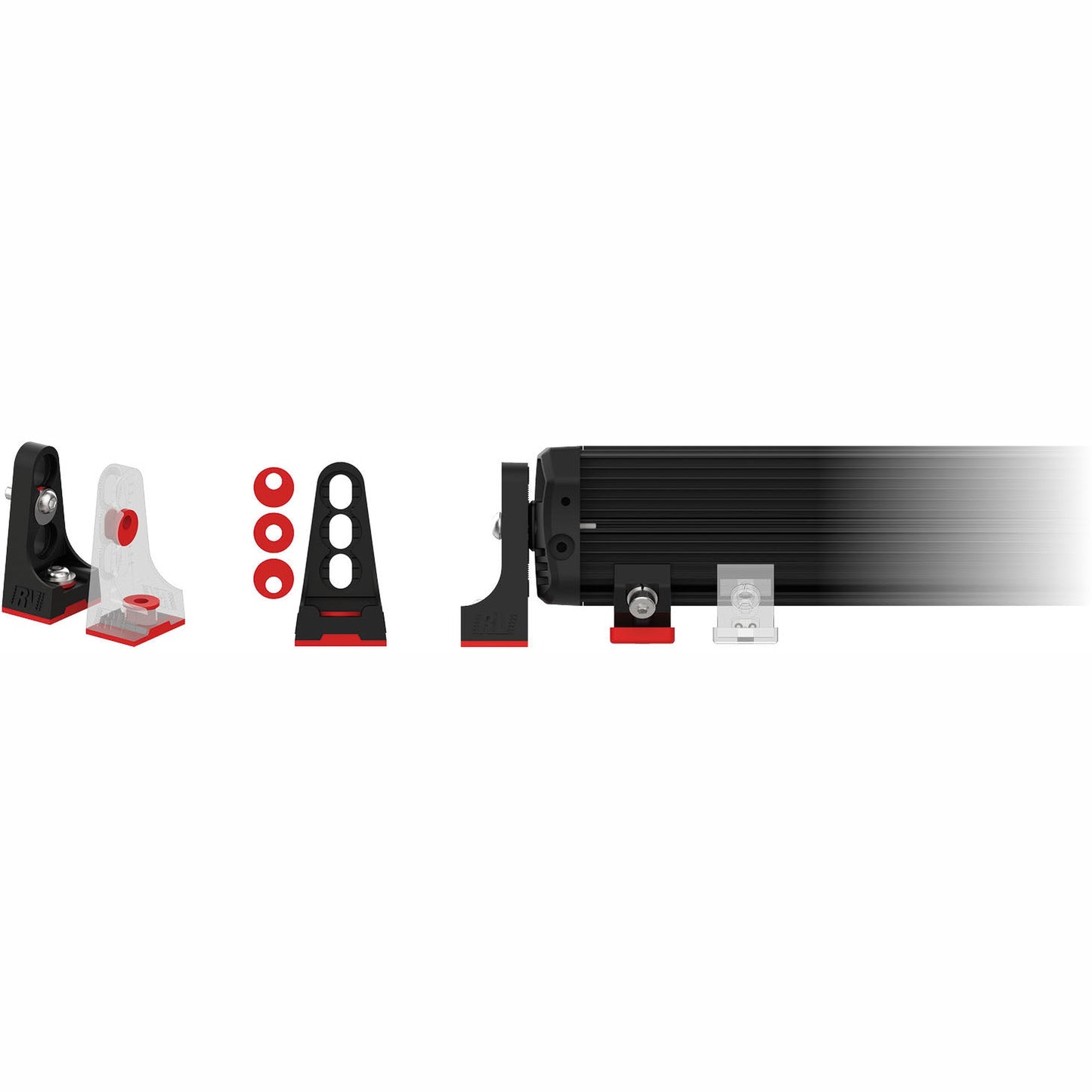

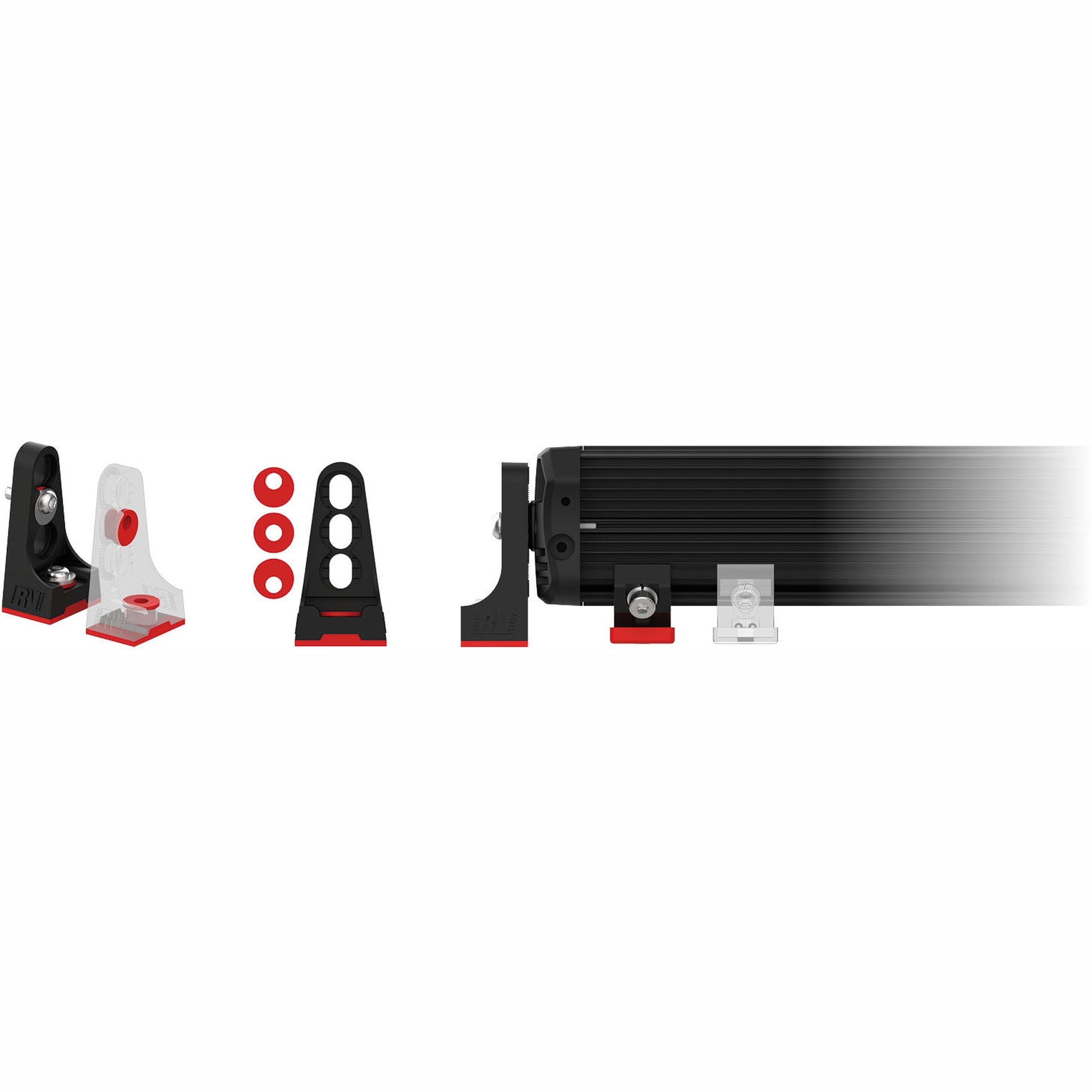

- 9 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

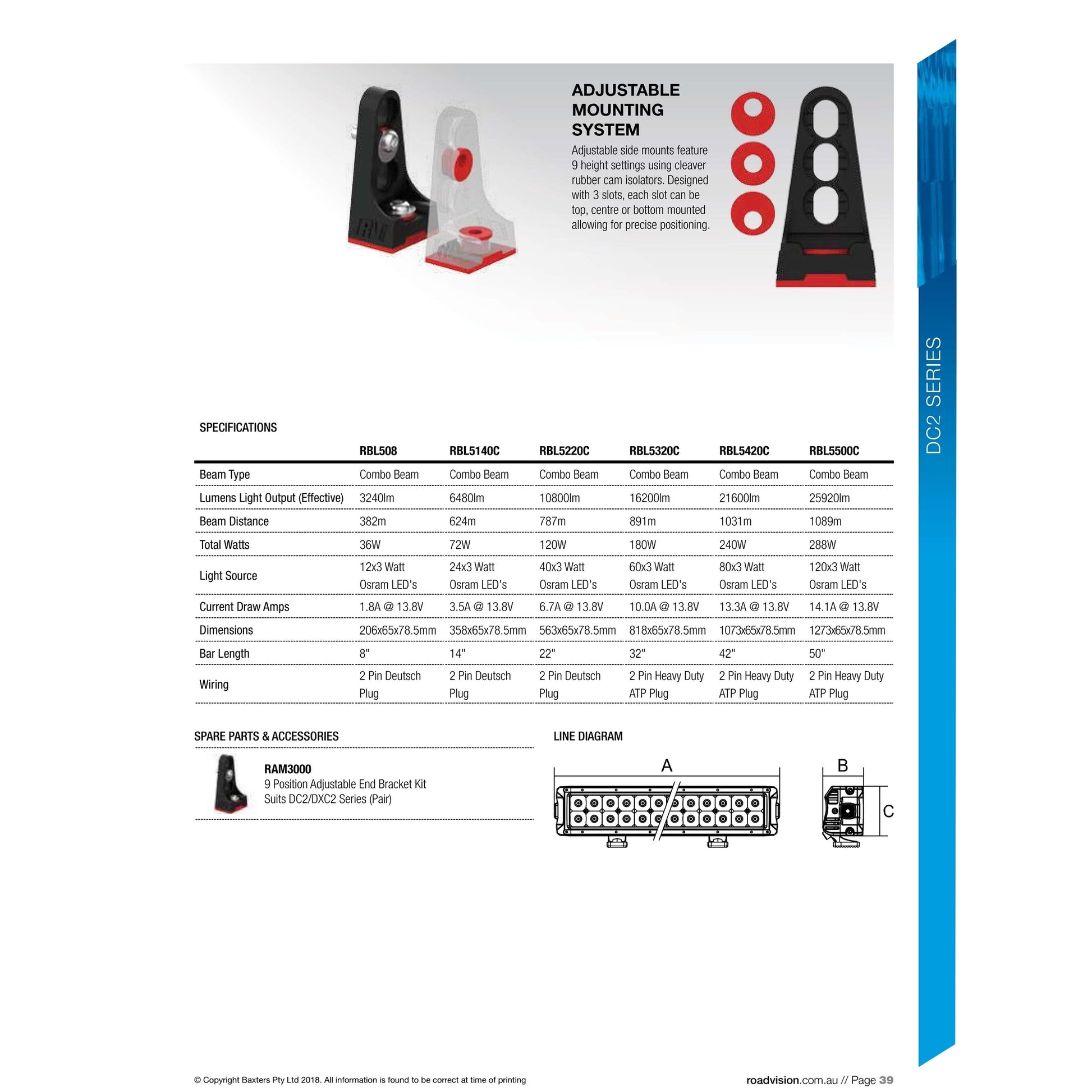

RANGE SPECIFICATIONS
- Description - DC2 Series 22" Bar 40 LED
- Beam Type - Combo Beam
- Lumens Light Output (Effective) - 10800lm

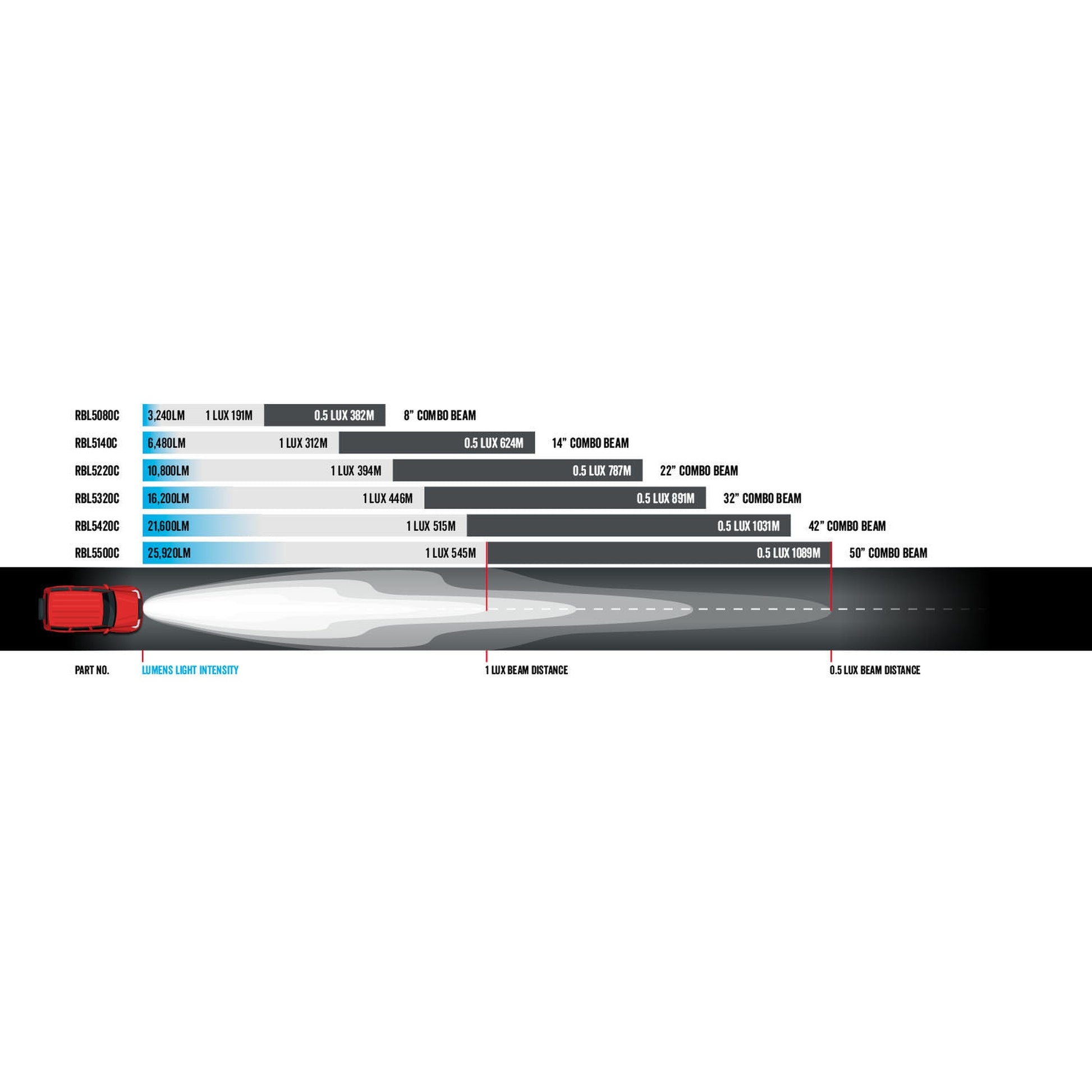

- Beam Distance - 787m
- Total Watts - 120W
- Light Source - 40x3 Watt Osram LED's
- Voltage Input - 10-30V DC
- Current Draw Amps - 6.7A @ 13.8V

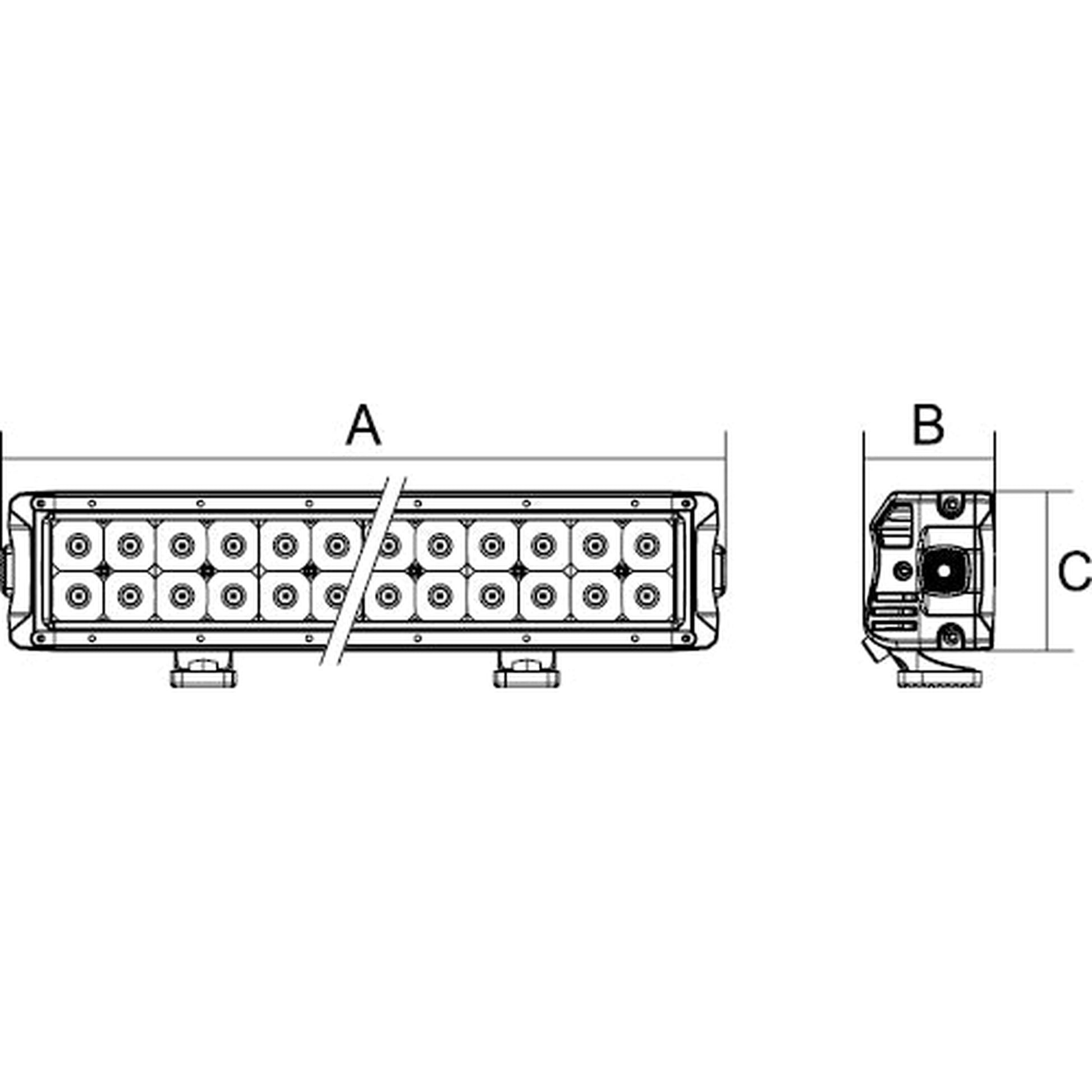

- Dimensions AxBxC - 563x65x78.5mm
- Bar Length - 22" (563mm)
- Wiring - 2 Pin Deutsch Plug
- Lux @ 10m - 1549 Lux
- Meters @ 1 Lux - 394m
- Meters @ 0.5 Lux - 787m
