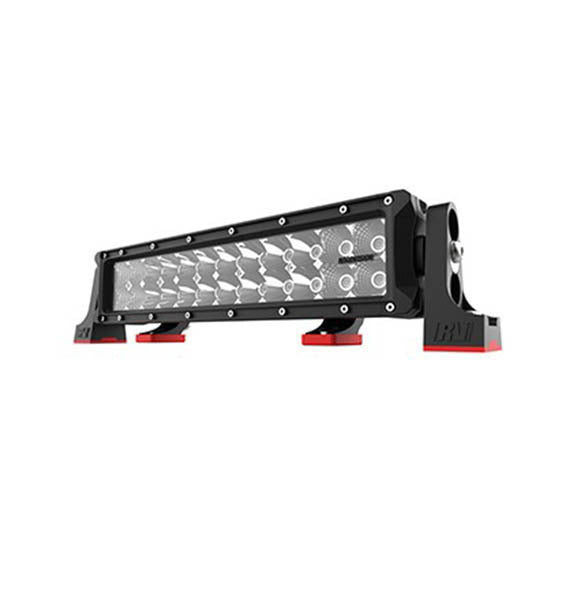

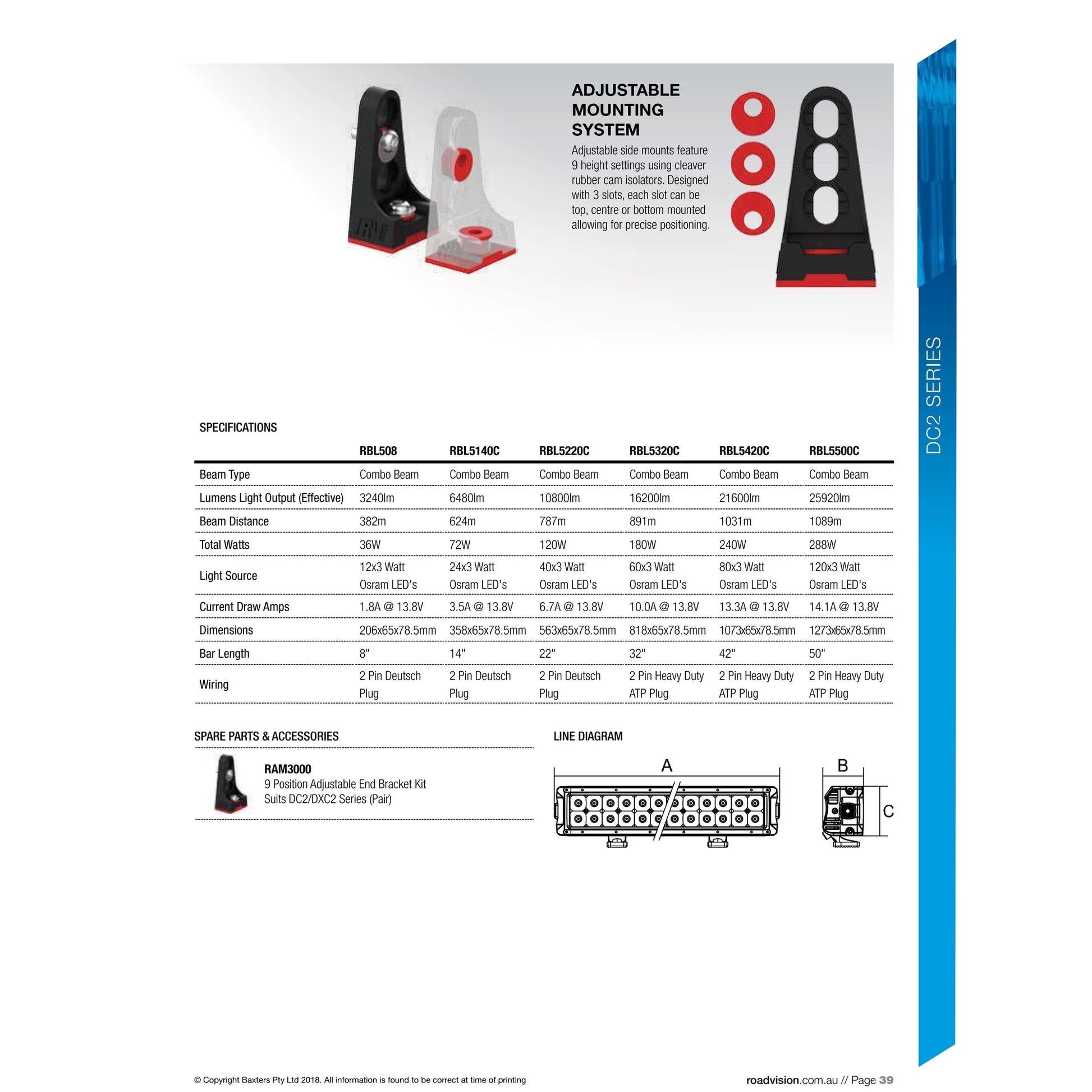

Roadvision DC2 14" Technical Specifications
| Feature | Specification |
| Brand | Roadvision |
| Series | DC2 Series |
| Bar Length | 14" (358mm) |
| Beam Type | Combo Beam |
| Light Source | 24 x 3W Osram Hi-Lux LEDs |
| Total Watts | 72W |
| Lumens Output (Effective) | 6,480lm |
| Max Lux @ 10m | 974 Lux |

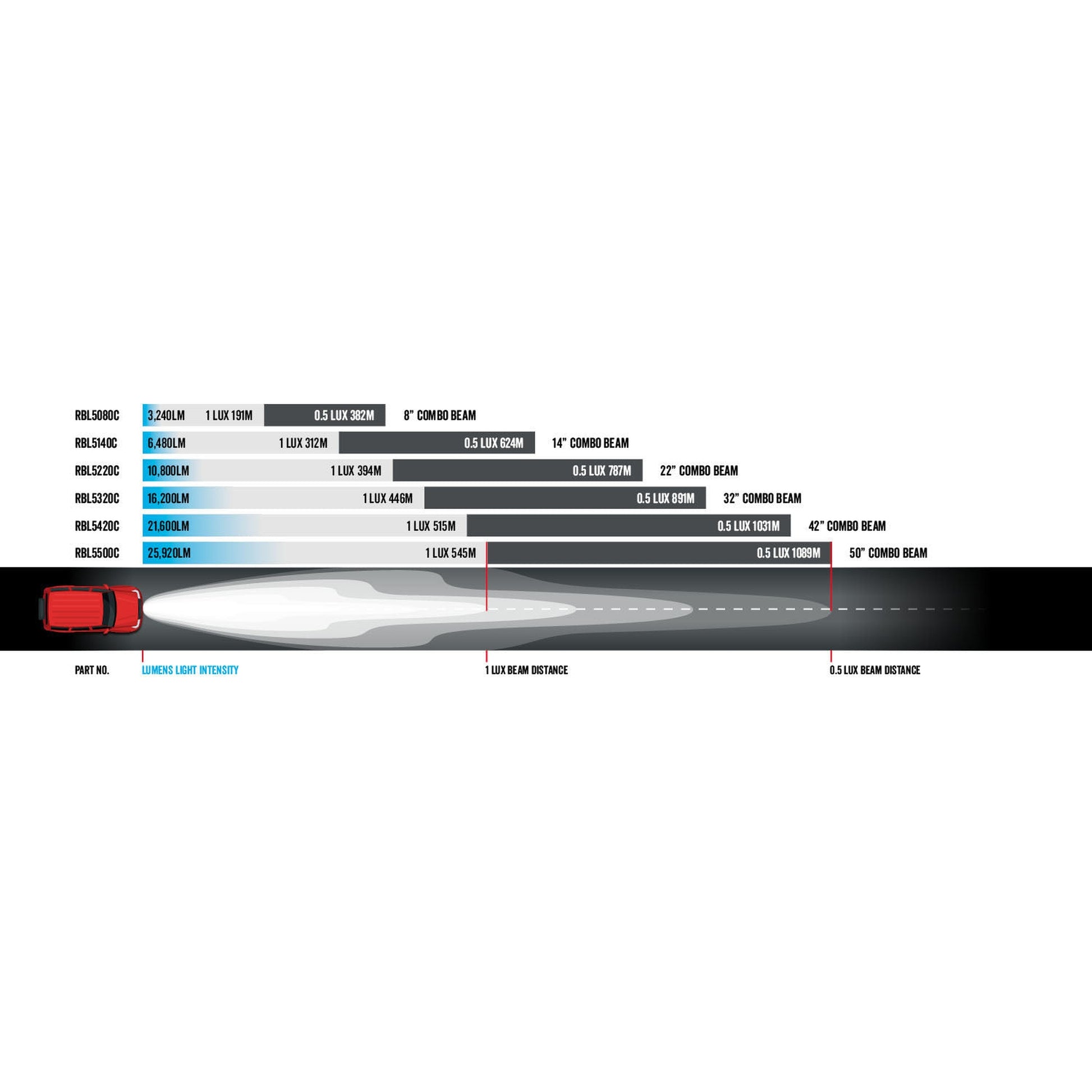

| Beam Distance @ 1 Lux | 312m |
| Beam Distance @ 0.5 Lux | 624m |
| Voltage Input | 10-30V DC (Multi-volt) |
| Current Draw | 3.5A @ 13.8V |
| IP Rating | IP67 (Water & Dust Proof) |
| Wiring Connection | 2 Pin Deutsch Plug |

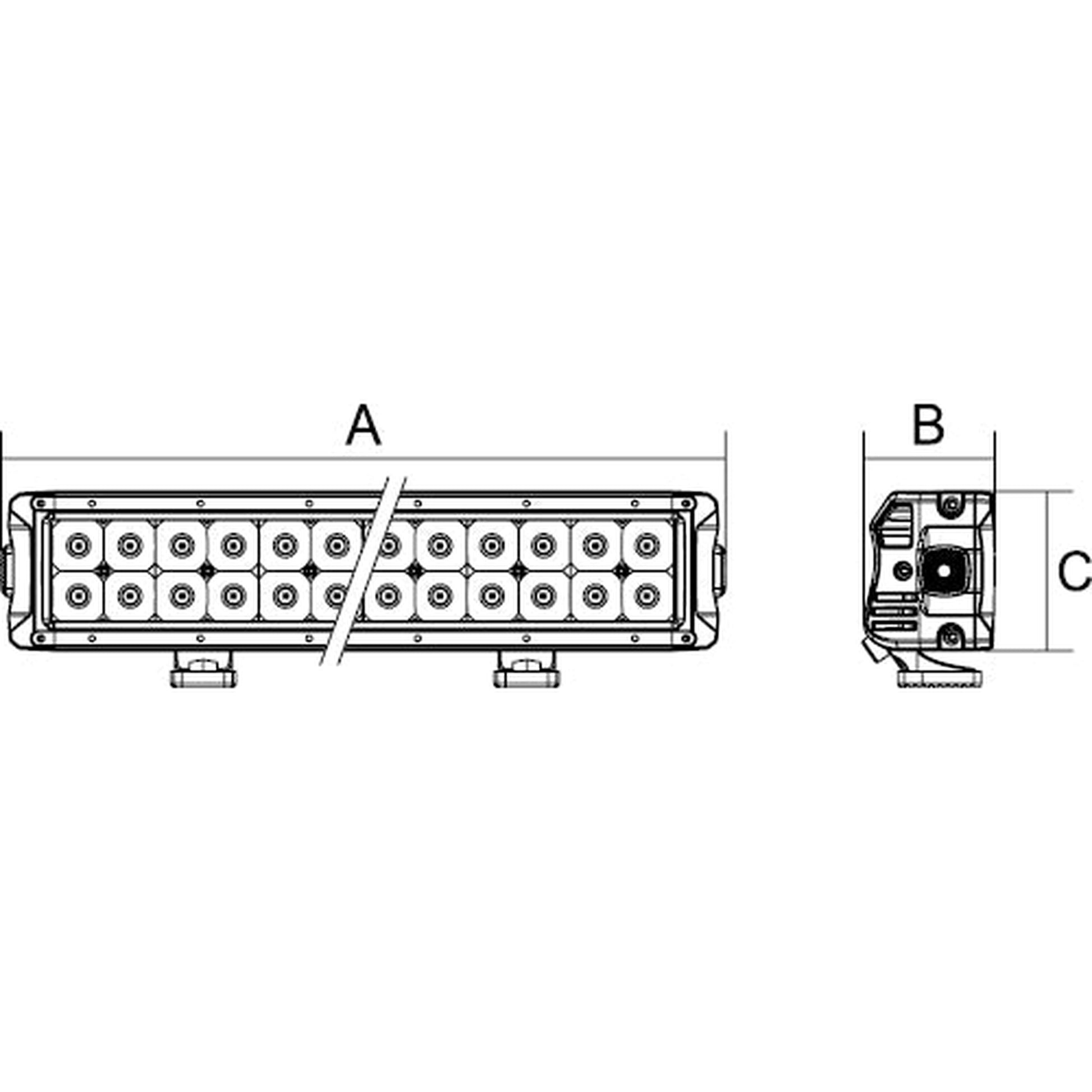

| Dimensions (L x D x H) | 358mm x 65mm x 78.5mm |
Frequently Asked Questions
1. Is the 14-inch size suitable for mounting on an ATV or a 4WD nudge bar?
Absolutely. The compact 14-inch (358mm) footprint and ultra-slim 65mm depth make it the perfect sweet spot for smaller vehicles, ATVs, side-by-sides, and standard 4WD nudge bars where mounting space is limited.
2. Is the DC2 Series light bar suitable for a 24V vehicle?
Yes. Featuring a highly efficient 10-30V DC multi-volt input, it operates perfectly on standard 12V passenger vehicles, utes, and buggies, as well as 24V heavy machinery and transport trucks.
3. Will this light bar cause static on my UHF radio?
No, the DC2 Series is fully EMC and EMI approved. This guarantees zero electromagnetic interference, ensuring your UHF radio communications remain crystal clear while you are out on the tracks.
4. How tough is the front lens against flying rocks?
The lens is crafted from high-impact polycarbonate, which is exceptionally durable and purposely engineered to resist the stone chips, branches, and debris commonly encountered on rough Aussie dirt roads.
5. Can it handle deep river crossings?
Yes. With its strict IP67 rating, the light bar is completely sealed against dust and water ingress, easily surviving deep river crossings, torrential downpours, and high-pressure worksite washdowns.
6. What does "PWM dimmable" mean?
Pulse Width Modulation (PWM) dimming allows you to seamlessly adjust the brightness of the light bar when paired with an optional plug-and-play dimming controller. This is highly beneficial when driving through reflective environments like dense fog or heavy bulldust.
