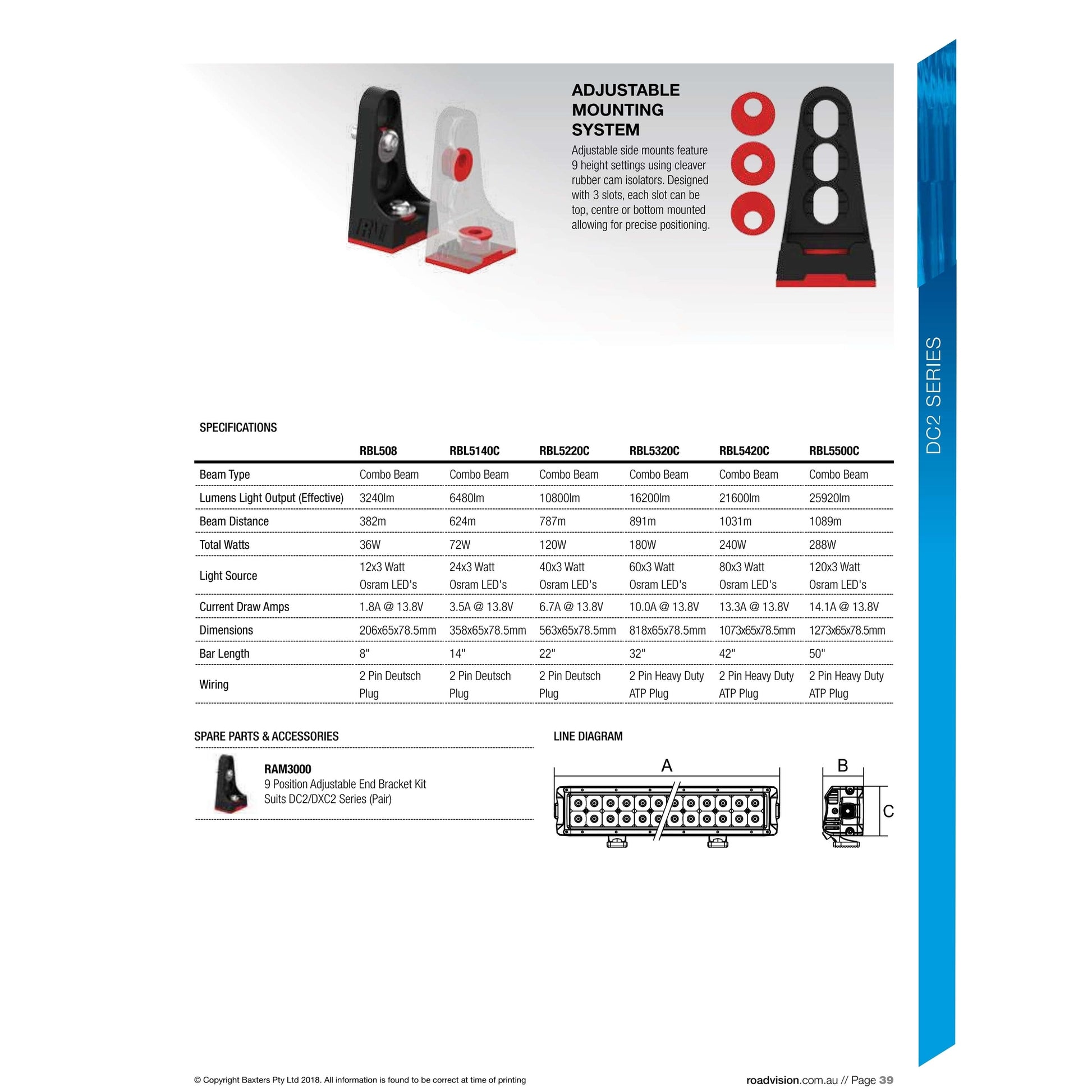

Roadvision DC2 8" Technical Specifications
| Feature | Specification |
| Brand | Roadvision |
| Series | DC2 Series |
| Bar Length | 8" (206mm) |
| Beam Type | Combo Beam |
| Light Source | 12 x 3W Osram Hi-Lux LEDs |
| Total Watts | 36W |
| Lumens Output (Effective) | 3,240lm |
| Max Lux @ 10m | 365 Lux |

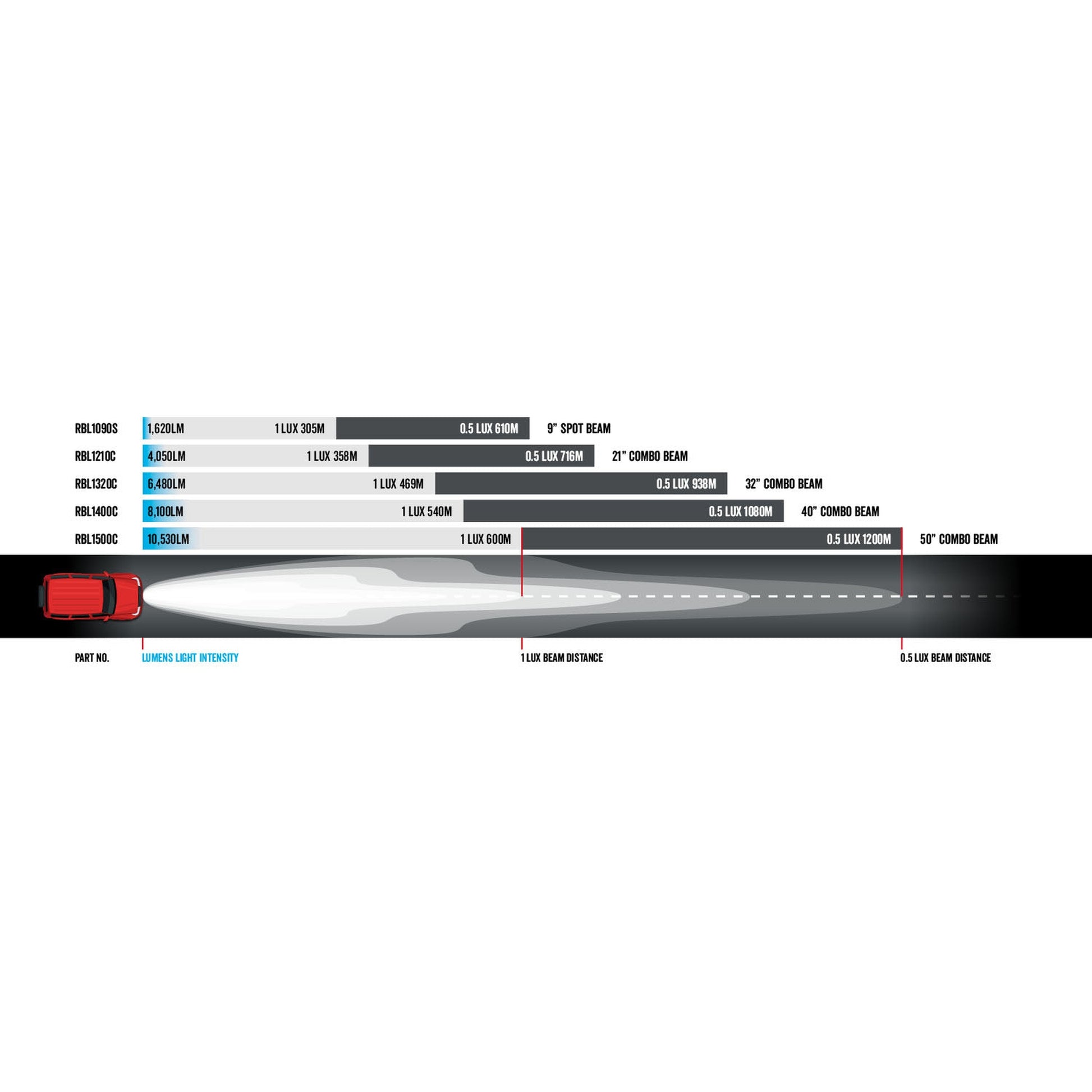

| Beam Distance @ 1 Lux | 191m |
| Beam Distance @ 0.5 Lux | 382m |
| Voltage Input | 10-30V DC (Multi-volt) |
| Current Draw | 1.8A @ 13.8V |
| IP Rating | IP67 (Water & Dust Proof) |
| Wiring Connection | 2 Pin Deutsch Plug |

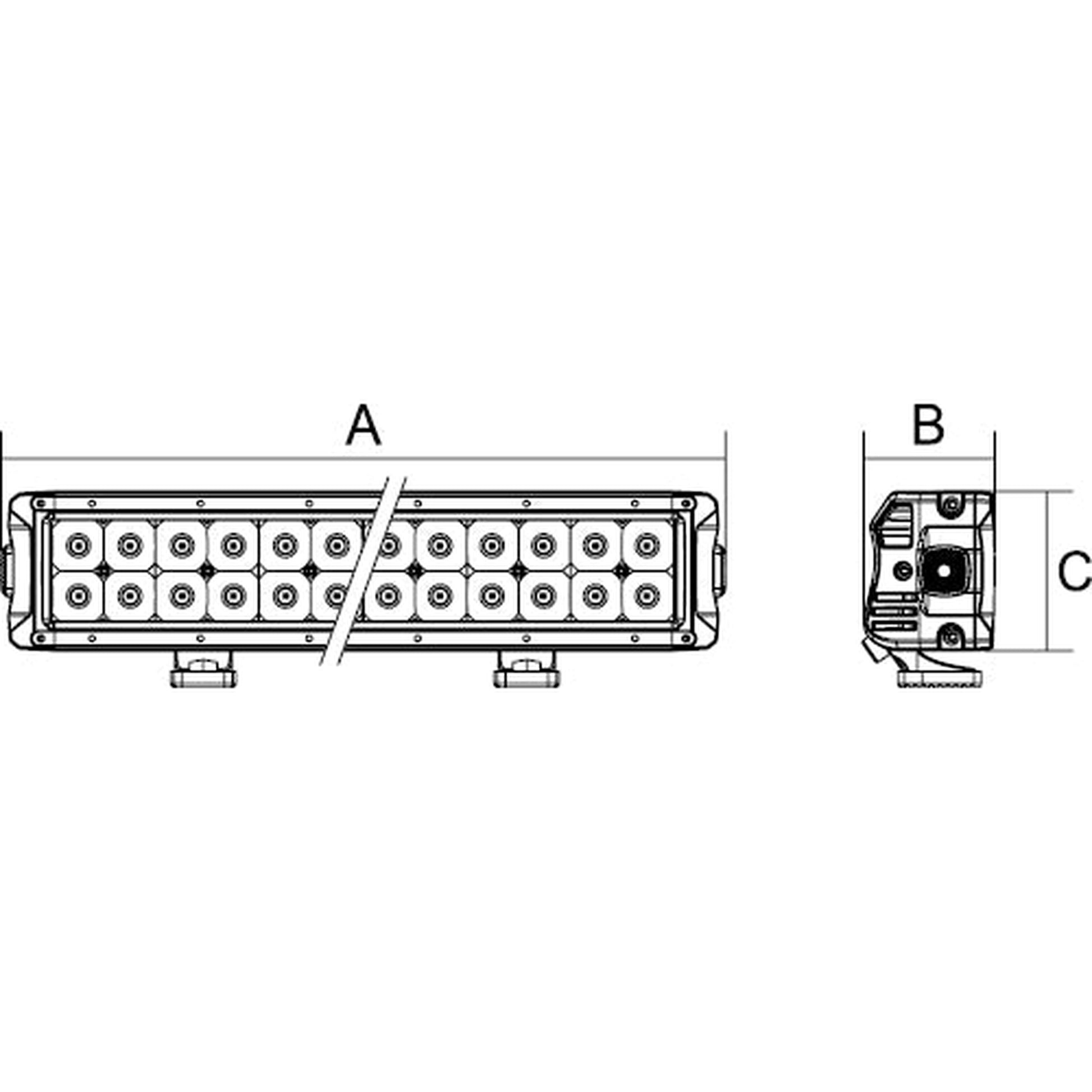

| Dimensions (L x D x H) | 206mm x 65mm x 78.5mm |
Frequently Asked Questions
1. Is the 8-inch size suitable for an ATV or Quad bike?
Absolutely. The compact 8-inch (206mm) footprint and ultra-slim depth make it the ideal choice for ATVs, Side-by-Sides, and motorbikes where mounting space is at a premium.
2. Is this light bar suitable for 24V machinery?
Yes. Featuring a highly efficient 10-30V DC multi-volt input, it operates perfectly on standard 12V utes and buggies as well as 24V industrial and agricultural machinery.
3. Will this light bar cause static on my UHF radio?
No, the DC2 Series is fully EMC and EMI approved. This guarantees zero electromagnetic interference, keeping your communications crystal clear while out on the tracks.
4. How tough is the lens against flying gravel?
The lens is crafted from high-impact polycarbonate, which is virtually unbreakable and designed to resist the stone chips and debris common on Aussie dirt roads.
5. Can I use this as a reverse light?
Yes, due to its compact size and combo beam pattern, many users install the 8" DC2 as a high-powered auxiliary reverse light on trays or roof racks for better visibility while hitching trailers.
6. Does it come with everything needed for mounting?

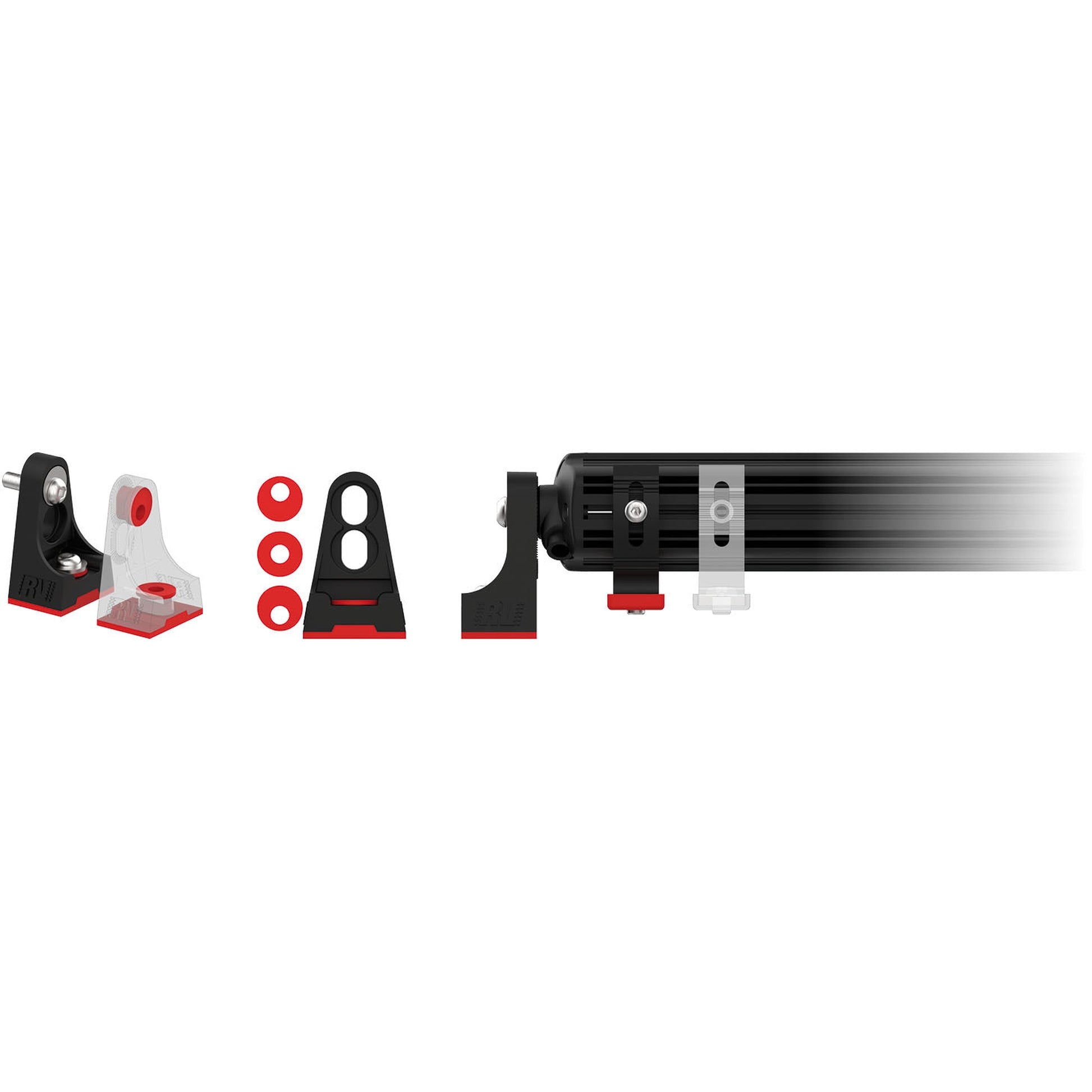

The light bar is supplied with two sets of brackets: low-profile slide mounts and 9-position anti-vibration end mounts, allowing you to choose the best fit for your specific vehicle setup.
