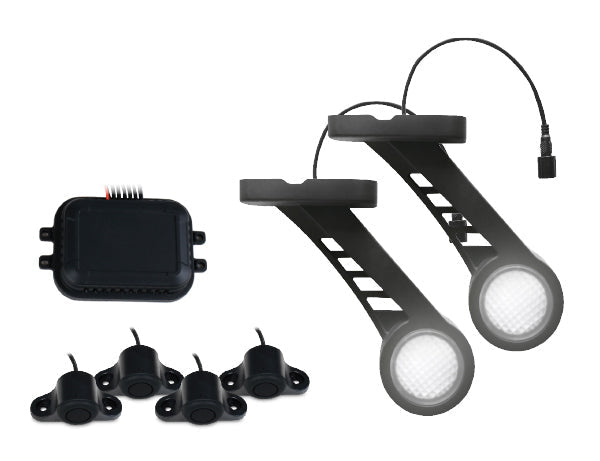

AXIS TRUCK/TRAILER DOCKING SYS

AXIS TRUCK/TRAILER DOCKING SYS

Product Overview:

GENERAL

– Detection Range: 0.3 ~ 1.5

– Rated Voltage: 12/24V DC

– Operating Range: 9-32V DC

– Current Draw: <350mA

– Dust / Water Proof: IP67 Control Box

– Operating Temperature: -30 to +85°C

LED INDICATORS

– Proximity Alert:

1.1 – 1.5M Slow Flash

0.6 – 1.0M Medium Flash

0.4 – 0.5M Fast Flash

0.0 – 0.3M Solid Light

– Arm Type: Flexible Polymer

– Arm Length: 192mm

SENSORS

– Detecting Distance: 0.0 – 1.5M

– Detection Reaction Time: <100ms

– Sensor Type: Rubber

– Colour: Black

– Sensor Cable Length: 2 x 3M Lead, 2 x 6M Lead

– Sensor Installation: Flush, Under or Top Mount, Angle Shims
