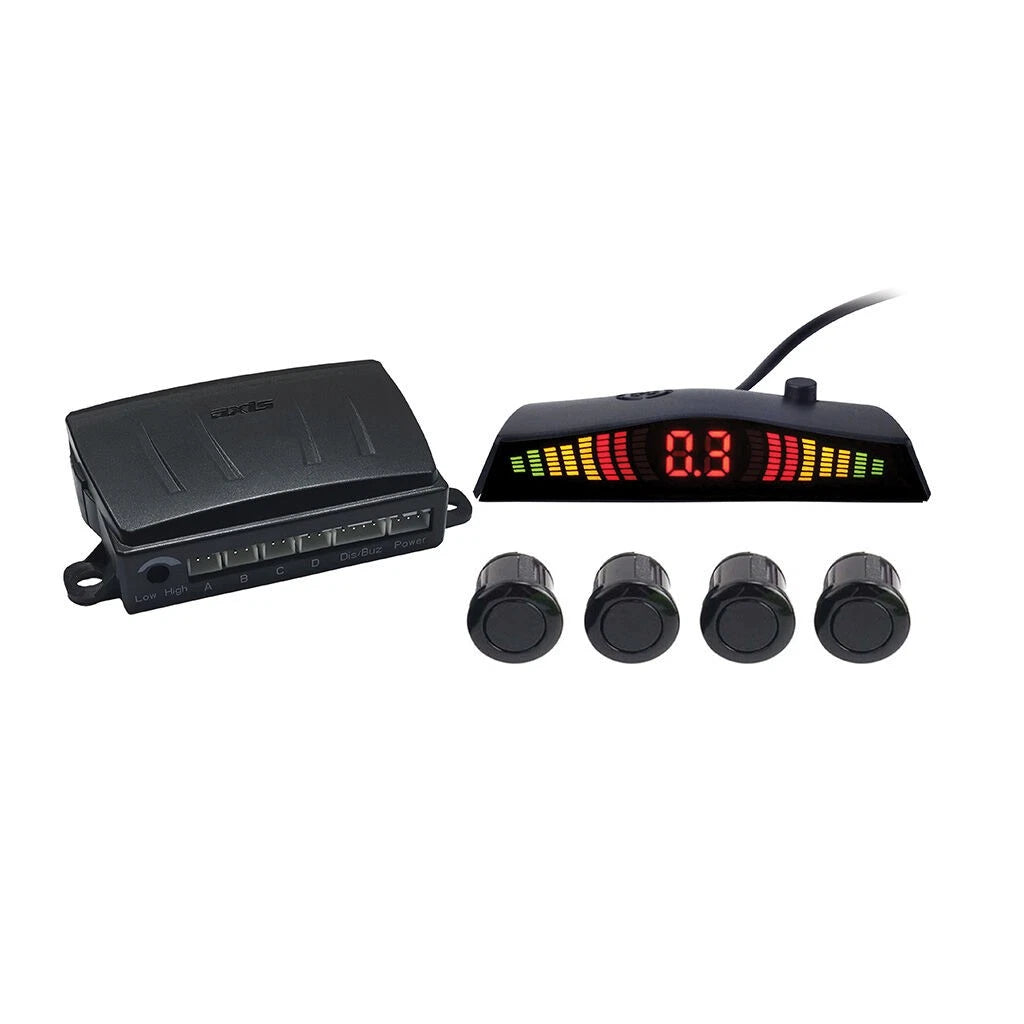

AXIS 4-SENSOR SYSTEM w DISPLAY

AXIS 4-SENSOR SYSTEM w DISPLAY

Product Overview:

The APS401 is specifically engineered for passenger vehicles and offers a hassle-free parking sensor system.It can be easily installed on both the front and rear bumpers,featuring a LED display and audible alert for accurate distance guidance. Its wide 9-32V DC input allows for compatibility with various vehicle types.

Specifications

GENERAL:

• Rated Voltage:12/24V DC
• Operating Range:9-32V DC
• Operating Current:20 -150mA @12V

LED/BUZZER

• Proximity Alert:Visual & Audible Tone
• Audible Buzzer:70-90dB @10cm
• Cable Length:8m(LED Display)

CONTROL BOX

Adjustments:

• DIP Switch 1:Front or Rear Use
• DIP Switch 2:Rear Range Select(Rear Tow Bar Adjustment)
• DIP Switch 2:Front Range Select
• Front Setting:Speed Setting Adjustment
• Front Setting:Auto On/Off with Brake
• Power Leads:4.5m
• Dimensions:100 x 54 x 24mm

SENSORS

• Sensor Type:Paintable ABS
• Sensor Size:18mm
• Sensor Hole Cut-out:18.3mm
• Sensor Cable Length:2.5m

Sensor Installation:

• Front:400 -500mm High
• Rear:500 - 600mm High

Detecting Distance:

• Front Setting:0.3 - 0.9m
• Rear Setting:0.3 - 2.5m
• Working Temperature:-30 to +70°C
• Water Resistance:IP67 .
