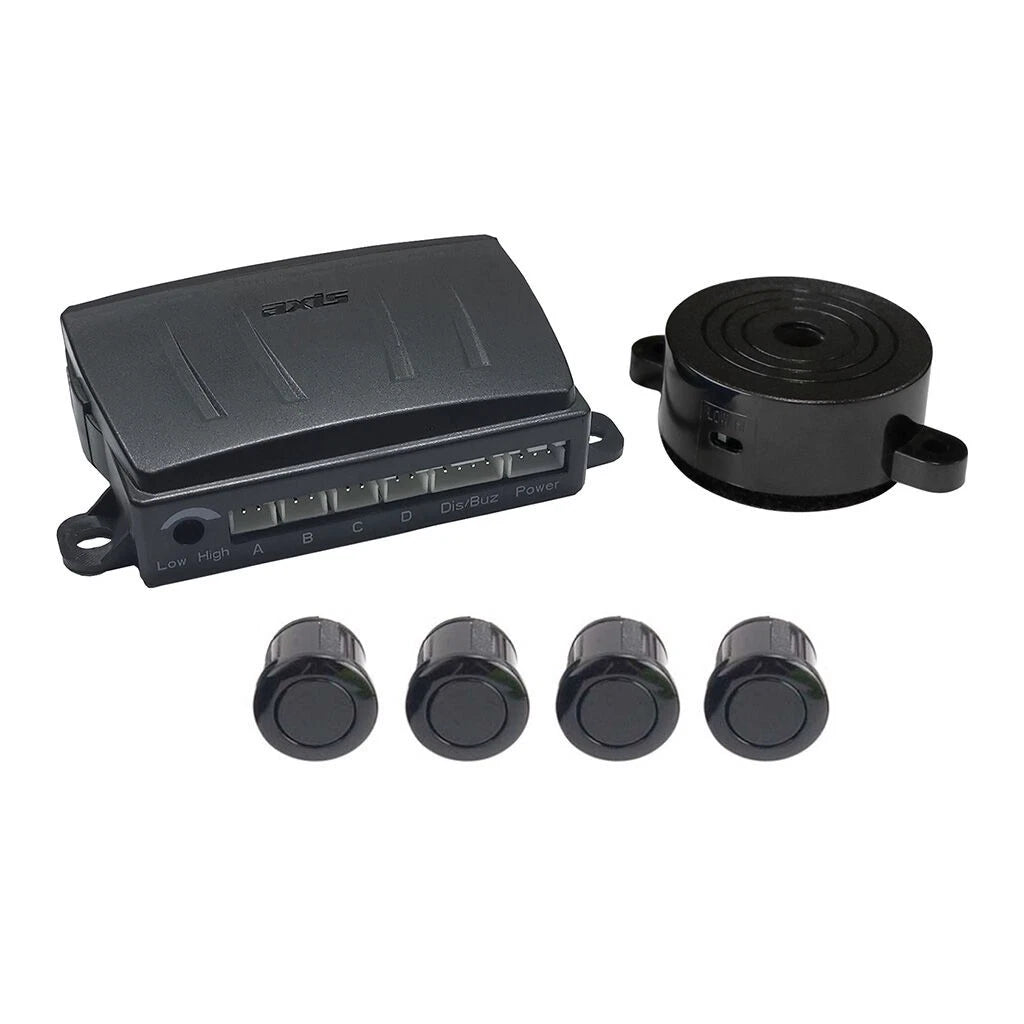

AXIS 4-SENSOR SYSTEM w BUZZER

AXIS 4-SENSOR SYSTEM w BUZZER

Product Overview:

The APS401B parking sensor system is designed for passenger vehicles,making it incredibly user-friendly.It can be easily installed on both the front and rear bumpers, providing convenience and flexibility.With its audible alert,it helps drivers with distance guidance,ensuring a hassle-free parking experience.Moreover the APS401B is compatible with a wide range of vehicles,thanks to its 9-32V DC input capability.

Specifications

GENERAL:

• Rated Voltage:12/24V DC

• Operating Range:9-32V DC

• Operating Current:20-150mA @12V

BUZZER

• Proximity Alert:Audible Tone
• Audible Buzzer:70 -110dB @10cm(Selectable Level)
• Cable Length:8m(LED display)

CONTROL BOX

Adjustments:

• DIP Switch 1:Front or Rear Use
• DIP Switch 2:Rear Range Select / Tow Bar Adjustments
• Front Setting:Speed Setting Adjustment
• Front Setting:Auto On/Off with Brake
• Power Leads:4.5m
• Dimensions:100 x 54 x 24mm

SENSORS

• Sensor Type:Paintable ABS
• Sensor Size:18mm
• Sensor Hole Cut-out:18.3mm
• Sensor Cable Length:3.5m

Sensor Installation:

• Under Mount or In-Bumper Mount
• Front: 400 - 500mm High
• Rear:500 -600mm High

Detecting Distance:

• Front Setting:0.3 -1.5m
• Working Temperature:-30° to +85°C
• Water Resistance:IP68
• Sensor Dimensions:26W x 26H x 23.8Dmm
• Under Mount Dimensions:61W x 31H x 22.4Dmm .
