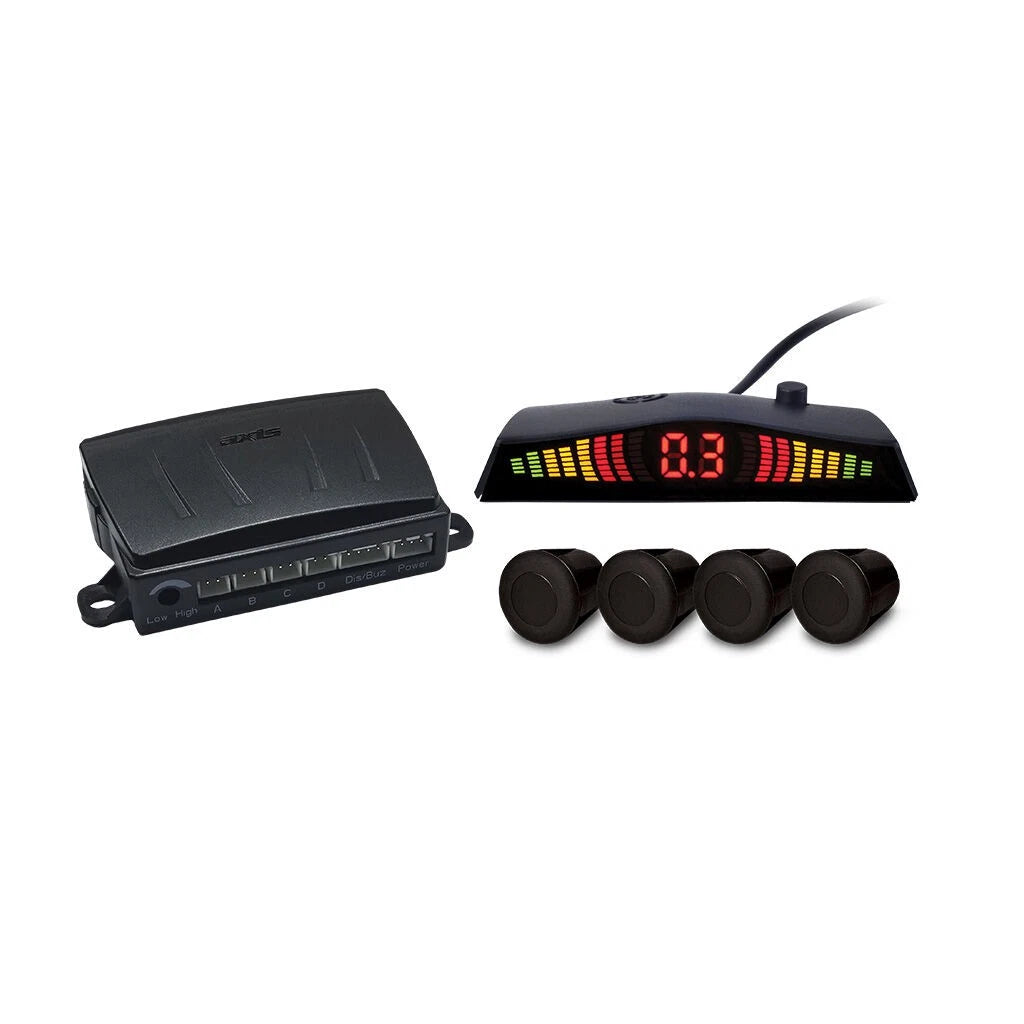

AXIS 4 RUBBER SENSOR SYS w LED

AXIS 4 RUBBER SENSOR SYS w LED

Product Overview:

The APS401R parking sensor system has been specially designed for commercial vehicles that need a front or rear steel bumper or under mount installation. It features an LED display along with audible alerts to provide distance guidance. In addition, the APS401R is compatible with a wide range of vehicles, thanks to its 9-32V DC input.

Specifications

GENERAL:

 Rated Voltage: 12/24V DC

 Operating Range: 9-32V DC

 Operating Current: 20-150mA @ 12V

LED/BUZZER:

 Proximity Alert: Visual & Audible Tone

 Audible Buzzer: 70-90dB @ 10cm

 Cable Length: 8m (LED display)

CONTROL BOX:

 Adjustments:

- DIP Switch 1: Front or Rear Use

- DIP Switch 2: Front Range Select / Tow Bar Adjustments

- Front Setting: Speed Setting Adjustment

- Front Setting: Auto On/Off with Brake

 Power Leads: 4.5m

 Dimensions: 100 x 54 x 24mm

SENSORS:

 Sensor Type: Angled Rubber

 Sensor Size: 20mm

 Sensor Hole Cut-out: 18.8mm

 Sensor Cable Length: 3.5m

 Sensor Installation: Under Mount or In-Bumper Mount

- Front: =400-500mm High

- Rear: =500-600mm High

 Detecting Distance:

- Front setting: 0.3-0.9m

- Rear setting: 0.3-2.5m

 Working Temperature: -30° to +85°C

 Water Resistance: IP68

 Sensor Dimensions: 26W x 26H x 23.8Dmm

 Under Mount Dimensions: 61W x 31H x 22.4Dmm
