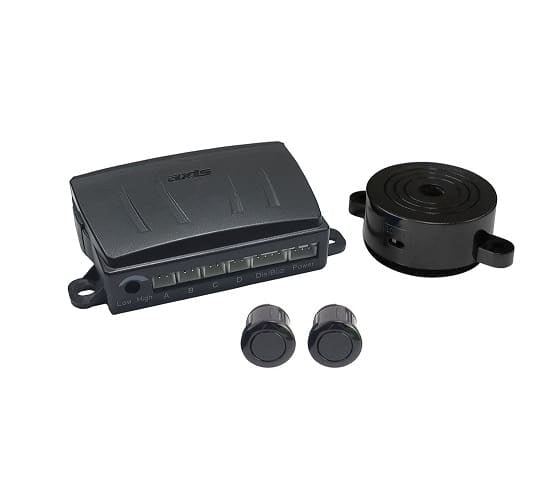

AXIS 2-SENSOR SYSTEM w BUZZER

AXIS 2-SENSOR SYSTEM w BUZZER

Product Overview:

GENERAL

• Rated Voltage: 12/24V DC
• Operating Range: 9-32V DC
• Operating Current: 20-150mA @ 12V

BUZZER

• Proximity Alert: Audible Tone
• Audible Buzzer: 70-90dB @ 10cm
• Cable Length: 8m (Buzzer)

CONTROL BOX

• • Adjustments:
  – DIP Switch 1: Front or Rear Use
  – DIP Switch 2: Rear Range Select / Tow Bar Adjustments
  – Front Setting: Speed Setting Adjustment
  – Front Setting: Auto On/Off with Brake
• Power Leads: 4.5m
• Dimensions: 100 x 54 x 24mm

SENSORS

• Sensor Type: Paintable ABS
• Sensor Size: 18mm
• Sensor Hole Cut-out: 18.3mm
• Sensor Cable Length: 3.5m
• Sensor Installation: In-Bumper Mount
  – Front: 400-500mm High
  – Rear: 500-600mm High

• Detecting Distance:
  – Front setting: 0.3-0.9m
  – Rear setting: 0.3-2.5m

• Working Temperature: -30° to +85°C
• Water Resistance: IP68
• Sensor Dimensions: 21W x 21H x 19.5Dmm
