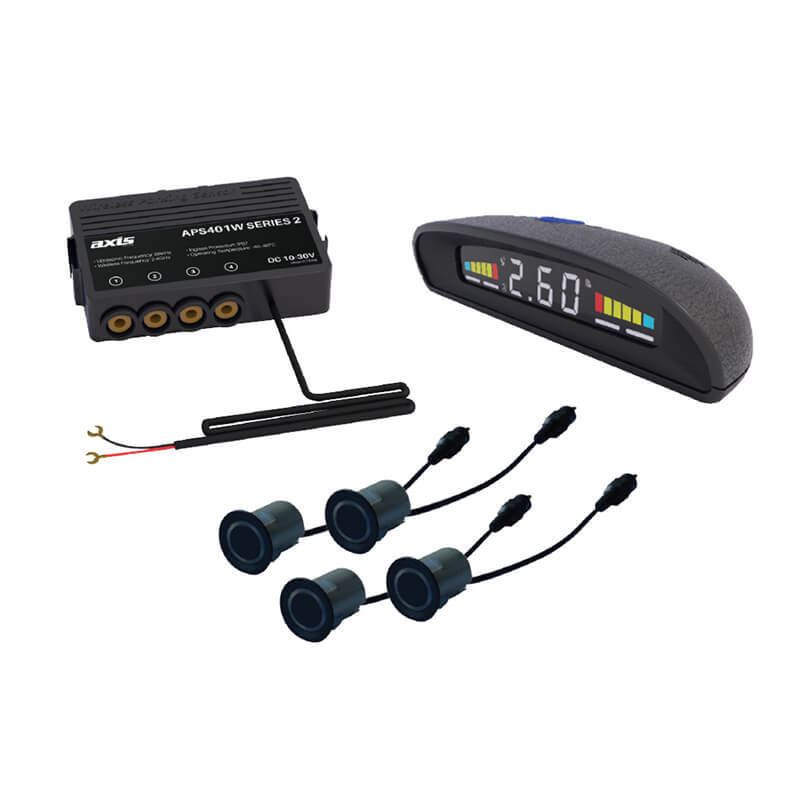

AXIS 12/24V WIRELESS PARKING 4 SENSOR

AXIS 12/24V WIRELESS PARKING 4 SENSOR

Product Overview:

GENERAL

• Detection Range: 0.3-2.6m
• Rated Voltage: 12/24V DC
• Operating Range: 10-30V DC
• Operating Current: 130mA @ 12V

 LED DISPLAY

• Proximity Alert: Visual Direction & Indicators
• Audible Buzzer: Yes
• Mute Function: Yes
• Dimensions: 108W x 30H x 51Dmm
• Range Adjustment: Min – Max Towbar / Spare Wheel

 CONTROL BOX

• Water Resistance: IP67
• Wireless Range: Up to 30m
• Power Leads: 1.0m

SENSORS

• Sensor Type: Angled
• Sensor Size: 22mm
• Sensor Dimensions: 25.6W x 25.5H x 22Dmm
• Sensor Cable Length: 0.15m Fly Lead + 2.4m Extension Lead
• Sensor Installation: Under Mount or In-Bumper Mount
• Detecting Distance: 0.3 – 2.6m
• Ultrasonic Frequency: 58KHz
• Working Temperature: -40° to +80°C
• Water Resistance: IP68
• Under Mount Dimensions: 70Wx37Hx30Dmm
