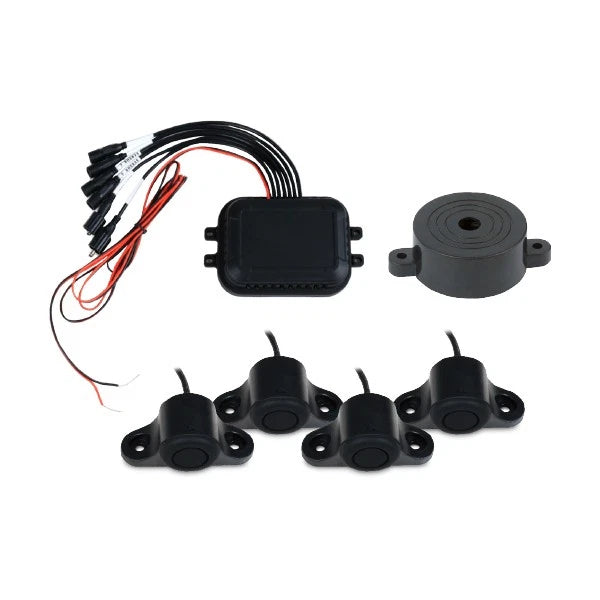

AXIS 12/24V 4 SENSOR TRUCK SYS WITH BUZZER

AXIS 12/24V 4 SENSOR TRUCK SYS WITH BUZZER

Product Overview:

GENERAL

– Detection Range: 0.3 ~ 1.5m

– Rated Voltage: 12/24V DC

– Operating Range: 9-32V DC

– Operating Current: 350mA @ 12V

BUZZER

– Proximity Alert: Audible Tone

– Audible Buzzer: Yes

– Buzzer Cable Length: 15.8m

CONTROL BOX

– Water Resistance IP67

– Power Leads: 1.4m

– Dimensions: 106W x 27H x 80Dmm

SENSORS

– Sensor Type: Angled Rubber

– Sensor Size: 20mm

– Sensor Dimensions: 26W x 26H x 23.8Dmm

– Sensor Cable Length: 2.1m

– Sensor Installation: Under Mount or In-Bumper Mount

– Detecting Distance: 0.3 – 1.5m

– Working Temperature: -30° to +85°C

– Water Resistance IP68

– Under Mount Dimensions: 61W x 31H x 22.4Dmm
