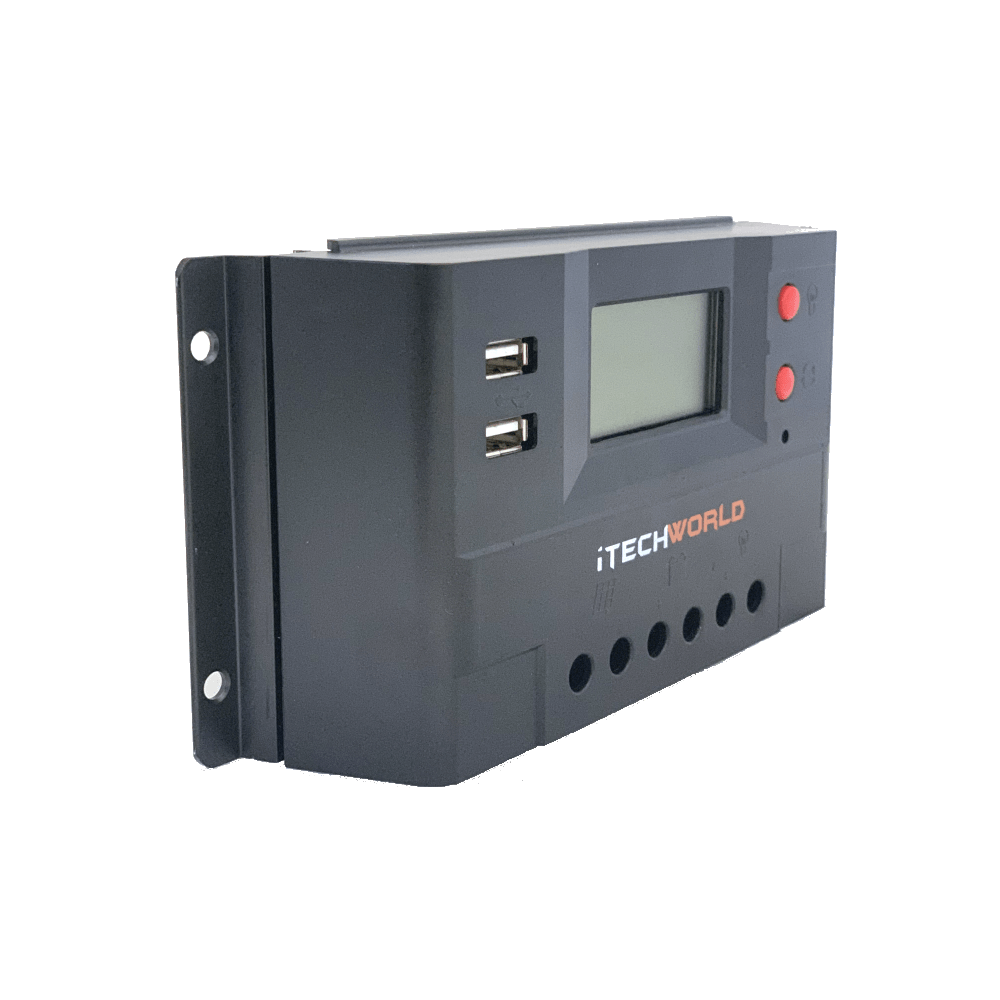

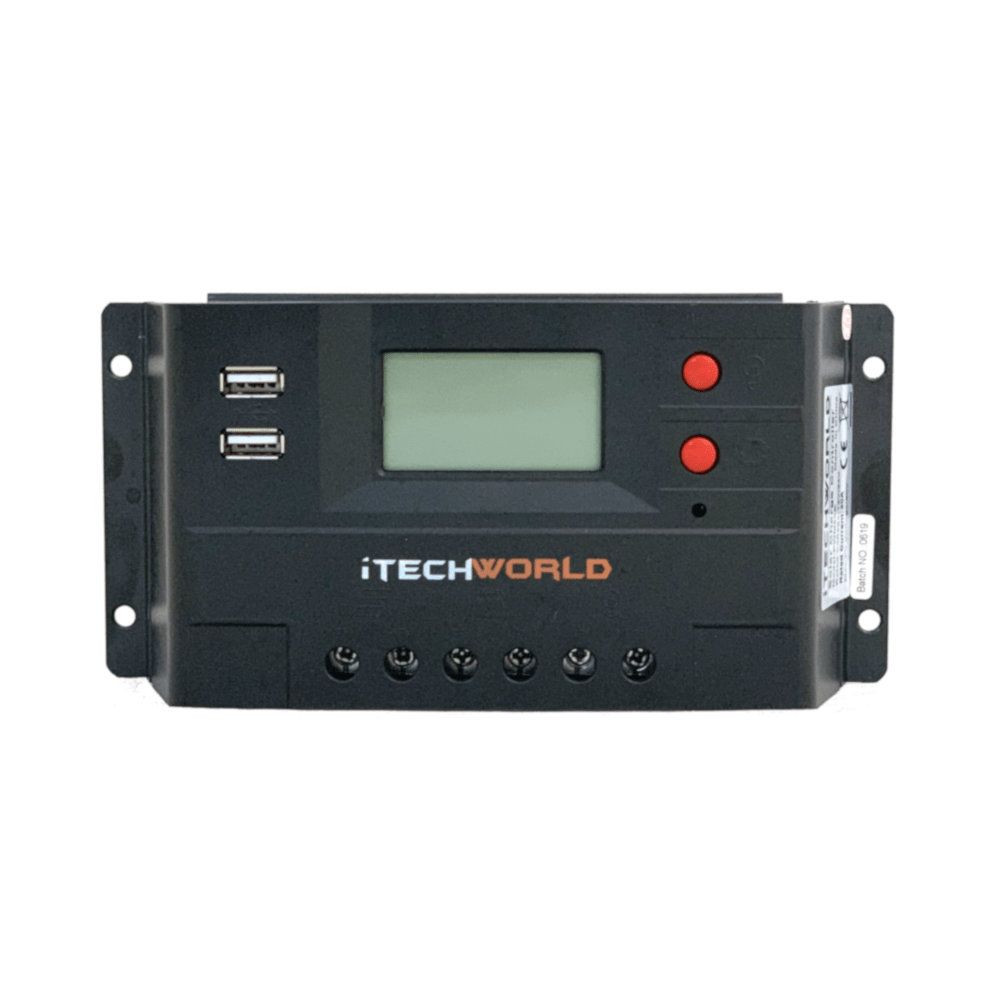

30 Amp Intelligent Solar Regulator with LCD Screen

iTechworld 30 Amp intelligent Solar Panel Regulator Lithium Profile

The new intelligent Solar Regulator from iTechworld allows you to select a lithium profile for charging. This means you can charge your iTECH120 more effectively by upgrading to this regulator. You can also set this regulator to work on normal AGM batteries.

By investing in the latest technology at a fraction of the price you get access to one of the Intelligent Charging system available today it fully supersedes previous iTechworld regulators. The 30 Amp intelligent regulator with USB has the ability to automatically switch between 12v and 24v systems with no manual input needed. It automatically sense the battery voltage and puts the juice in accordingly.

iTechworld's 30 Amp intelligent Regulator is the you beaut Regulator you have been waiting for. At the right price. It has a full digital display which tells you accurately what is going on with your Solar and Battery set up.

The iTechworld 30 Amp intelligent regulator will even tell you how many amps your solar panel is producing.

Features:

• An intelligent control point for your solar panel system. With an intuitive LCD display screen you are in control of your solar panel system.
• Lithium and AGM charging profiles
• Dual USB ports.
• Will enable you to monitor your solar panel power conversion, power storage and use of your solar power supplies.
• Using the touch keypad you can program the controller to your preferences and monitor your solar system in real time.
• Installation of the control panel is made easy with step by step instructions.
• Easy to read display icons and indicators will tell you the operating status of your solar panels.
• Easy and simple key operation.
• Intelligent PWM Charging Mode.
• Adjustable charging & discharging control parameters.
• Overloading & short-circuit protection
• Battery reversed discharge protection
• Protection for battery back discharging
• Protection for battery low voltage

SPECIFICATIONS:
Intelligent PWM Charging Mode

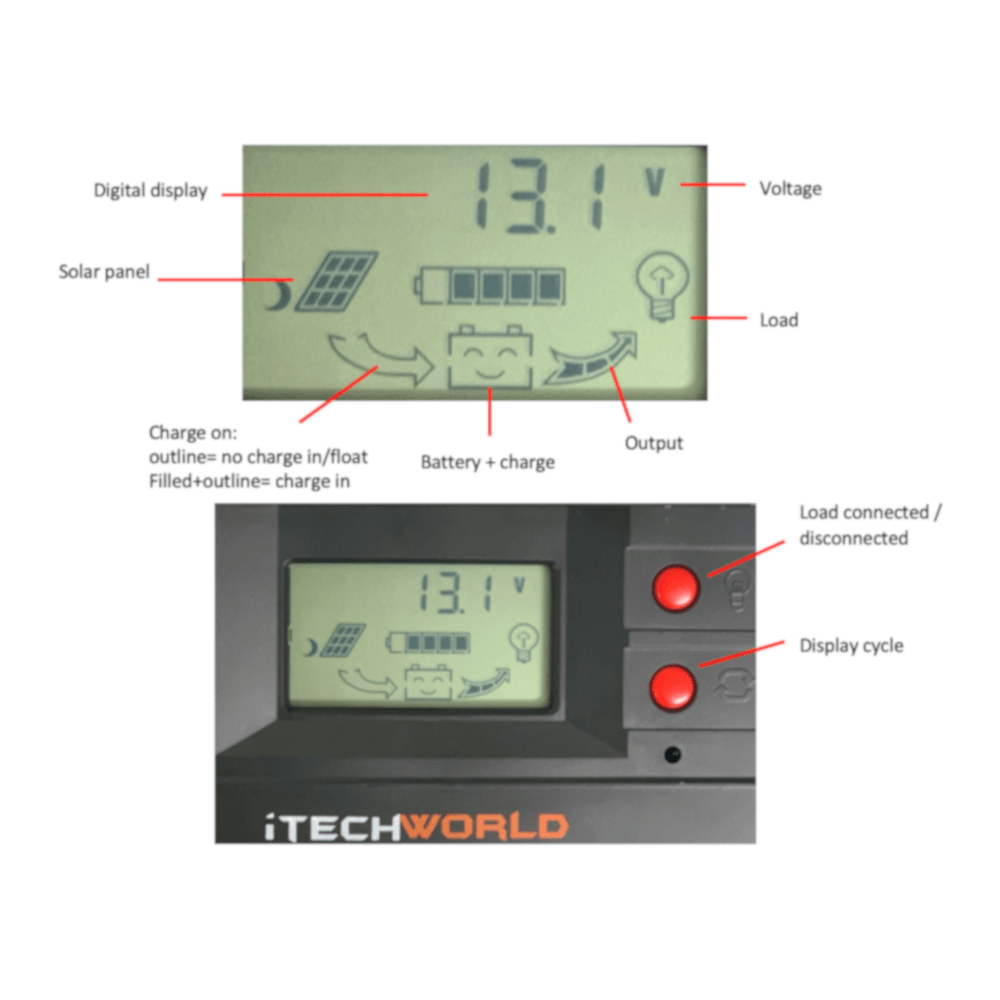

Visual LCD graphic display
Adjustable charging/discharging
Protection for battery back discharge
Overload & short circuit protection
Reversed polarity protection
Max PV input: 50v
Rated Voltage: 12V / 24V Automatic system voltage identification
Rated Current : 30A
Low Voltage Disconnection / LVD: 10.7V / ( Adjustable )
Low Voltage Reconnected / LVR: 12.6 V / ( Adjustable )
Delayed auto restart after overloading protection
Protection for battery back discharging
Installation Cable area: ≤ 6# AWG (16 mm² )

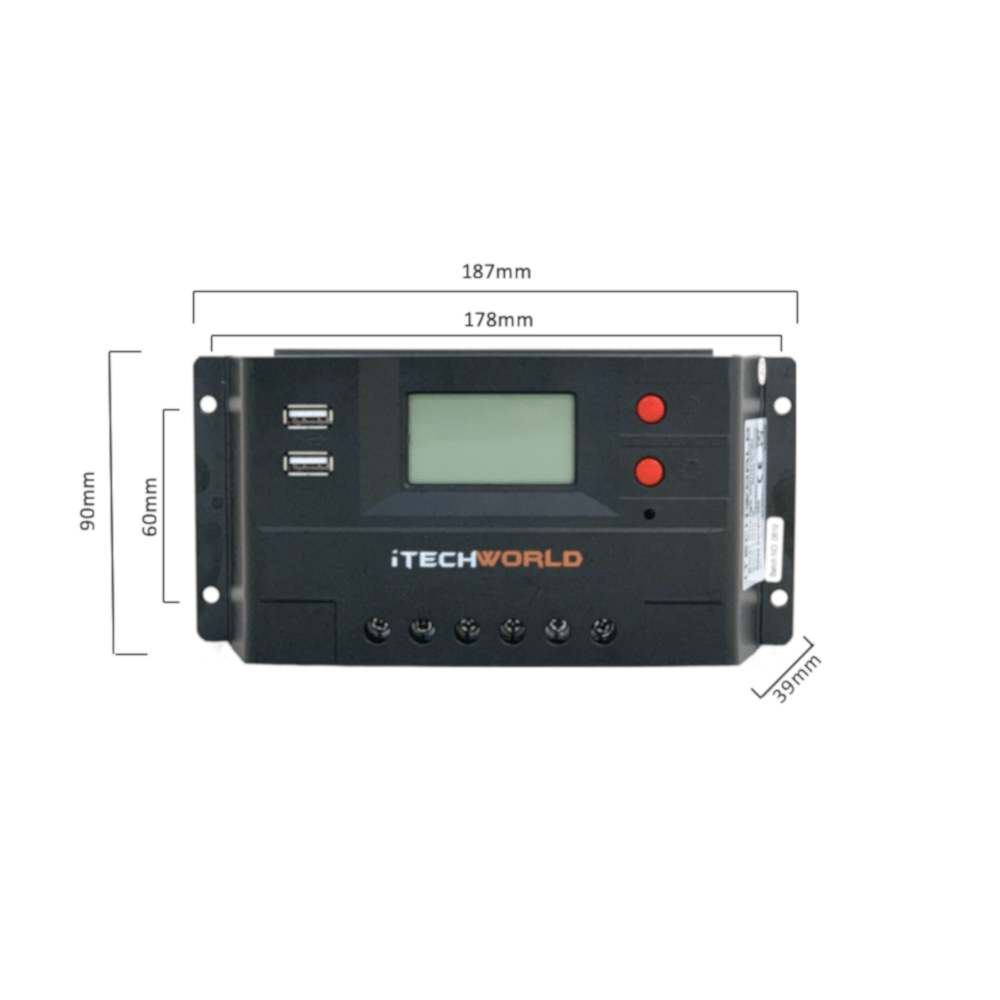

Dimensions: Width 187 x Height 90 x Depth 39 mm
International safety standard compliant: CE & RoHS Certification
Weight : 300g
Statutory warranty is 12 months from date of purchase.

PACKAGE CONTENTS:
1x 30 amp iTechworld solar regulator with LCD display and USB
