iTechworld
SKU: 150w22vhardframe-1
Regular price
$144.00 AUD
Regular price
Sale price
$144.00 AUD
Sale
Sold out
Taxes included.
Shipping calculated at checkout.
Voltage
OCV: 27V (17mm thick)Variant sold out or unavailable
OCV: 22V (30mm thick)Variant sold out or unavailable
Couldn't load pickup availability
Refresh

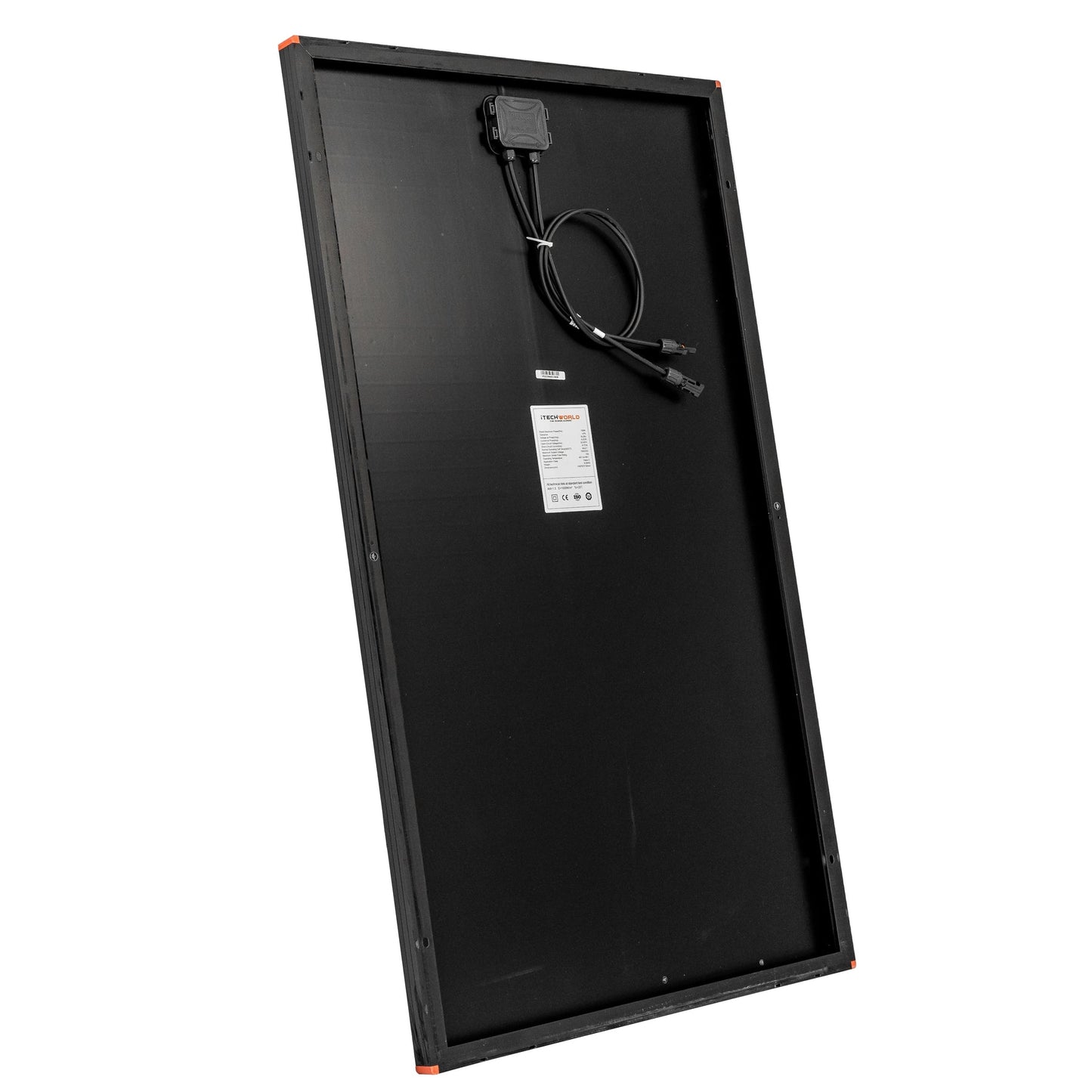

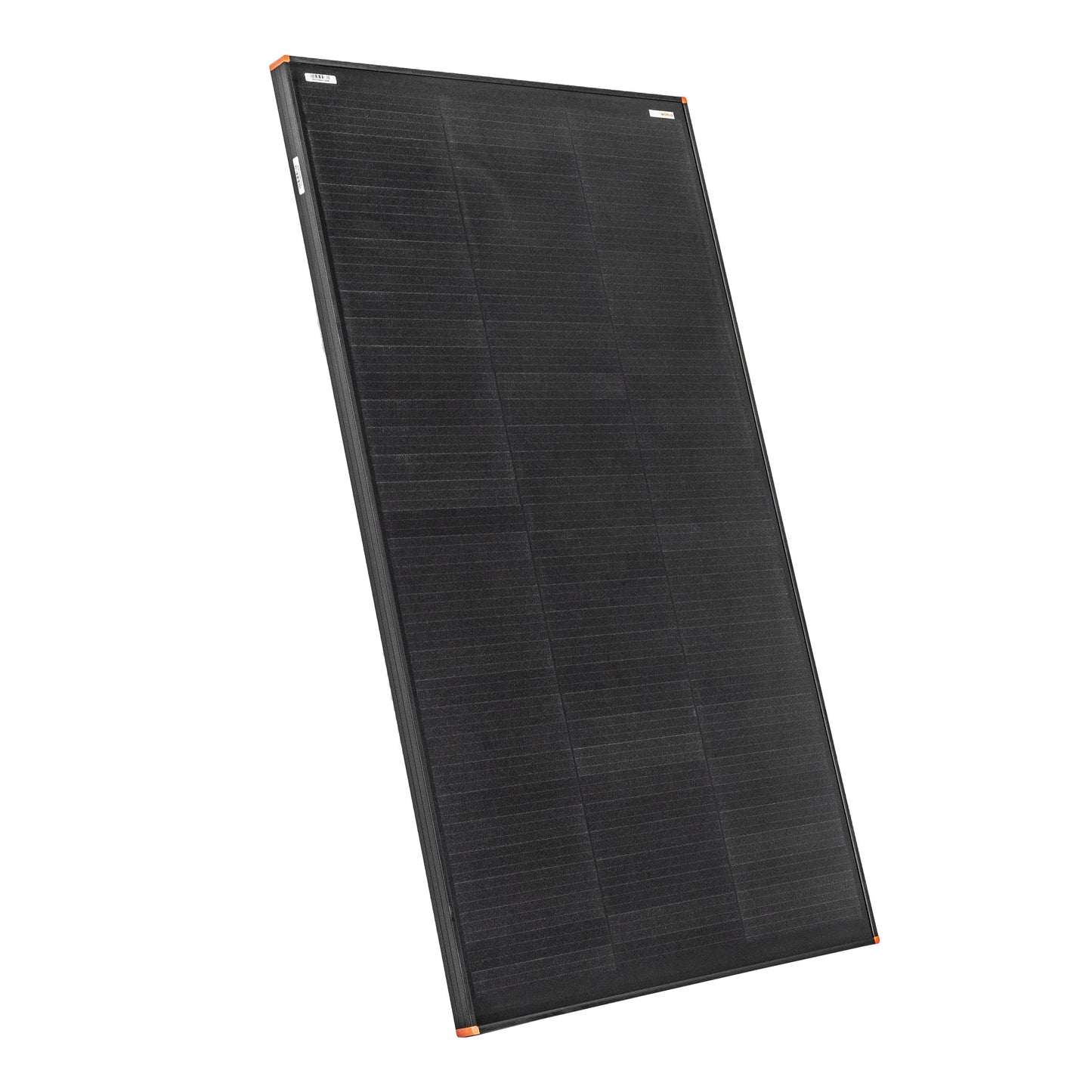

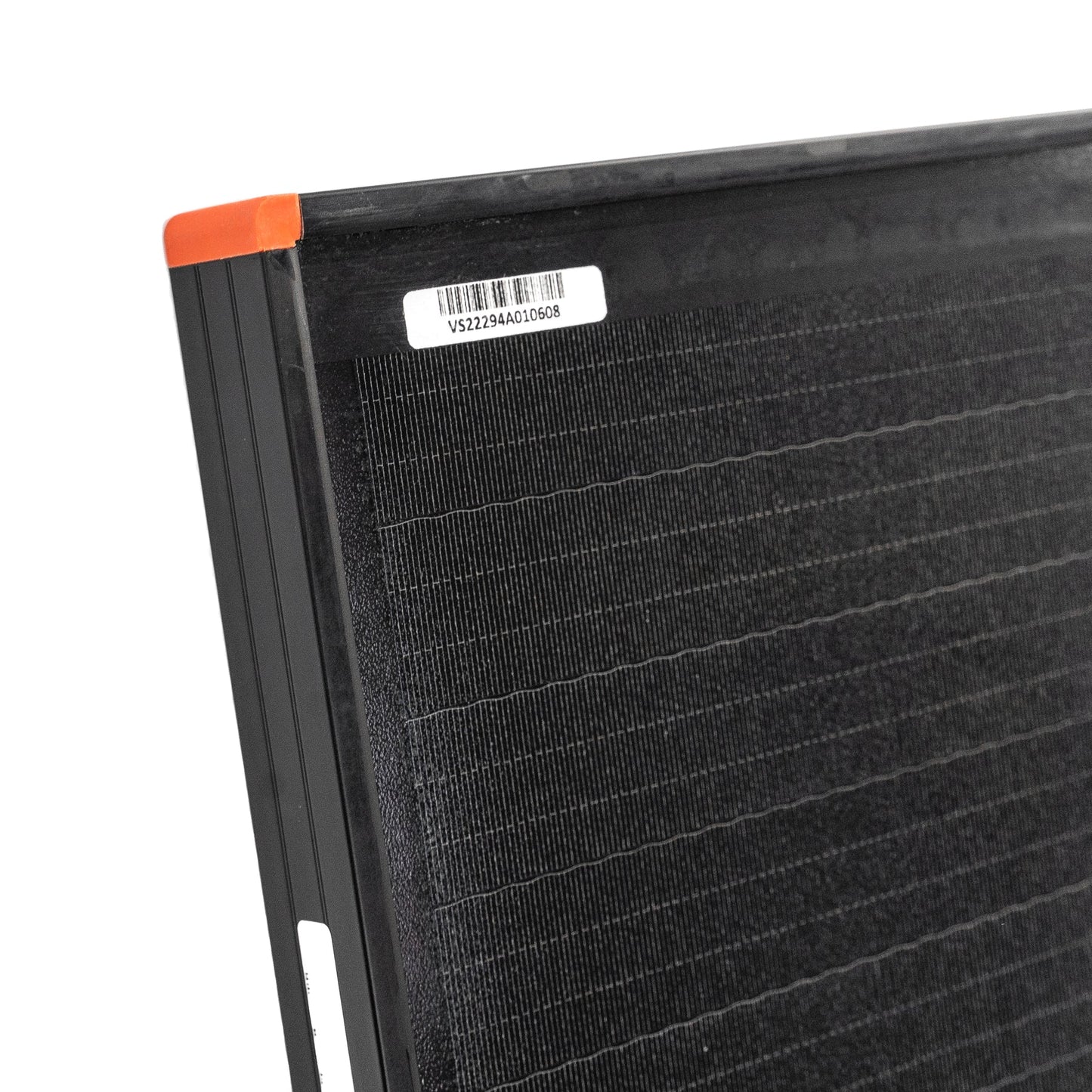

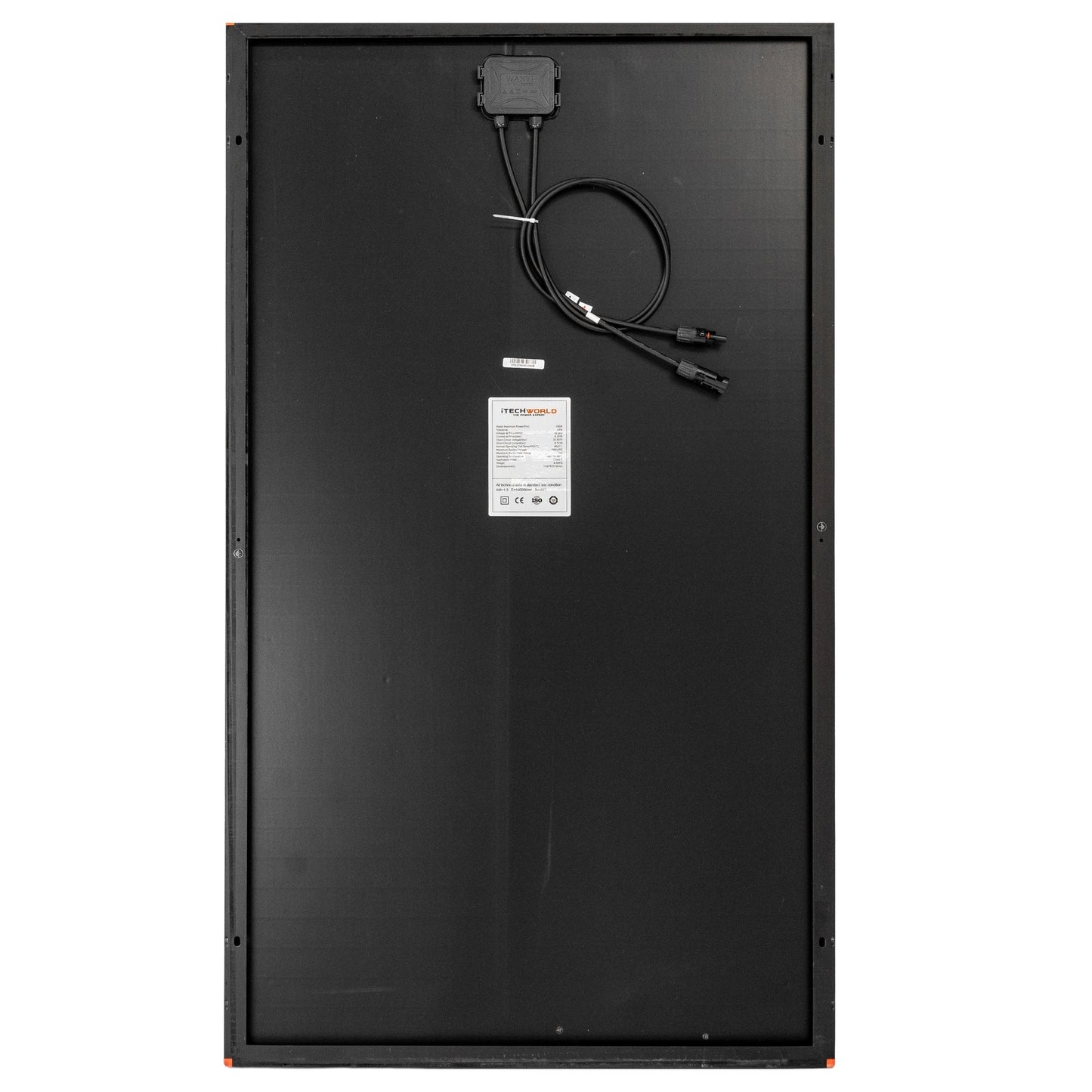

PRODUCT DETAILS iTechworld 150W Hard Frame Solar Panel 22V/27V Our all-new 22V 150W Hard Frame Solar Panels have proudly been designed and developed in Australia. Utilising Shingle Solar Cells, you can expect higher power per square meter, less energy loss due to shading and overall improved aesthetics.

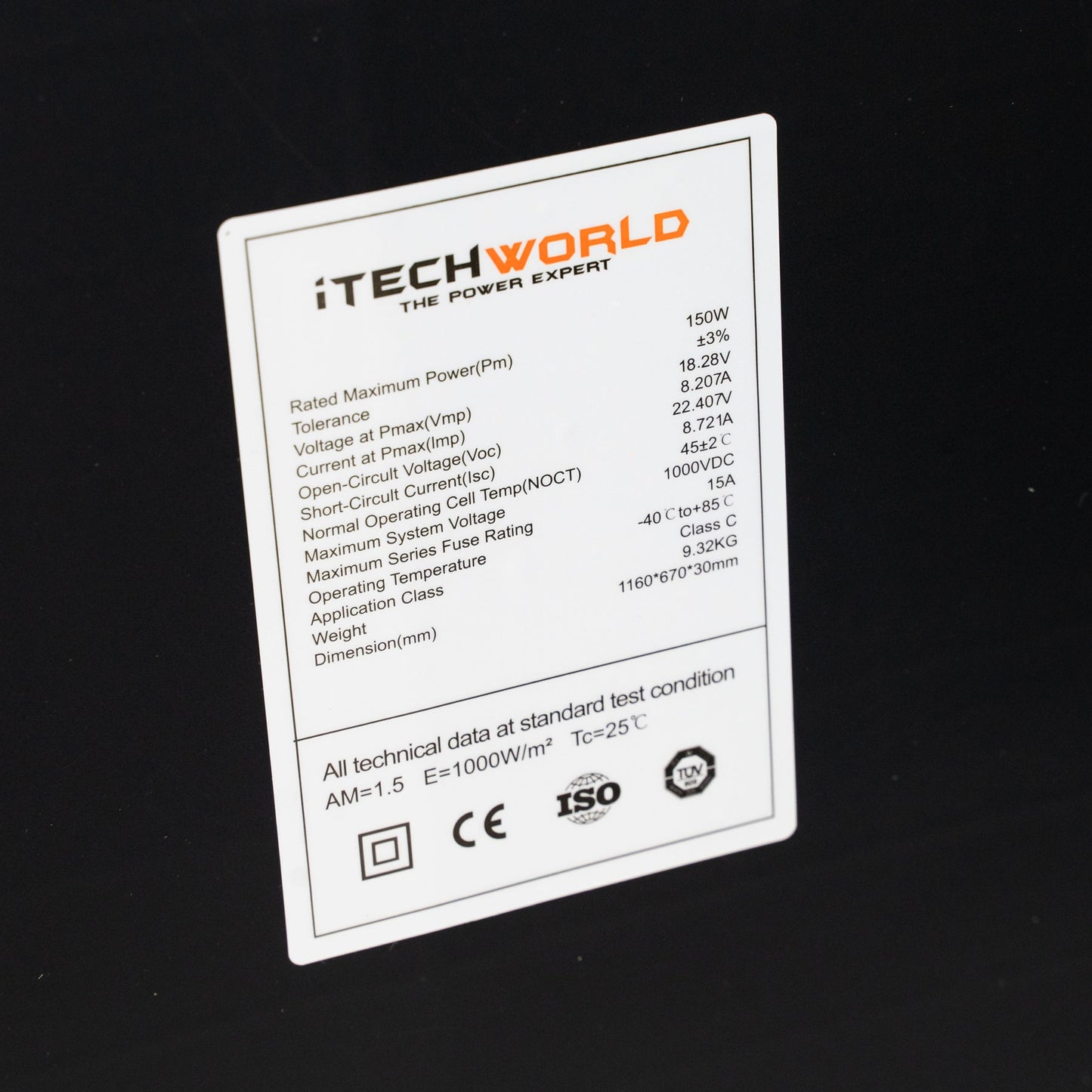

SPECIFICATIONS
Rated Maximum Power(Pm)
150W
Tolerance
‡3%
Voltage at Pmax(Vmp)
18.28V
Current at Pmax(Imp)
8.207A
Open-Circult Voltage(Voc)
22.407V
Short-Circult Current(|sc)
8.721A
Normal Operating Cell Temp(NOCT)
45+2°C
Maximum System Voltage
1000VDC
Maximum Series Fuse Rating
15A
Operating Temperature
-40 Cto+85 C
Weight
9.32KG
Dimension(mm)
1160x670x30mm
