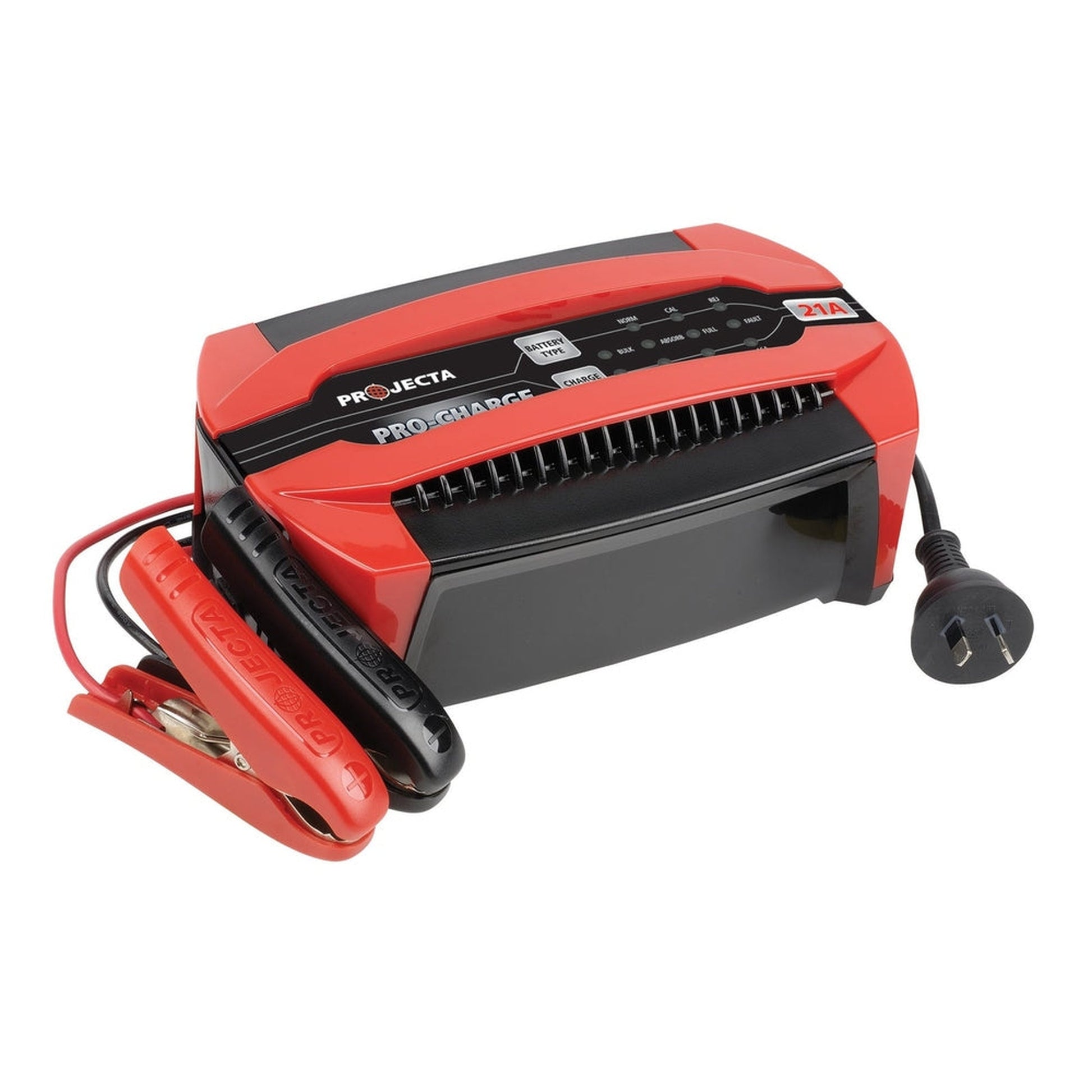

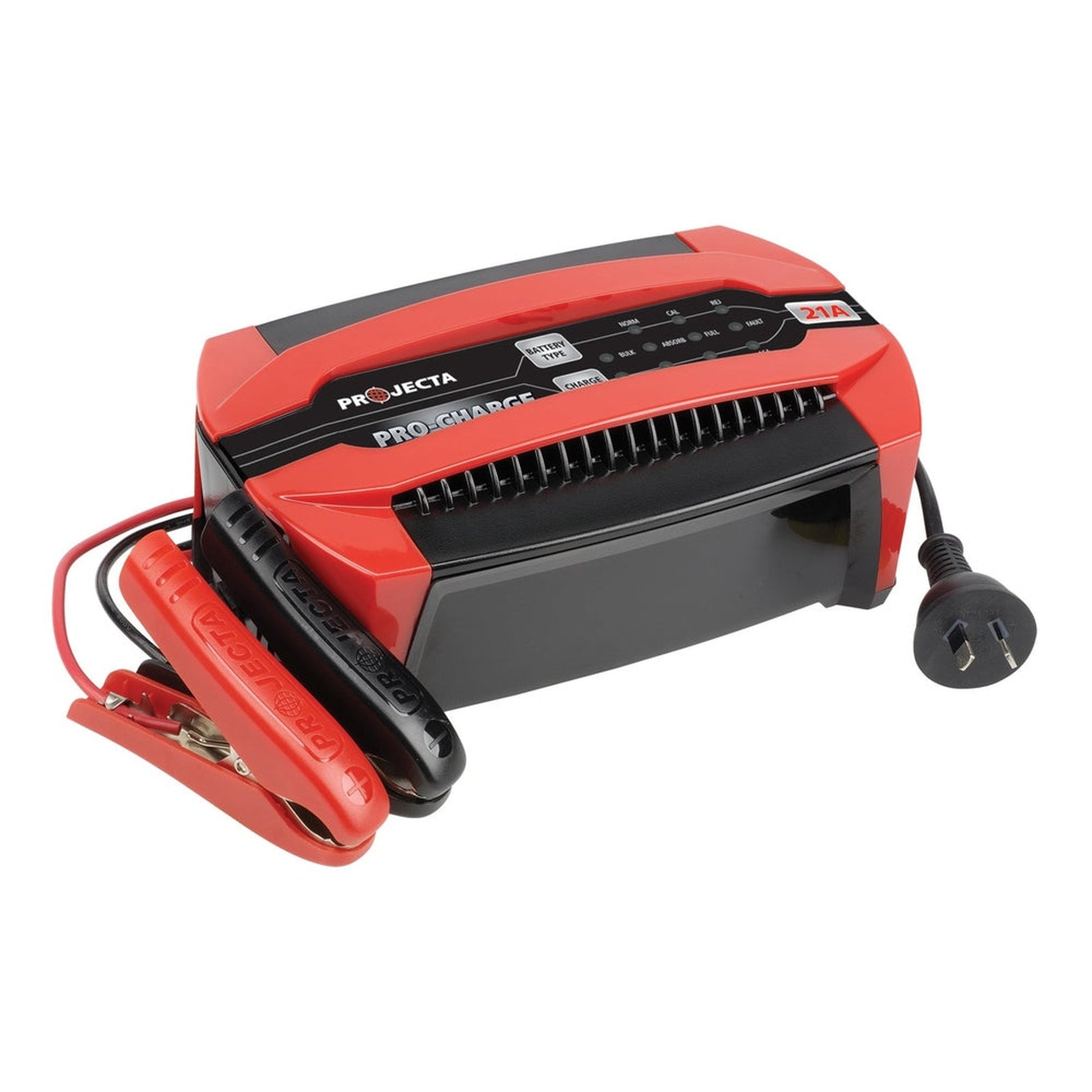

12V AUTOMATIC 21A 6 STAGE BATTERY CHARGER PC2100
12V AUTOMATIC 21A 6 STAGE BATTERY CHARGER PC2100
SKU: PC2100
Couldn't load pickup availability
Share
A powerful charger offering a comprehensive 6 stage charge ideal for a wide range of battery sizes.
Features:
Adjustable Output
Suitable for a wide range of different size batteries.
Calcium Mode
Adjusts the charging profile to suit calcium batteries.
Rejuvenation Mode
Revitalises tired batteries, increasing battery life, and performance (subject to battery condition).
Side Mounting Wings
Optional mounting wings for permanent installation.
Safer Charging
Spark free and polarity protected.
Specification:
|
PART NO |
PC2100 |
||
|
TYPE |
6 Stage Battery Charger |
||
|
INPUT |
240VAC, 50Hz, 600W |
||
|
OUTPUT |
12V |
||
|
OUTPUT CURRENT |
2, 4, 12, 21A |
||
|
MINIMUM START VOLTAGE |
3.0V |
||
|
BACK DRAIN |
1mA |
||
|
APPROVALS |
Electrical Safety, EMC |
L.E.D. Charge Indication
|
BLUE LIGHT ON |
Bulk and absorption charging |
||
|
GREENLIGHT ON |
Fully charged and maintaining, |
||
|
AMBER LIGHT ON |
Rejuvenation process occurring |
||
|
RED LIGHT ON |
Indicates faulty battery |
Battery Charge Times
|
PC2100 |
VOLTAGE |
BATTERY SIZE |
CHARGE TIME |
|
AUTOMOTIVE |
12V |
80–2500CCA |
7–24 hrs |
|
MARINE |
12V |
110–3500MCA |
7–24 hrs |
|
DEEP CYCLE |
12V |
14–420Ah |
7–24 hrs |
