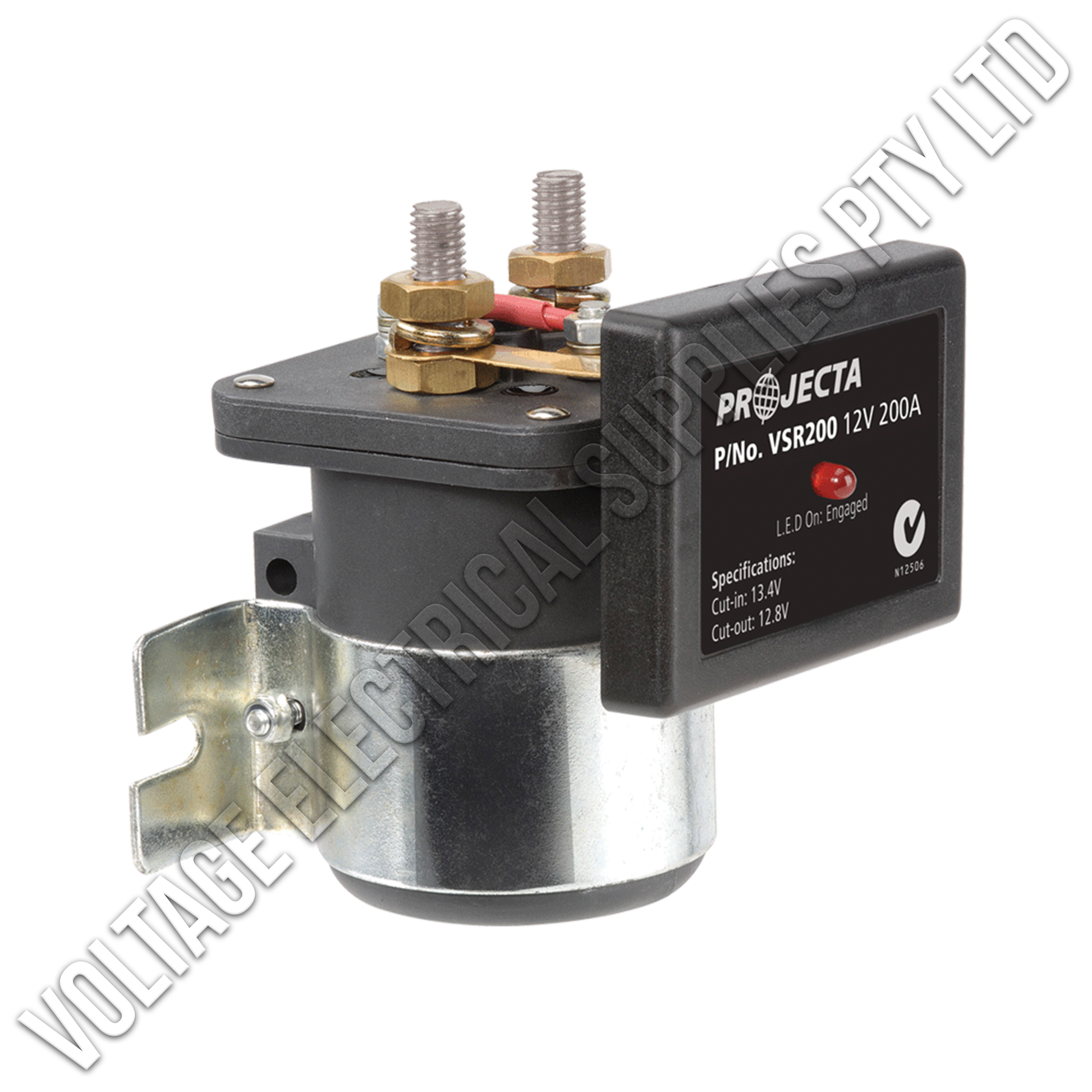

The perfect ‘no-fuss’ power management controllers suitable for a wide variety of 12V DC applications, eg. winching etc.
Features:

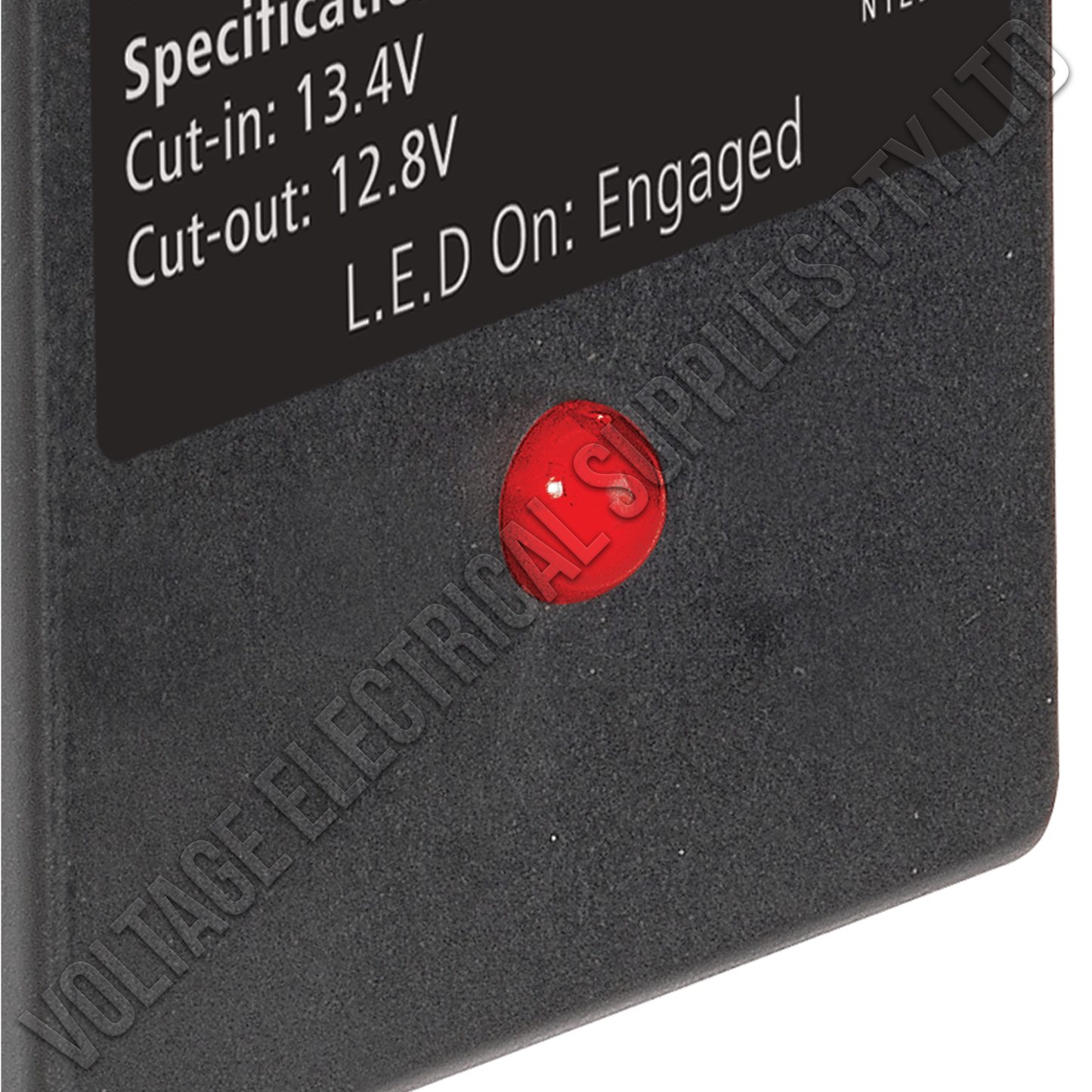

L.E.D indicator
- L.E.D illuminates when VSR is activated.
Sealed electronics
- Prevents dust and water ingress (IP66).
Surge protection
- Built-in protection guards vehicle against voltage spikes.
Manual override
- Bypasses automatic settings allowing the relay to engage below-set voltages.
Silvertip contacts
- Provide exceptional current transfer.
Specifications:
|
PART NO
|
VSR200
|
|
VOLTAGE
|
12V
|
|
CHARGING CURRENT
|
200A Continuous, 400A Peak
|
|
CUT-IN VOLTAGE
|
13.4V
|
|
CUT-OUT VOLTAGE
|
12.8V
|
|
CUT-OUT DELAY
|
8 seconds
|
|
MINIMUM OPERATING VOLTAGE
|
10V
|
|
CHARGE TYPE
|
Parallel
|
|
CONTROL
|
MCU
|
|
MOUNTING
|
Surface/firewall
|
|
CURRENT DRAW
|
Charging 680mA (standby 10mA)
|
|
SURGE PROTECTION
|
Built-in
|
|
INGRESS PROTECTION
|
IP66
|
|
OVERRIDE
|
Requires min. 10V
|
|
RECOMMENDED FUSE
|
250A
|
|
MINIMUM CABLE SIZE
|
32mm2 (2 B&S)
|
|
APPROVALS
|
EMC
|
