iTECHBC40 Intelligent Battery Charger 12V 40A
iTECHBC40 Intelligent Battery Charger 12V 40A
SKU:iTECHBC40
Couldn't load pickup availability
Share
PRODUCT DETAILS
iTECHBC40 Intelligent Battery Charger 12V 40A

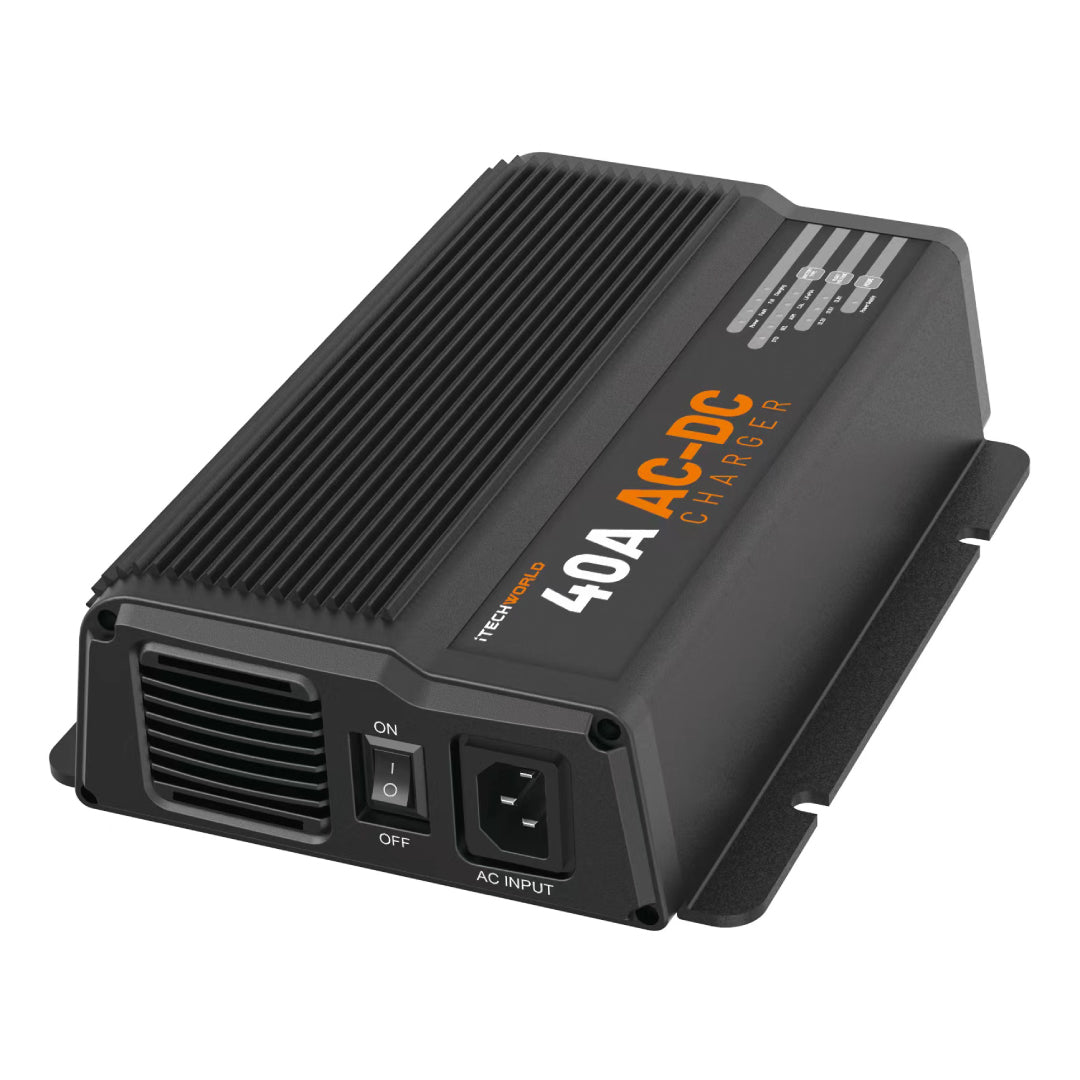

The iTECHBC40 40A AC Intelligent Battery Charger is a fully automatic "set and forget" charger. It has been designed and developed to charge Lithium LiFEPO4 batteries fast, efficient and effective, with unique algorithms that help maximise your battery's service life. The iTECHBC40 is a smart multistage battery charger that utilises the latest switch-mode battery charging technology, allowing your charger to be permanently connected to your battery bank.
The multistage charging algorithm delivers a fast, efficient and consistent charge with no voltage drop. Using charge algorithms that are tailor-made for Lithium LiFePO4 batteries, the iTECHBC40 not only charges the battery but looks after it. The iTECHBC40 is unlike any other battery charger on the market; with lithium LiFePO4 batteries as the focus, it will maximise and extend your battery's service life.
The iTECHBC40 has an innovative boost charge feature; this helps activate an iTechworld lithium battery from safe mode.

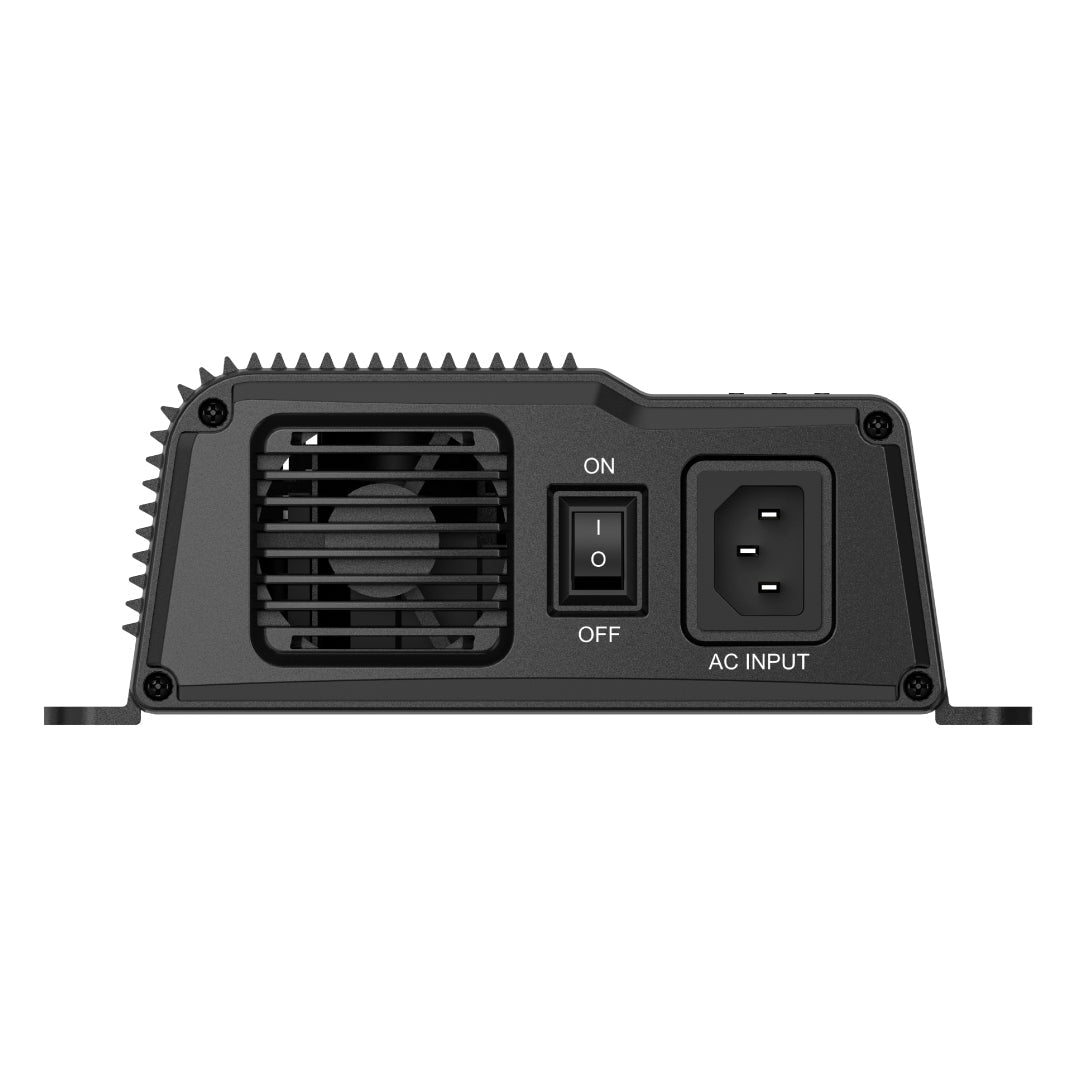

Designed and developed in Australia, the iTECHBC40 is built for the harsh Australian climate. The iTECHBC40 has a thermally cooling fan that automatically switches on and off based on the internal charger temperature to handle extreme conditions.
The iTECHBC40 battery charger uses a micro control system to manage the battery charging process.
Package Contents
- 1x iTechworld iTECHBC40 40A Battery Charger
- 1x Power lead
- 1x Set of 12v 800mm heavy duty battery leads with M8 eyelets/ring terminals
- 1x Instruction manual HERE
General | |||||
---|---|---|---|---|---|
Battery capacity: | 100-1200Ah | ||||
Maximum input current: | 4.8A | ||||
Input fuse rating: | 80A | ||||
Continuous output current: | Up to 40A | ||||
Output fuse rating: | 60A | ||||
Minimum auxiliary battery charge start voltage | 4V | ||||
Standby current: | <18mA | ||||
Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 | ||||
Operating temperature: | -20°C ~ 80°C | ||||
IP rating: | IP20 | ||||
Dimensions | 275 x 187 x 70mm | ||||
Weight: | 2.5kg | ||||
Output | |||||
Charge type: | 4-Stage | ||||
Charging profile: | STD | Gel | AGM | Calcium | LiFePO4 |
Bulk: | 40A | ||||
Absorption: | 14.4V | 14.1V | 14.7V | 15.5V | 14.4V |
Float voltage: | 13.4V | 13.5V | 13.4V | 13.6V |
